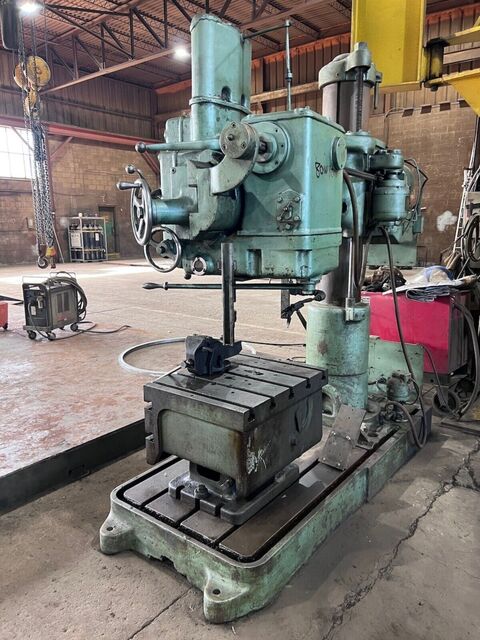

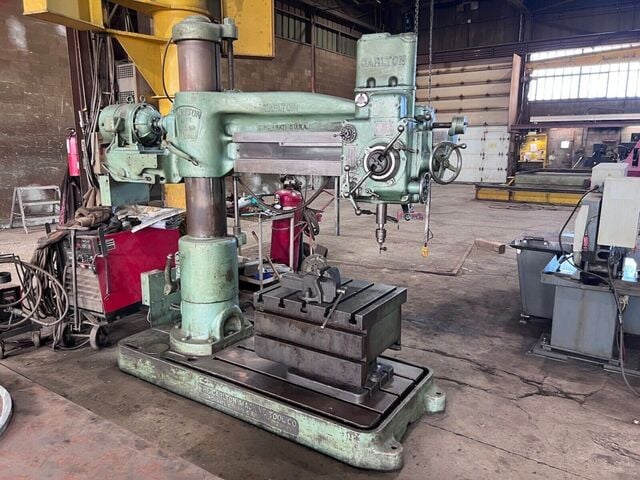

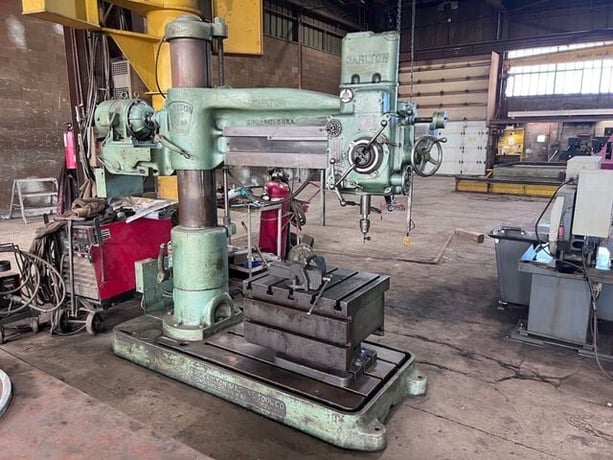

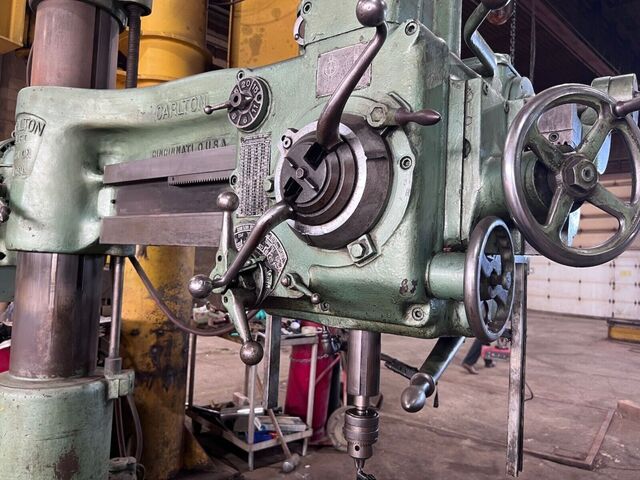

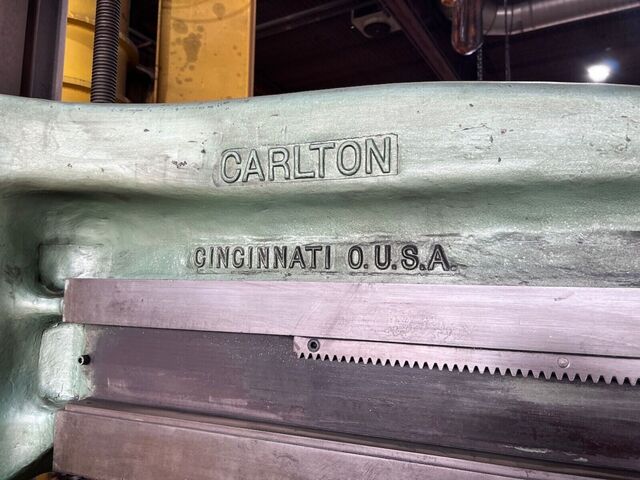

4' -11" Carlton, Radial Drill, 9" - 48" Face to Spindle Center, 17.5" - 4' 8.5" Spindle radius, #4 MT, 5 HP, 40-1500 RPM

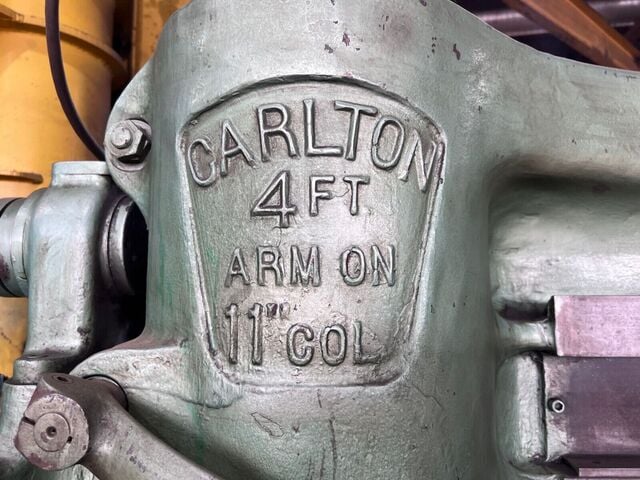

Nominal Arm length : 4′ (Actually drills to a longer radius)

Diameter of Column: 11″
Column Face to spindle Center: 48″ max. to 9″ min.
Spindle radius: 4’8-1/2″ max., 17-1/2″ min.
Spindle to base: 4’7-1/4″ max., 14-3/4″ min.
Spindle Speeds: 40 – 1500 RPM
Spindle Feeds (6): .006″ – .025″
Vertical Travel ,Spindle In Head: 12″
Morse Taper in Spindle: No. 4
Travel vert.Arm on Column: 2′ 4½″
Travel of Head On Arm: 3’ 3″
Drills to Center of Circle: 8′
Main Drive Motor: 5 HP
Electrical: 3 phase power, any voltage (with transformer)

Equipped With:

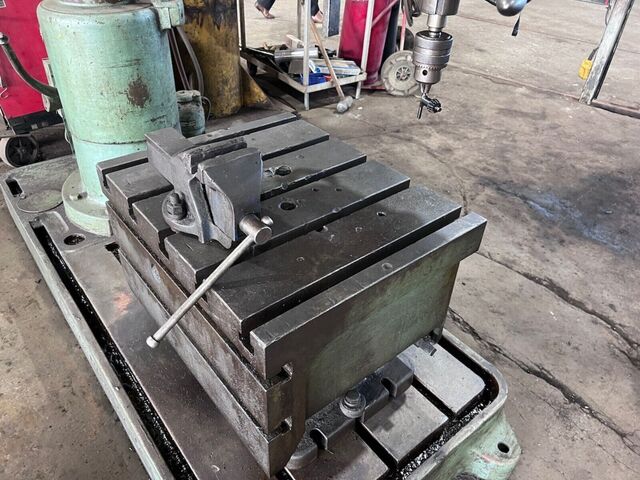

Power Elevation, Power Clamping, Coolant System, Machinist Vise

Additional Info:

This Radial Arm Drill is in fully functional working condition. It’s former owner moved to
a larger fabrication shop, already equipped with the larger equipment.
We guarantee all main functions in working order. Price is only . . . . $ 4,444 USD

We can ship this on truck at your door, at economical extra cost.
No duty to return to USA.
