Ton: 393.0
Stroke: 16.0
Daylight: 22.0
Stock # 1812
1 / 4
Click to zoom in
1 / 4
For Sale by Icon Industries, Inc
Surplus Record Dealer Since 1990
Location: Grand Rapids, MI
Contact Tom,Pete,Bob
Phone Number: 616...> Show Phone Number 616-229-2957
Let the seller know you found their listing on Surplus Record!
Description

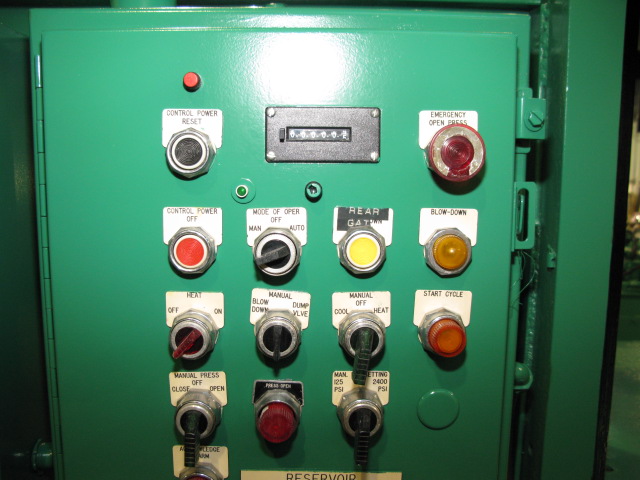

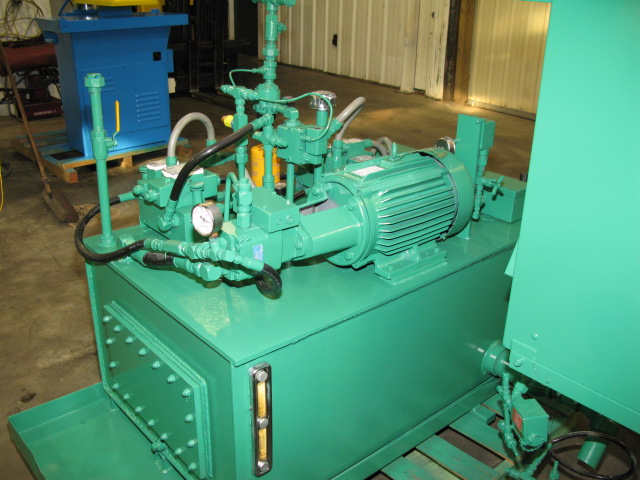

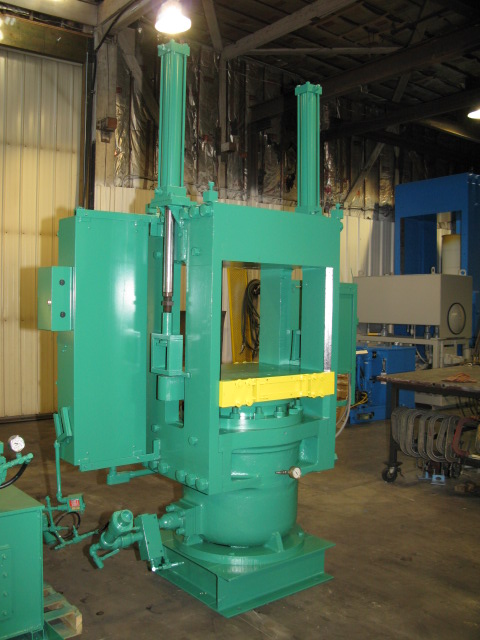

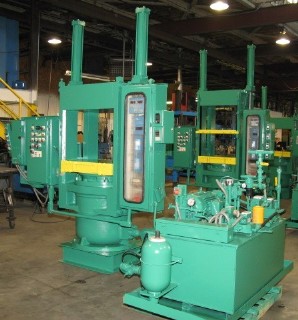

20" DIAMETER MAIN RAM WITH APPROX 16" STROKE. 393 TONS AT 2500 PSI. MAX DAYLIGHT IS APPROX 22.5" FULLY GUIDED WITH 45 DEGREE ADJUSTABLE GIBS. OPERATOR HEIGHT IS APPROX 46.5". SLAB-SIDES ARE 3.5" THICK WITH 7" WIDE WINDOWS. 3.25" SIDE PUSH BACK CYLINDERS WITH 25" STROKE. TOP MOUNTED HYDRAULIC POWER UNIT (CAN BE FLOOR MOUNTED): 10 HP (230/460 VOLTS; 1800 RPM); OIL GEAR AXIAL PISTON PUMP RATED AT 6 GPM TO 3000 PSI (PVWH-06-LSAY-CNNN); CONTINENTAL DIRECTIONAL VALVES; RETURN FILTER; 3000 PSI GAUGES; AB PRESSURE SWITCH; 2.5 GALLON BOSCH ACCUMULATOR; UNLOADING VALVE; ELECTRICAL JUNCTION BOX; 80 GALLON RESERVOIR; DRIP PAN. CONTROLS INCLUDE: TENOR SOLID-STATE PROGRAMMER MODEL 763; TENOR TIME/COUNT MODULE MODEL 763; TWO TEMP CONTROLLERS; HEAT ON/OFF; STOP/START; E-STOP; MANUAL/AUTO; MANUAL DECOMPRESS; ETC…OVERALL DIMENSIONS OF POWER UNIT: 74" X 32" X 44" TALL. OVERALL DIMENSIONS OF PRESS WITH POWER UNIT ON TOP: 92" X 44" X 122" TALL. HEIGHT (AND OPERATOR HEIGHT) CAN BE REDUCED APPROX 8" BY REMOVING FABRICATED BASE. APPROX 15,000 POUNDS. SOME DRAWINGS. ITEM#1812.
Get Your Price from Icon Industries, Inc!
