Ton: 393.0
Stroke: 16.0
Daylight: 22.0
Stock # 1814
1 / 4
Click to zoom in
1 / 4
For Sale by Icon Industries, Inc
Surplus Record Dealer Since 1990
Location: Grand Rapids, MI
Contact Tom,Pete,Bob
Phone Number: 616...> Show Phone Number 616-229-2957
Let the seller know you found their listing on Surplus Record!
Description

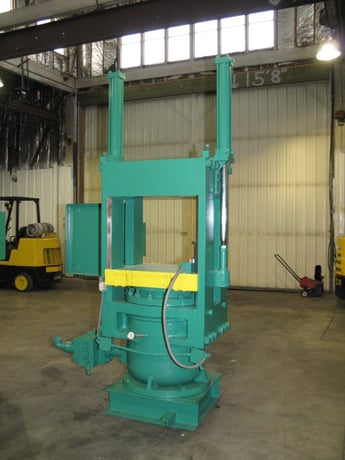

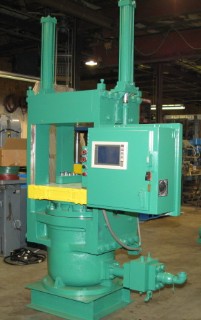

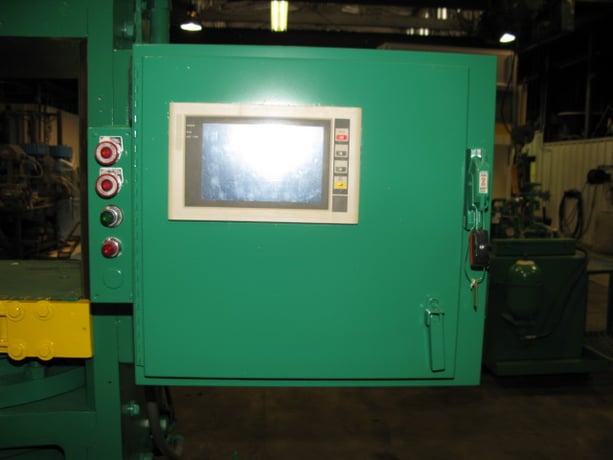

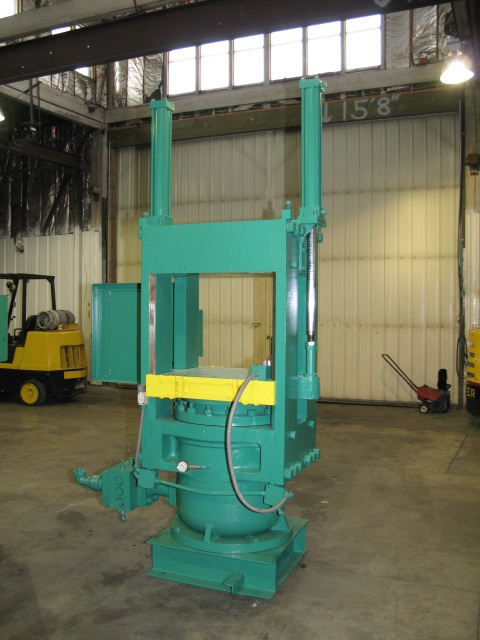

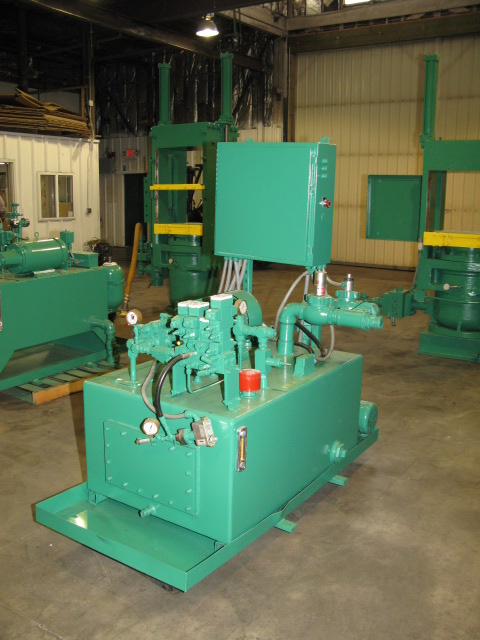

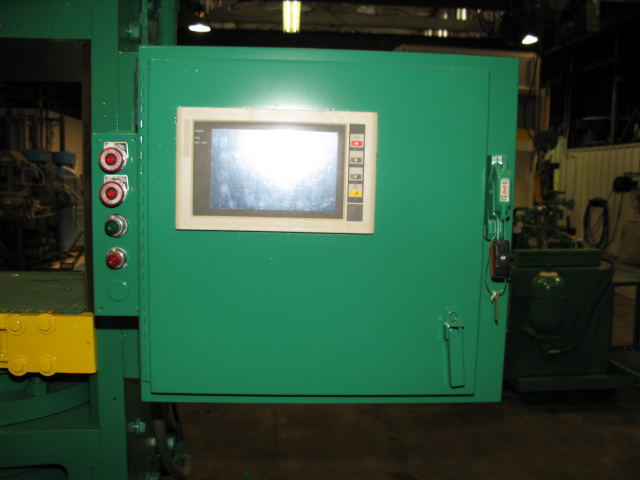

20" DIAMETER RAM WITH APPROX 16" STROKE. 393 TONS AT 2500 PSI. MAX DAYLIGHT APPROX 22.5". FULLY GUIDED WITH 45 DEGREE ADJUSTABLE GIBS. OPERATOR HEIGHT IS APPROX 46". SLAB-SIDES ARE 3.5" THICK WITH 7" WIDE WINDOWS. TWO 3.25" BORE SIDE PUSH-BACK CYLINDERS WITH 25" STROKE. TOP MOUNTED HYDRAULIC POWER UNIT (CAN BE FLOOR MOUNTED): 10 HP (230/460 VOLTS; 1800 RPM); CONTINENTAL PISTON PUMP RATED AT 6 GPM TO A MAX OF 3000 PSI (PVA6-6830). COOLING AND FILTERING CIRCUIT WITH A 2 HP MOTOR (208-230/460 VOLTS; 3450 RPM); 3000 PSI GAUGES; CONTINENTAL VALVES; SUN UNLOADING VALVE; APPROX 100 GALLON RESERVOIR; DRIP PAN; ELECTRICAL PANEL WITH STARTERS; E-STOP, ETC…CONTROLS INCLUDE: OMRON SYSMAC C-200-H PLC; OMRON NT600M-DT122 INTERACTIVE DISPLAY; TWO E-STOPS AND START/STOP FRONT AND REAR; DISCONNECT; ETC…OVERALL DIMENSIONS OF POWER UNIT: 72" X 32" X 66" TALL. OVERALL DIMENSIONS OF PRESS WITH POWER UNIT ON TOP: 72" X 48" X 145" TALL (113" TALL WITHOUT POWER UNIT). APPROX 15,000 POUNDS. ITEM#1814.
Get Your Price from Icon Industries, Inc!
