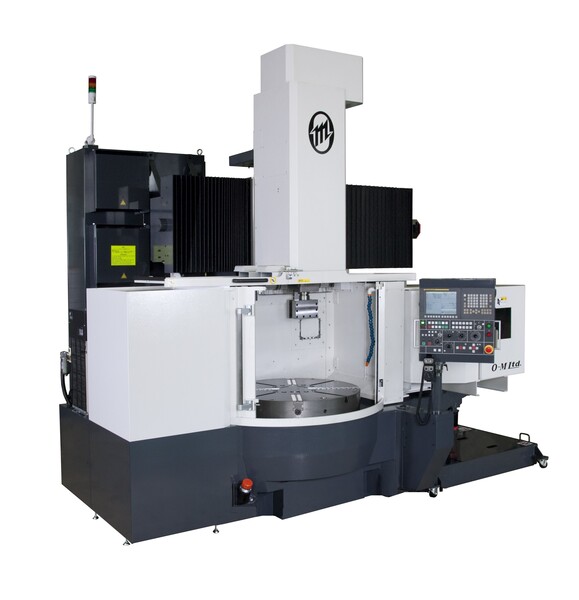

39.3" O-M #RT-915, CNC vertical turret lathe, 43.31" sw, 36.02" chk, 3-jaw, Fanuc 0i-TF Plus, chip conveyor, 2023

For sale is a New O-M RT-915 CNC Vertical Lathe. This powerful Japanese Manufactured machine has a table diameter of 36.02" and supports a max. workpiece mass of 3300lbs. The operational capacity includes a max. swing of 43.31" and a max. turning diameter of 39.37". The machine utilizes a FANUC 0i-TF PLUS CONTROL & 36.02" independent 4-jaw for efficient operations. The unit comes equipped with an automatic tool changer that can accommodate 18 tools, a chip conveyor, chip bucket and a rigid ram type tool post. Plus, it features a fully enclosed chip cover for safe operations and a tool presetter (included in the first few models). The machine is environment-conscious and supports a high PSI coolant application. Interested buyers, who appreciate compact design, easy access to table, and a small footprint machine, are welcome to contact us for further details.
Table diameter 915mm36.02"
Max. turning diameter 1,000mm39.37"
No. of table speeds 2 x infinitely variable
Table speed range: Standard 4.2 ~ 420 rpm
Max. swing 1,100mm43.31"
Max. turning height 700mm27.56"
Max. mass of workpiece 1,500kg3,300lbs
Max. torque for turning 4,380Nm3,231lbfft
Max. cutting force 20,000N4,400lbf
Ram size
Tool Shank Size 32 x 32mm1.25"x1.25"
Number of table speed Range 1
Table speed for turning 4.2min-1 420min-1
Rapid feed speedX axis20,000mm787.4"/min
Rapid feed speedZ axis15,000mm590.55"/min
Cutting Feed Rate 0.01mm0.0004"/rev 500mm19.69"/rev
Main motor AC 37/30KW50/40HP
Magazine capacity 18 pcs
Max. machine height 3,440mm135.43"
Machine dimensionwidthdepth 3,682mm144.96" 3,730mm146.85"
Total power capacity 60kVA
Mass of machine 13,100kg28,880lb
