For Sale by Smith Machinery Co
Surplus Record Dealer Since 2001
Location: Ames, IA
Contact Jim Smith
Phone Number: 515...> Show Phone Number 515-233-6330
Let the seller know you found their listing on Surplus Record!
Description
Specifications
Equipped With
Equipped With
Equipped With
Equipped With
SPECIFICATIONS:
EQUIPPED WITH:
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
OPTIONAL FEATURES:
5.5" x 5.5" Triangular Notcher Set for Punch end. Includes Gauging Table.: $3,250.00
SUBJECT TO STOCK

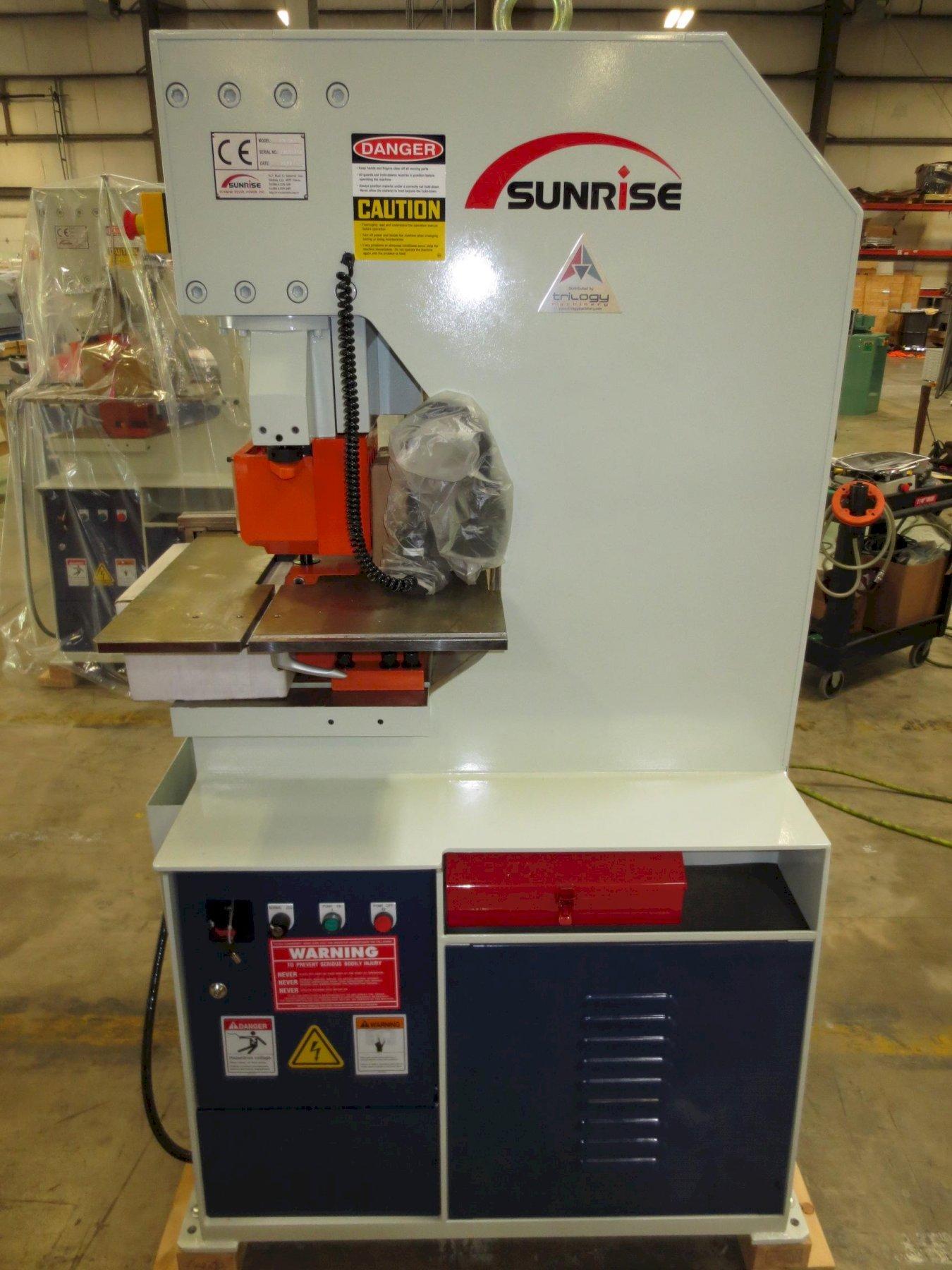

PUNCH - 38 Tons
PUNCH CAPACITY - 11/16" in 9/16" | 2" in 3/16"
Throat depth - 12"
Stroke length - 4"
Cycles - 41/min at 3/4" Stroke
Working Height - 41.25" to top of die
OTHER:
OTHER:
Motor - 5 HP
Electrics - 3/60/220 or 480
Weight - 2,650 lbs
Dimensions - 43" L x 33" W x 70" H
* Patented Double-Acting Punch Cylinder provides 150% faster retraction time
* Machined Flat Punch cylinder with 4" stroke length, high-density bronze bushings and adjustable limit switches
* Heavy-Duty adjustable punch stripper with visibility window
* Keyed quick-change punch holder with spanner wrench
* Slug bucket
* Multi-Function foot pedal with jog mode.
* Sandwich construction with a welded and bolted design.
* Reversable Die Block
* Die holder with overhang for punching channel flanges and angle leg-down up to 6"
* Standard punch capacity up to 2"
* T-slot bolster for rapid adjustment of die holder and easy accessory mounting
* Magnetic work light
* Jog or full-stroke functions
* Starter set of 11 punches and dies 3/8", 1/2", 9/16", 11/16", 13/16", 15/16", 1", 1-1/16", 1-1/4", 1-3/8", 1-1/2"
* Hydraulic and electrical systems with high quality components
* Hydraulic system protected with suction strainer as well as spin-on return line filter
* Low voltage at the controls
* Emergency stop palm button
* Tool kit, and instruction manual
SPECIFICATIONS SUBJECT TO VERIFICATION
OPTIONAL FEATURES:
5.5" x 5.5" Triangular Notcher Set for Punch end. Includes Gauging Table.: $3,250.00
Multi Opening Press Brake Attachment indexed front to back - 20" x 3/16" (For thinner sheet metal): $1,950.00
3 Single-Vee Press Brake Attachment indexed Front to Back for larger plates - 10 x 1/2" capacity.: $1,650.00
DELIVERY:SUBJECT TO STOCK
Get Your Price from Smith Machinery Co!
