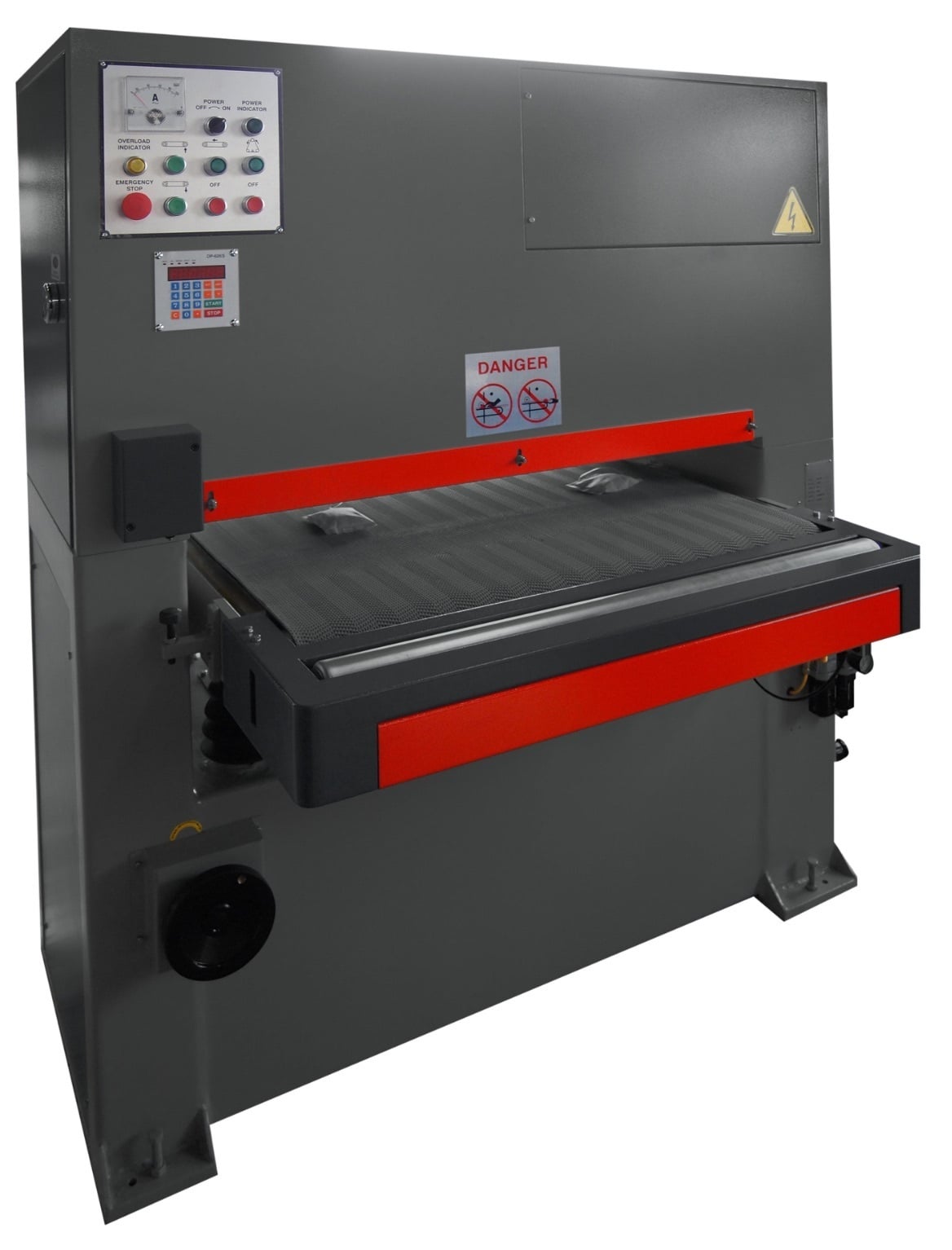

37" x 60" GMC #FP-3760T, belt sander, variable speed conveyor, motorized table lift, 8" contact roll, 37" passline height, 16-66 FPM, 20" infeed conveyor, 1800 cfm dust collector, warranty

$2,395,000 USD

Request Formal Quote

Specifications: Model FP-3760T #7739
Max. Part Width 37
Abrasive Belt Size 37 x 60
Contact Roller Size 8 Dia.
Passline Height 31 37
Max. Thickness Capacity
Min. workpiece length
Max. workpiece weight
5-1/8 Min 12, need a fixture for smaller parts 275LBS
Conveyor Drive Speeds 16-66 FPM
Infeed Conveyor Length 20
Dust Collector Capacity
Outlet of dust hood 1,800 CFM 6
Main Motor 20 HP, 230V / 460V, 3-Ph
Conveyor Motor 2 HP, 230V / 460V,3-Ph
Table Lifting Motor 1/4 HP, 230V / 460V, 3-Ph
Amperage draw
Net Weight, approx.
Shipping weight 75A on 220V, 40A on 440V 2,650 LBS 2,950 LBS
Machine Dimensions, LxWxH
Machine shipping dimensions LWH 63 x 63 x 70 65 x 65 x 72
Standard Features:
Made in Taiwan
Computerized programmable material thickness control
Abrasive belt size: 37 x 60
Motorized Table Lift with computer display
Variable Speed Conveyor
Conveyor Forward & Reverse
Belt Safety Overtravel Switches
Electronic Eye Belt Tracking. Belt tracking adjusting lever ( Belt Trimmer ) to
Re-adjust the tracking system when running extremely out of parallel belts
4-Jackscrew Table Support
Double Infeed & Outfeed Pinch Rolls with protective guards
Conveyor Belt Tracking System
Safety System with Disc Brake. Air operated disc brakes to stop sanding head in
3-5 seconds in the even of loss of air pressure or activation of any emergency stop device
Load Meter indicates percentage of full motor loads
Belt change door electrically interlocked for safety purpose
Air tensioning of belt for accurate tensioning & compensation of belt stretch
Quick release sanding head support for fast belt change
Dust collection hood with 6 outlet is located adjacent to abrasive head in sanding area
Emergency stops from almost any point
Noise level bellows 82 dba
Operation manual, control tags, danger signs, and warning labels in English on machine
208/230V, 3-Phase , 440V/480V/3phase is optional
One year Industrial Warranty for parts
