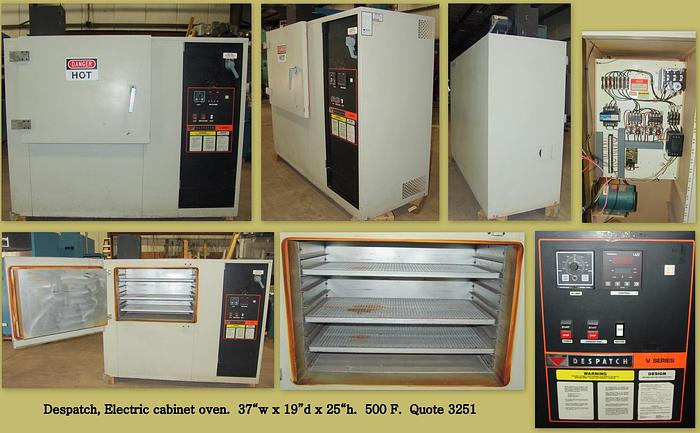

37" width x 37" H x 19" L Despatch #VRC2-10-1, single door solvent rated cabinet oven, electric, 500°F

Single door with fiberglass gasket and cam action latch for a good door seal. Aluminized steel interior. Adjustable louvers on each side wall to control airflow though the chamber. Seven shelf brackets on 3" centers, 3 shelves are supplied. Heating elements and direct driven circulating fan are located under the work area. Heated air is circulated horizontally across the work chamber for good uniform heating. A fresh air inlet is located on the side and a powered exhaust fan is on top of the oven. A pressure relief panel is built into the top of the oven. *** Rated for use with some solvents. (.062 gph VM&P Naphtha or equiv.)

Controls are mounted in the built in control cabinet on the right-hand side. There is a Partlow 1422 digital temperature controller and a Partlow Series 1000 high limit safety. Control switches for the circulating fan, exhaust fan and heat are flush mounted in the front panel. SSR power controller, high limit contactor, purge timer, motor starters, fuses etc. are located inside the cabinet.
