3600 KVAR SHALLBETTER CAPACITOR BANK, 24 X 150 KVAR CANS, 4160/2400 VOLT, OUTDOOR, FUSED

B-13489A THRU C:
ONE (1) 3600 KVAR SHALLBETTER CAPACITOR BANK
MFG. 1991
3 PHASE
60 HERTZ
95 KV BIL
24 X SINGLE PHASE, 2 BUSHING CAPACITORS
DIELEKTROL 3 FLUID
150 KVAR
4160/2400 VOLT
60 HERTZ
95 KV BIL
CAT. #54L501RC43
NX-CL FUSES RATED 100 AMP
106.5"H X 180.5"W X 54.25"D

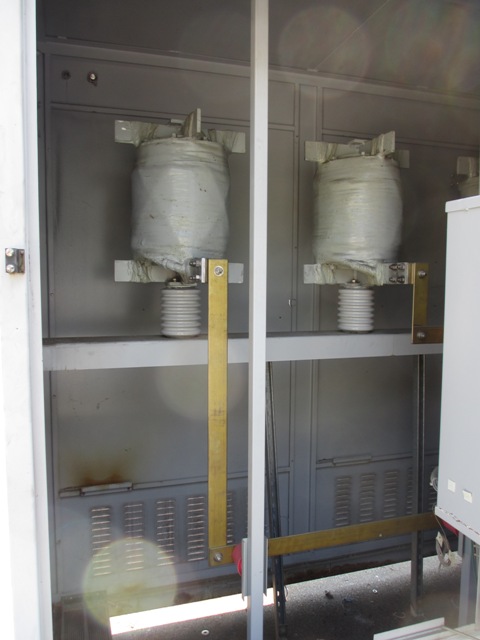

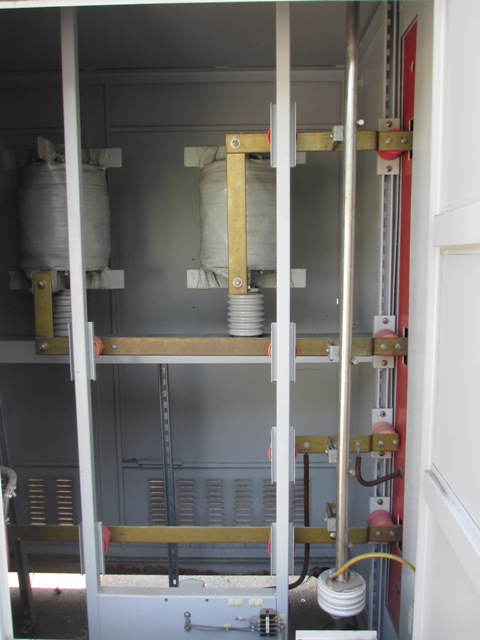

SECTION A & B CONTAIN:
3 X PHOENIX ELECTRIC, SINGLE PHASE, AIR COOLED REACTORS RATED 15 KV, 600
AMP, 60 CYCLE, TYPE TLR-25
1 X GROUND SWITCH
1 X 1500 WTT HEATER WITH TEMPERATURE CONTROL MOUNTED IN THE DOOR
2 X S&C BANKGUARD RELAYS TYPE LUC FOR PROTECTION OF UNDERGROUND WYE-
CONNECTED SHUNT CAPACITOR BANKS, CAT. #38220-B, 125 VDC CONTROLS, WITH
LOCK-OUT INDICATOR & RESET BUTTON
SECTION C CONTROLS:
2 X FUSED GE SINGLE PHASE, 2 BUSHING CAPACITORS WITH DIELEKTROL 3 FLUID,
RATED 4160/2400 VOLT, 150 KVAR, 60 HERTZ, 95 KV BIL, CAT. #54L501RC43
WITH NX-CL FUSES RATED AT 100 AMP
