For Sale by Holland Machinery Company Inc
Surplus Record Dealer Since 2006
Location: Miami, FL
Contact Sales
Phone Number: 305...> Show Phone Number 305-635-2325
Let the seller know you found their listing on Surplus Record!
Description

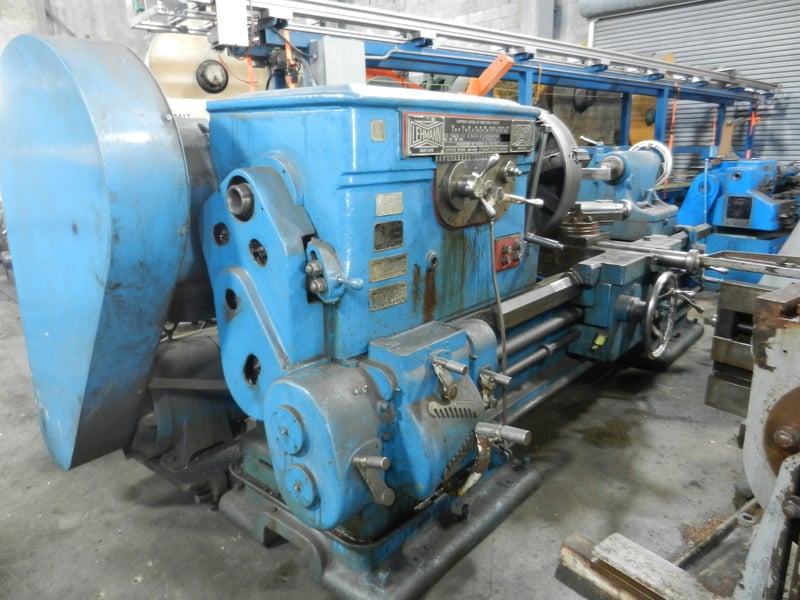

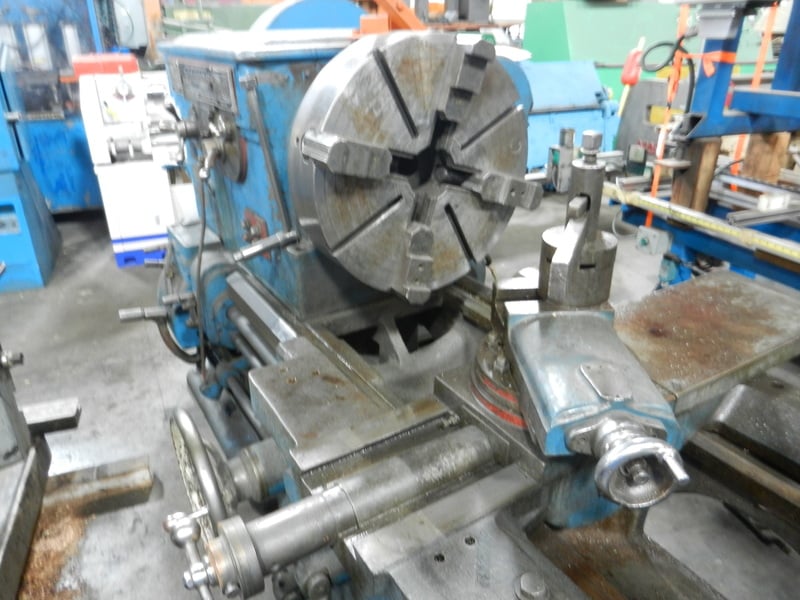

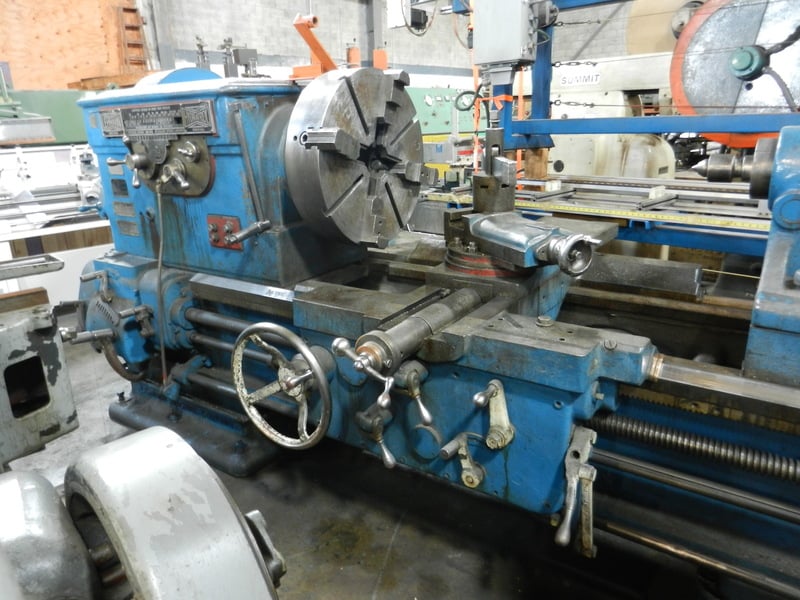

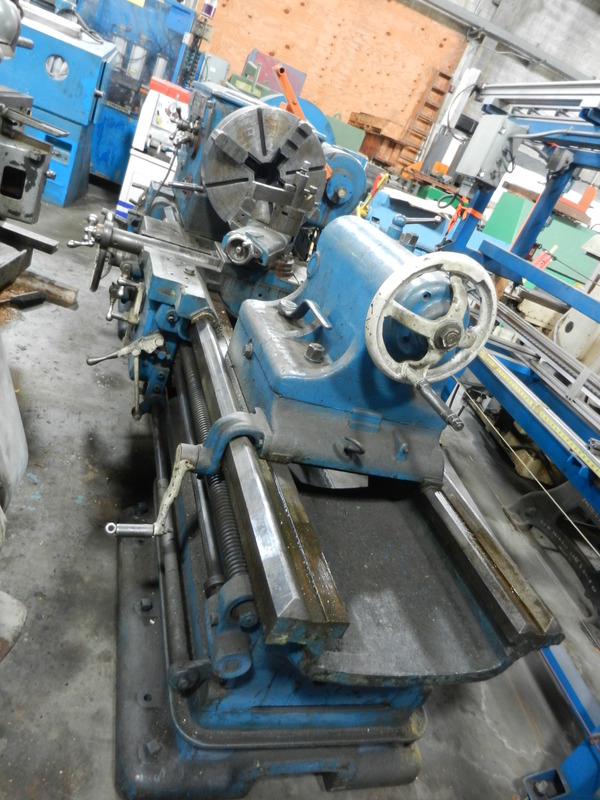

USED "LEHMANN" GEARED HEAD QUICK CHANGE ENGINE LATHE HEAVY DUTY
MODEL 36 HYDRATROL
CAPACITY 36" x 60"
ACTUAL SWING OVER THE BED 37-1/2"
SWING OVER THE CROSS SLIDE 26"
DISTANCE BETWEEN CENTERS 60"
WIDTH OF BED 27-1/2"
SPINDLE HOLE 2-1/4"
THREAD CUTTING RANGE PER INCH (72) FROM 5/8" TO 72"
FEED RANGE REVOLUTION OF SPINDLE (63) FROM 0.0055" TO 0.64"
SPEEDS (16) FROM 6 – 410 R.P.M.
MOTOR 20 HP /220-440/3 PHASE/60 Hz
WIRED FOR 440 VOLTS
TAIL STOCK DIAMETER 5-5/8"
TAIL STOCK TRAVEL 13"
TAILSTOCK TAPER MORSE #6
WEIGHT 20,500 LBS. (APPROX.)
DIMENSIONS 164" x 70" x 65"
EQUIPPED WITH:
4 JAW CHUCK 24", TOOL POST, TOOL HOLDER,
LIVE CENTER, THREADING DIAL, FACE PLATE & MISC.
MODEL 36 HYDRATROL
CAPACITY 36" x 60"
ACTUAL SWING OVER THE BED 37-1/2"
SWING OVER THE CROSS SLIDE 26"
DISTANCE BETWEEN CENTERS 60"
WIDTH OF BED 27-1/2"
SPINDLE HOLE 2-1/4"
THREAD CUTTING RANGE PER INCH (72) FROM 5/8" TO 72"
FEED RANGE REVOLUTION OF SPINDLE (63) FROM 0.0055" TO 0.64"
SPEEDS (16) FROM 6 – 410 R.P.M.
MOTOR 20 HP /220-440/3 PHASE/60 Hz
WIRED FOR 440 VOLTS
TAIL STOCK DIAMETER 5-5/8"
TAIL STOCK TRAVEL 13"
TAILSTOCK TAPER MORSE #6
WEIGHT 20,500 LBS. (APPROX.)
DIMENSIONS 164" x 70" x 65"
EQUIPPED WITH:
4 JAW CHUCK 24", TOOL POST, TOOL HOLDER,
LIVE CENTER, THREADING DIAL, FACE PLATE & MISC.
Get Your Price from Holland Machinery Company Inc!
