For Sale by G-2000
Surplus Record Dealer Since 2011
Location: Toledo, OH
Contact Evan Yoder
Phone Number: 419...> Show Phone Number 419-597-5495
Let the seller know you found their listing on Surplus Record!
Description
Material: CR, Galv, Tin Plate, Silicone, Stainless
Weight Capacity: 30,000 lbs.
Width Capacity: 36"
Thickness Range: 0.006" to 0.095"
Coil I.D.: 16" to 20"
Coil O.D.: 72" Entry
70" Exit
Line Speed: 600 to 1200 FPM
Line Direction: Right to Left
Consisting of the following:
-Entry Coil Car:
Pit Type
Self-Contained Hydraulics
-Uncoiler:
Hydraulic Expansion
16" - 20" Coil I.D. Range
Sliding Base
Wichita Brake
AC Motor Threading Drive
-Photoelectric Edge Detector:
-Peeler Table:
Entry Passline Rolls
Entry Side Guides

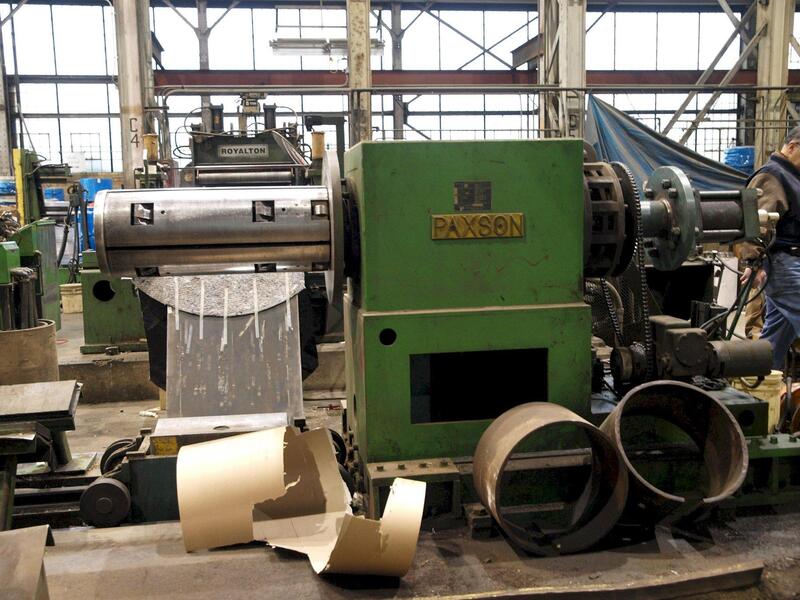

-Slitter Heads:
(2) Heads (Crane Removal Type)
4.00" Dia. x 38" Face Arbors
Parallel Arbor Adjustment
50 HP DC Motor Drive, 1150 to 2300 RPM W/Blower
Right Angle Reducer/Pinion Stand, W/3.625:1 Ratio
-Paxson Scrap Winder:
Hydraulic Motor Drive
Push button scrap ball dump
Hydraulic level wind
24" W x 30" Dia. Capacity scrap ball

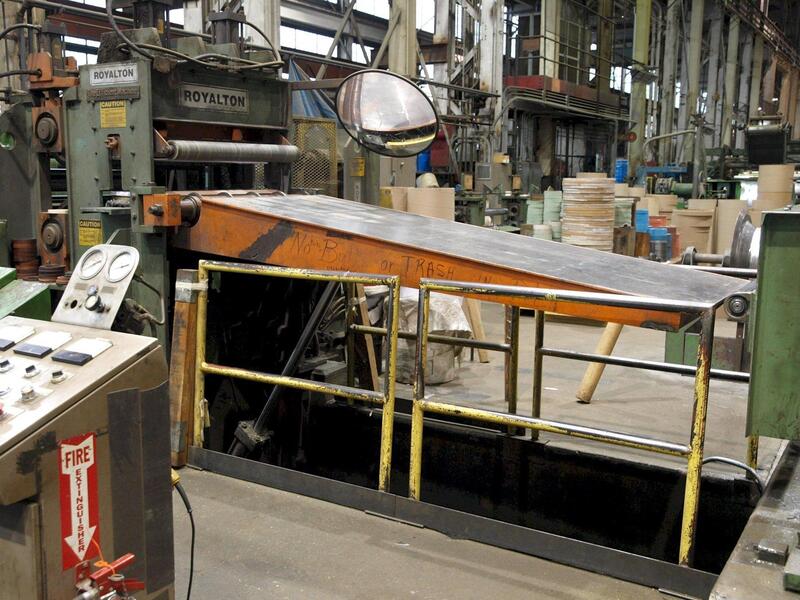

-Pit Cross Over Table:

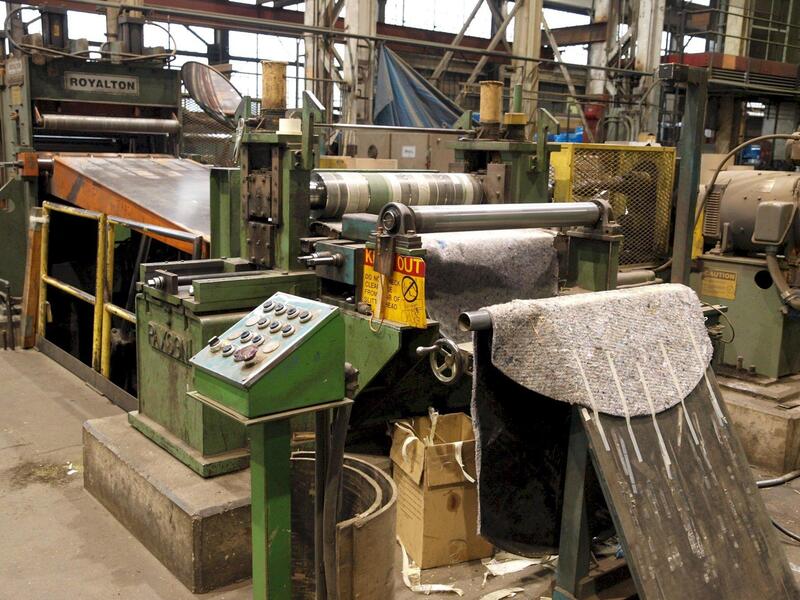

-Tension Stand: Royalton
Combination Roll and Pad Type
Pad unit, hydraulic cylinder raise and lower
Tension by air bag on the bottom
16" dia. x 40" face urethane tension rolls
Dual air brakes, drive shafts to the rolls
Entry Separator Tooling Bar
Exit feed up table
Exit steel pass line rolls, 42" face

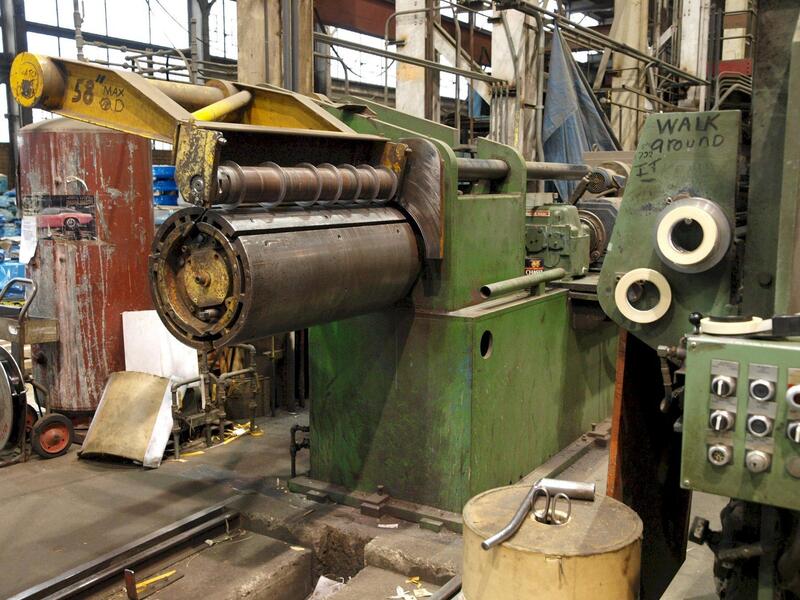

-Recoiler:
16" Dia. Drum with Pads for 20" Dia.
Manual Clamp and Expansion
70" Max. O.D.
Hydraulic Pushoff
Overarm Separator
50 HP DC Motor, 850 to 2500 RPM, 500 V, w/Blower
Holding Brake
Nuttall Gear Reducer w/14.6:1 ratio

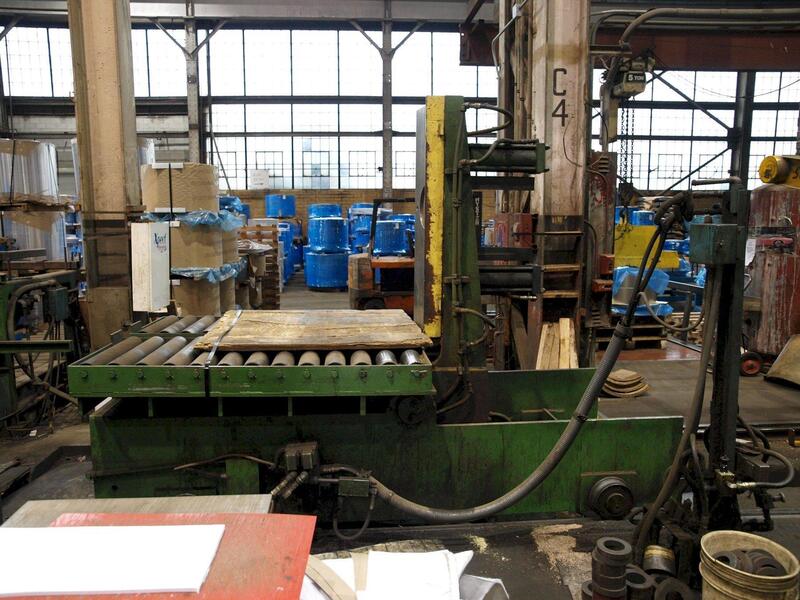

-Exit Coil Car/Upender:
Hydraulic Cylinder for Tipping
"V" Cradle, 51" long
Twin Hydraulic Cylinder W/16" Lift
60" wide x 66" long Conveyor Rolls on Flat side
5" slot down the middle of the conveyor rolls
Hydraulic Motor Driven for Traversing

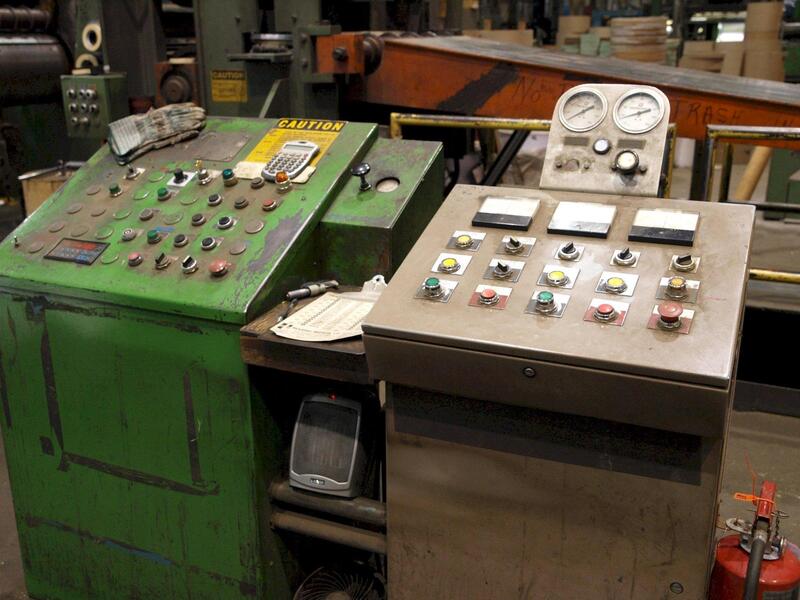

-Operators Control Panels:
-Removed and in Storage: Toledo, OH.
Weight Capacity: 30,000 lbs.
Width Capacity: 36"
Thickness Range: 0.006" to 0.095"
Coil I.D.: 16" to 20"
Coil O.D.: 72" Entry
70" Exit
Line Speed: 600 to 1200 FPM
Line Direction: Right to Left
Consisting of the following:
-Entry Coil Car:
Pit Type
Self-Contained Hydraulics
-Uncoiler:
Hydraulic Expansion
16" - 20" Coil I.D. Range
Sliding Base
Wichita Brake
AC Motor Threading Drive
-Photoelectric Edge Detector:
-Peeler Table:
Entry Passline Rolls
Entry Side Guides
-Slitter Heads:
(2) Heads (Crane Removal Type)
4.00" Dia. x 38" Face Arbors
Parallel Arbor Adjustment
50 HP DC Motor Drive, 1150 to 2300 RPM W/Blower
Right Angle Reducer/Pinion Stand, W/3.625:1 Ratio
-Paxson Scrap Winder:
Hydraulic Motor Drive
Push button scrap ball dump
Hydraulic level wind
24" W x 30" Dia. Capacity scrap ball
-Pit Cross Over Table:
-Tension Stand: Royalton
Combination Roll and Pad Type
Pad unit, hydraulic cylinder raise and lower
Tension by air bag on the bottom
16" dia. x 40" face urethane tension rolls
Dual air brakes, drive shafts to the rolls
Entry Separator Tooling Bar
Exit feed up table
Exit steel pass line rolls, 42" face
-Recoiler:
16" Dia. Drum with Pads for 20" Dia.
Manual Clamp and Expansion
70" Max. O.D.
Hydraulic Pushoff
Overarm Separator
50 HP DC Motor, 850 to 2500 RPM, 500 V, w/Blower
Holding Brake
Nuttall Gear Reducer w/14.6:1 ratio
-Exit Coil Car/Upender:
Hydraulic Cylinder for Tipping
"V" Cradle, 51" long
Twin Hydraulic Cylinder W/16" Lift
60" wide x 66" long Conveyor Rolls on Flat side
5" slot down the middle of the conveyor rolls
Hydraulic Motor Driven for Traversing
-Operators Control Panels:
-Removed and in Storage: Toledo, OH.
| Specifications | |
| Machine Type... | ...Slitters & Slitting Lines |
| Manufacturer... | ...PAXSON |
| Model... | ...N/A |
| Year... | ...N/A |
| Condition... | ...Used |
