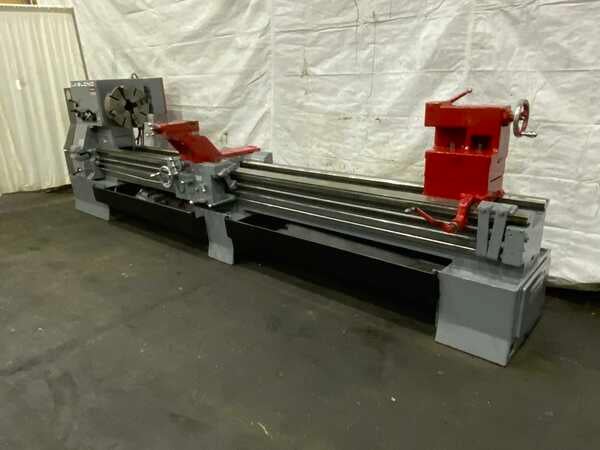

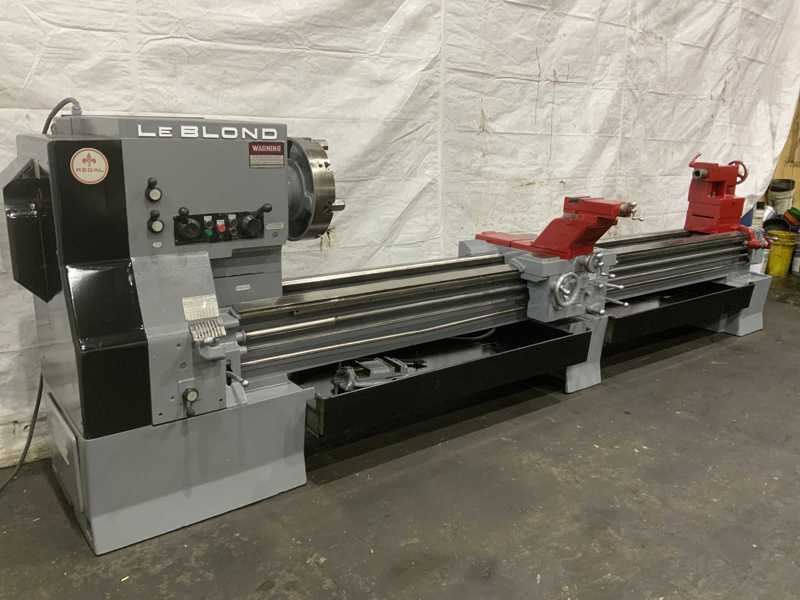

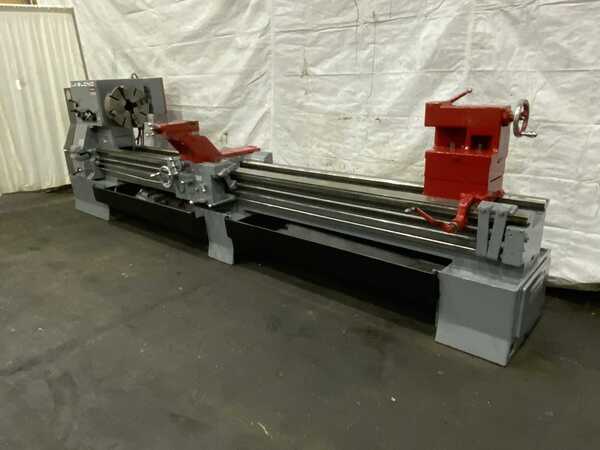

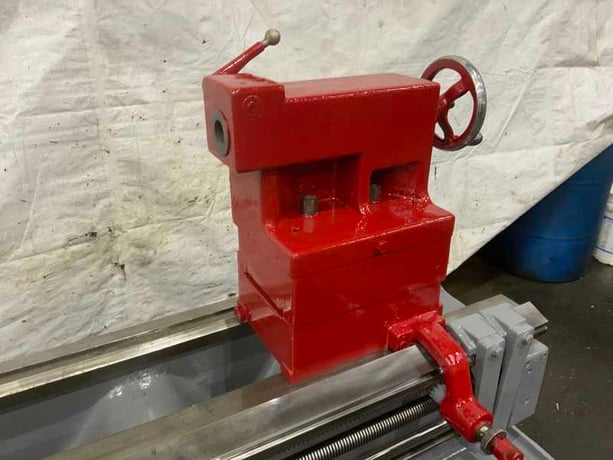

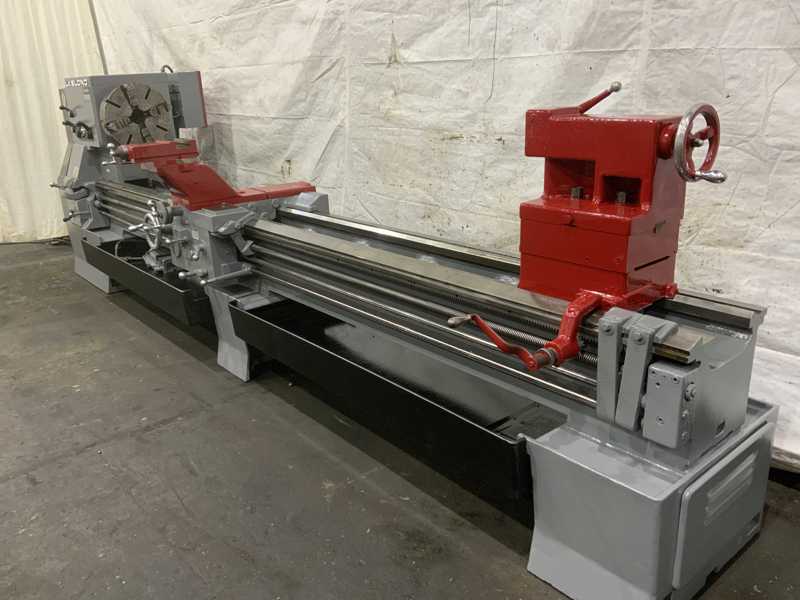

36" x 144" LeBlond #Regal, raised bed engine lathe, 28" swing over cross slide, 4-jaw 18" chuck, 20 HP, thread dial

SERIAL ................................... 5H 528

MODEL .................................... REGAL

SWING OVER WAYS .......................... 36"

SWING OVER CROSS SLIDE ................... 28"

DISTANCE BETWEEN CENTERS ................. 144"

SPINDLE SPEEDS ........................... 27 TO 1080 RPM

FEEDS .................................... .0036 TO .205 IPR

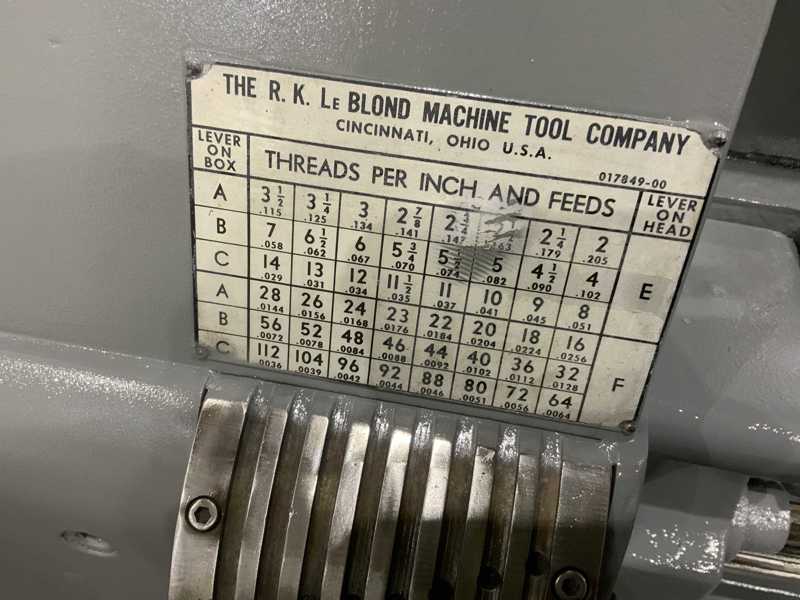

THREADS .................................. 2 TO 112 TPI

DIAMETER OF SPINDLE HOLE .................2"

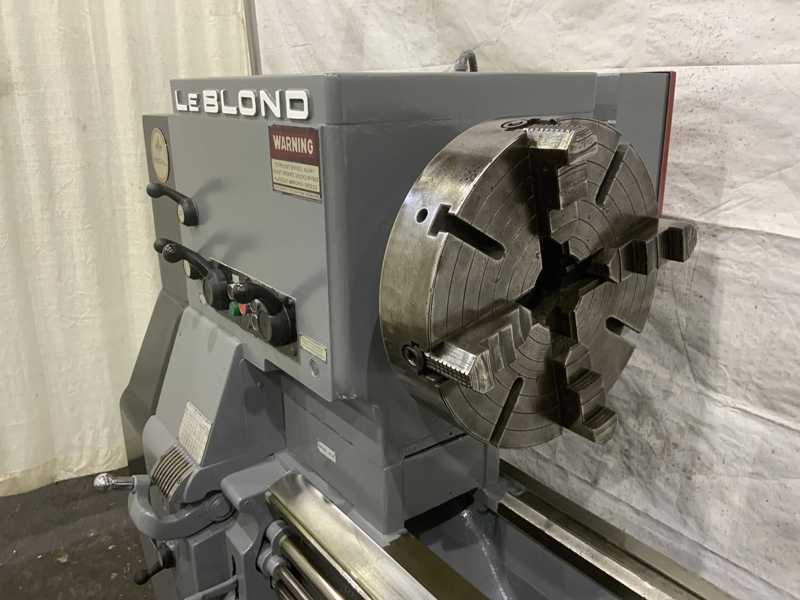

CHUCK .............................. 18" 4 JAW

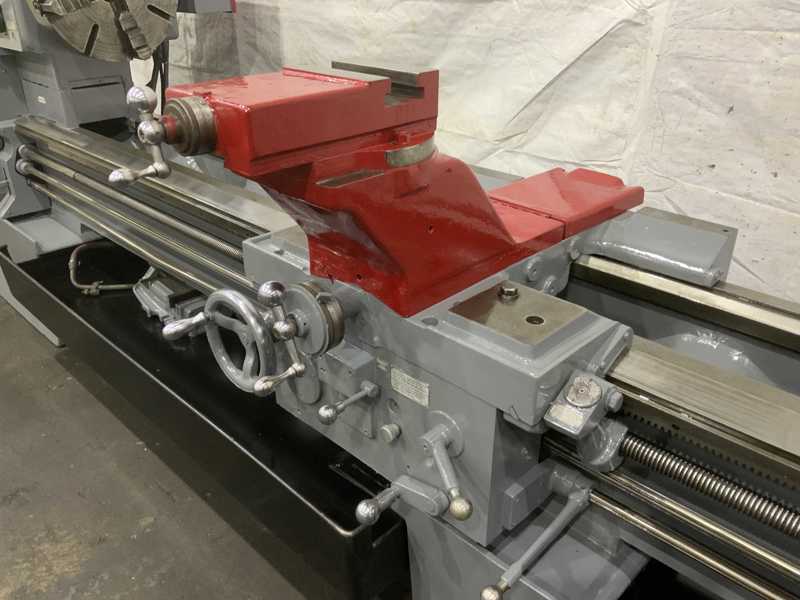

SWIVEL COMPOUND .......................... YES

TREAD DIAL .... YES

HARDEN REPLACEABLE WAYS .................. YES

FORWARD & REVERSING ...................... YES

COOLANT WITH CHIP PANS ................... YES

MOTOR .................................... 20 HORSEPOWER
