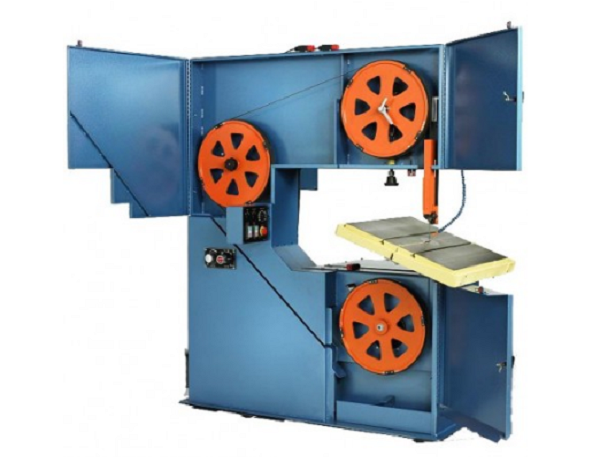

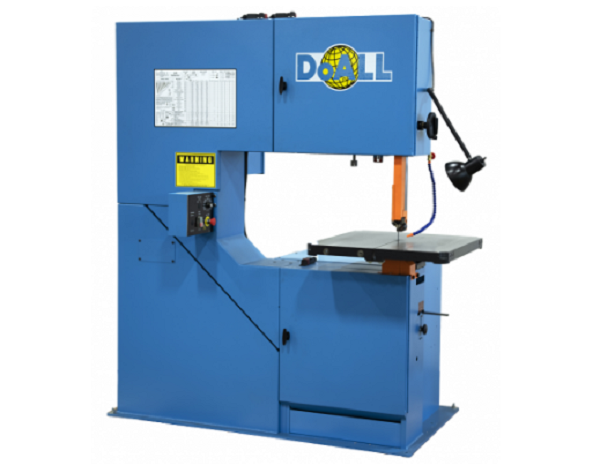

36" x 12" DoAll #3612-VH, vertical contour band saw, 199" band, 3 HP, 30-5500 FPM, new

36" x 12" Band Saw with Post Elevating Hand Wheel One Set of 3/4″, and 1″ Carbide-Faced Inserts Dual-Range Transmission Band Speed Indicator Set of Saw Guide Blocks with Carbide Backup for Bands 1/8″ to 1″ Set of Metal Saw Guide Inserts for Bands 1/4″, 3/8″ and 1/2″ Job Selector Wrench for Saw Guides Table Trunnion Wrench Removable Chip Drawer Mist Coolant—Plant Air Variable Frequency AC Drive Complimentary Coolant Package Transmission Oil Band Tension Indicator One DoALL Bi-Metal Saw Blade Instruction and Parts Manuals on CD or USB Data Stick.

GENERAL SPECIFICATIONS

• Band Speed: 30-5,500 fpm
• AC Motor Drive: 3 hp
• Machine Weight (net): 2,200 lbs
• Throat, Band to Column: 36″
• Maximum Work Height: 12″
• Band Width Capacity: 1/8″ - 1″
• Band Length: 199″
• Table: 26-1/2″ x 33-1/2″ Tilts 45°R, 10°L
• Table to Floor Height: 40″
• Table Stroke: 12″
• Table Feed: 0-6 fpm
• Table Feed Force: 0-175 lbs
• Table Capacity: 500 lbs
• Upper Wheel Adjustment: 3”
• Wheels: Flanged with Steel Backed Rubber Tires
• Hydraulic Reservoir: 5 gal
• Floor Area Required: 74″ x 45″ x 81-1/2″

INCLUDES: Job Selector Wrench for Saw Guides, Table Trunnion Wrench, Removable Chip Drawer, Mist Coolant—Plant Air, Variable Frequency AC Drive, Complimentary Coolant Package, Transmission Oil, Band Tension Indicator, One DoALL Bi-Metal Saw Blade, Instruction and Parts Manuals on CD or USB Data Stick.

***All Price, Location and Specifications Subject to Change without Notice***
