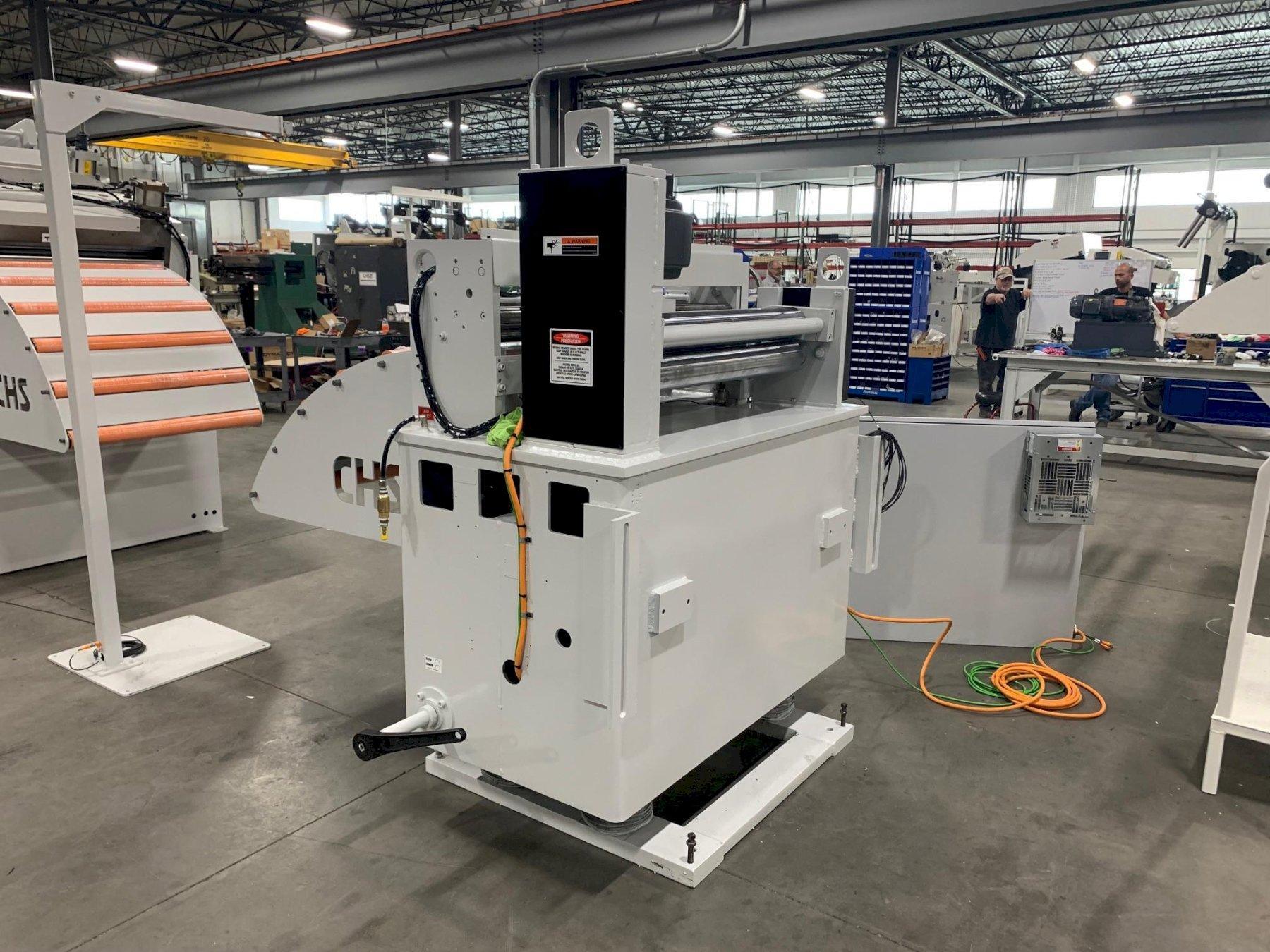

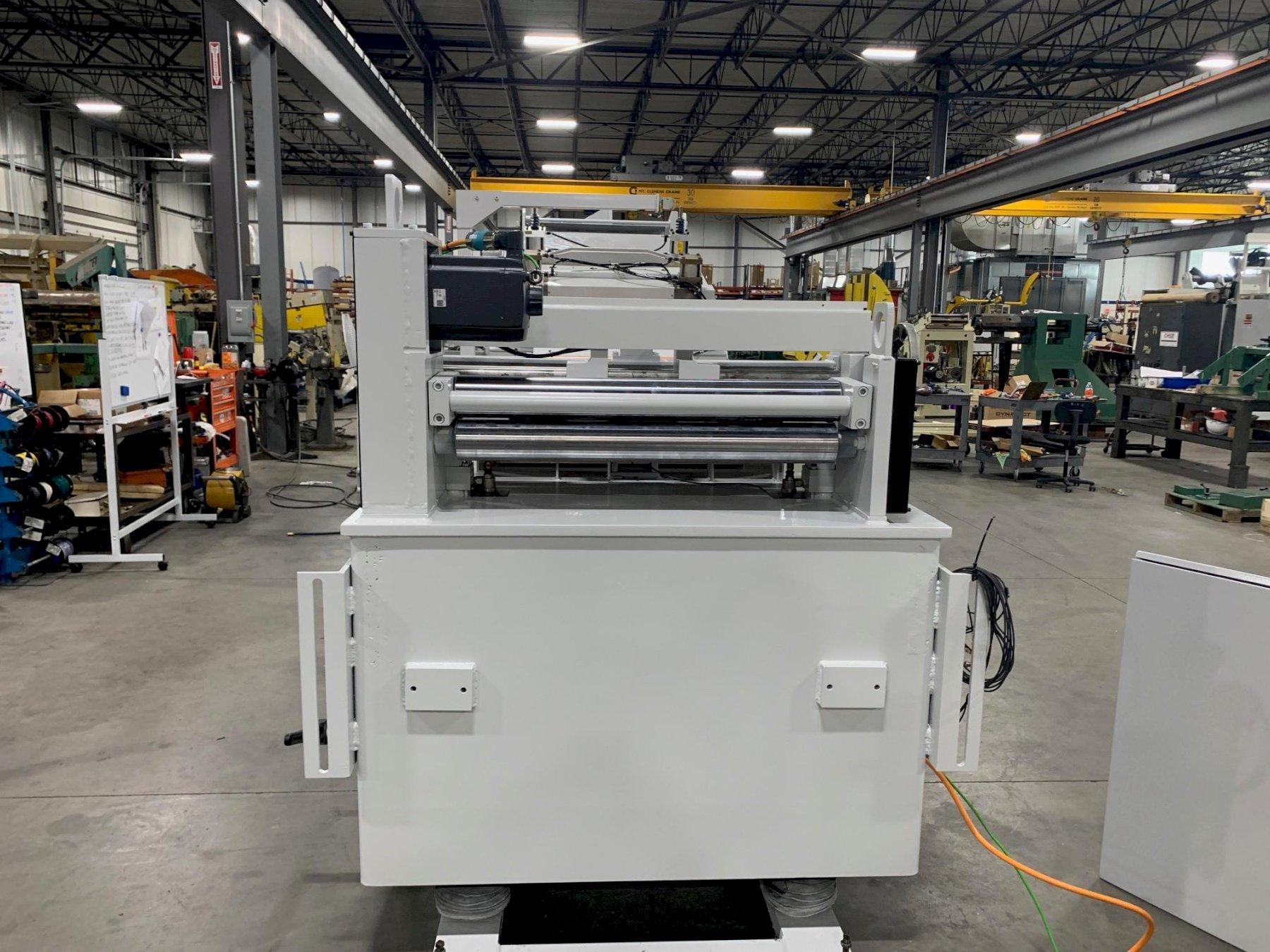

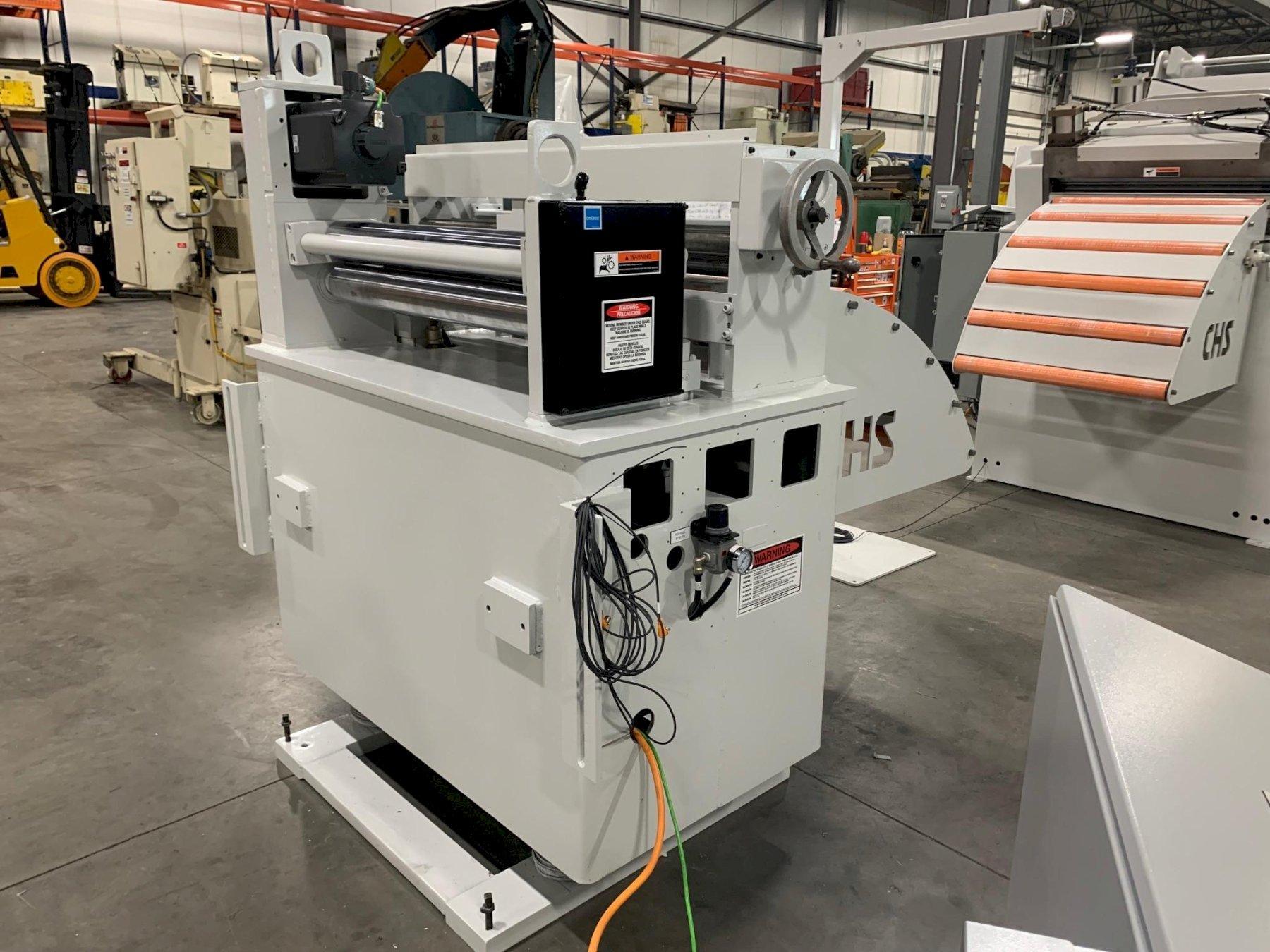

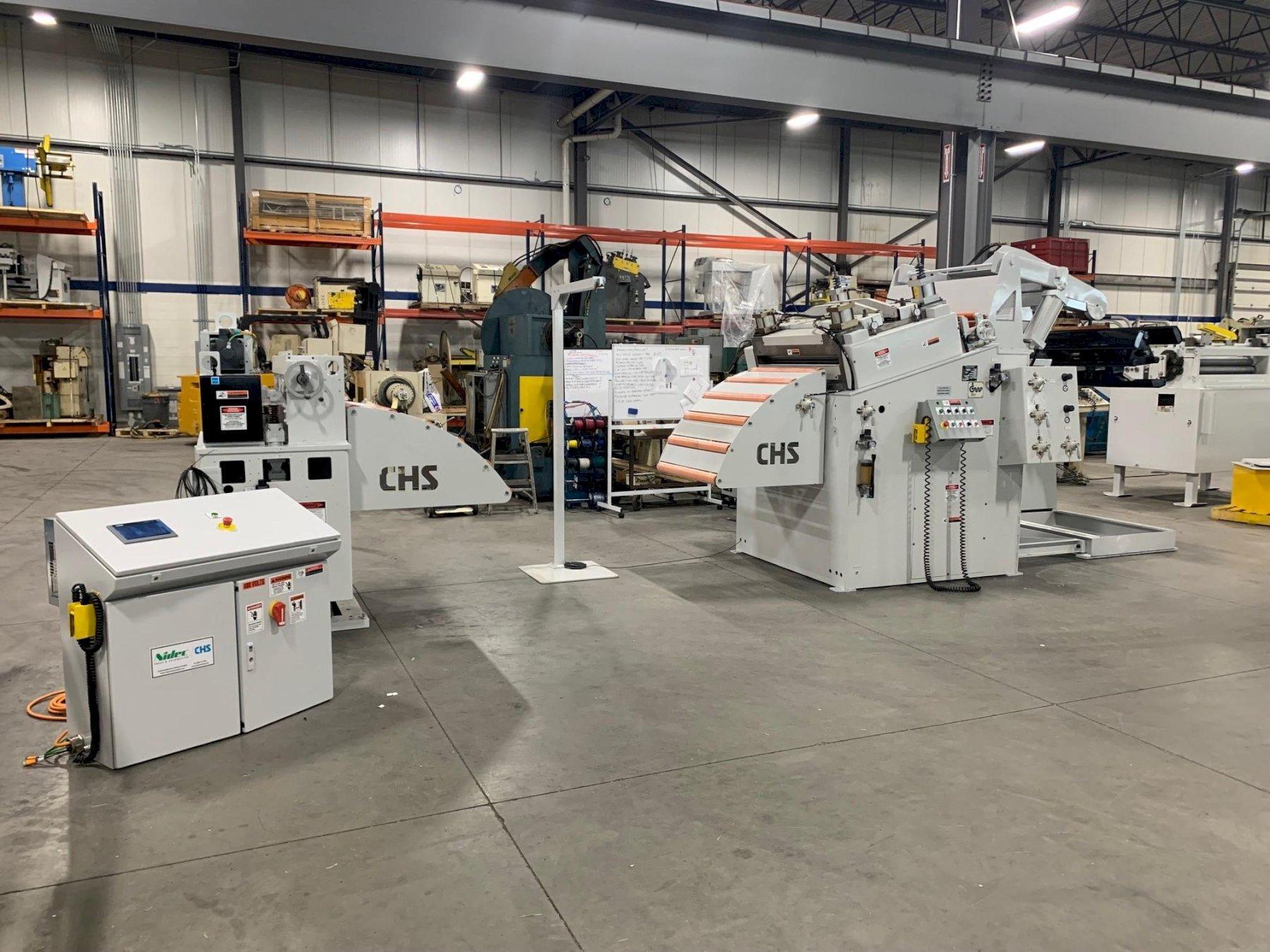

36" x .09" Perfecto Servo roll feed, cabinet base mounted

Manufacturer: Perfecto
Width: 36
Capacity: .090
Stock # 5089

For Sale by Nidec Press & Automation

Gold Level Dealer
Surplus Record Dealer Since 2011

Description

Specifications

Stock Width Capacity 36 inches

Max Stock Thickness Capacity At Full Width .090 inches

Feed Roll Diameter 4 inches


Equipped With

Perfecto Servo Roll Feed Press Feed Specifications:
Stock width capacity: 36"
Stock thickness capacity: .090" x 36" Wide
Stock thickness capacity: .200" x 12" Wide
Serial no.: 94113
Perfecto Servo Roll Feed Press Feed Equipment and Features:
Four-inch diameter full width servo feed rolls
Matte chrome finish on upper and lower servo feed rolls
Dual cylinder air operated upper servo feed roll pilot/release
Adjustable stock width edge guides (Hand crank)
Anti-Back Up rolls (Air operated)
Cascade entry stock support rolls
Cabinet base mounted servo roll feed with adjustable pass line

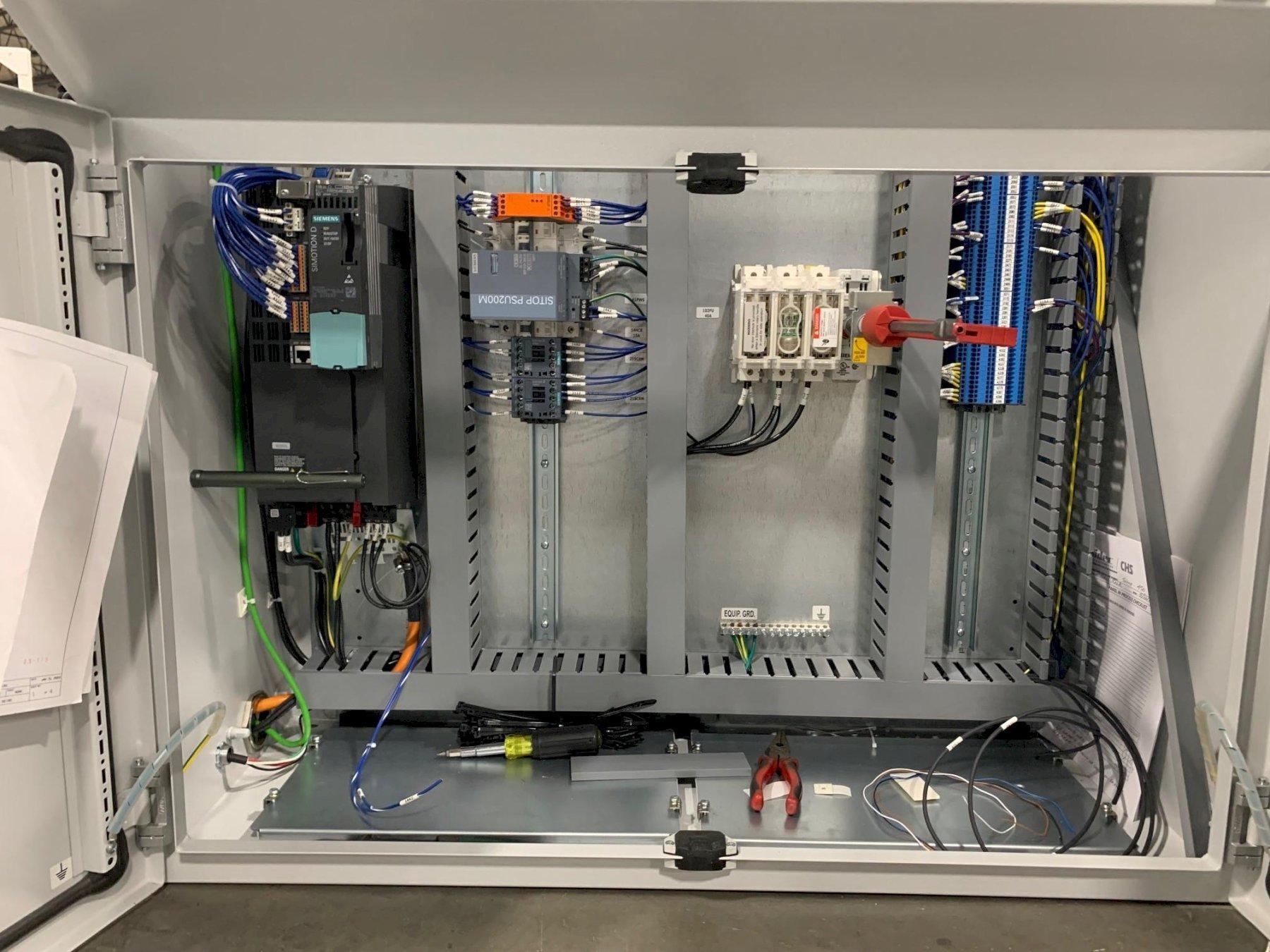

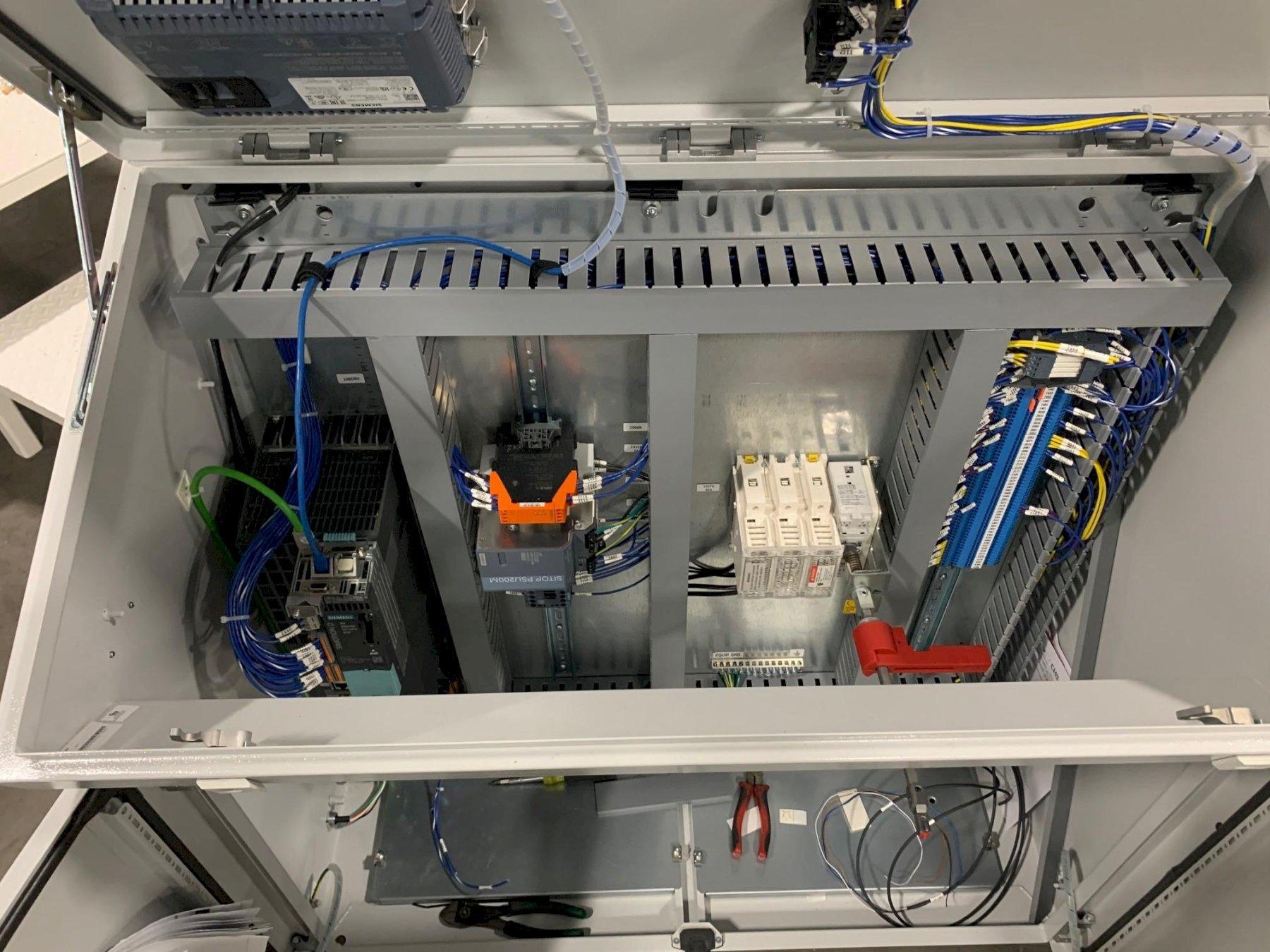

NEW AC servo roll feed drive and controls
Job memory micro adjust batch count etc (Consult sales for complete details)
Pilot pin mode

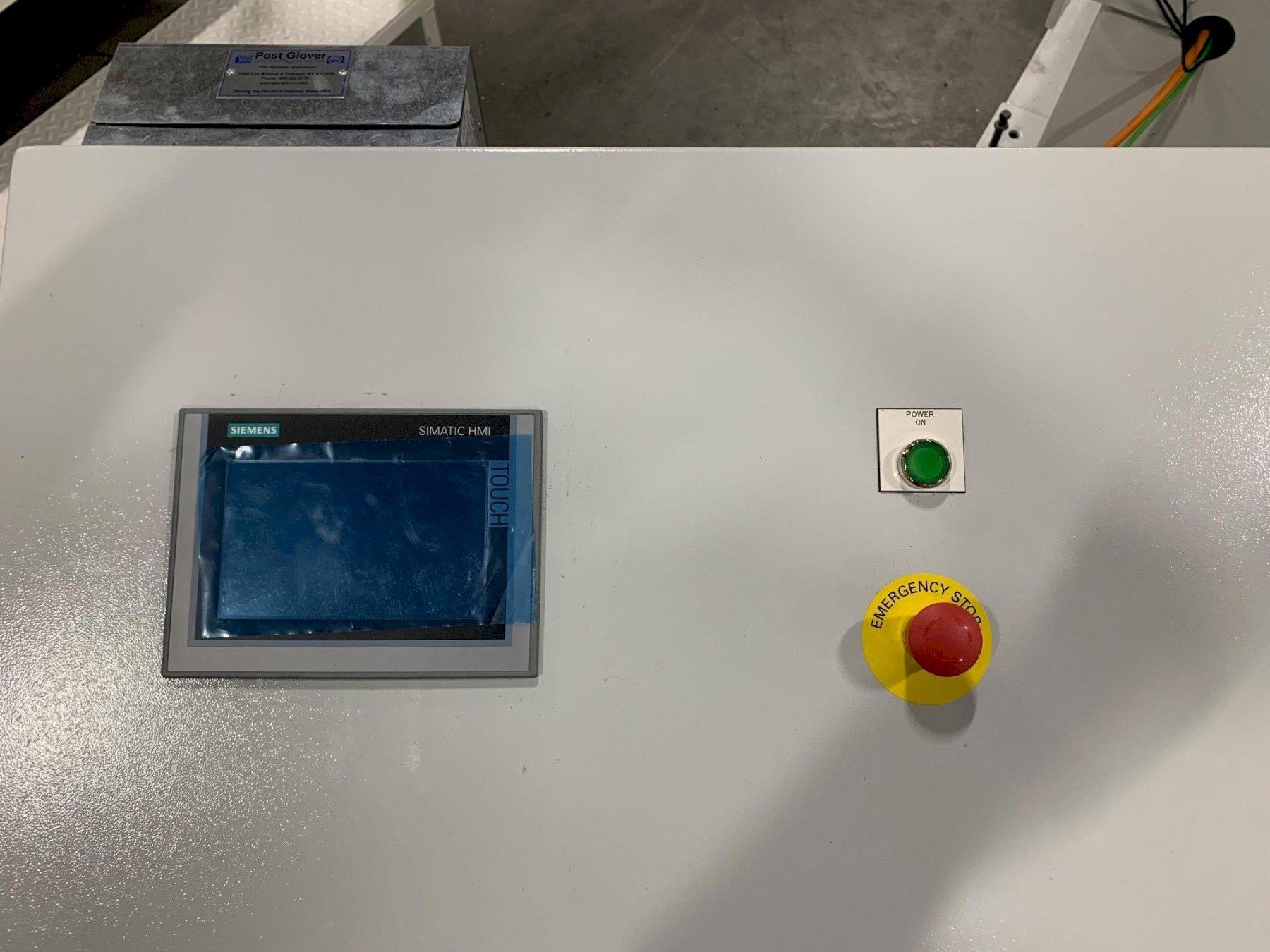

Free standing sloped front servo roll feed control console
Remote pendant control for jog forward and reverse
Fused disconnect
480 Volt
Cleaned, painted and cycling (plus new servo controls)
Warranty:
One year parts and labor on new servo drive and control package
Ninety days on all mechanical
Terms: 40% Deposit, net prepaid
