36 Ton, Boschert #QUATTRO 1500, CNC turret punch, 60" x 120" working range, automatic sheet loading & unloading, Trumpf tooling

Description

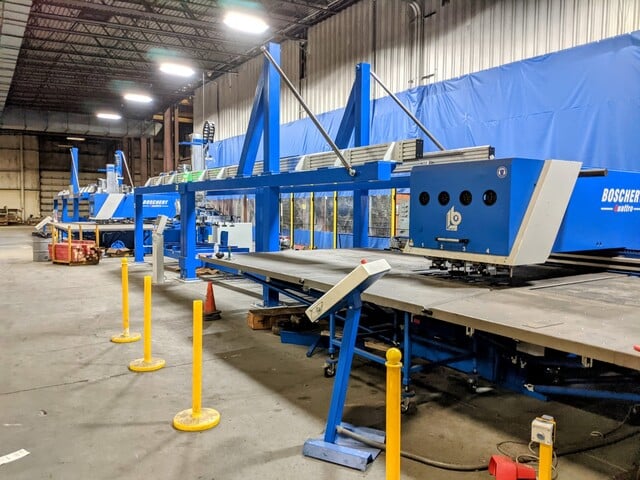

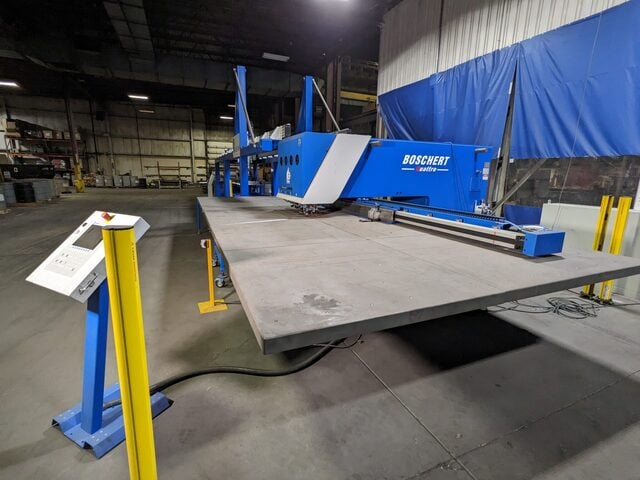

Boschert 36 Ton CNC Punching Machine with Fully Automatic Sheet Loading and Unloading System, QUATTRO 1500

Inventory # 9898-B

Model: QUATTRO 1500 – Demo Unit

Specifications:

Working Range without Repositioning: 60″ x 120″

Max. Punching Force: 36 Tons

Type of Tooling Used: Trumpf

Max. Punch Diameter: 4.1″ or any shape within

Max. Material Thickness – Standard Clamps: 0.250″

Max. Weight of Sheet in Clamps: 880 lbs.

Max. Stroke Length (Programmable): 0 – 3.54″

Max. Strokes per Minute: 400 SPM

Positioning Accuracy: +/- 0.002″

Positioning Repeatability: +/- 0.001″

Positioning Speed:

X-Axis, Maximum: 2,350 IPM

Y-Axis, Maximum: 1,100 IPM

Tool Change Time, Manual: 15 Seconds

Height of Table Above Floor: 35″

Hydraulic Reservoir Capacity: 42 Gallons

Motor: 15 HP / 480v / 3ph

Standard Features:

Pneumatic Material Clamps

Safety Light Barriers around Machine

Automatic Repositioning

Control:

CNC Software: Boschert Graphic Programming

Control Display: TFT 10.4″ Color Display

– 50 part program storage capacity in control memory

– Extended storage device with capacity of approximately 100,000 programs (256 mB) on hard drive and the included SD card. In addition, there is a USB port at the operator pendant

– Includes LAN connection easily integrated to your computer network

– Automatic stroke and part counter

– Automatic “clamp find” function

– Automatic referencing upon start-up

– Both axes move simultaneously with programmed priority for either axis

– Tooling list capacity of 500 tools with graphic support

– Automatic punch power control

– Canned cycles including single hole, row of holes, hole circle, mirror image

– Notching (up to 3 steps)

– Rectangles

– Mirror image

– Zoom

– Remove waste

– Sub-programs

– Bolt-hole circle

– Nibble circle

– Matrix of holes

– Ellipse

– “V” belt shapes

– Contour program (rotation station only)

– Piece counter

– Engraving

Included Optional Equipment:

Extra Heavy-Duty X-Axis for 400kg Sheet Capacity

Trumpf Locking Die Holders for Each Station

High-Speed Hydraulics with Oil Chiller

Vacuum Slug Removal

Automatic Tool Lubrication

Extra Clamps

Ball Supports in the Table

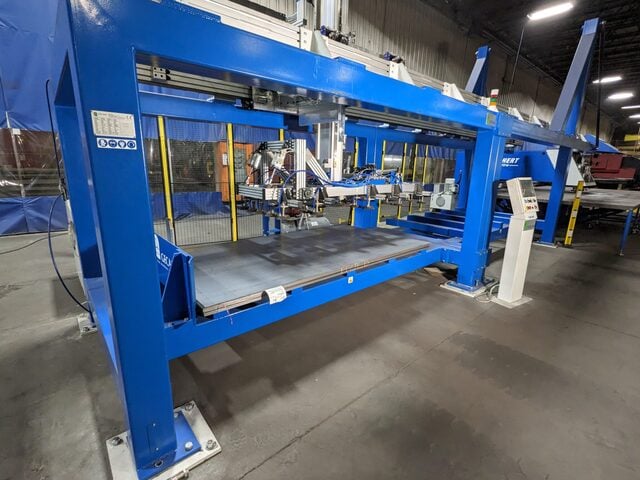

Pneumatic Loading System:

Heavy Duty Design

Fully Integrated with the Punching Machine

Capacity to Load 450kg Sheets

Mechanical Specifications:

Floor Space: approx. 318″ L x 258″ W x 83″ H

Weight: approx. 35,000 lbs.

New Replacement Cost: $595,000.00

FOB Butler, WI Facility
