For Sale by Southern Fabricating Mchy Sales
Description

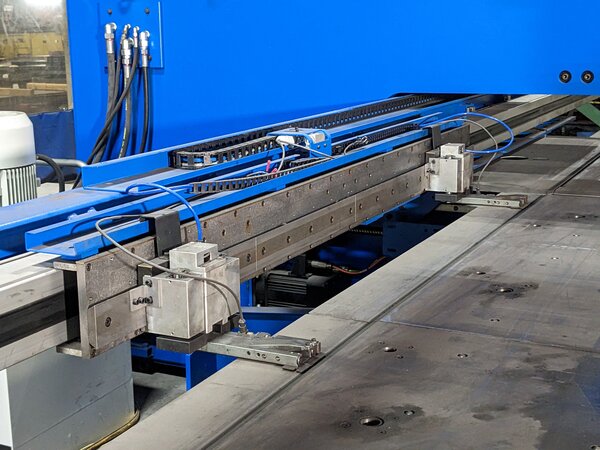

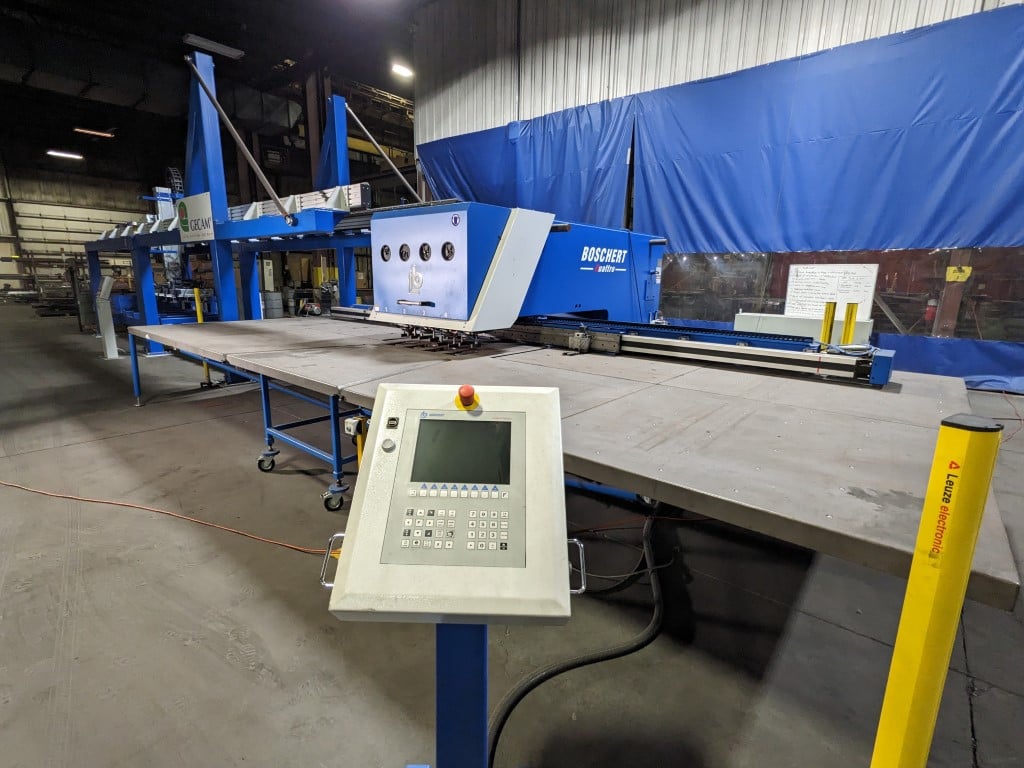

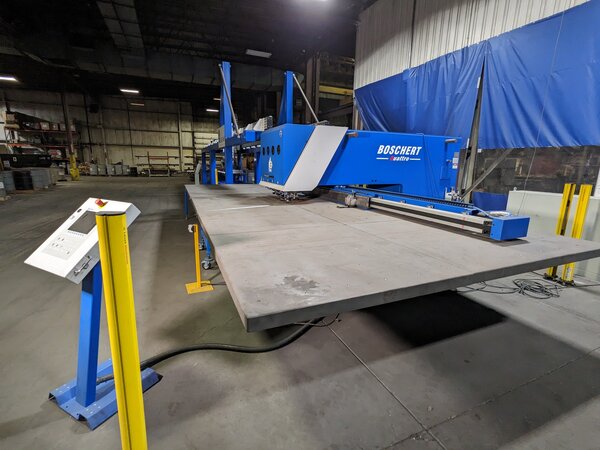

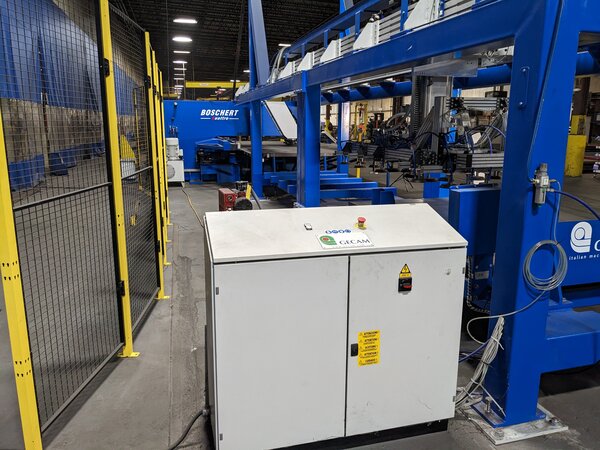

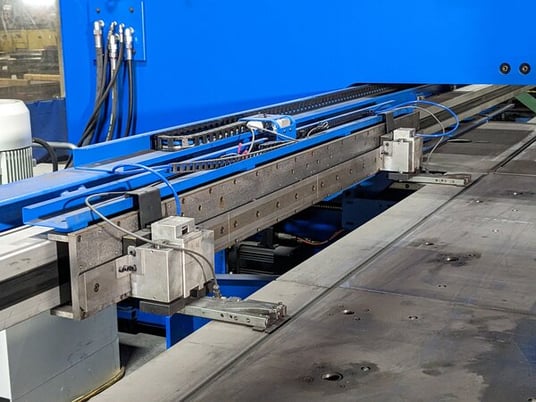

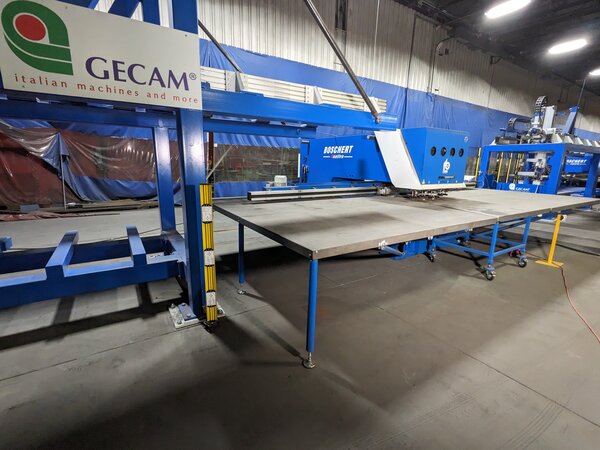

36 Ton 60” X 120” CNC Punching Machine with Boschert CNC Control, Fully Automatic Sheet Loading & Unloading System, Pneumatic Material Clamps, Automatic Repositioning, Extra Heavy-Duty X - Axis for 400 Kg Sheet Cap., Trumpf Locking Die Holders, Vacuum Slug Removal, Automatic Tool Lubrication and Ball Supports on Table.
GENERAL SPECIFICATIONS
Working Range W/o Repositioning: 60”
Maximum Punching Force: 36 Tons
Type of Tooling Used: Trumpf
Maximum Punch Diameter: 4.1”
Max Material Thickness: 0.25”
Maximum Weight of Sheet in Clamps: 880 Lbs
Max Stroke Length: 0 - 3.54”
Max Strokes Per Min: 400
Height of Table Above Floor: 35”
Approx. Floor Space Required: 26.5’ X 21.5’ X 83” H
Hydraulic Oil Resevoir Capacity: 42 Gal
Electric Motor for Hydraulic System: 15 HP
Approx. Weight of Machine: 35,000 Lbs
INCLUDES: Boschert CNC Control, Fully Automatic Sheet Loading & Unloading System, Pneumatic Material Clamps, Automatic Repositioning, Extra Heavy-Duty X - Axis for 400 Kg Sheet Cap., Trumpf Locking Die Holders, Vacuum Slug Removal, Automatic Tool Lubrication and Ball Supports on Table.
***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
