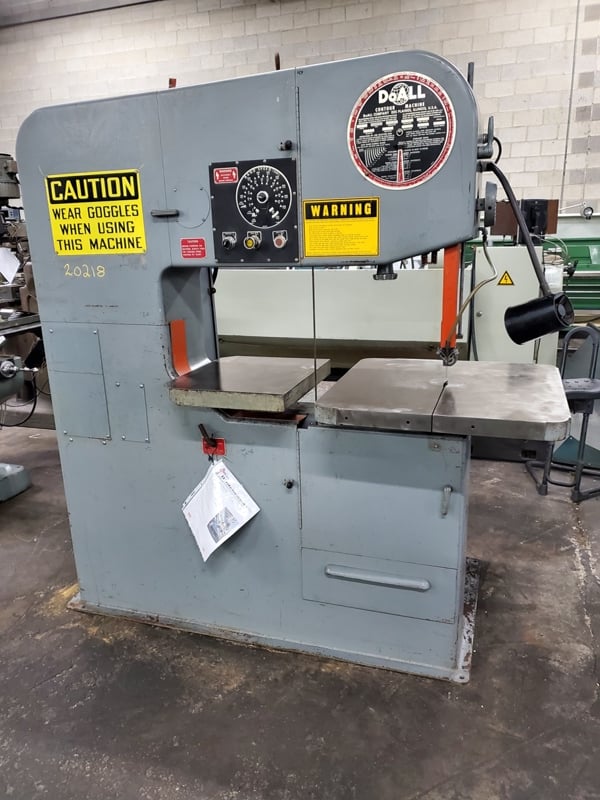

36" x 13" DoAll #3613-2, vertical band saw, 1" x 175" blade, 30" x24" tilt table, 2-5200 FPM, 3 HP, Extron Series 100 DC motor controller, 1986

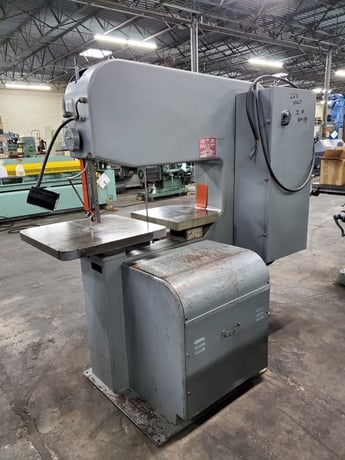

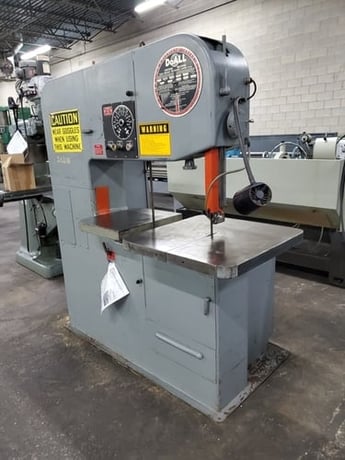

36" DOALL VERTICAL BAND SAW
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $5,950.00
HMC Stock # 20218

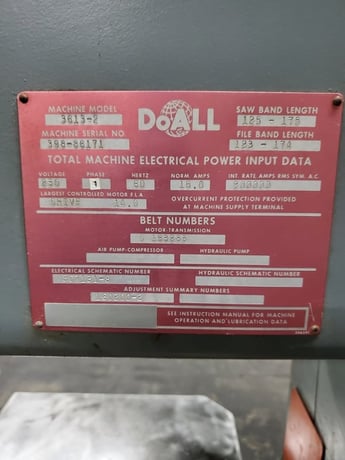

Machine Serial No.: 398-86171
Machine Model No.: 2613-2
New Date: 1986
Throat Capacity: 36"
Machine Can Operate in 2 Wheel or 3 Wheel Configuration
Capacity with 2 Wheels is 16-1/2" and with 3 Wheels 36"
Work Height: 13"
Band Width: 1/16" to 1"
Band Length with 2 Wheels: 125"
Band Length with 3 Wheels: 175"

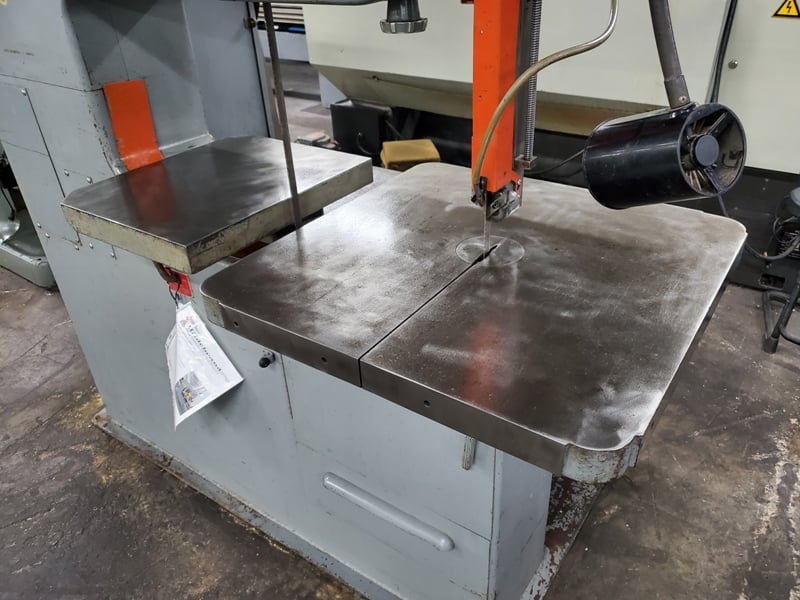

Table Size: 30" x 24"
Table Tilts: 45° Right and 10° Left
10-1/2" Table Top to Upper Wheel Tension Knob

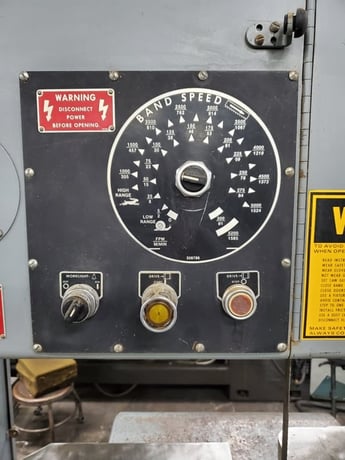

Blade Speeds, Infinitely Variable Via DC Drive: 2 to 5200 FPM
with High-Low Range
Distance Table Top To Floor: 39"
EQUIPPED WITH:

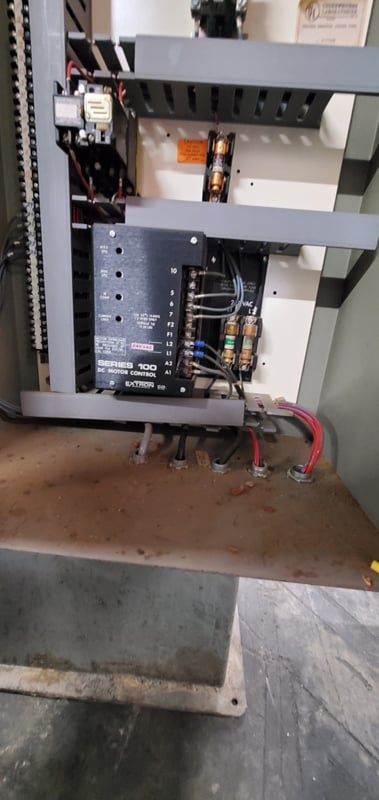

Extron Series 100 DC Motor Controller
(1) Set of 1/2" Solid Blade Guides
Work Light
Hand Crank Adjust of Upper Blade Guide Arm
Missing Center Blade Guard Piece Used for 2 Wheel Operation
Lower Chip Catch Pan
Chip Blower Unit

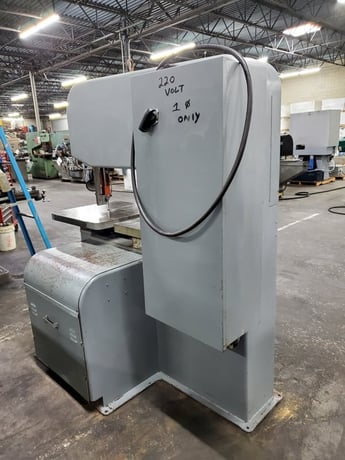

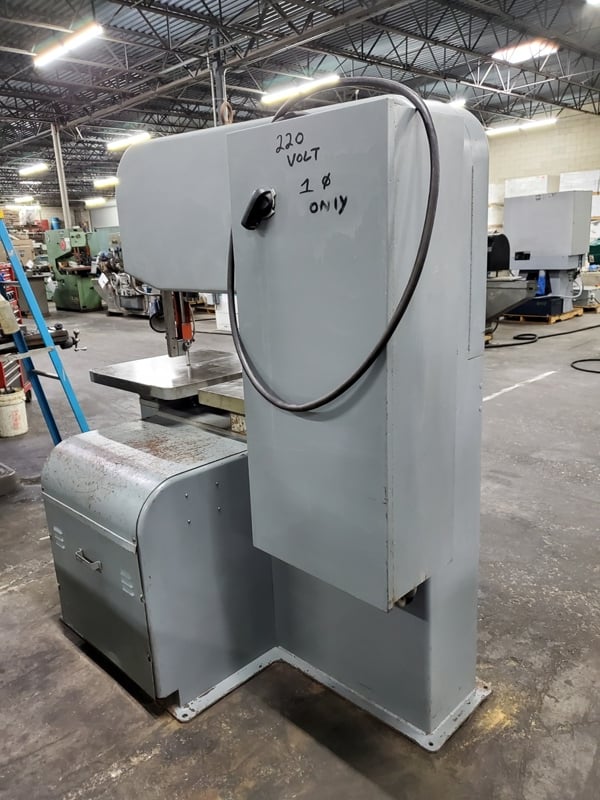

3 HP Motor, Wired for Single Phase, 60 Hz, 220 Volts Only
Overall Size: 73" LR x 47" FB x 75" High x 1,500 Lbs.
