Description

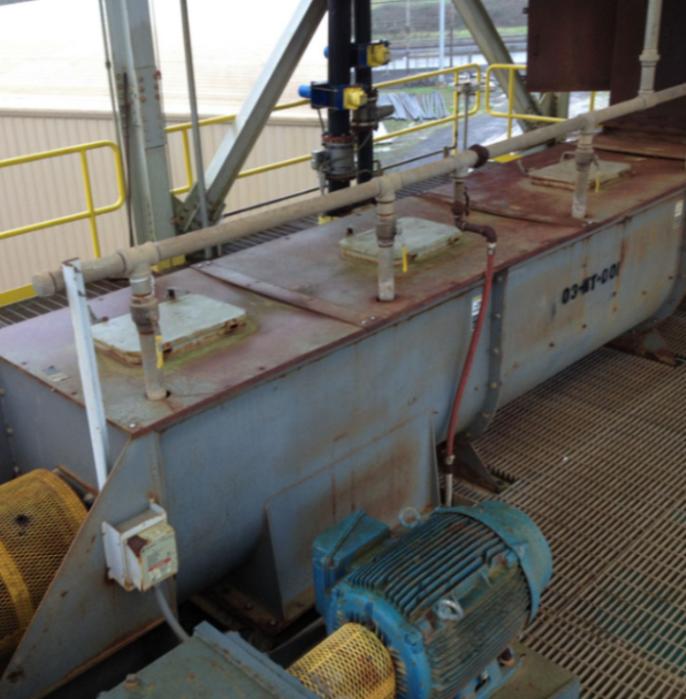

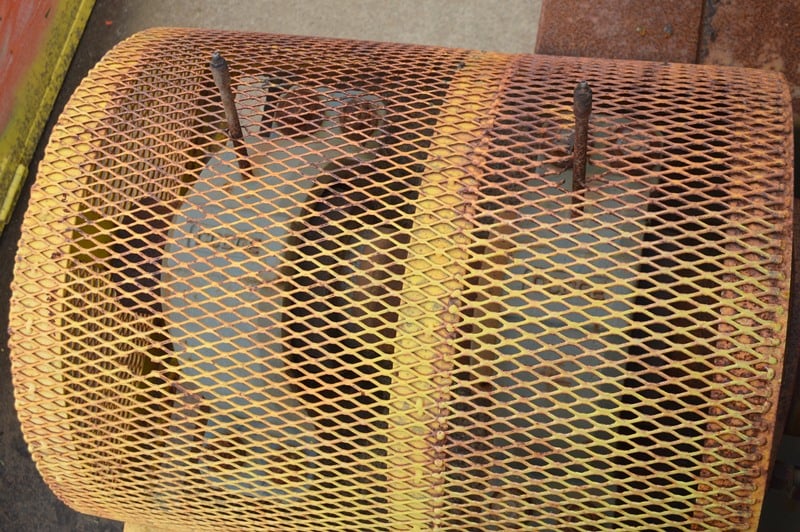

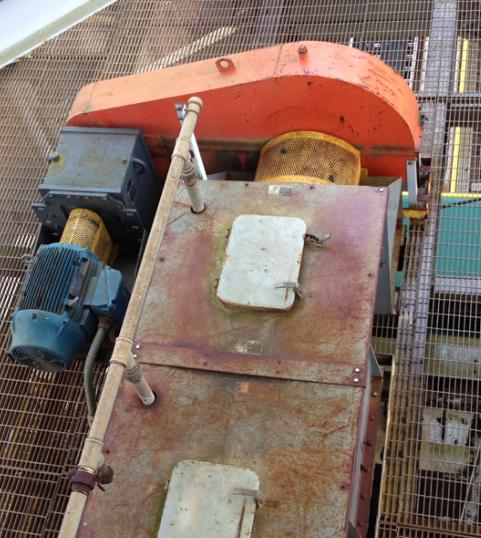

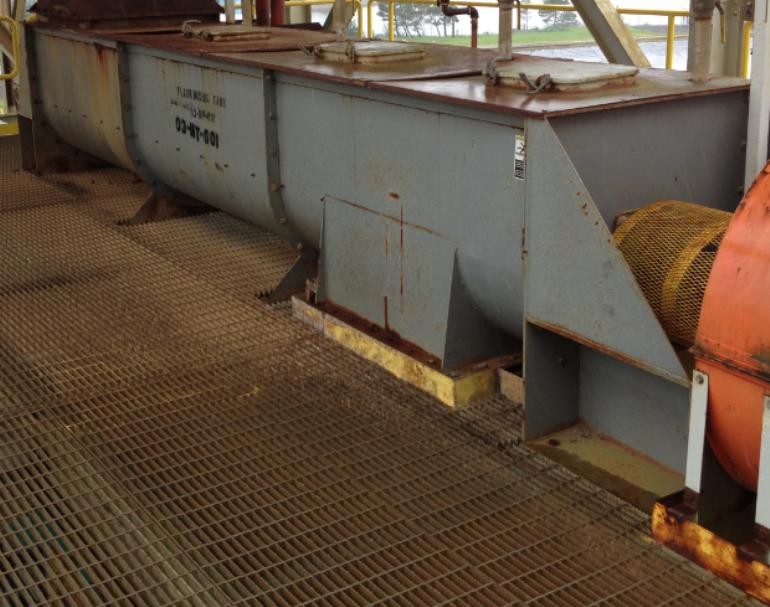

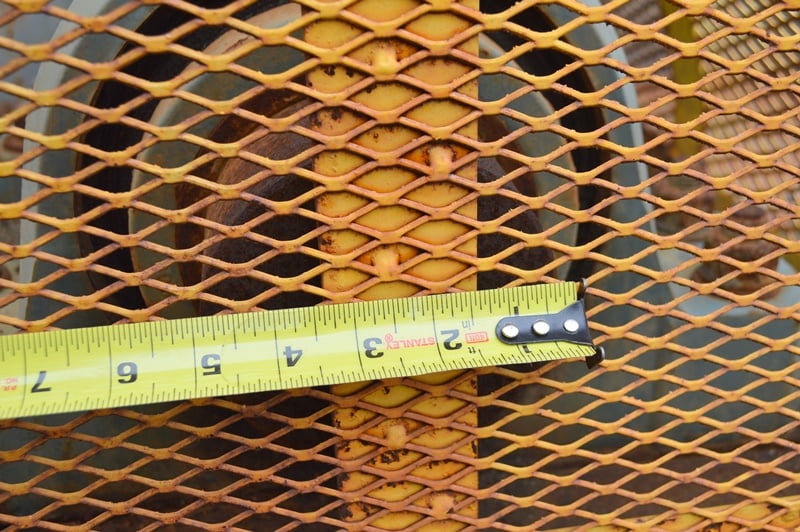

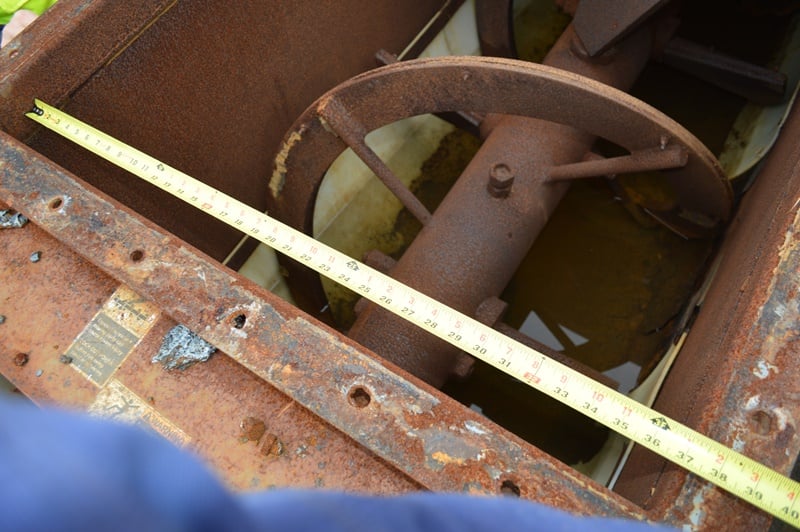

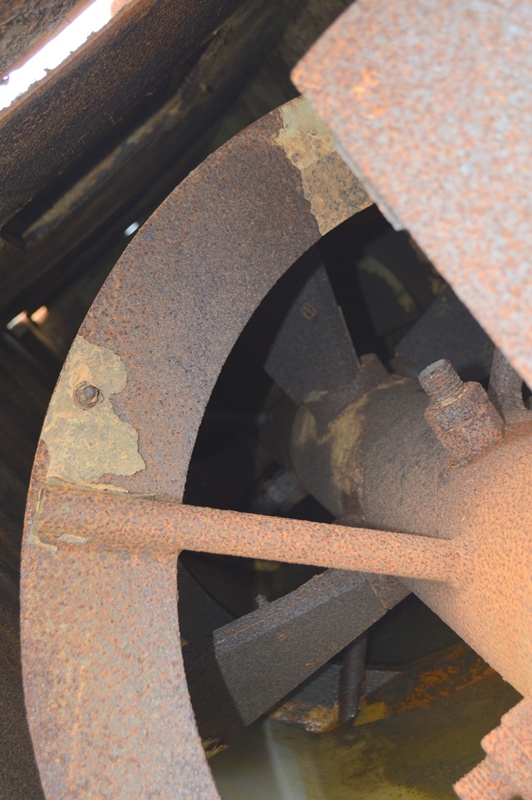

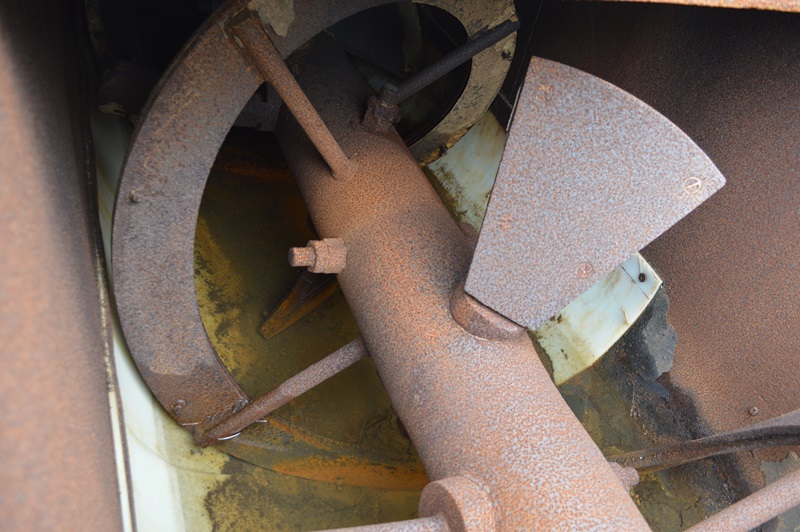

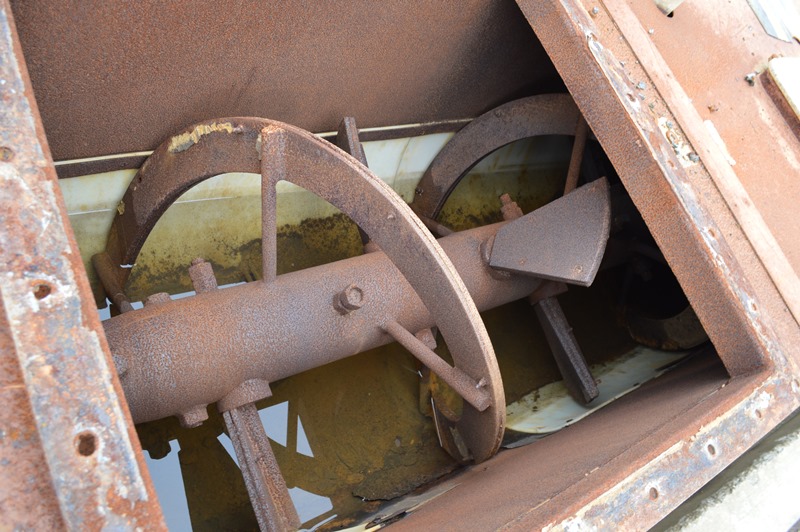

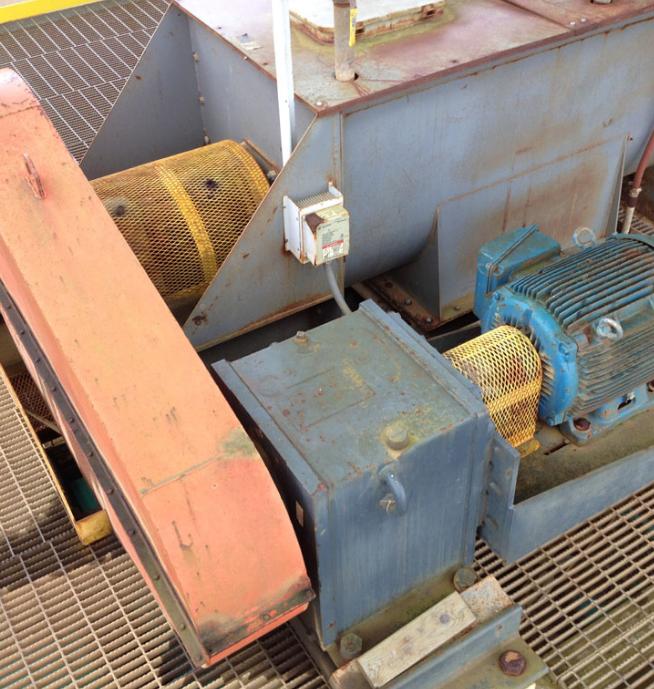

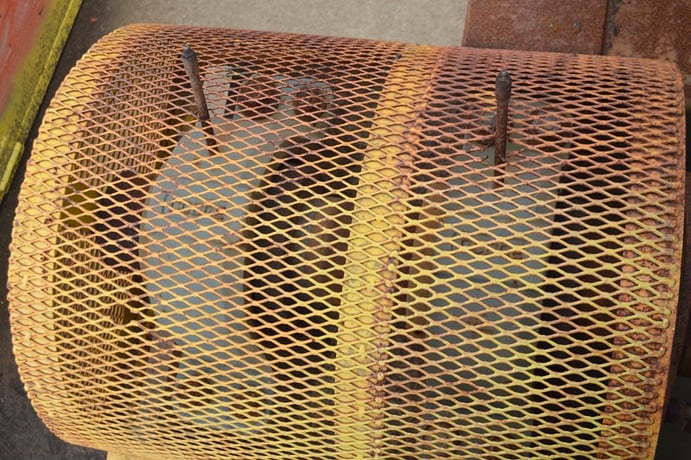

MARTIN 36" Ribbon Screw Paddle Conveyor. A Combination Ribbon Blender and Paddle Blender Auger with the following additional features: -- Approximate inside dimensions: 18 Ft. 4 In. long x 37 In. wide x 46+ In. high. -- Ribbon screw specs: -- 36" diameter Ribbon (screw) 36"; pitch, RH, 5"; wide ribbon screw w/1 ¼"; posts mounted on 8" SCH. 80 pipe. -- 3-bolt drilling at both ends for 4 15/16"; dia. shaft, fights to be welded to post to pipe w/ ½"; thick AR 400 bolted wear shoes. -- Screw having (18) adjustable paddles – paddles have bolt-on ½"; thick AR-400 wear plate. -- Ribbon spacing 36". Tail Shaft and drive end Shaft dia. 4-15/16";. -- Bottom of trough is lined with UHMW plastic. -- Drive Specs: -- 75HP Drive with Faulk 2100FZ3 class 2 reducer (HEAVY DUTY) - 45RPM output from gear reducer -- Screw/ribbon rotation speed: 18 RPM. -- Removed from service and ready to ship. Estimated weight 15,500 Lbs.
