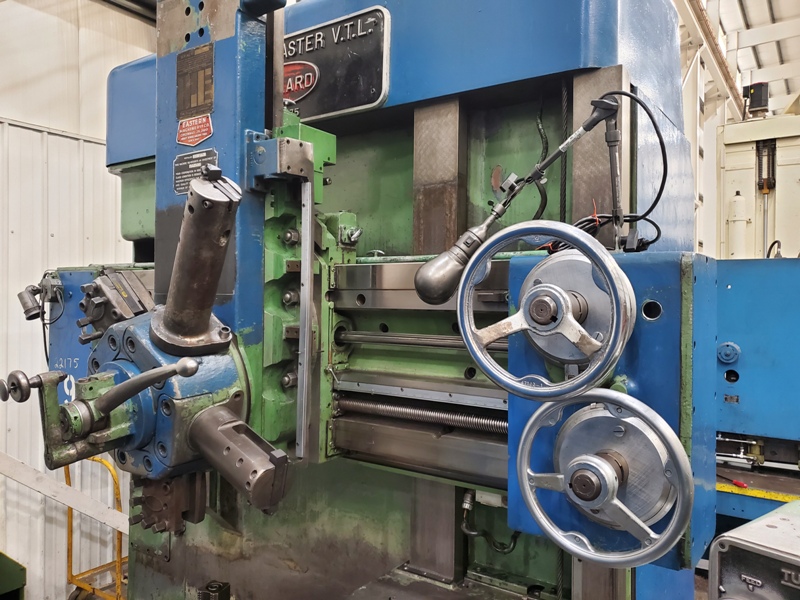

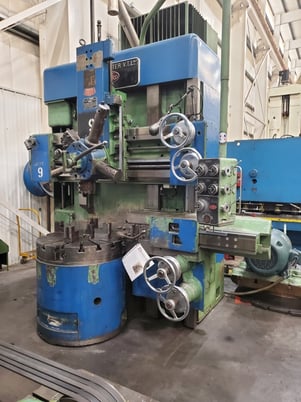

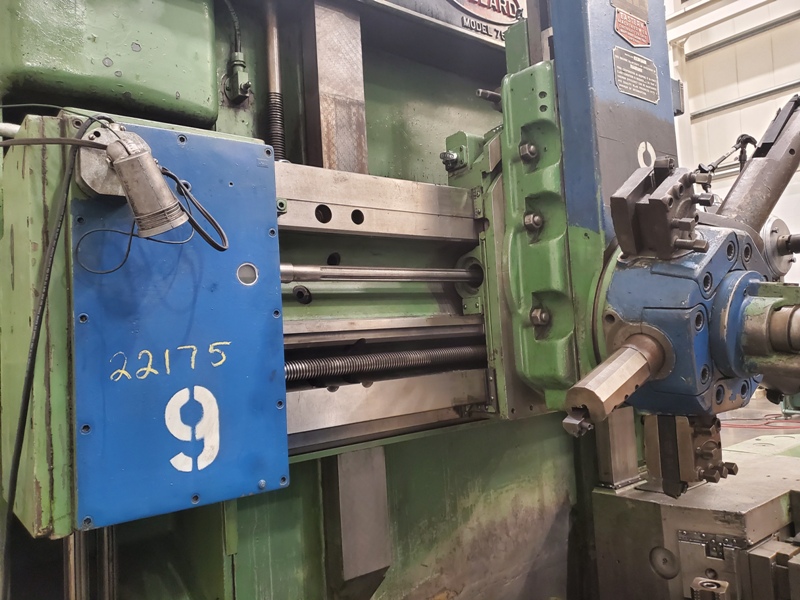

36" Bullard #Cutmaster-75, vertical turret lathe, 4-jaw chuck, flush floor dsgn, full pendant controls, 1954

36" BULLARD CUTMASTER VERTICAL TURRET LATHE
PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $29,500.00
HMC Stock # 22175
Machine Serial No.: 29539
Machine Model No.: Cutmaster 75
New Date: 1954
Table Speeds: 8.2 to 300 RPM
Max. Swing Side Head Below Table: 45"
Max. Swing Side Head Working Position: 39"
Turret Head Swivels: 30 Degrees Left & Right
Manual 4-Jaw Chuck: 36" Diameter
Max. Distance Table to Rail: 30"
Max. Distance Table to Face of Turret: 41-1/4"
Travel of Head on Rail: 42" Left & Right
Tool Turret Tool Holes: 2-3/4" Diameter
Max. Turret Head Vertical Stroke: 26"
Side Head Horizontal Travel: 19"
Side Head Vertical Travel: 30-1/4"
Feeds: .0006" to .125"IPR
EQUIPPED WITH:

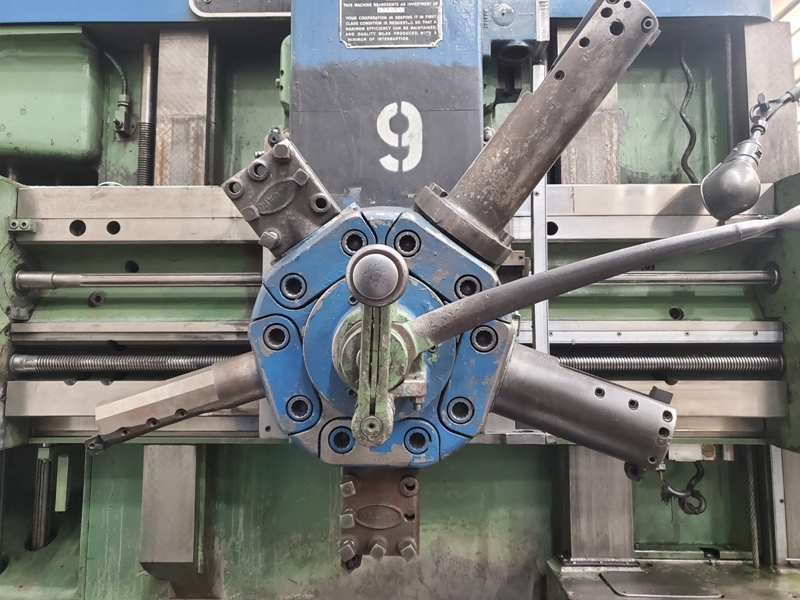

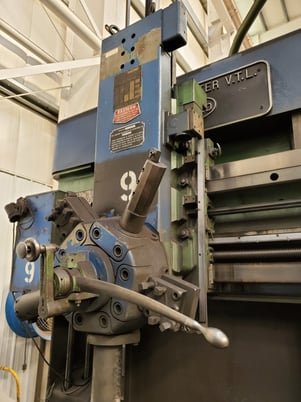

5-Position Manual Indexing Tool Turret

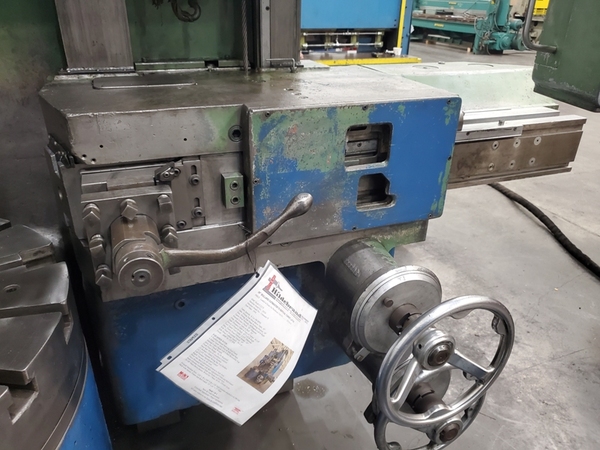

4-Sided Turret Tool Post on Side Head Ram

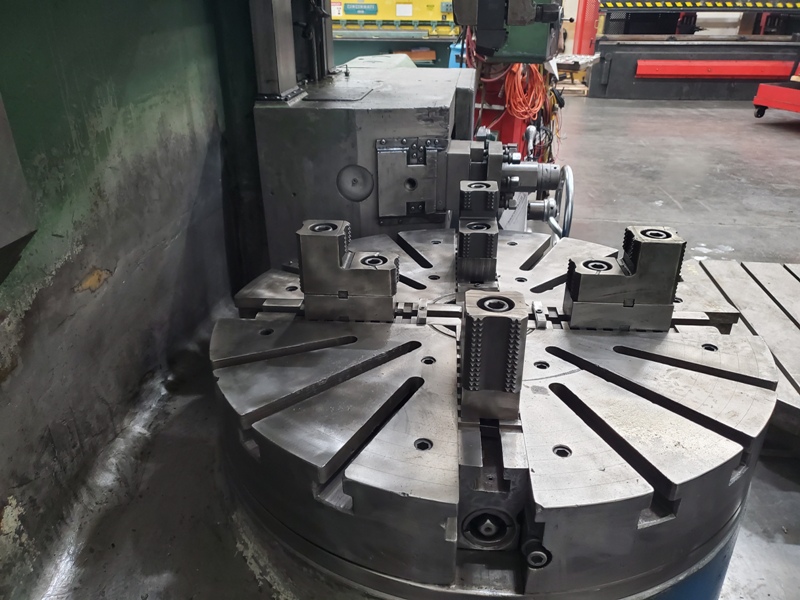

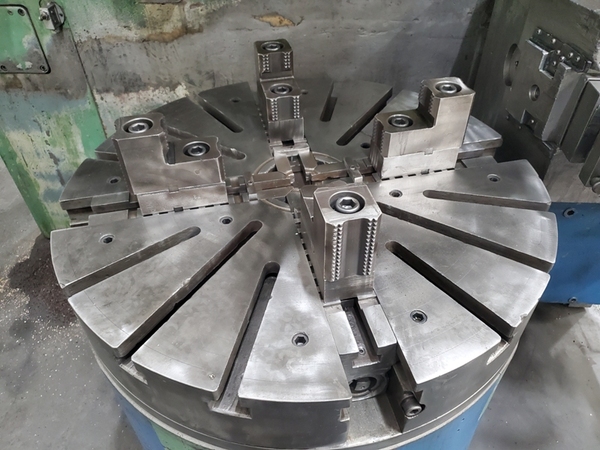

Manual 4-Jaw Chuck with 4 Hard Reversible Top Jaws, NO Chuck Wrench
Flush Floor Design - No Pit Required
Hard Rail Ways in Excellent Condition
(2) Bullard 3-Sided Tool Holders
(3) 2-3/4" Diameter Boring Bar Tool Holders

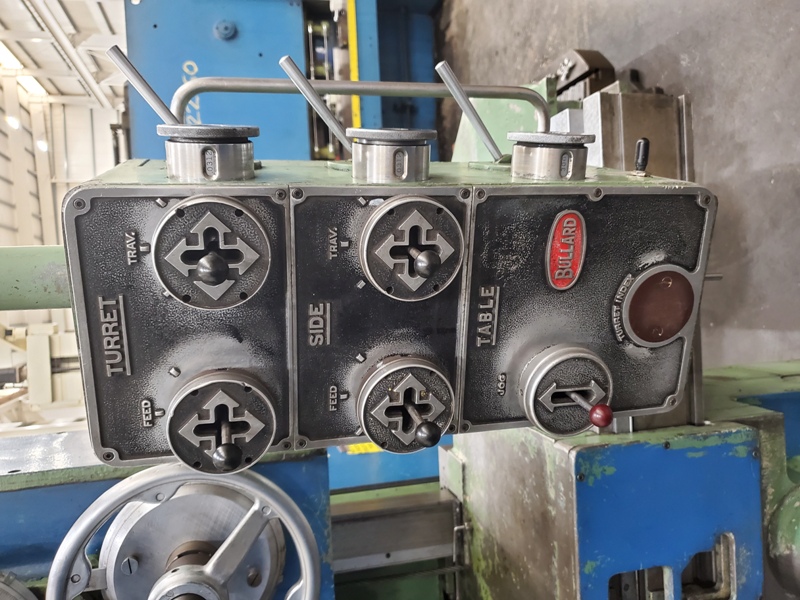

Full Pendant Operational Control
Rapid Traverse to All Axes
Bijur One Shot Lubrication Systems to Each Axis
Floor Mounted Motor with Belt Adjustment Frame and Belt Guard
Satin Chrome Graduated Dials and Scales on Each Axis
40 HP Main Drive Motor, Wired for 3 Phase, 60 Hz, 220/440 Volts
Overall Machine Size: 120" L-R x 109" F-B x 138" High (pendant attached) x 41,500 Lbs.
Skid with Motor, Frame and Belt Guard: 52" x 81" x 33" High
