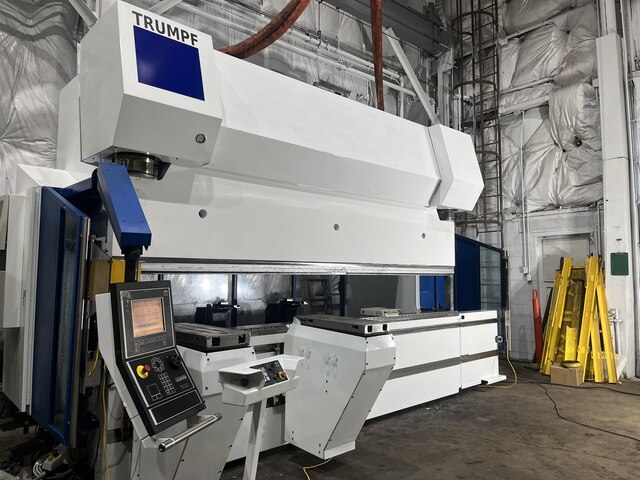

352 Ton, Trumpf #Trumabend-V320, CNC hydraulic press brake, 14' overall, 145" between housing, 2006

Pre Owned 2006 Trumpf Trumabend V320 CNC Hydraulic Press Brake

GENERAL SPECIFICATIONS

Capacity 352 US Tons

Overall Length of Bed and Ram 174”

Distance Between Housings 145”

Stroke 14”

Max Open Height 25”

Effective Open Height 21”

Ram Inclination +/- 0.4”

Throat Clearance 16”

Speeds

Approach 354” Per Minute

Form 2-24” Per Minute

Return 320” Per Minute

Distance Floor to Top of Bed 41”

Width at Top of Bed 8”

Operating Height 41”

Oil Capacity 133 US Gallons

Main Motor Horsepower 50 230/460/3/60

CONTROL FEATURES

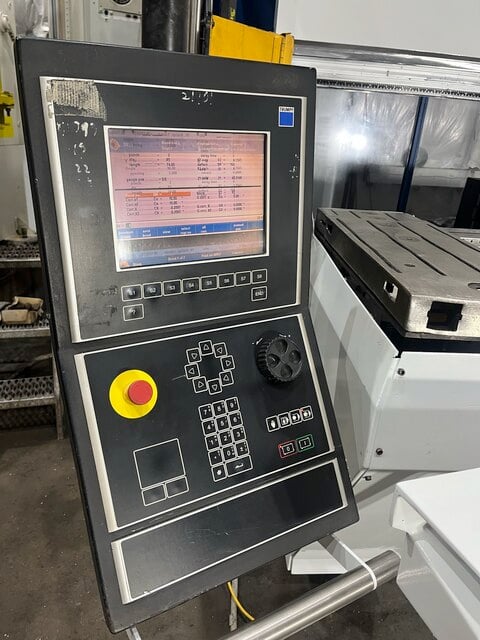

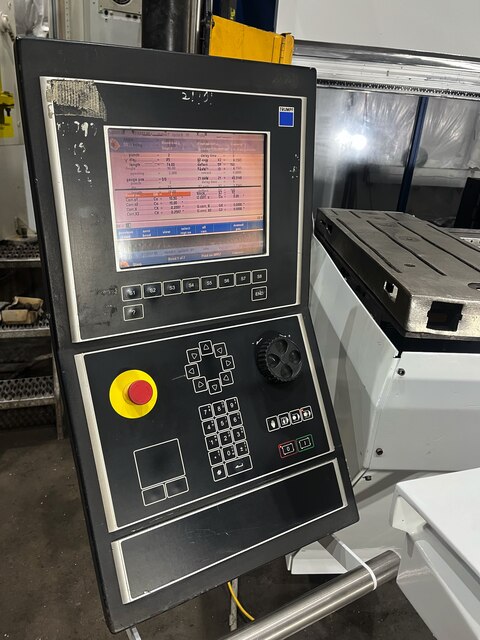

Trumpf Delem DA-69TW Multi-Axis Control (Y1,Y2,X , R, I )

Off Line Capable

Programmable Forming Speeds

Programmable Ram Opening

Programmable Reversal

Programmable Tonnage Displayed Through CRT

Control Diagnostics

Graphic Programming

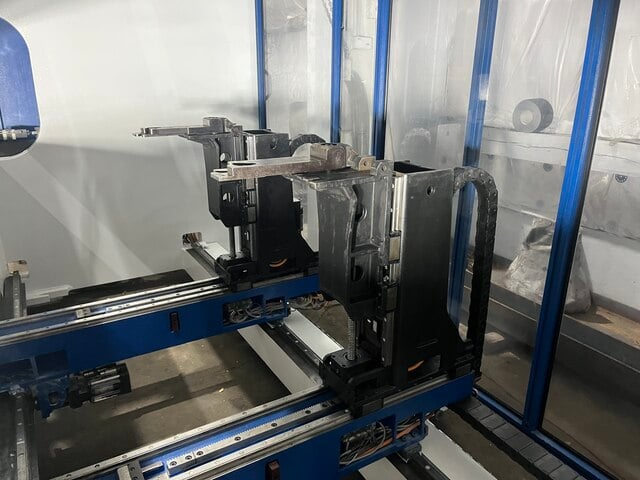

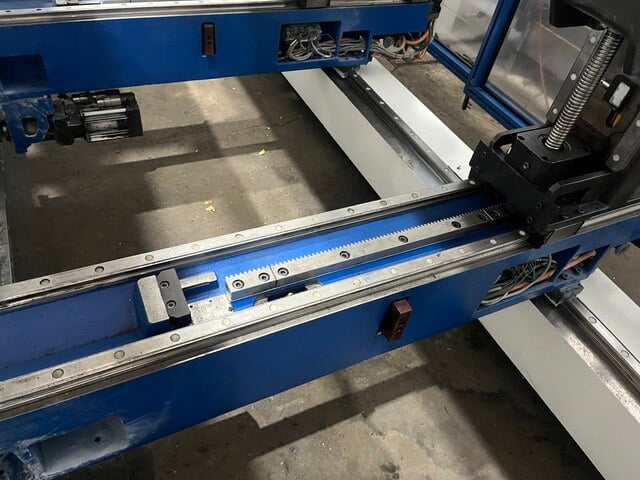

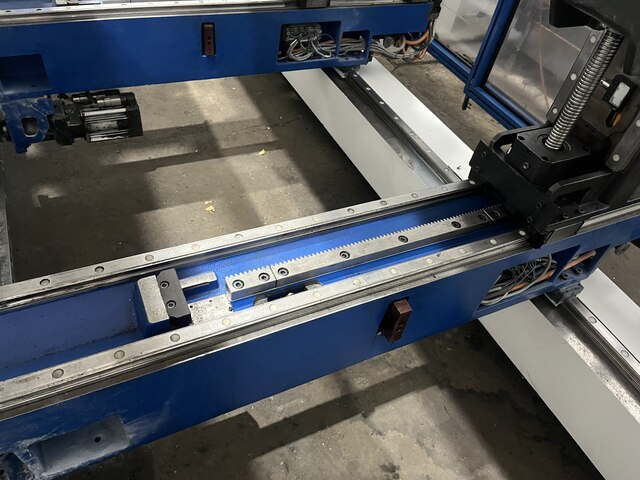

BACK GAGE FEATURES

Trumpf 6 Axis Heavy Duty Backgauge

X-Axis X1, X2

Max Distance 34.6”

Travel 19.6”

Max Speed 13” Per Min

R-Axis R1, R2

Travel 13.3”

Max Speed 3.9”

2 Back Gage Finger Supports

Z-Axis, Z1, Z2,

EQUIPPED WITH

Automatic Crowning

I-Axis Die Shift

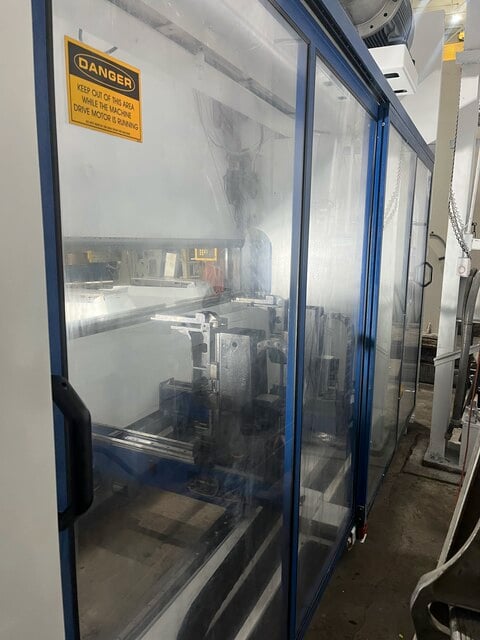

ISB Merlin Light Curtains

Ram Inclination in Y1 –Y2

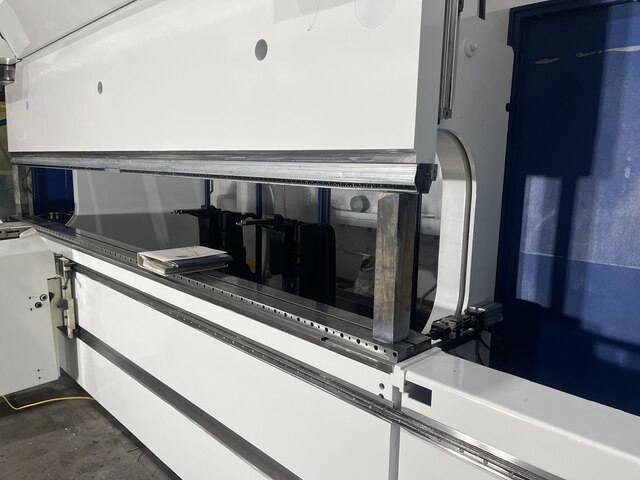

Upper & Lower Hydraulic Tool Clamping

Self-Active Crowning

Self Centering Tooling Adaptor

Precision Ram Leveling with Dual Linear Glass Scale Encoders

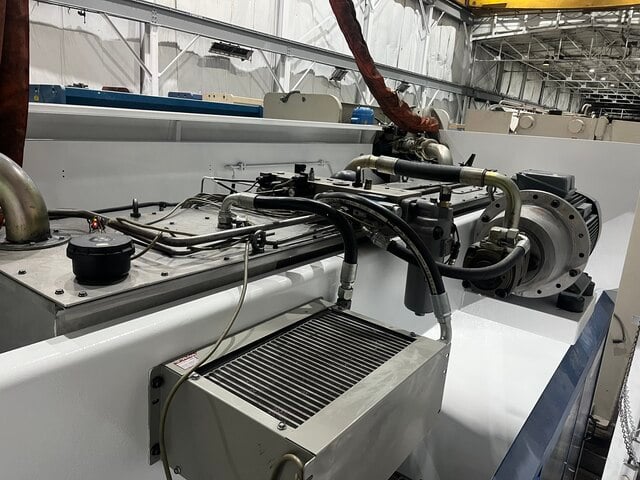

Oil Cooler

Electric Foot Switch

Approximate Overall Weight 53900 lbs.

Approximate Overall Dimensions 212” L X 109”W X 126” H
