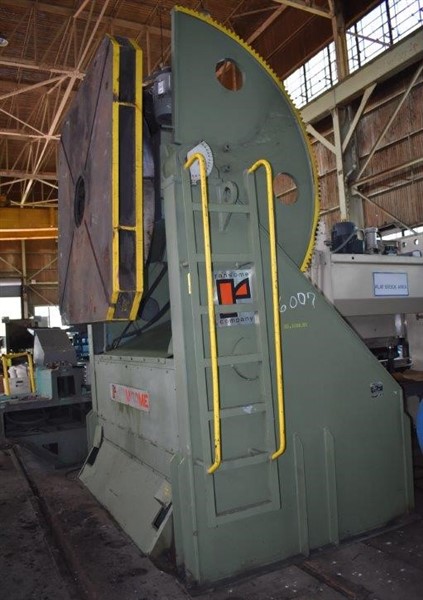

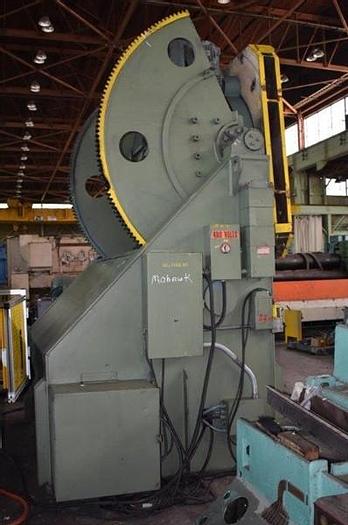

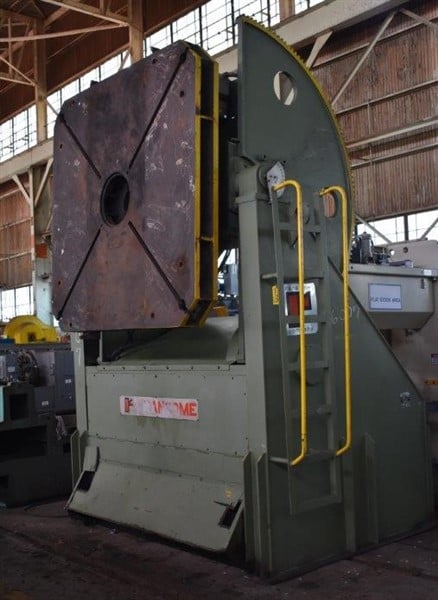

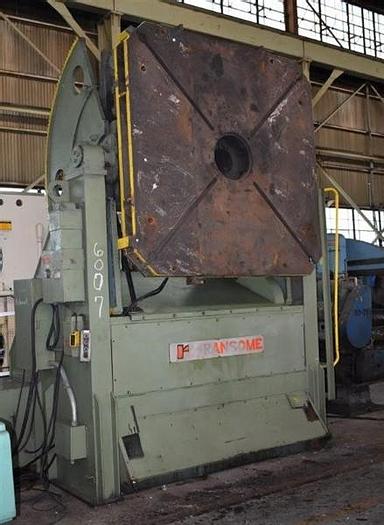

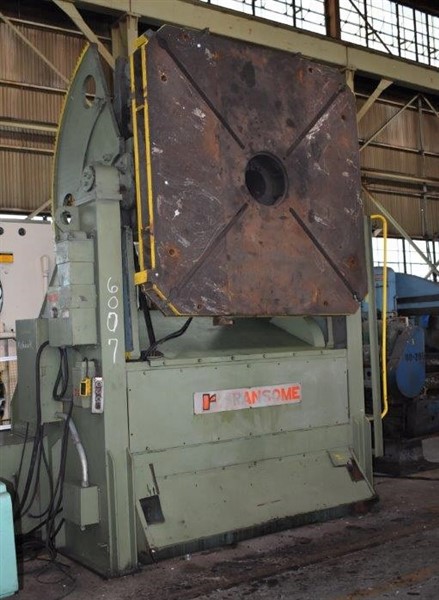

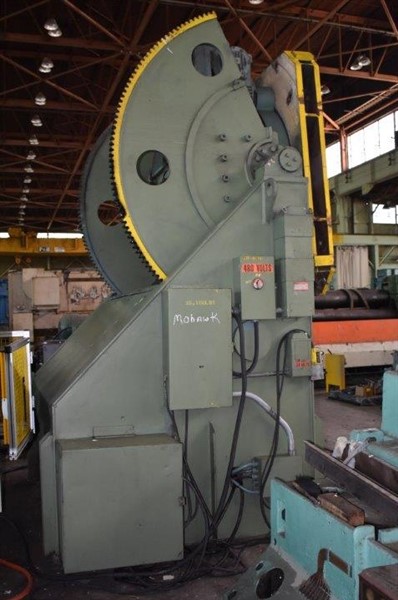

35100/60000 lb. Ransome #600P extra heavy-duty welding positioner, hand held pendant Control, 7.5 HP

Estimated monthly payment valid upon approved credit.

Request Formal Quote

35,100/60,000 LB RANSOME EXTRA HEAVY-DUTY WELDING POSITIONER
SERIAL NO 6516814, MODEL 600P
35,100/60,000 LB RANSOME EXTRA HEAVY-DUTY WELDING POSITIONER
SERIAL NO 6516814, MODEL 600P
EQUIPPED WITH:
HAND HELD PENDANT CONTROL
VARIABLE SPEED POWER ROTATION
FORWARD & REVERSE TILTING (-45/+90 DEGREE)
CATALOG SPECIFICATIONS:
Table Dimensions, L x W 72" x 72"
Table Weight At 12" C.G. 16" Eccentricity 35,100 LBS
Table Rotation, Degrees 360-DEGREES
Table Tilt, Forward 90-DEGREES
Table Tilt, Reverse 45-DEGREES
Table Speed Variable, Range .008 to .32 RPM
Rotation Motor, Horsepower 7.5 HP/1760 RPM
Electrical System 230-460/3/60
Overall Dimensions, L-R x F-B 126" x 120"
Overall Height, Table Flat 120"
NOTE: THIS 600P WELDING POSITIONER IS NORMALLY RATED FOR
60000 LB CAPACITY HOWEVER THIS MACHINE WAS SPECIALLY
DESIGNED FOR THE GOVERNMENT WITH EXTRA HEIGHT AND IS
CURRENTLY RATED FOR 35,100 LB CAPACITY @12" C.G. AND
16" ECCENTRICITY. THE CATALOG RATING USUALLY STARTS
AT 12" ECCENTRICITY. MACHINE APPEARS TO BE IN VERY
GOOD CONDITION.
PRICE: F.O.B. OUR WAREHOUSE
Table dimensions, l x w: 72" X 72"
Table weight at 12" c.g. 16" eccentricity: 35,100 LBS
Table rotation, degrees: 360-DEGREES
Table tilt, forward: 90-DEGREES
Table tilt, reverse: 45-DEGREES
Table speed variable, range: .008 TO .32 RPM
Rotation motor, horsepower: 7.5 HP/1760 RPM
Electrical system: 230-460/3/60
Overall dimensions, l-r x f-b: 126" X 120"
Overall height, table flat: 120"
