350 HP Cleaver-Brooks #CBLE-200-350-150ST, Packaged Steam Boiler, 150 PSI, AB PowerFlex 400 VFD, 2015

OVERVIEW

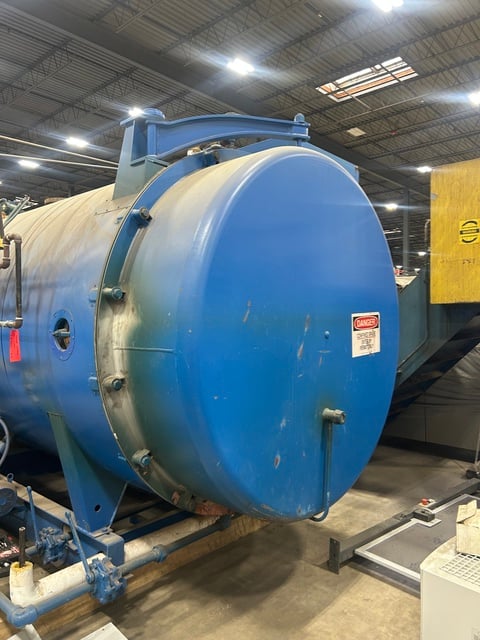

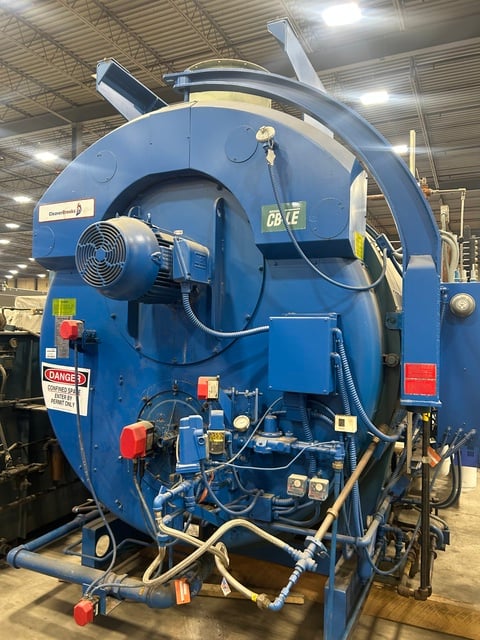

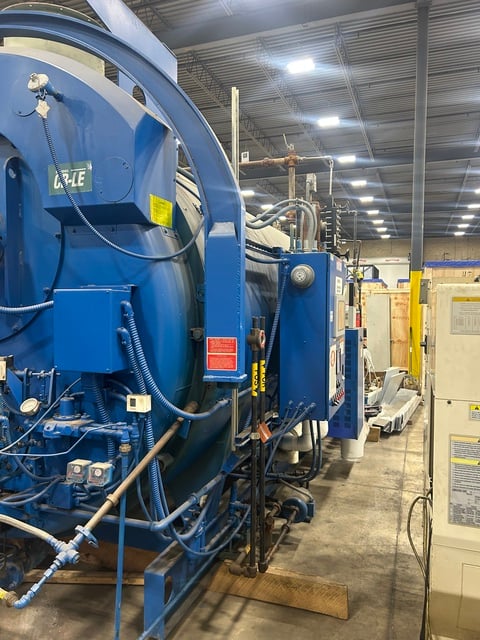

This is a Cleaver Brooks Model CBLE 200-350-150ST packaged firetube steam boiler, rated 350 boiler horsepower. Factory-built by Cleaver Brooks, Thomasville, Georgia, USA, in 2015. Dual-fuel design, fired on natural gas or No. 2 oil, with a low NOx emission rating of 30 PPM. Maximum working pressure 150 PSI steam.
This unit has been refurbished and fitted with new, updated controls, including an Allen-Bradley PowerFlex 400 variable frequency drive and a Hawk touchscreen burner management/control interface. It is a top-of-the-line configuration within the CBLE product line, combining the original Cleaver Brooks pressure vessel and burner assembly with modernized electronic controls. Ready for inspection, contact us to schedule.

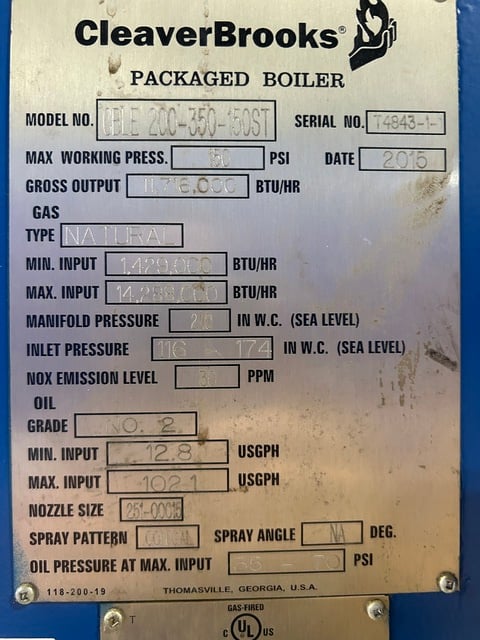

EQUIPMENT SPECIFICATIONS

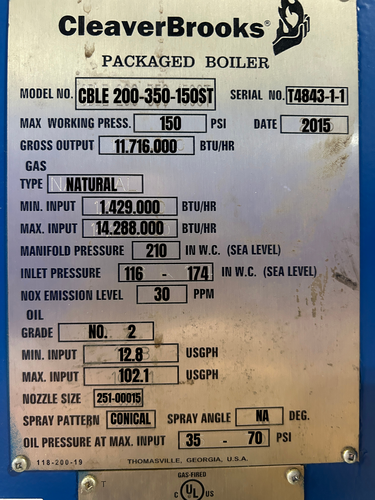

Boiler:
- Manufacturer: Cleaver Brooks, Thomasville, GA, USA
- Equipment Type: Packaged Firetube Gas/Oil-Fired Steam Boiler
- Model: CBLE 200-350-150ST
- Boiler Horsepower: 350 HP
- Maximum Working Pressure: 150 PSI Steam
- Gross Output: 11,716,000 BTU/HR
- Serial No.: T4843-1-1
- Date of Manufacture: 2015
- Fuel Type: Dual Fuel, Natural Gas or No. 2 Oil
- Listing: UL-Listed Gas-Fired Boiler Assembly
Gas Firing Data:
- Gas Type: Natural
- Minimum Input: 1,429,000 BTU/HR
- Maximum Input: 14,288,000 BTU/HR
- Manifold Pressure: 210 in. W.C. (sea level)
- Inlet Pressure: 116–174 in. W.C. (sea level)
- NOx Emission Level: 30 PPM
Oil Firing Data:
- Oil Grade: No. 2
- Minimum Input: 12.8 USGPH
- Maximum Input: 102.1 USGPH
- Nozzle Size: 251-00015
- Spray Pattern: Conical
- Oil Pressure at Maximum Input: 35–70 PSI
Controls and Upgrades:
- Refurbished unit with new, updated controls
- Allen-Bradley PowerFlex 400 variable frequency drive (combustion air blower)

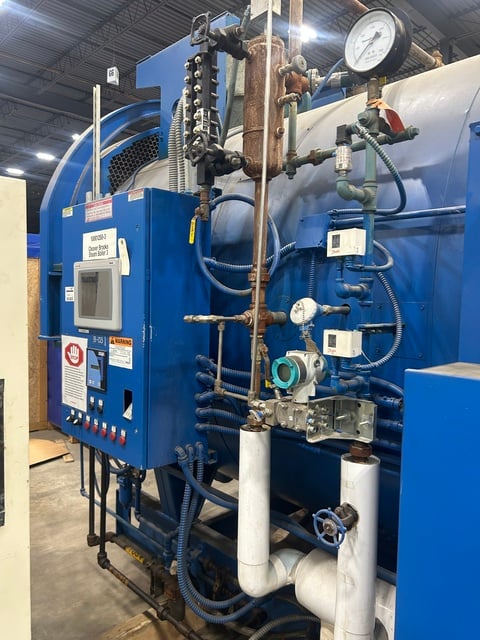

- Hawk touchscreen burner control interface (labeled Boiler 3, B-03)

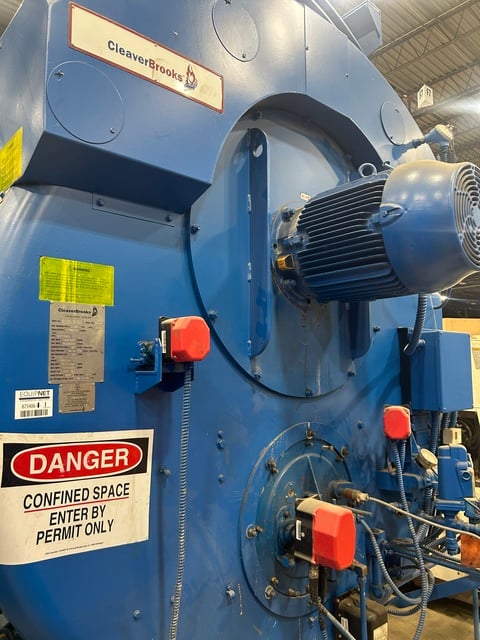

- Confined space / permit-required access points per OSHA labeling
KEY FEATURES AND BENEFITS
- Top-of-the-line Cleaver Brooks CBLE packaged firetube design
- 350 HP, 150 PSI steam rating
- Low NOx emissions (30 PPM)
- Dual fuel flexibility, natural gas or No. 2 oil
- Refurbished with new, updated electronic controls (Allen-Bradley PowerFlex 400 VFD, Hawk touchscreen interface)
- UL-listed gas-fired boiler assembly
SYSTEM COMPONENTS
- Boiler: CBLE 200-350-150ST, 350 HP, built 2015, 150 PSI max working pressure

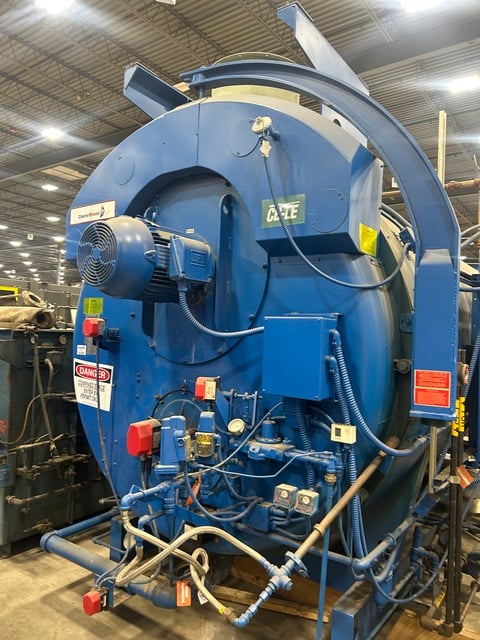

- Burner: Integral Cleaver Brooks gas/oil burner, WEG blower motor
- Controls: Allen-Bradley PowerFlex 400 VFD, Hawk touchscreen control panel

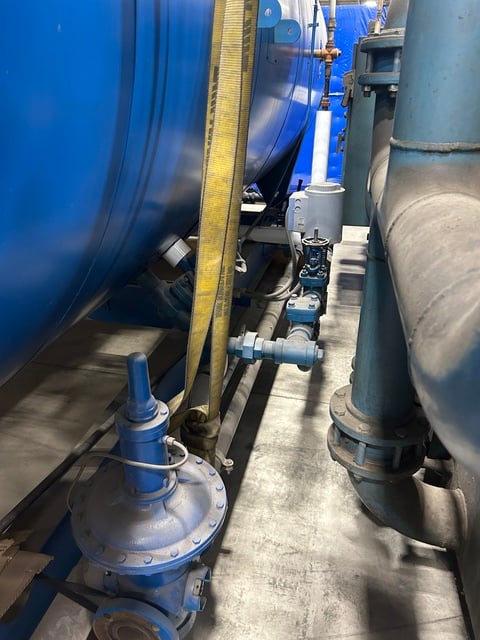

- Trim: Steam pressure gauge, water column, safety and control valving
SPECIFICATIONS SUMMARY
- Manufacturer: Cleaver Brooks
- Model: CBLE 200-350-150ST
- Boiler Horsepower: 350 HP
- Maximum Working Pressure: 150 PSI Steam
- Gross Output: 11,716,000 BTU/HR
- Fuel Type: Dual Fuel (Natural Gas / No. 2 Oil)
- NOx Emission Level: 30 PPM
- Serial No.: T4843-1-1
- Year Built: 2015
- Condition: Refurbished, new updated controls
ADDITIONAL INFORMATION
- Condition: Refurbished, fitted with new updated controls
- Manufacturer: Cleaver Brooks, Thomasville, GA
- Model: CBLE 200-350-150ST, 350 HP
- Year Built: 2015
- Rated: 150 PSI, low NOx (30 PPM)
- Inspection: Welcome, contact us to schedule
Location: Ohio
