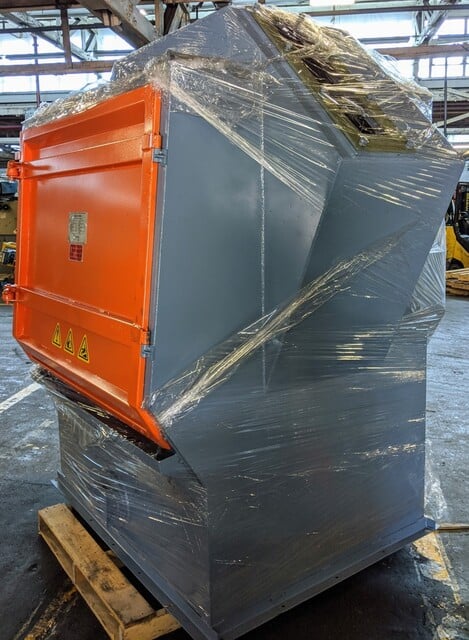

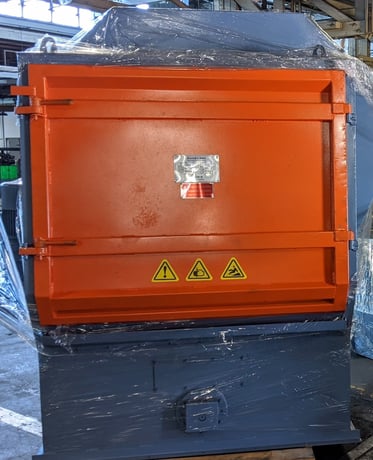

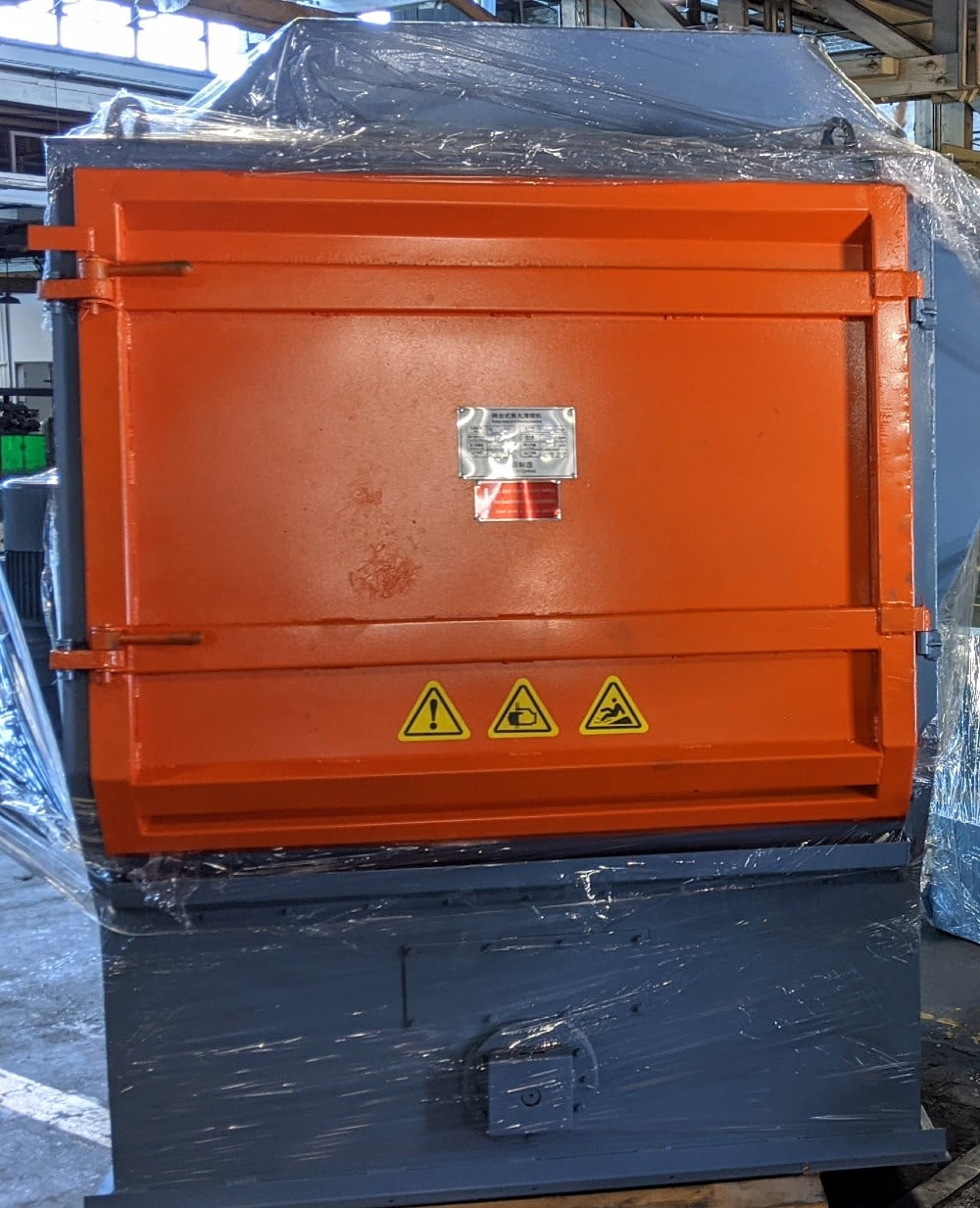

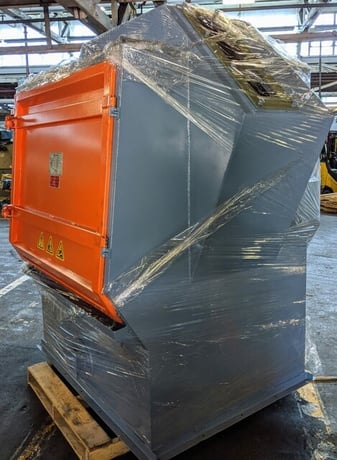

Table Shot Blast System

Table Blast Type Machine

Model: TD3207

New Automatic Table Shot Blast Machine "System" with Dust Collector and ALL Ducting Included

Effective table diameter: 50”

Table inside height: 42”

Maximum table load capacity: 1,102 lbs

Rotating speed of the table: 5-10 r/min, VFD control

Blastwheel: 2 - 10HP (7.5Kw) blastwheel with a diameter of 16.535" (420mm). This blastwheel is a simple proven design and it's a workhorse. The blastwheel assembly is dynamically balanced, direct drive with a double disk design (each disk is over 3/4" thick), and straight blades

Abrasive flow rate: 264 lbs/min x 2 = 528 lbs/min

Velocity: 230-246 ft/sec

Media sizes: S70-S660

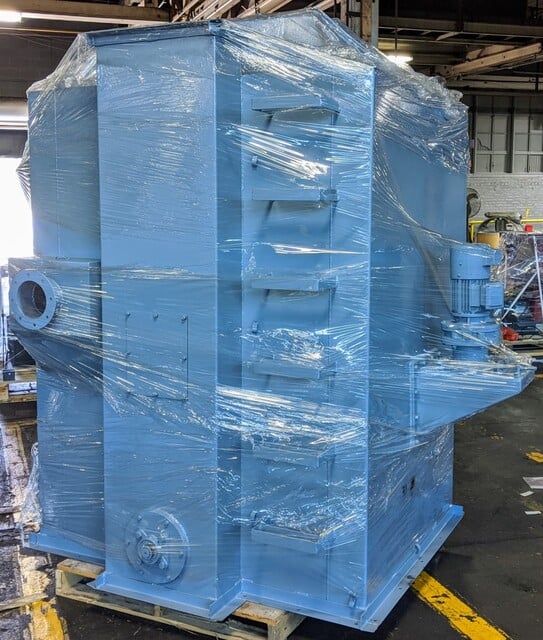

Media cleaning/recycling system: bucket elevator with airwash separator

Initial media charge: 1,000 lbs

Main machine footprint not including dust collector: 7' wide x 6' deep x 14.8' tall + dust collector and electric panel

Dust Collector with Reverse Pulse Cartridges:

Model: TDL-8

Cartridges: 8

Voltage: 460V 3 phase

Blower: 7HP @ 3000 CFM Top Mounted Fan

Pulse Clean with Timer

Electric control system: Operator control panel with an operating voltage of 460V, 3 phase, 60 Hz

Power consumption: 32.5 HP (24.25 Kw)

Terms: 100% payment due before shipping

FOB: Cleveland, Ohio 44117 Loaded onto flatbed truck

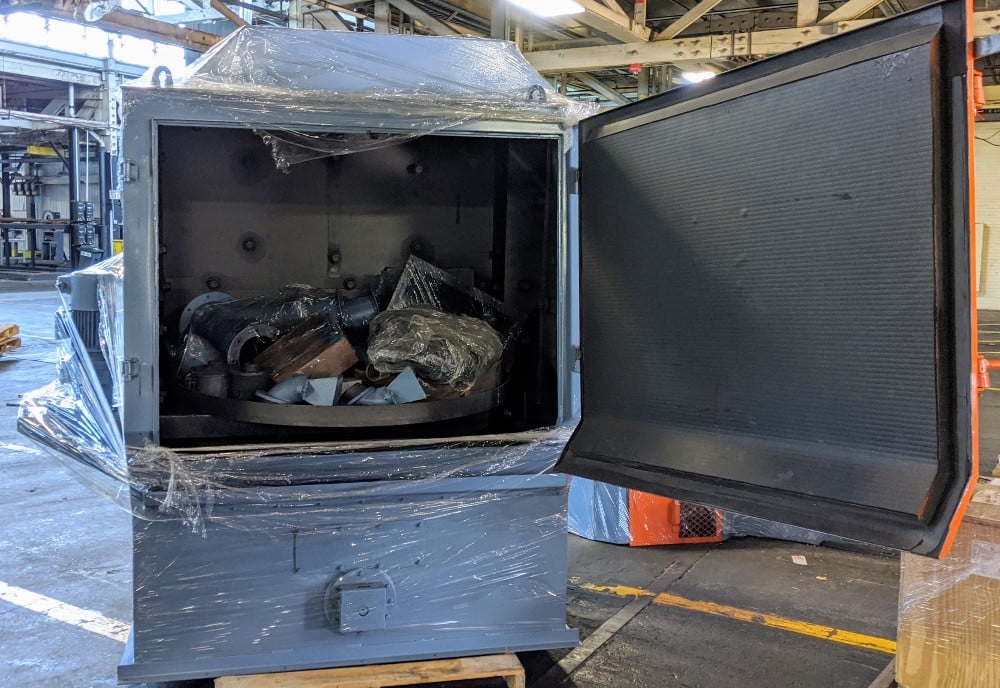

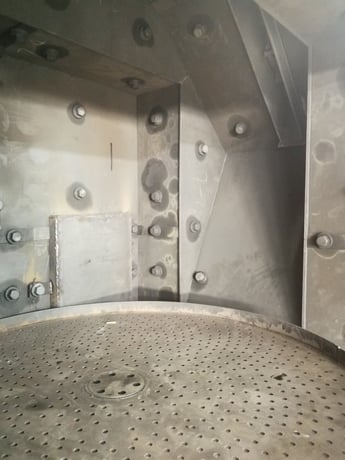

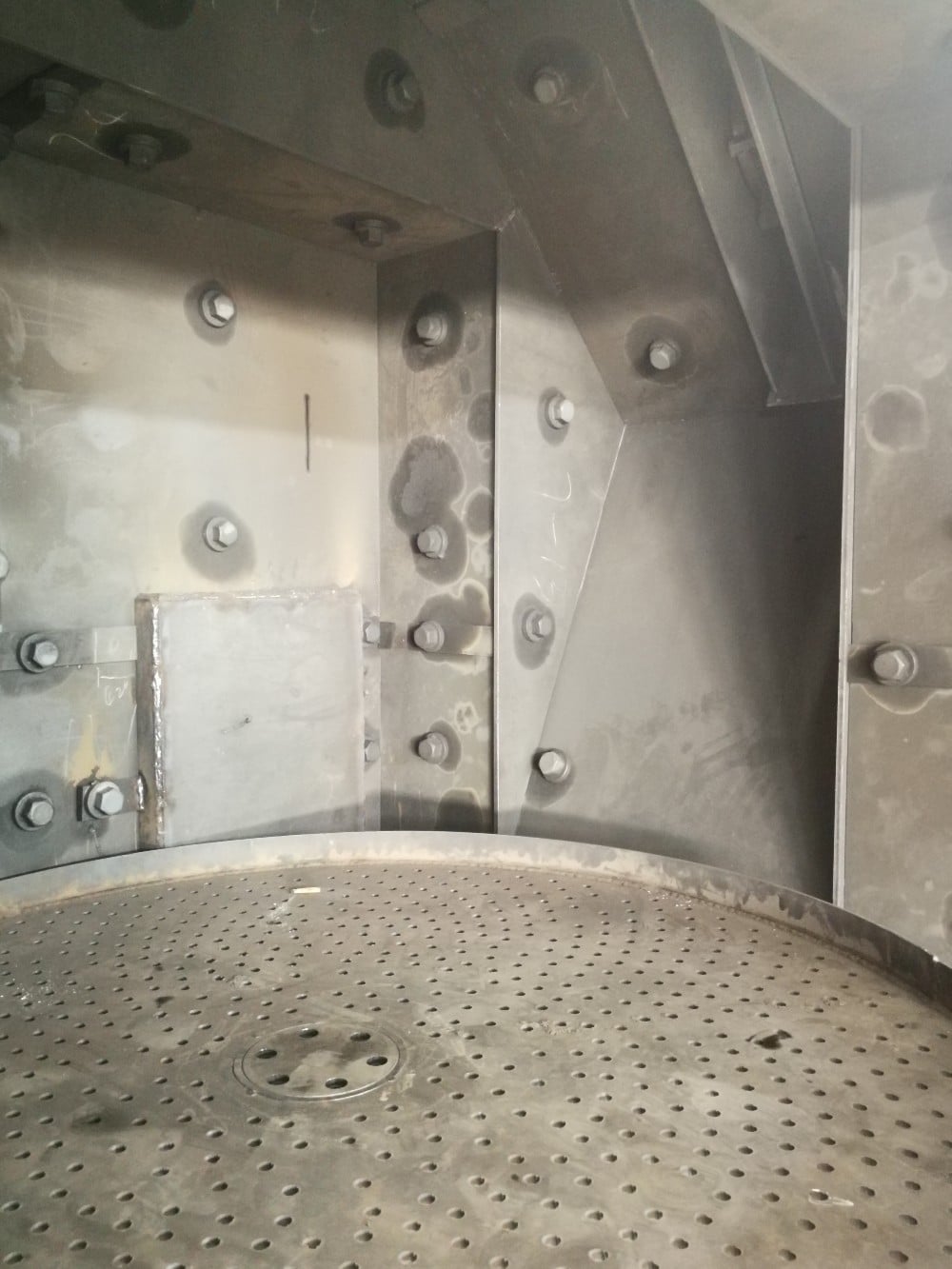

This machine adopts a table, which allows the work pieces to turn continuously during the shot blasting process.

Unified Technologies has been providing high quality shot blast equipment, spare parts, technical support, service, & blast media since 1999.

We provide a full range of many different models of shot blast systems.

Should you have ANY questions, please call us: 440-897-5226, we're here to help!
