For Sale by Harris Machine Tools, Inc.
Surplus Record Dealer Since 1986
Location: Houston, TX
Contact Sales Dept.
Phone Number: 713...> Show Phone Number 713-462-5800
Let the seller know you found their listing on Surplus Record!
Description
Swing Over Bed: 26"
Swing Over Cross Slide: 17.5"
Swing in Gap: 35.1"
Gap Width: 10.6"
Distance Between Centers: 90"
Bed Width: 15.7"
Center Height: 42"
Spindle Speeds: (12) 13 - 1200 RPM
Spindle Motor: 15 HP
Spindle Bore: 4-1/16"
Spindle Taper and Center: MT-7 / MT-5
Spindle Nose: D1-11
Feed Ranges: 16
Longitudinal Feeds: 0.0012 - 0.039
Cross Feeds: 0.0004 - 0.0117
Leadscrew Diameter / Pitch: 1.77" / 4Inch
Threads: (44) 2 - 72 TPI
Metric Threads: (39) 0.2 - 14 MM
Compound Travel: 9"
Cross Slide Travel: 15.8"
Tailstock Quill Travel: 10"
Tailstock Quill Diameter: 3.15"
Tailstock Taper: MT-5
Coolant Pump Motor: 1/8 HP
OAD (Approximate): 128" x 45" x 67"
Weight (Approximate): 7490 Lbs.
Note: All Specifications Subject to Verification
Equipped with:
Taper Turning Attachment - 10 Deg., 12" Travel

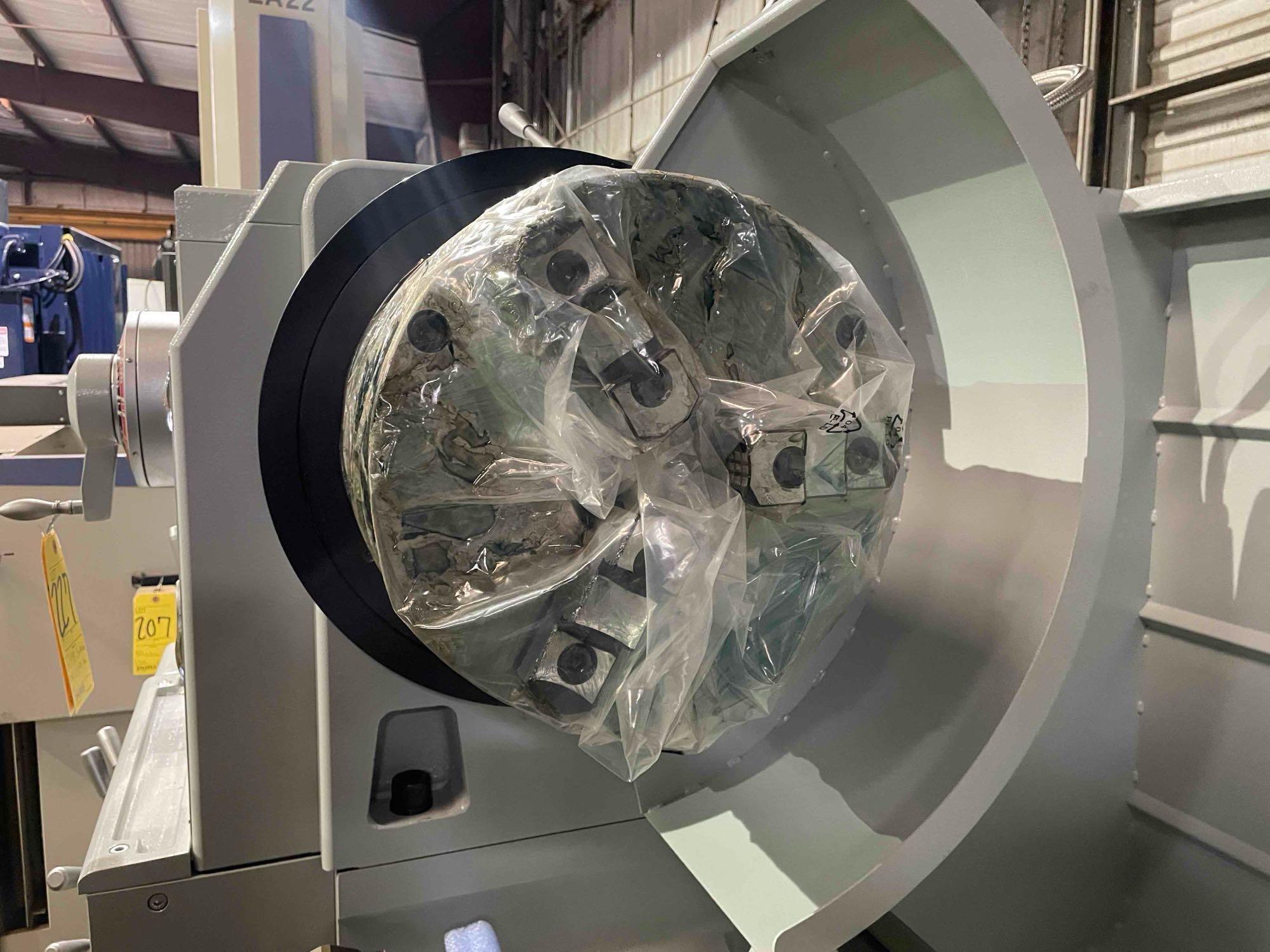

12" 3-Jaw Chuck
Longitudinal Rapid Traverse
Carriage Micro Stop
Standard Equipment:
12" Back Plate
MT-7 to MT-5 Headstock Spindle Center Adaptor
Chuck Guard
4-Way Tool Post
Automatic Longitudinal Feed Stop Bar
Thread Chasing Dial
LED Work Light
Two-Speed Drive Tailstock Spindle
Foot Brake System
Coolant System with Pump and Piping
Pull Drawer Chip Pan
Full Length Splash Guard
Tool Box with Tools
Swing Over Cross Slide: 17.5"
Swing in Gap: 35.1"
Gap Width: 10.6"
Distance Between Centers: 90"
Bed Width: 15.7"
Center Height: 42"
Spindle Speeds: (12) 13 - 1200 RPM
Spindle Motor: 15 HP
Spindle Bore: 4-1/16"
Spindle Taper and Center: MT-7 / MT-5
Spindle Nose: D1-11
Feed Ranges: 16
Longitudinal Feeds: 0.0012 - 0.039
Cross Feeds: 0.0004 - 0.0117
Leadscrew Diameter / Pitch: 1.77" / 4Inch
Threads: (44) 2 - 72 TPI
Metric Threads: (39) 0.2 - 14 MM
Compound Travel: 9"
Cross Slide Travel: 15.8"
Tailstock Quill Travel: 10"
Tailstock Quill Diameter: 3.15"
Tailstock Taper: MT-5
Coolant Pump Motor: 1/8 HP
OAD (Approximate): 128" x 45" x 67"
Weight (Approximate): 7490 Lbs.
Note: All Specifications Subject to Verification
Equipped with:
Taper Turning Attachment - 10 Deg., 12" Travel
12" 3-Jaw Chuck
Longitudinal Rapid Traverse
Carriage Micro Stop
Standard Equipment:
12" Back Plate
MT-7 to MT-5 Headstock Spindle Center Adaptor
Chuck Guard
4-Way Tool Post
Automatic Longitudinal Feed Stop Bar
Thread Chasing Dial
LED Work Light
Two-Speed Drive Tailstock Spindle
Foot Brake System
Coolant System with Pump and Piping
Pull Drawer Chip Pan
Full Length Splash Guard
Tool Box with Tools
