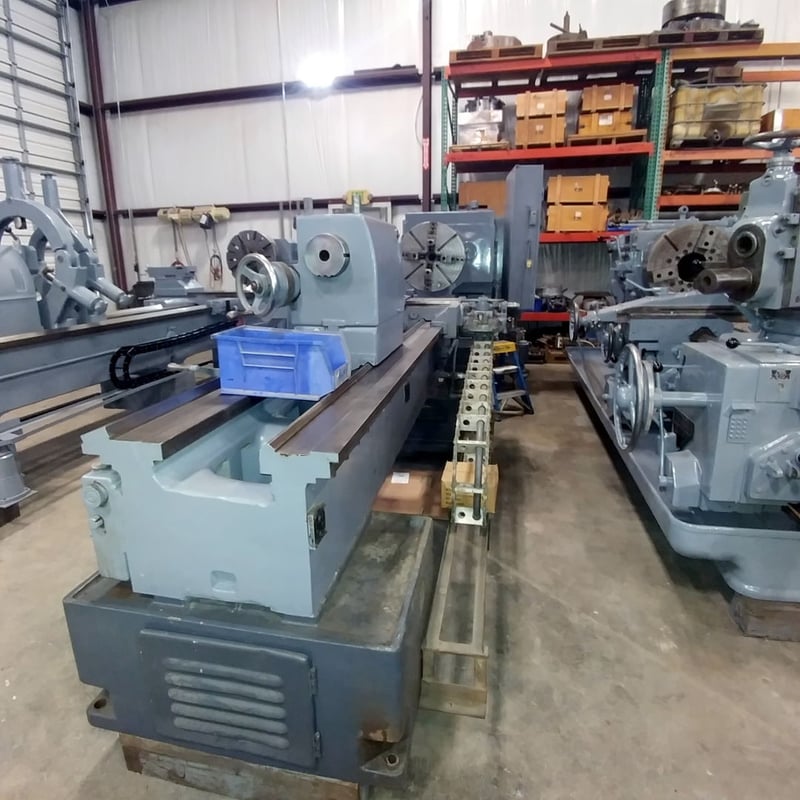

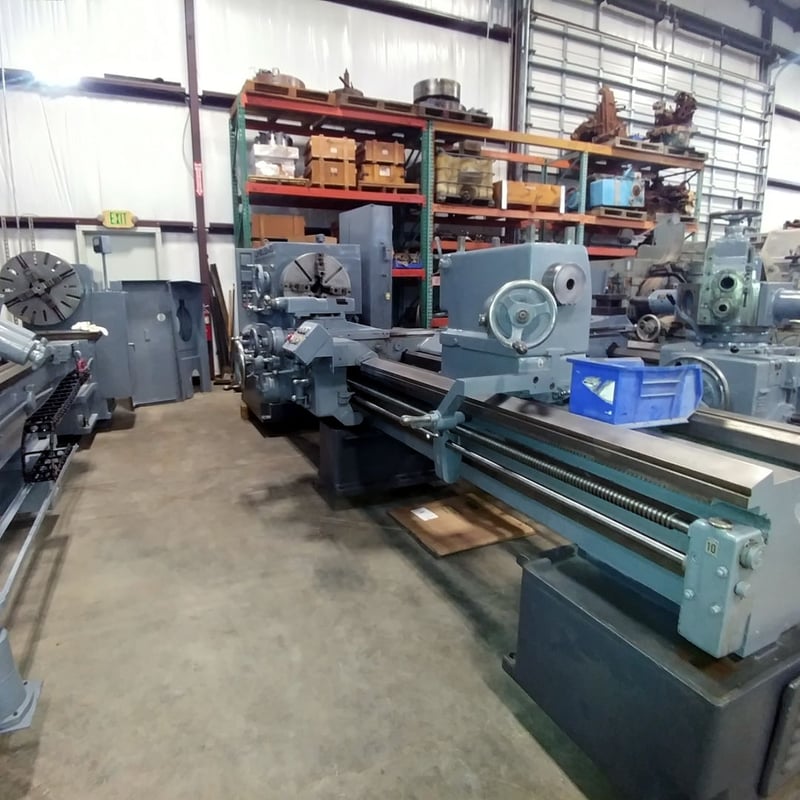

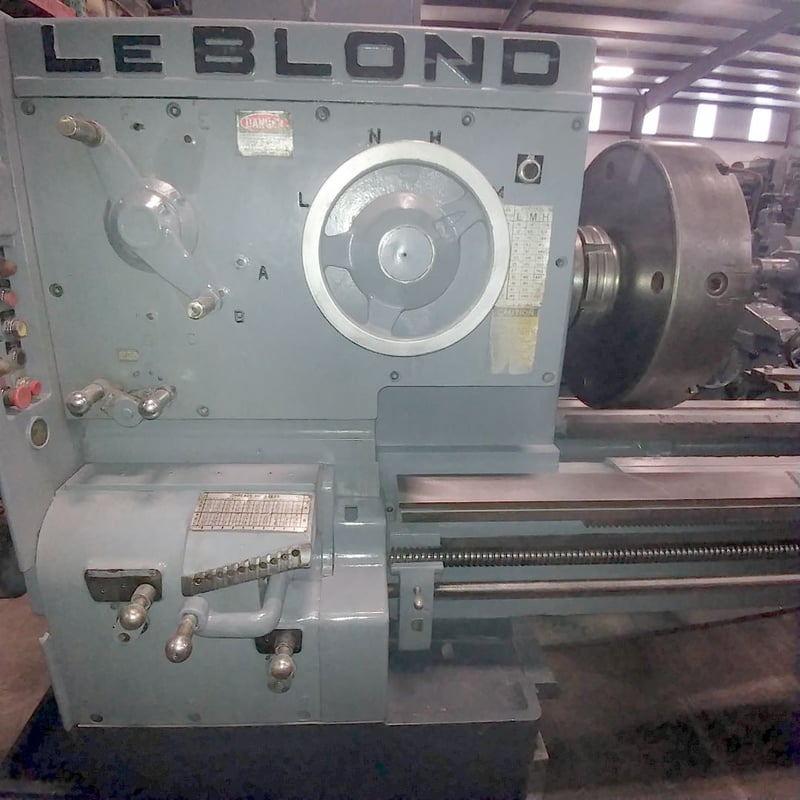

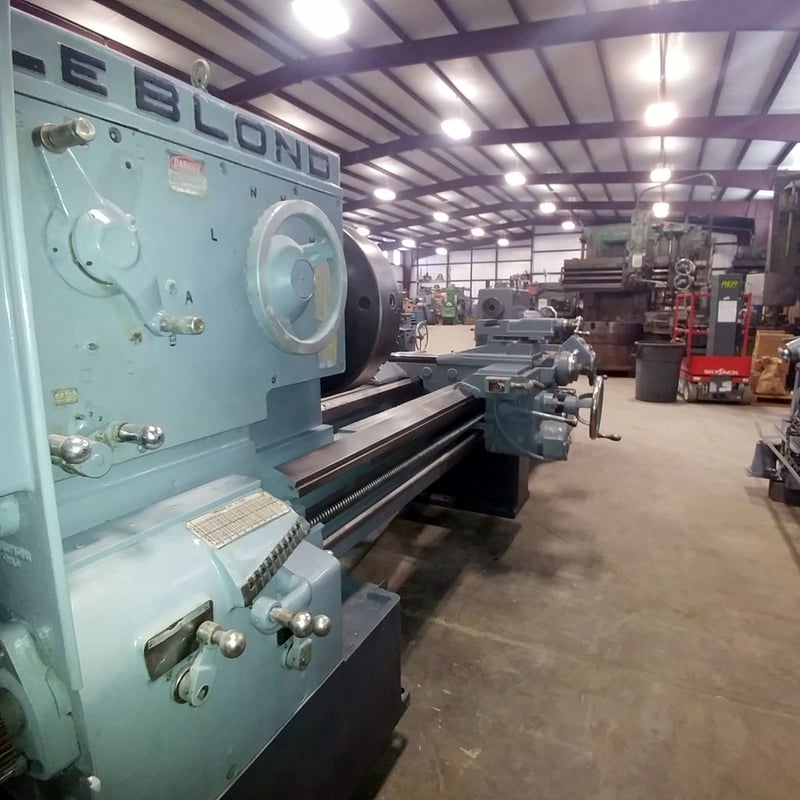

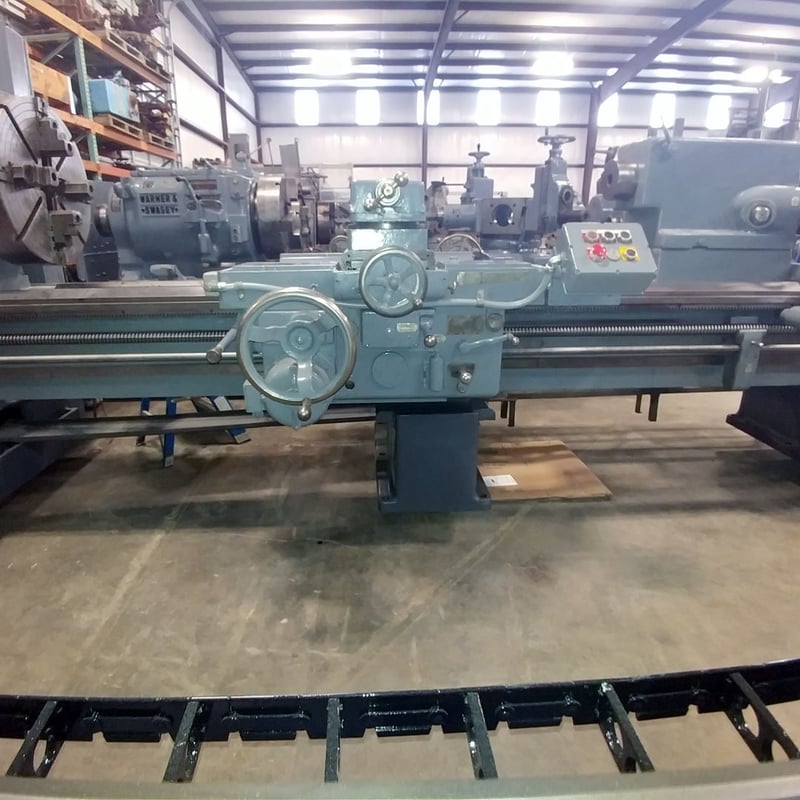

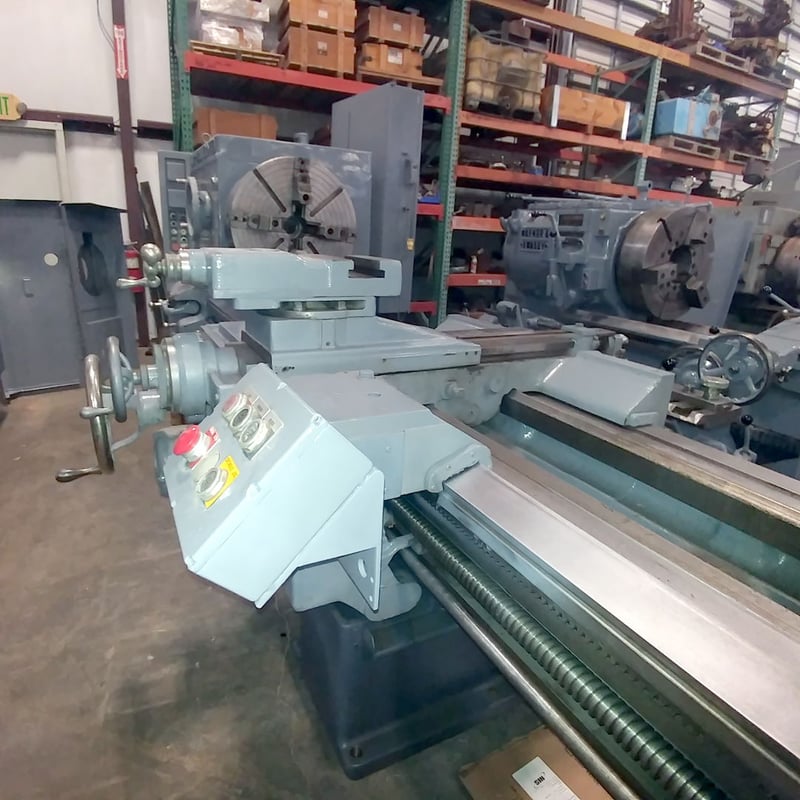

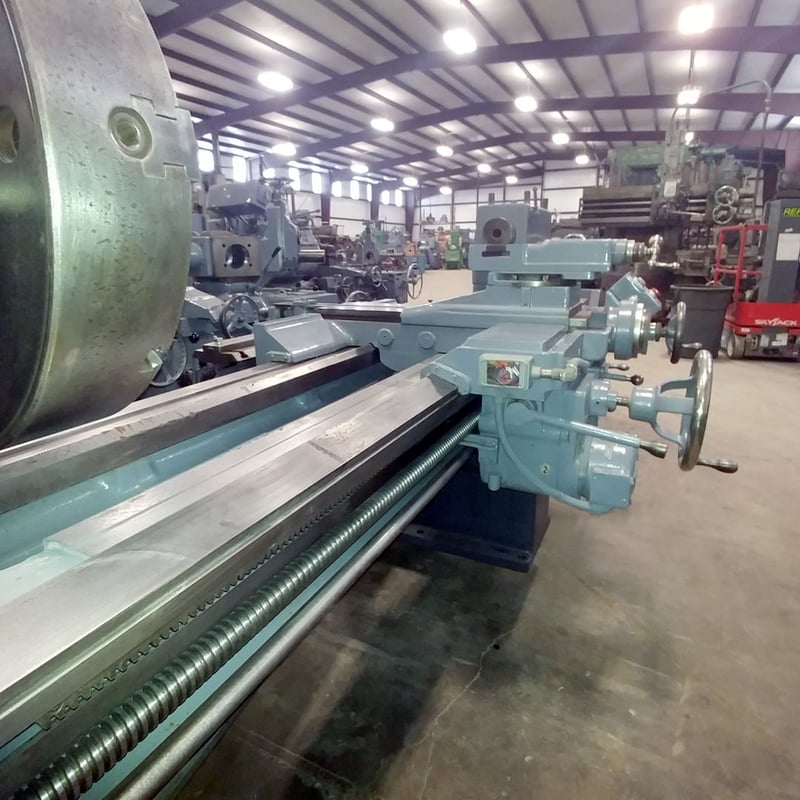

34" x 132" LeBlond #HD3220, heavy duty, 2-1/8" spindle hole, 25 HP, #5MT, 6" dia. quill, 1300 RPM, 1973

Manufacturer Leblond
Model HD3220
Year 1973
Swing 34.0"
Centers 132.0"
Stock # L3000145

For Sale by N & R Machine Sales

Silver Level Dealer
Surplus Record Dealer Since 1998

Description

Specifications:
Swing Over Bed Ways 32"
Swing Over Cross Slide 20-1/2"
Center Distance120"
Spindle Hole 2-1/8"
Spindle Speeds (36) 10 To 1,300 Rpm's
Spindle Nose L-2
Chuck 3-Jaw
Feeds (60) .0045 To .143
Threads Inch (60) 1 To 60 TPI
Tail Stock Quill Diameter 6"
Tail Stock Quill Travel15"
Tail Stock Taper #5 Morse
Main Motor 25 Hp.
Weight 20,000 Lbs
Floor Space W 72" X L 20'
Height H 60"
Steady Rest 2 Roller Type
CoolantYes
Hardened & Ground Replaceable Bed Ways Yes
Taper Attachment No
Note: Machine Will Be Cleaned, Painted & Cycled. Machine On The Way In.
Condition Good
