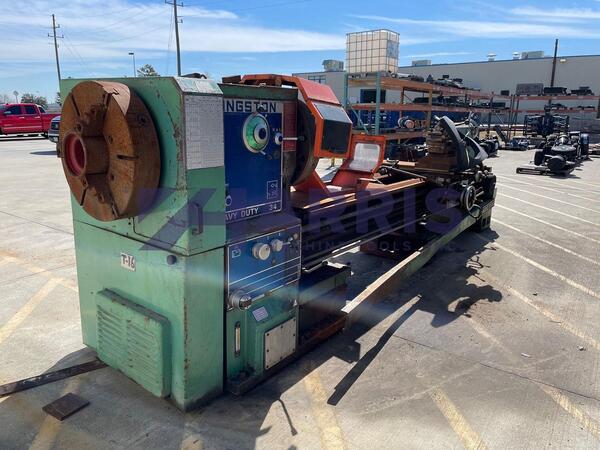

For Sale by Harris Machine Tools, Inc.
Description
SWING OVER BED: 34"
SWING OVER CROSS SLIDE: 25"
BED WIDTH: 22"
HEIGHT: FLOOR TO WORK CENTER: 48"
MAX CENTER DISTANCE: 120"
BORE SIZE: 7.09"
SPINDLE NOSE: ASA A2-15
SPINDLE SPEED (16): 8 TO 700 RPM
MOTOR: 30 HP
COOLANT PUMP MOTOR: 1/4 HP
NUMBER OF FEED CHANGES: 40 KINDS
RANGE OF FEEDS: 0.0024" TO 0.0337" IPR
LONGITUDINAL CROSS: 1/2 OF LONGITUDINAL FEED
LEADSCREW DIAMETER & THREADS PER INCH: 1.875" / 2 TPI
THREADING: INCH/METRIC
THREADING RANGE WHITWORTH: 1 TO 28 TPI (50)
THREADING RANGE METRIC: 1 TO 28 MM PITCH (41)
THREADING RANGE MODULE: 0.5 TO 7 M (20)
THREADING RANGE D.P: 4 TO 56 D.P. (40)
MAX TRAVEL OF COMPOUND: 9.75"
MAX TRAVEL OF CROSS SLIDE: 21.25"
TAILSTOCK QUILL TRAVEL: 11.75"
TAILSTOCK QUILL DIAMETER: 5.125"
TAILSTOCK CENTER: M.T. #6
EQUIPPED WITH:
(1) 24" 4-JAW CHUCK
(1) 24" 3-JAW CHUCK
(1) TAPER ATTACHMENT
(1) ALORIS TOOL POST
NOTE: ALL SPECIFICATIONS SUBJECT TO VERIFICATION
