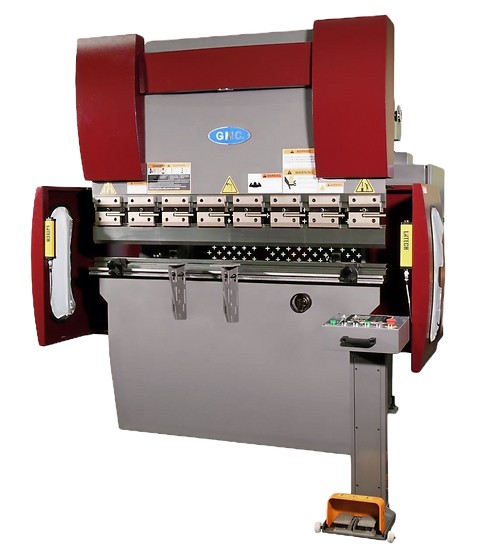

33 Ton, GMC #HPB-3305CNC, CNC Press Brake, 5' overall, Estun Control, 24" Back Gauge

Estimated monthly payment valid upon approved credit.

Request Formal Quote

33-Ton 5 CNC Press Brake Small Hydraulic Press Brake SKU: HPB-3305CNC
33-Ton 5 CNC Press Brake Small Hydraulic Press Brake
SKU: HPB-3305CNC
$21,850.00 Regular Price$19,850.00Sale Price

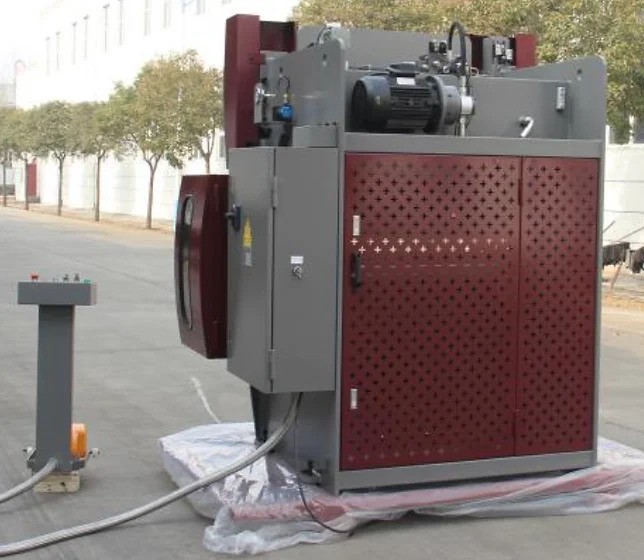

Our GMC HPB-3305CNC is a 33 ton press brake with two axis Estun Control. This is a Taiwain quality machine, designed in the USA. With it's rugged steel framework, quality hydraulic and electronic components, makes this press brake a great addition to any shop.
- ISO 9001 certified
- Meet OSHA and CE safety standard
- Easy-to-use programmable Estun E21 control
- Easy programming, stores 40 programs
- Estun E21 control keep a pice count for large production run
- Japan Yaskawa drive
- Precision ball screws for 24 back gauge
- Germany Rexroth hydraulic system
- Schneider electrical components
- All steel construction for maximum rigidity
- Hydraulic logic system centrally located and quiet
- Safety type foot pedal with E21 screen, control panel and E-stop switch
- Safety 24V low voltage & overload protection
- One year industrial warranty for parts

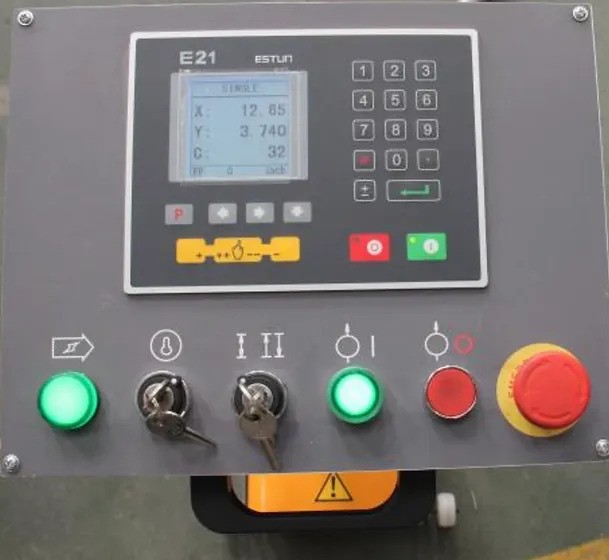

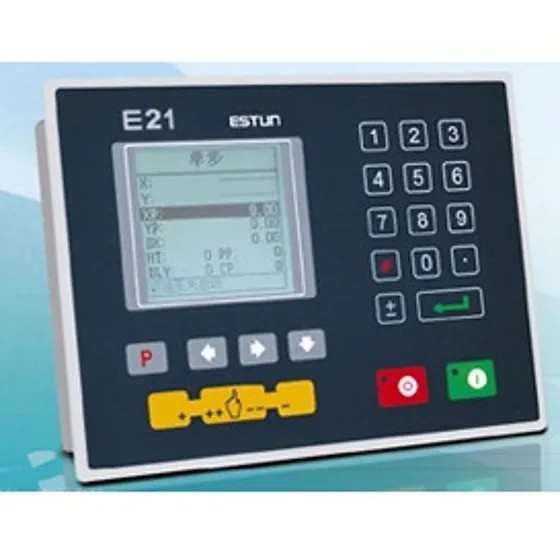

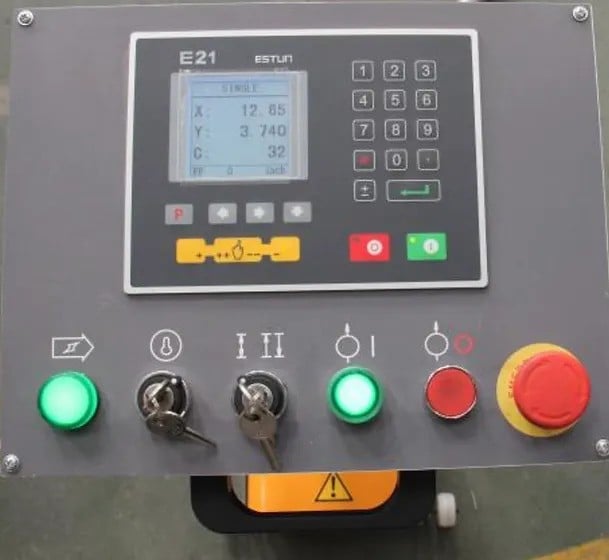

Estun E21, 2 Axis Controller
( 2 ) 24 front support arms

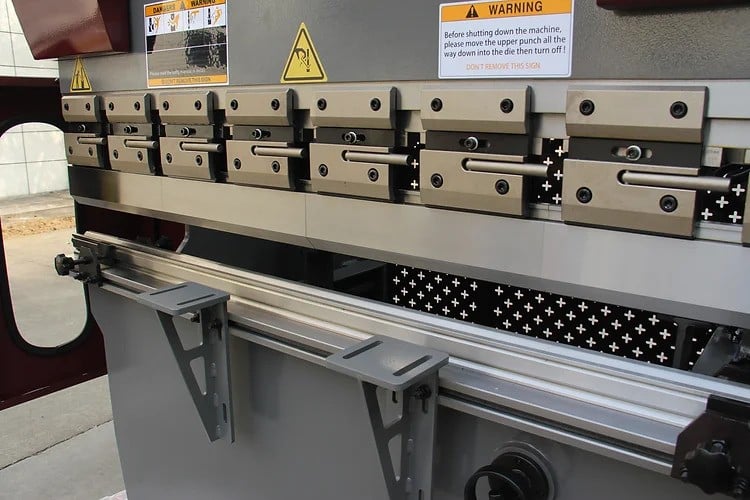

Quick release segmented ( American Style Tooling ) punch holder
Full Length Gooseneck Punch HRC 50 Full Length Vee Die with 6 assorted sizes HRC 50,1,3/4,5/8, , 3/8,
Lntech Light Curtain System
Side and Back Safety Fence
Movable Foot Pedal with E21 screen, control panel ,and E-stop meet OSHA safety standard
On-site training, one day.. call for pricing
aximum Pressure 33 Tons
Bending Lenght Capacity 63" (5'3")
Distance Between Uprights (housing) 51"
Ram Stroke Travel
Cylinder Travel Adjustment (max)
4"
2"
Table Width 6"
Distance Between Table and Ram 13-1/4"
Throat Depth 8"
Back Gauge Distance 21"
Back Gauge Repeatability .008"
Y-Axis Repeatability .008"
Approach speed, inch / second
Working speed, inch / second
Return speed, inch / second
3.5
0.39
2.75
Main motor:
Motor for back gauge:
Motor for bending angle
setting:
7-1/2 HP, 3 Phase 30 AMP
Prewired: 220VAC (+/- 10%)
1 HP, 3 Phase
220VAC (+/- 10%)
1/2HP, 3 Phase
220VAC, (+/- 10%)
Hydraulic oil tank capacity:
Recommended Oil:
20 Gal.
Hydraulic Oil Shell #68HD
Machine weight:
Machine size, L x W x H:
Shipping dimensions:
5,350 LBS
91"x56"x87
91"x56"x87"
