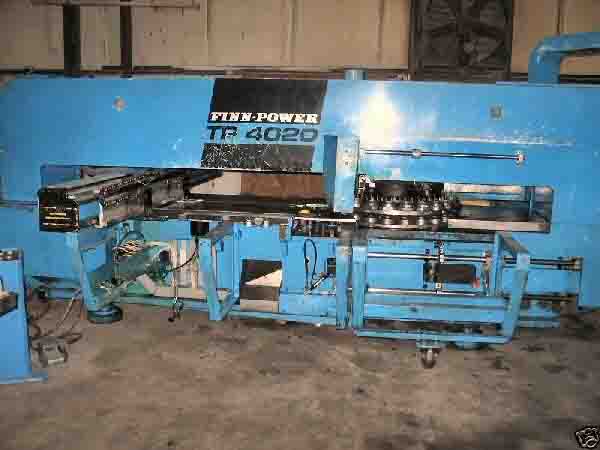

33 Ton, Finn-Power #TP-4020, Hydraulic Turret Punch, 120" x 60" Sheet Size, 570 HPM, 20 RPM, 80 PSI, 1992

(1) PRE OWNED 1992 FINN POWER TP 4020 HYDRAULIC TURRET PUNCH
MAXIMUM SHEET SIZE (WITH REPOSITIONING) 120” X 60”
Maximum traverse (No Repositioning) 78.7” x 60”
PUNCHING CAPACITY 33 US TONS
MAXIMUM HITS PER MINUTE
NIBBLING 570 HPM
ON 1” CENTERS 315 HPM
MAXIMUM POSITIONING SPEED 2795 INCHES PER MINUTE
TURRET CONFIGURATION
21 Individual (Total of 48 Tools with MT-20 and MT-8)
(1) MT-20 Cassette
(1) MT-8 Cassette
(10) 1.25” Stations (2 Auto-Index)
(4) 2.0” Stations (1 Auto-Index)
(5) 3.5” Stations (3 Auto-Index)
Tool Change Time-1.3-3secs
auto index configuration
Max Tool Rotation (Auto-Indexing)-40rpm .001 Degree Increments
TURRET SPEED 20 RPM
AXIS SPEED
X-AXIS 2921”/MIN
Y-AXIS 2362”/MIN
MAXIMUM SHEET WEIGHT 440 LBS
MAXIMUM MATERIAL THICKNESS 0.315 MS
AIR REQUIREMENT 80 PSI
MAIN MOTOR HORSEPOWER 5.5 kW
EQUIPPED WITH
SIEMENS SEMINUMERIK 3M-4C
128K PROGRAM MEMORY
Rs-232 interface
AUTO REPOSITIONING
PUNCHING STROKE, DEPTH, LENGTH AND RAM SPEED ARE FULLY PROGRAMMABLE
BALL TRANSFER TABLE
SCRAP / SLUG CONVEYOR
SHEET OUT OF CLAMP SENSORS
3 PROGRAMMABLE WORK CLAMPS
APPROXIMATE OVERALL DIMENSIONS 9’ W X 7’H X 16’ L
APPROXIMATE OVERALL WEIGHT 21,400 LBS
