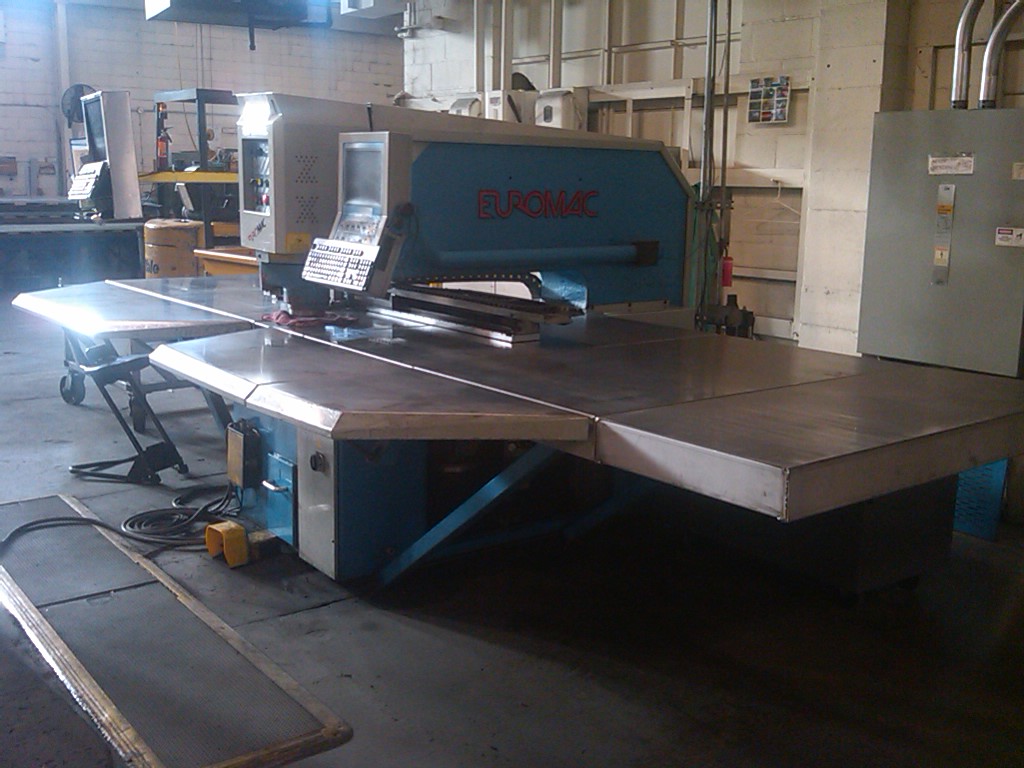

33 Ton, Euromac #ZX1000/30, Hydraulic Punch Press, 220 V., 2001

Pre Owned Euromac Model ZX1000/30 Hydraulic Punch Press
Serial Number 3MM623102A New 2001GENERAL SPECIFICATIONS
Working Tonnage 30 US Tons
X Axis Stroke 50”
Y Axis Stroke 40”
Maximum Hits Per Minute
Punching with 20mm Pitch 300
Punching with 1 mm Pitch 780
Marking 1000
Numerically Controlled Stroke Depth 0.004 to 1.22”
Maximum Positioning Speed 1970 Inches / Minute
Maximum Diameter of Punch
Amada Style 3.5”
Trumpf Style 4.1”
Punch & Die Replacement Time 10 – 15 Seconds
Ram 4 MB
Oil Tank Capacity 35 US Gallons
Main Motor 7.5 KW 220/3/60
EQUIPPED WITH
Bi-Directional Tool Head Rotation
Ball Transfer Table
Hydraulic Punch & Die Clamping
Solid Meehanite Base
Electric Foot Switch
Approximate Overall Dimensions 117’ W X 89”L X 70” H
Approximate Overall Weight 4900 LBS
