Description
Materials: Pre-Painted Steel, Pre-Painted Aluminum
Material Width Range: 6" - 32"
Thickness Range: 0.009" - 0.078" @ 70 - 100 FPM (Approx.)
Thickness Range: 0.009" - 0.039" @ 140 FPM
Maximum Tensile: 50,000 PSI (Approx.)
Maximum Yield: 50,000 PSI (Approx.)
Maximum Coil Weight: 11,000#
Coil I.D.: 16" - 20"
Maximum Coil O.D.: 60"
Line Direction: Left to Right
Pass Line: 42"
Length Accuracy: +/- 0.015"
Sheet Length: 4 - 78"
Max. Stack Height/Weight: 20" / 2,200#
Mode of Operation: Loop / Grip Feed
Line Speed: 0 - 140 FPM
20" Blanks: 65 per minute
78" Sheets: 17 per minute
Consisting of the following:

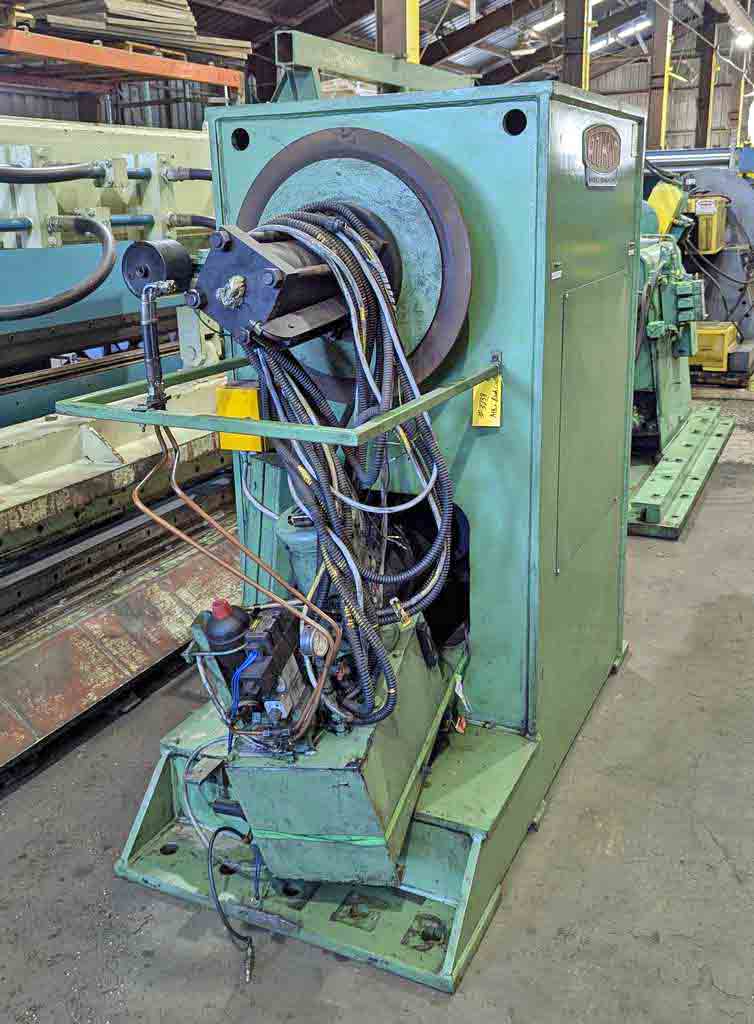

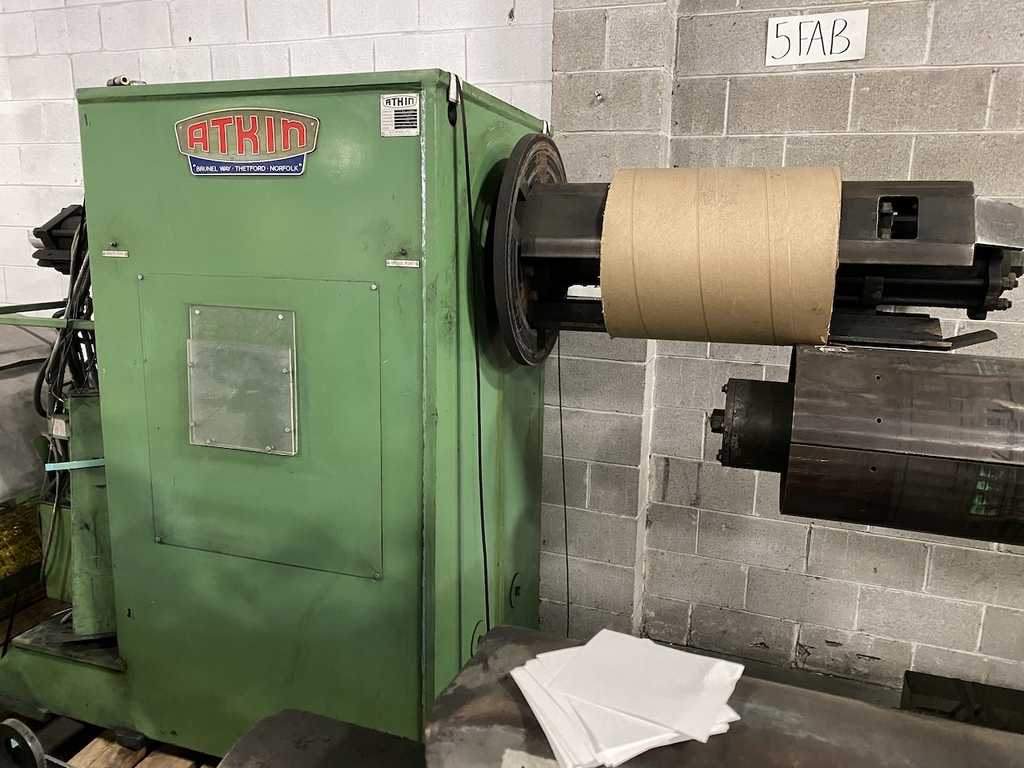

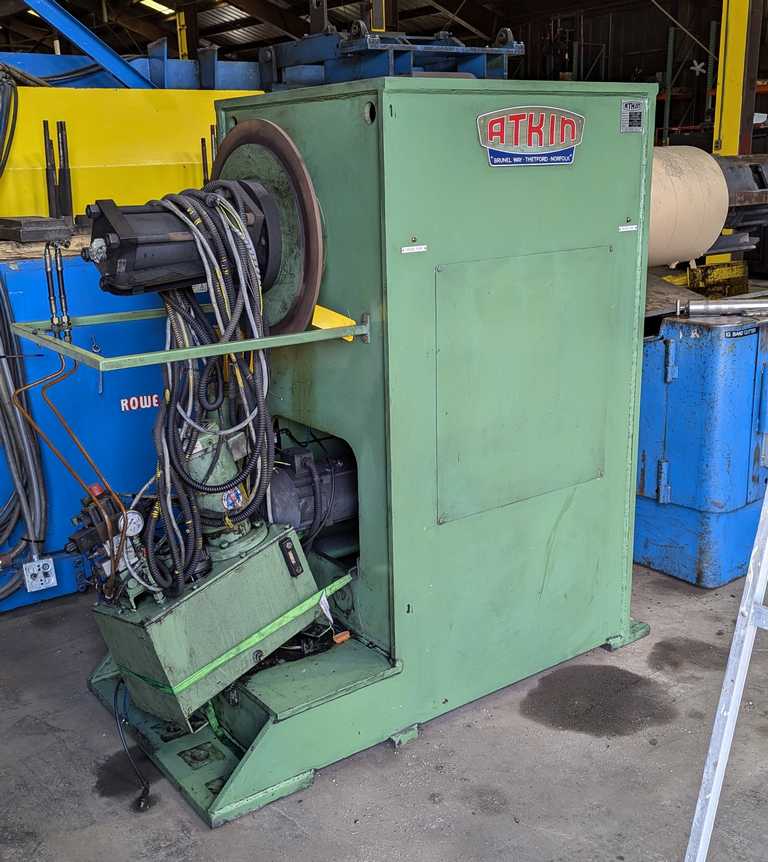

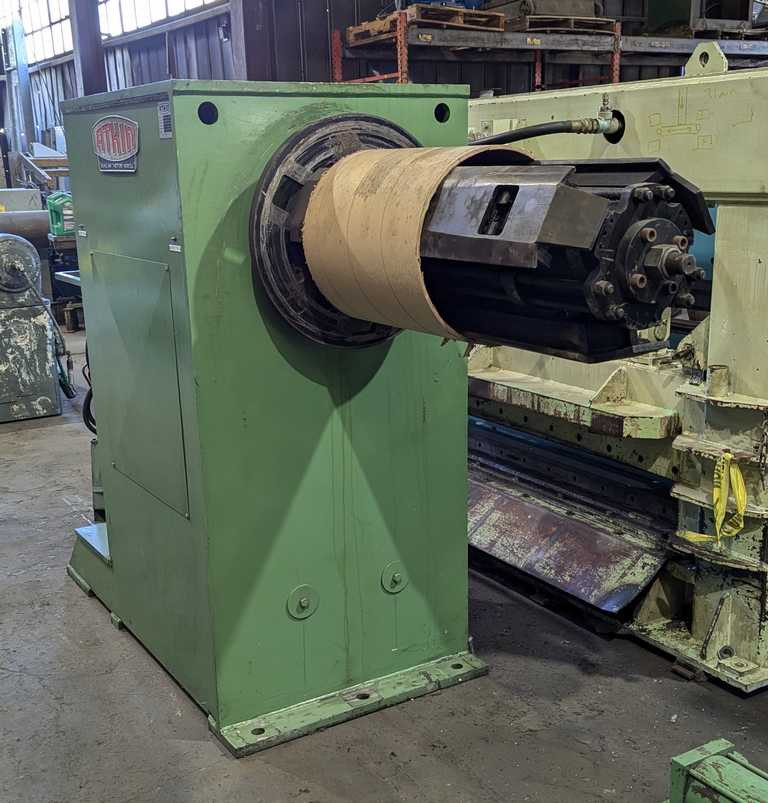

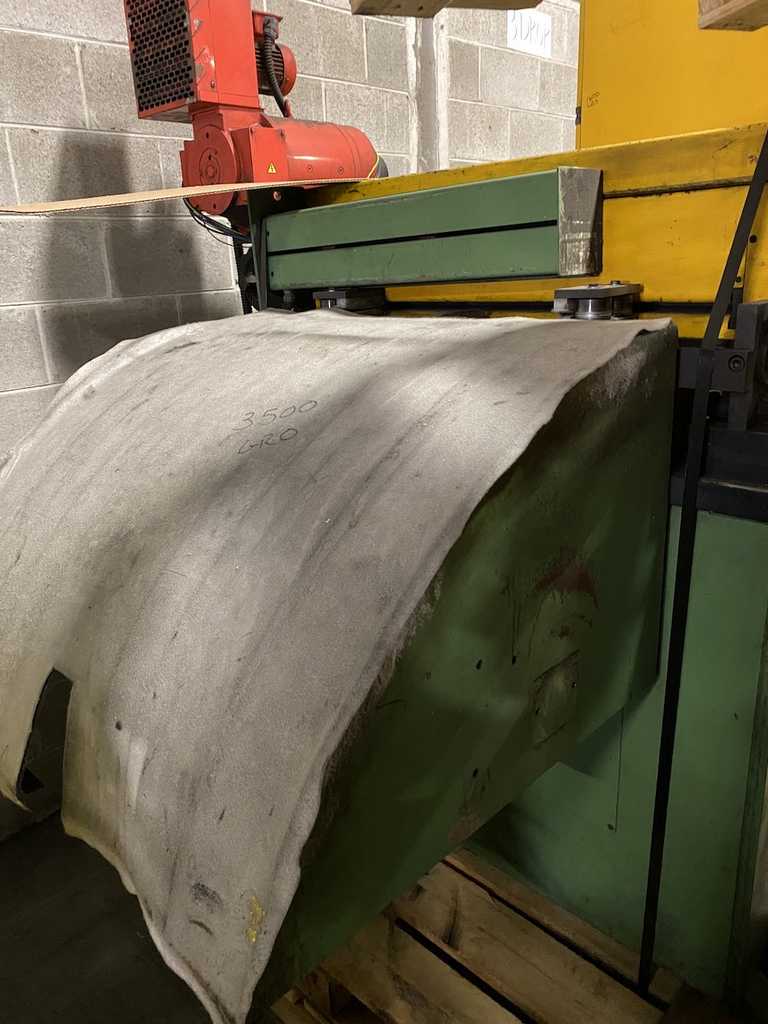

-Uncoiler:

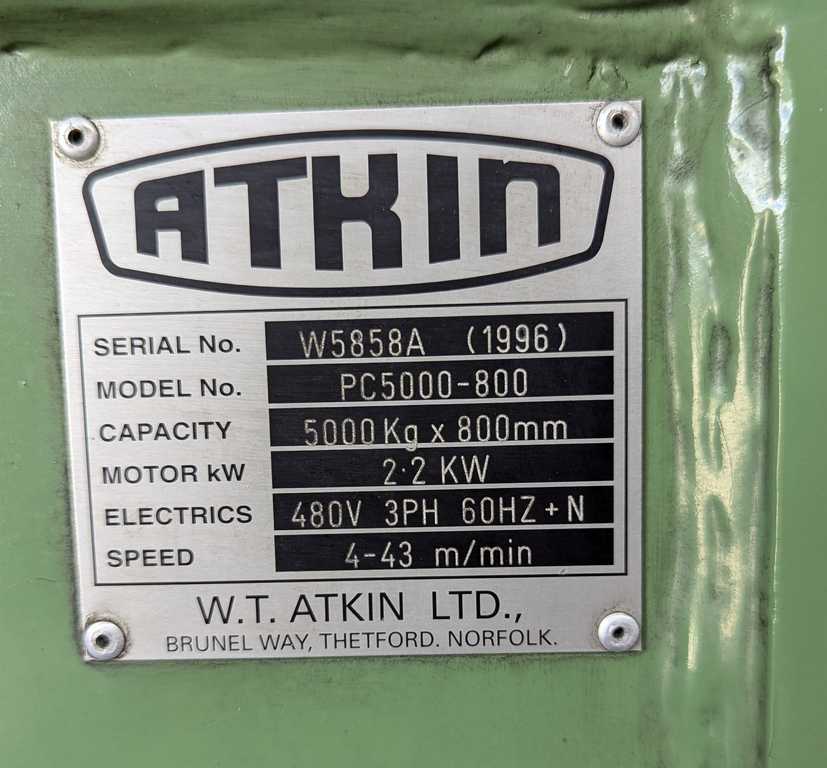

Model: PC5000-800
S/N: W5858A
Single Mandrel Type
Powered Wedge-Type Expansion
Driven by 2.2 KW AC Motor, 480 V
Line Speed: 13 - 140 FPM
Disc Brake
Front Loop Control

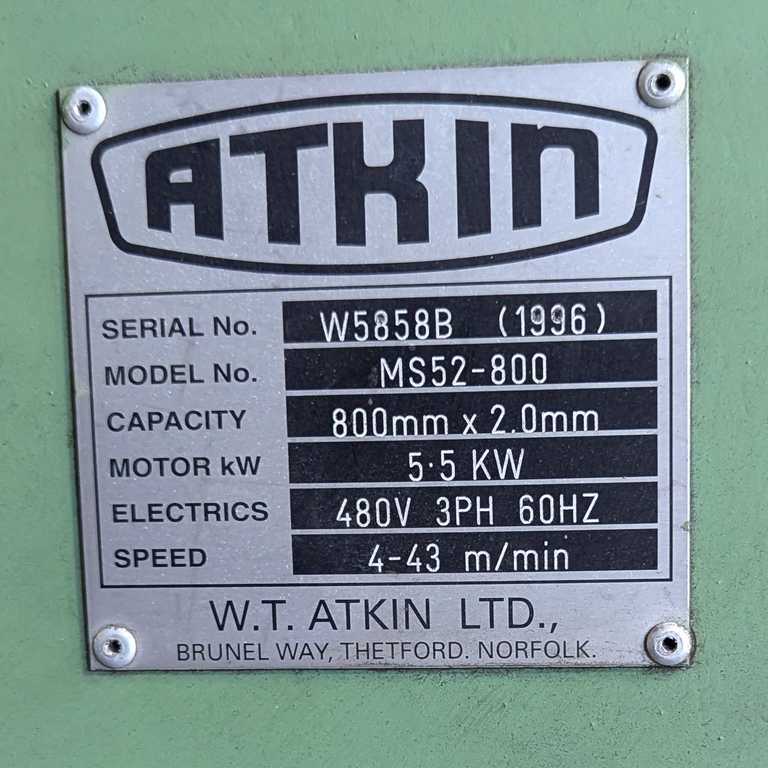

-Flattener:
Model MS52-800
S/N: W5858B
Entry Cantenary Table
Entry Side Guides, Manual Adjustment
Entry Pinch Rolls, Powered
Seven (7) Work Rolls in 3 over 4 Configuration
Exit Pinch Rolls, Powered
Exit Side Guides, Manual Adjustment
Machine Mounted Controls
5.5 KW (7.4 HP) DC Drive Motor, 2000 RPM
42" Passline Height
Overall size: 76" L x 36" W x 69" High
-Loop Section:
Entry Cantenary Table
Track Mounted Cross Over Table
Exit Cantenary Table
Inspection Table
-Roll Feed Unit:
Mounted to Shear
Manual Entry Side Guides
Capable of 330 FPM
-High Speed Shear:
Down Cut Type
Single Rake Blade
-Runout Table:
10' Long
Powered Belt Conveyor Top w/AC Motor
33" Wide Belt
Mounted on Wheels
-Stackers:
"Slide-Out" Type
Manual Width Adjustment
Manual End Stop
Powered Scissor Lift Table with Side Discharge

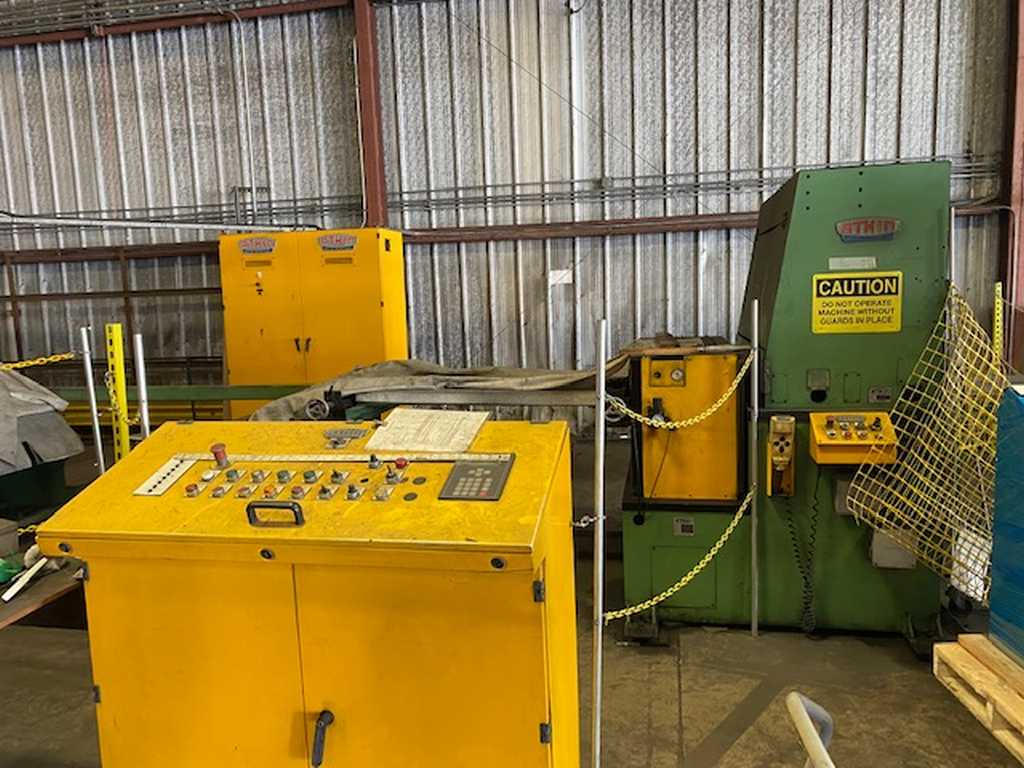

-AC/DC Control Cabinet:

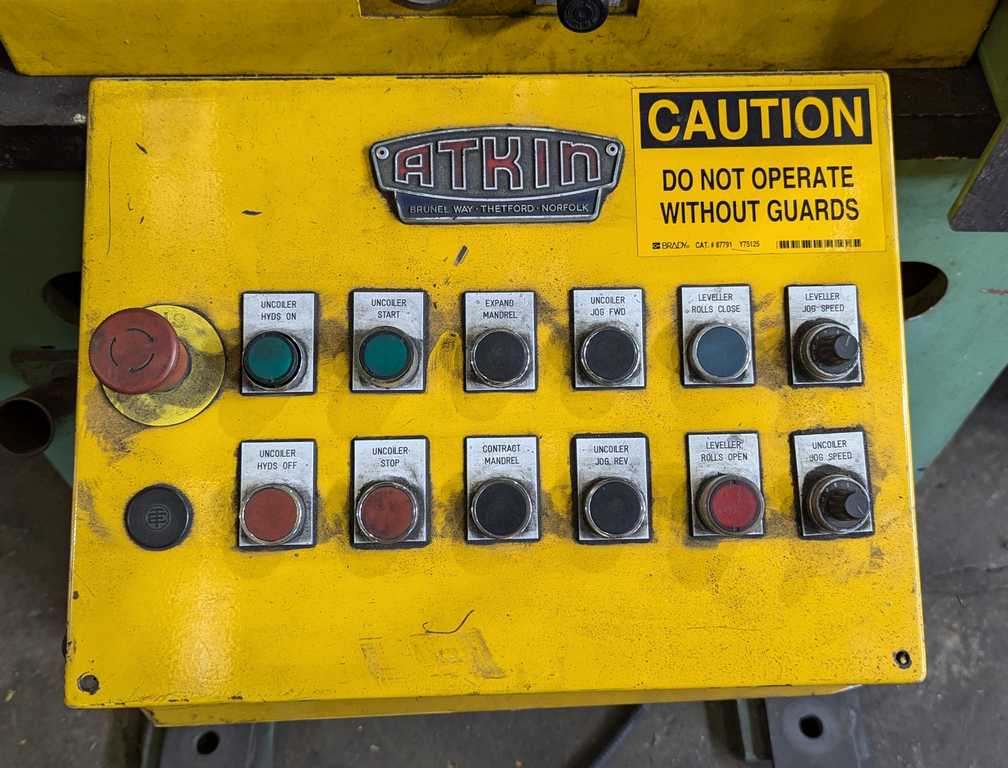

-Main Operators Control Console:
Indramat CTA4 Controller
-Hyraulic Power Unit
-Drawing and Manuals:
-In Storage: Toledo, OH.
