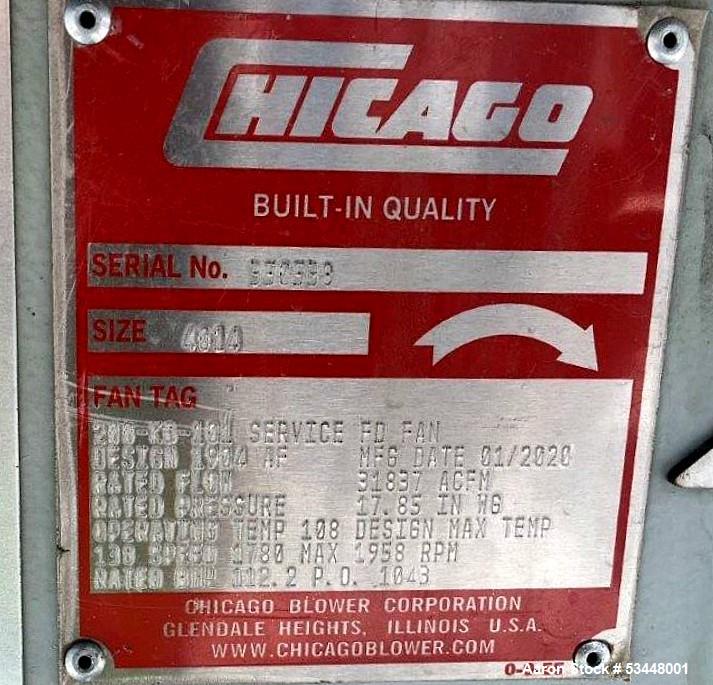

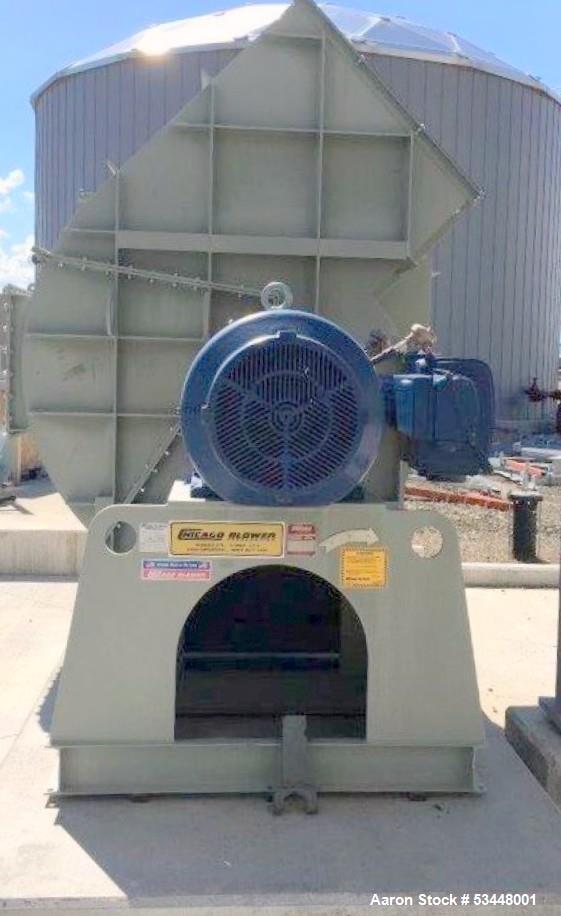

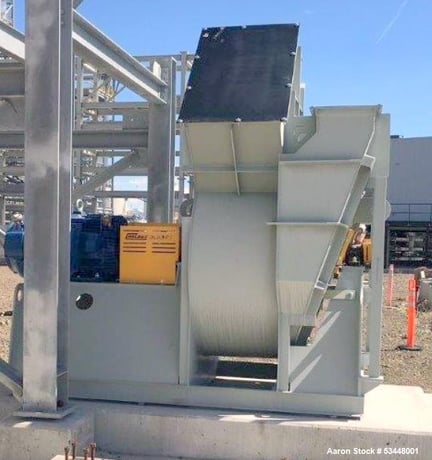

31837 acfm, Chicago Blower, Recycle Heater FD Fan, 138 F, 150 HP, 1800 RPM, 2020

used- chicago blower recycle heater fd fan (200-kb-101). includes: fan; 4014d/1904, heavy duty, airfoil blade wheel, arr 7si, with inlet box at 0 position, th or bh discharge, cw rotation, 110% width. motor; 150 hp, 1800 rpm, 447t frame, tefc, 460,3,60 hz - variable torque, ieee-841. insulated de and nde bearing, 120v space heater winding rtd's (2/phase) and bearing rtd's in common jb. silencer; aeroacoustic silentflow model ib, vertical, lifting lugs, inlet screen, rainhood, and velocity tube. added; vibration probe/switch, metrix model st5491e-021-002-00 -lcd indicator, loop powered -4-20 ma output proportional to velocity -interfaces w/ plc, dcs & 4-20ma monitors -1 ips full scale range -1/4" npt mounting stud -csa/nrtl/c for class i, div 1, grps c-d and class ii, div 1, grps e-g -4-20ma flying leads connection -standard high(1500hz), low(2hz) filters, (2) 1-1/2" 300# plugged tw connections to the inlet silencer. built 2020.
