Oz Machine #Lepus-X, 4000mm x 1600mm table, 10 ATC, Touchscreen Computer Control, dust vacuuming system, 12 HP spindle, Fanuc, New 2026

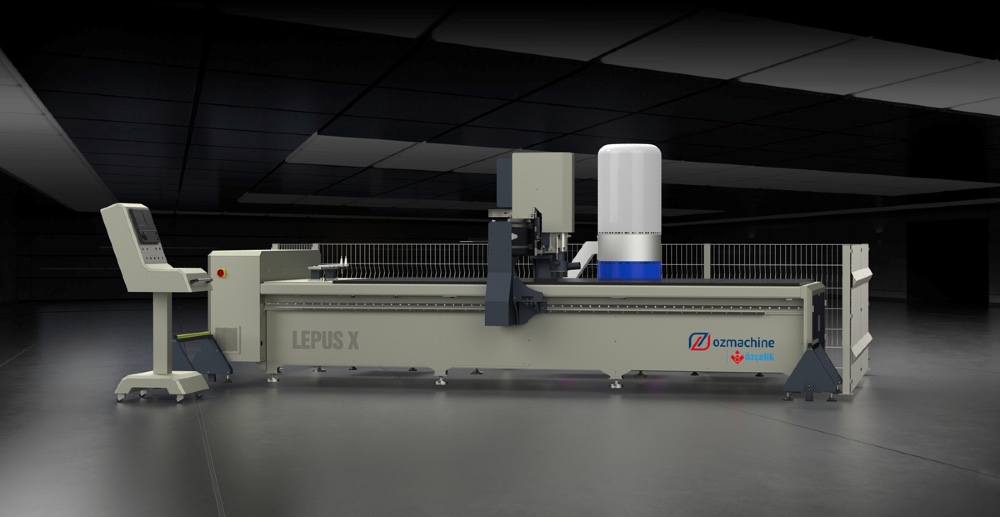

LEPUS – X

CNC Router and Machining Center — 3+1 Axis

Used for routing, milling, machining, cutting, grooving, drilling, marking, and end milling operations on aluminum, vinyl/PVC, wooden profiles, composite panels, and various plate materials.

Features

3+1 axis CNC router and machining center

Designed for V-channel grooving and similar operations on composite panels and plates

Processes aluminum, PVC/vinyl, wood, and various other materials by changing the milling cutter

Spindle operates at fixed angles of -90°, 0°, and +90°

Performs all-in-one machining operations including:

Milling

Drain channel opening

Punching

Marking

End milling

Special non-standard operations based on user requirements

Automatic tool change system for faster operation changes

Umbrella type automatic tool magazine positioned on the gantry

Optional extra tool magazine for profile machining

Can use angle heads or a saw blade attachment depending on the operation

Smart vacuum zoning system with vacuum modules

Double station operation capability

Smart CAM post processing

Remote access capability

Data transfer via Ethernet and USB

15” touchscreen HMI control unit

Standard Equipment

Umbrella automatic tool changer system

10-tool umbrella magazine capacity

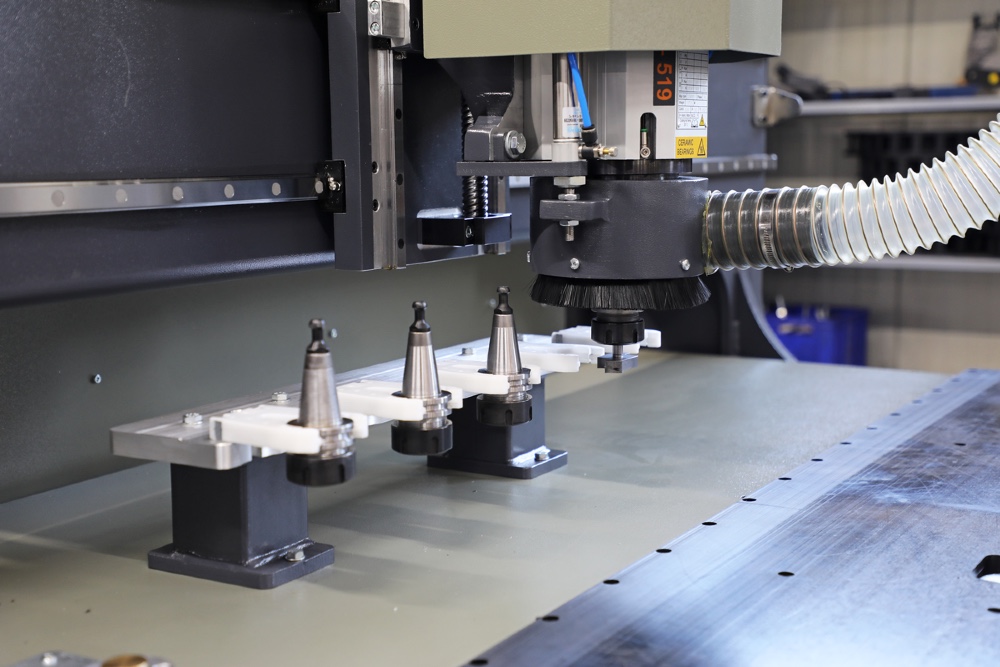

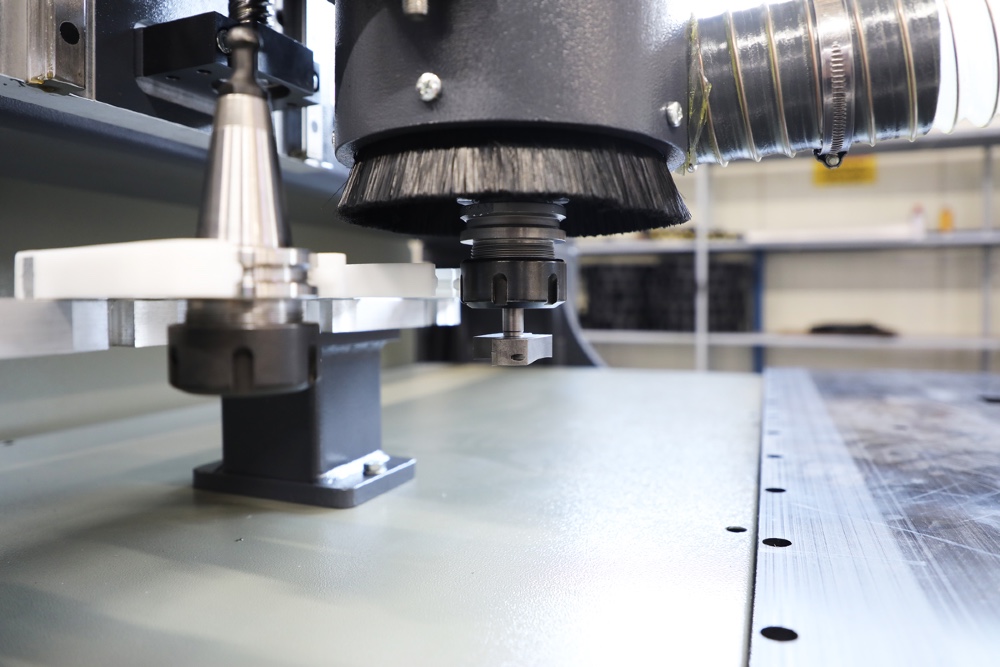

Stationary automatic tool changer system

2-tool stationary magazine capacity

Smart vacuum zoning system with vacuum modules

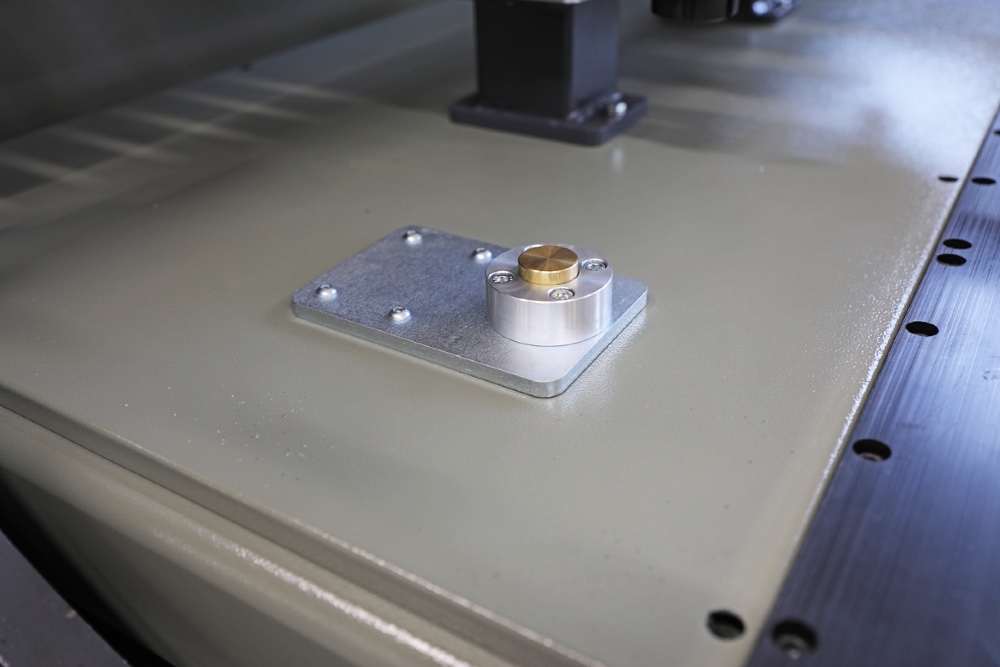

Automatic tool length measurement

Double station operation

Metal fence protection on three sides

Dust extractor

Smart CAM post processing

15” touchscreen HMI

Remote access

Ethernet and USB data transfer

Optional Equipment

Profile machining package

Pneumatic clamps on work table for profile clamping

Automatic lubrication in processing area

Photoelectric barrier system for work zone protection

Safety cabinet over machining head

Barcode reader

Extra automatic tool magazine for profile machining

Angle heads

Saw blade attachment up to 5 15/16” / 150 mm

Technical Specifications

Machining length — X Axis: 158” / 4,000 mm

Machining length — Y Axis: 63” / 1,600 mm

Machining length — Z Axis: 12” / 300 mm

Positioning speed — X Axis: 4,250”/min — 107 m/min

Positioning speed — Y Axis: 4,250”/min — 107 m/min

Positioning speed — Z Axis: 410”/min — 10 m/min

Spindle maximum power: 9 kW

Spindle maximum rotation speed: 24,000 rpm

Tool holder: ISO 30

Cooling type: Electro fan

Maximum umbrella tool capacity: 10 tools

Maximum stationary tool capacity: 2 tools

Maximum saw blade diameter in storage system: 5 15/16” / 150 mm

Maximum tool size loaded into magazine: 5 1/2” / 140 mm diameter x 4 3/4” / 120 mm length

Number of angle units loadable in tool magazine: 2

Vacuum table module tube size: 10 5/8” x 78 3/4” — 270 mm x 2,000 mm

Number of vacuum modules with double vacuum tubes: 7

Pneumatic reference stops along X axis: 1

Pneumatic reference stops along Y axis: 4

Processable units with direct tool: 5

Processable units with saw blade: 3

Overall length: 196”

Overall width: 167”

Overall height with extractor system: 138”

Machine height: 103”
