31.5" Hyundai Wia #LV800RM, vertical turret lathe with milling, Fanuc 32iA, 18" chuck, live tooling, 2019

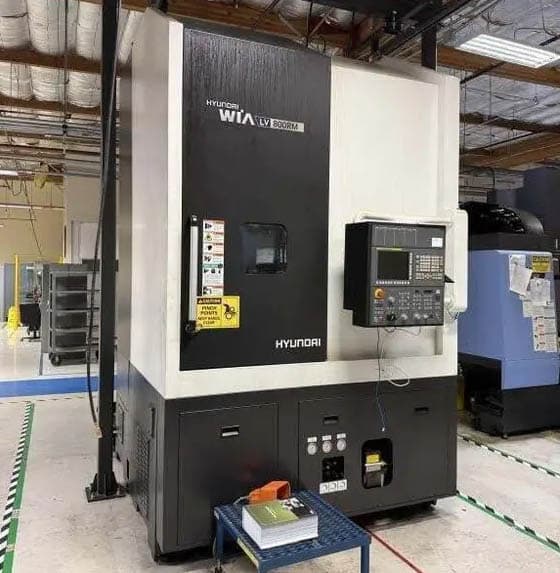

HYUNDAI WIA LV800RM VTL with Milling

DESCRIPTION:
2019 Hyundai WIA LV800RM Vertical Turning Center available. Features Fanuc 32i-A control, 31.5″ max turning diameter/length, 18″ chuck, 2000 RPM, 50 HP spindle, live tooling, and high-torque capability. Ideal for precision machining tasks.

SPECIFICATIONS:
Max Turn Dia: 31.5 in.
Max Turn Len: 31.5 in.
Chuck Size: 18 in.
Spindle RPM: 2000
Spindle HP: 50
Spindle Torque: 1932
Rapids(X): 787
Rapids(Z): 787
Travel(X): 17.3
Travel(Z): 31.5
No of Tools: 12

MACHINE FEATURES:
-Fanuc 32i-A Control
-Ø31.5″ (Ø 800mm) Max. turning diameter
-31.5″ (800mm) turning length
-Powerful 50Hp (37kW) spindle motor
-High Torque 1,932 lbs.ft. (2,619 N.m)
-18″ chuck / 2,000 RPM Spindle
-A2-11 Spindle nose
-Gear box attached spindle motor + belt
-High torque spindle for 24″ chuck (opt.)
Power: 50 HP(37kW)
Torque: 2115.3 lbf.ft (2,868 N.m)
RPM: 2,000
A2-15 spindle nose
-Mill Turret spindle [LV800R/LM]
Power: 40 HP(30kW) spindle motor
Torque: 1,194 lbf.ft (1,619 N.m)
Belt Driven type
-Live Tool:
3,000 rpm [LV800RM/LM]
10 HP / 35.3 lbf.ft torque
-Travel (X/Z): 17.3″/31.5″ (440mm/800mm)
-Rapid speed: 787 IPM (20m/min) X and Z
-Box guideways
-Manual Tool setter
-Tool size: 1.3″/Ø 2.5″ (32mm/Ø63mm)
-87 PSI coolant system (290 PSI-opt)
-Double Pre-Tensioned Ball screws
-Chip Conveyor (48″ discharge height)
-1 color tower signal light
-Full enclosure splash guard
