3000 KW Cummins #C3000D63, Diesel Generator Set, circuit breaker, 1800 RPM, 277/480 Volt, 3PH, 2025

C3000D6e Cummins 3000kw w/ FULL ENCLOSURE 60Hz 480V QSK95 Diesel Generator Set CUSTOM OR ABOVE GROUND TANK EXTRA

Technical Specifications

• Year: 2025
• Manufacturer: Cummins

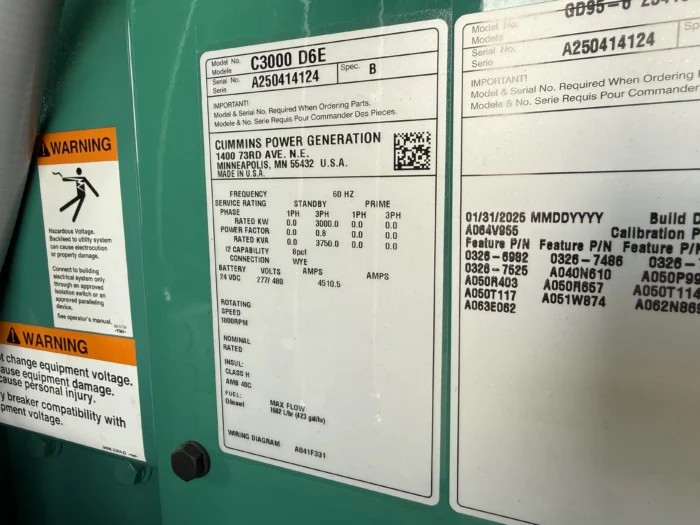

• Generator Model: C3000D6E
• Serial Number: A250414124
• kW: 3,000
• kVA: 3,750
• Voltage: 277/480
• Amperage: 4,510
• Frequency: 60 Hz
• RPM: 1,800
• Hours: 0
• Phase Type: 3-Phase
• Power Rating: Continuous
• Generator Insulation Class: Class H

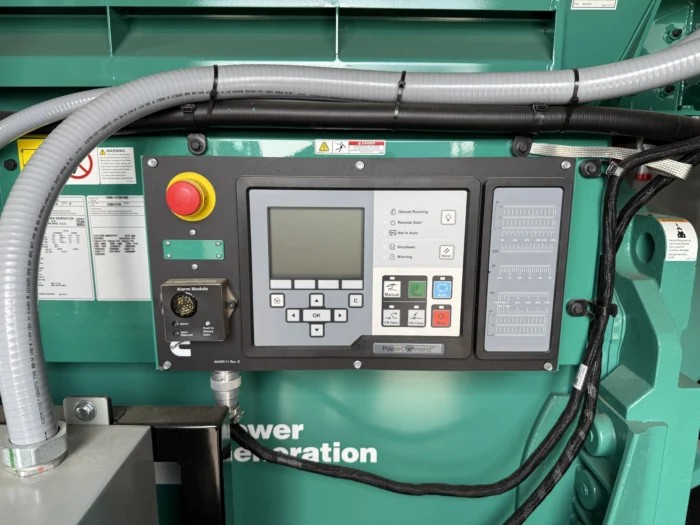

• Control Panel: Cummins Power Command 3.3 Digital Control
• Jacket Water Heater: Yes

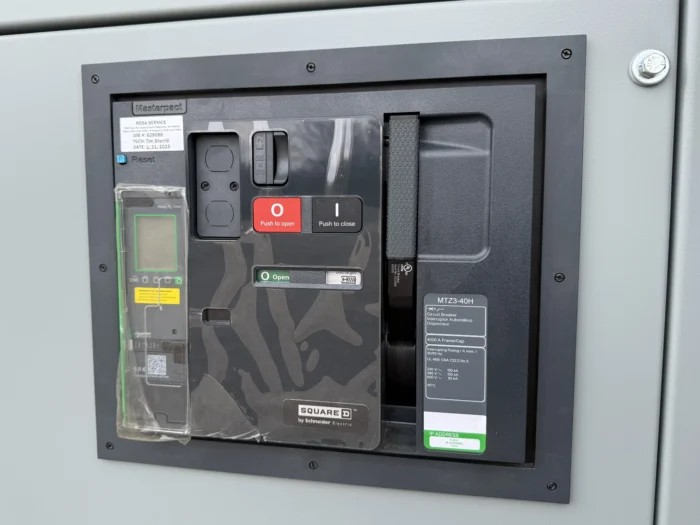

• Breaker: Main-Line Circuit Breaker

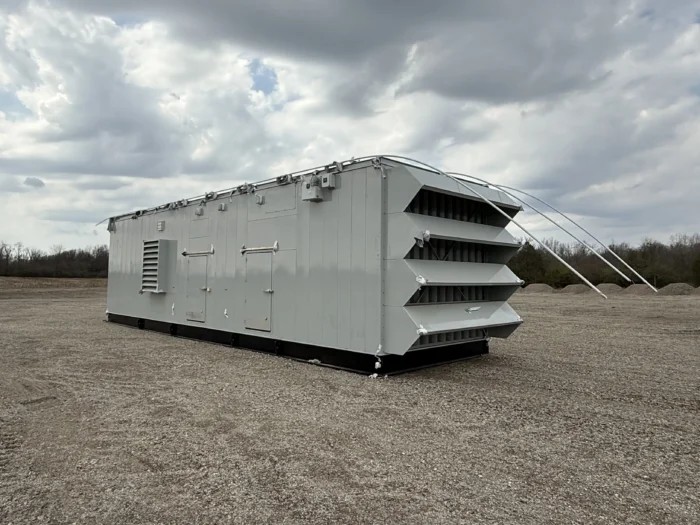

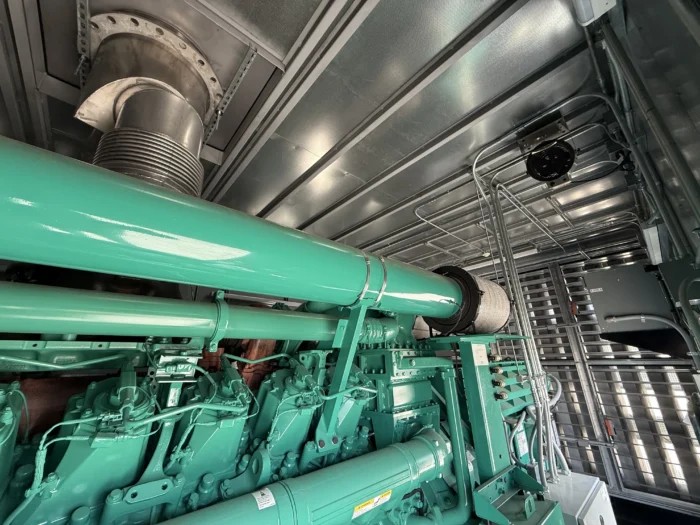

• Enclosure Type: Sound Attenuated Enclosure
• Engine Manufacturer: Cummins

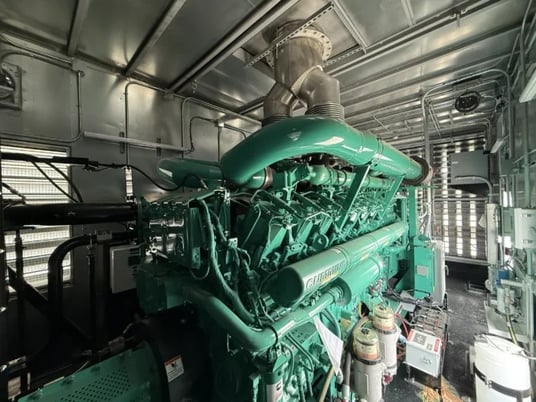

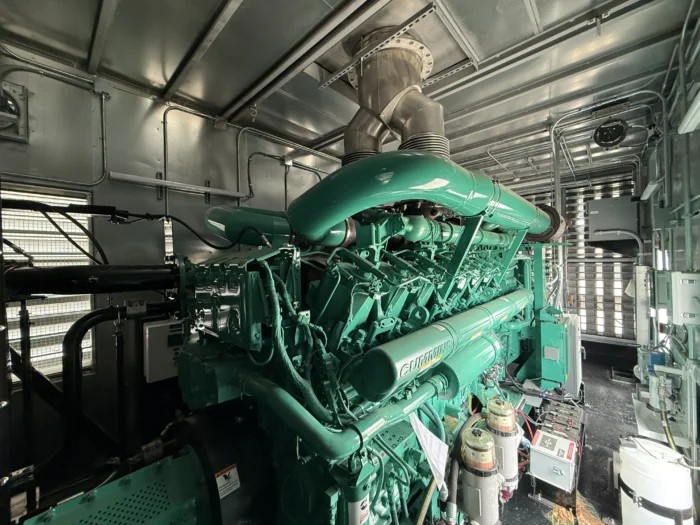

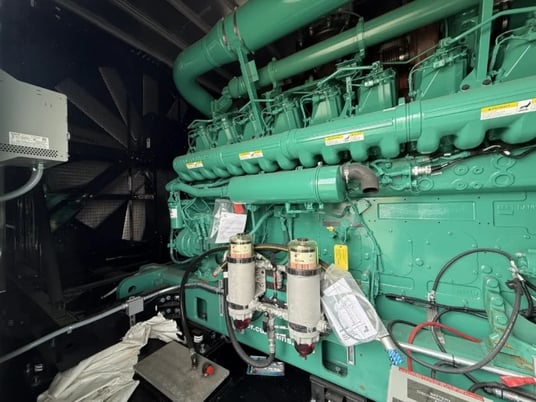

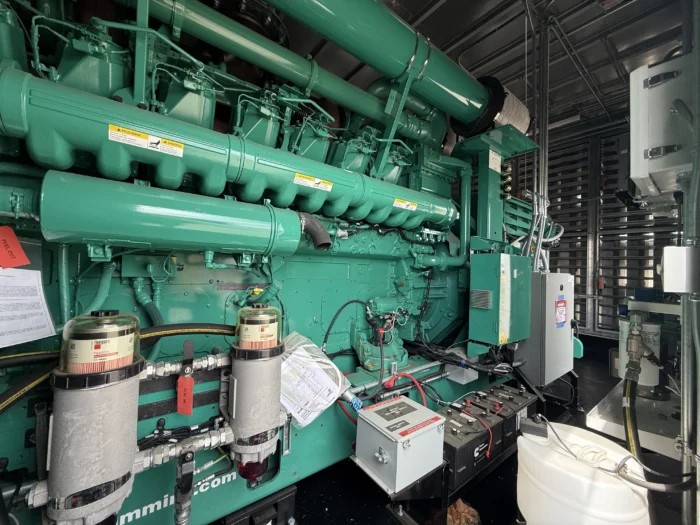

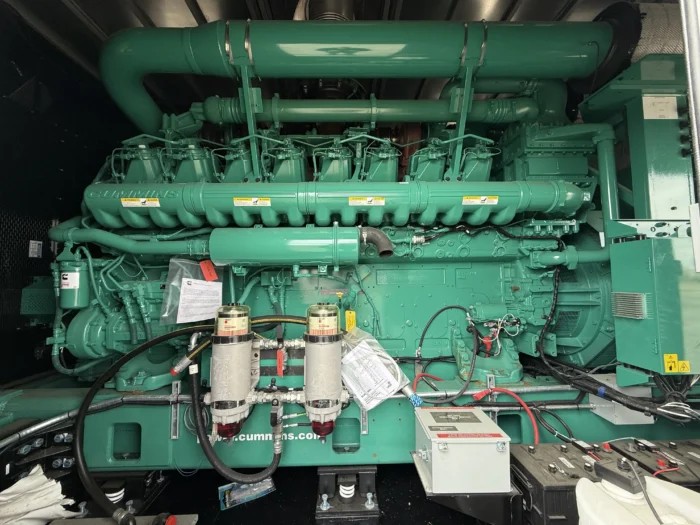

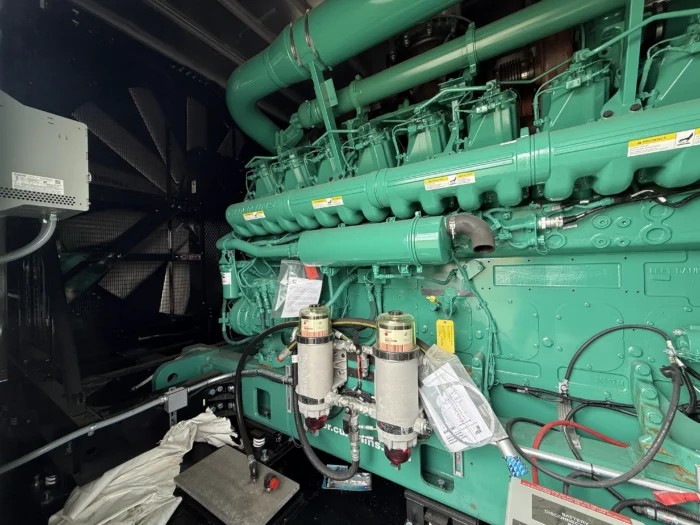

• Engine Model: QSK95-G9
• Emissions Tier: EPA Tier 2
• Stock Number: 1304
• Dimensions (L x W x H): 596" × 180" × 163"
• Weight (lbs.): 125,000 lbs.

Description:

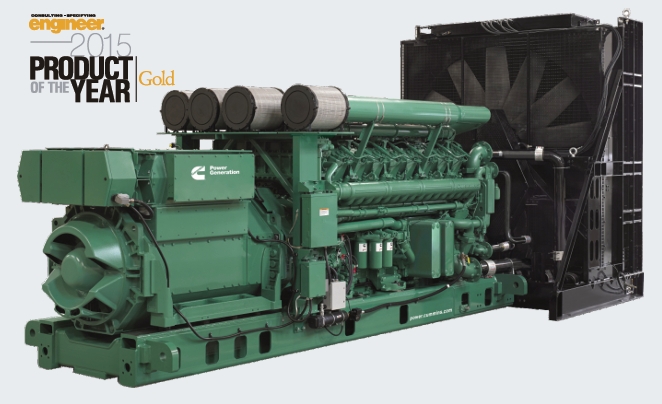

Cummins® commercial generator sets are fully integrated power generation systems providing optimum performance, fuel economy, reliability and versatility for stationary Standby, Prime and Continuous power applications. Features Cummins Heavy-Duty Engine - Rugged 4 cycle, industrial diesel delivers reliable power, low emissions and fast response to load changes.

Alternator- Several alternator sizes offer selectable motor starting capability with low reactance windings, low waveform distortion with non-linear loads and fault clearing short circuit capability.

Control System - The Power Command® digital control is standard equipment and provides total genset system integration including automatic remote starting/stopping, precise frequency and voltage regulation, alarm and status message display, Amp SentryTM protective relay, output metering and auto-shutdown. Model C3500 D6e 60 Hz kW (kVA)

Cooling System - Standard and enhanced integral set-mounted radiator systems, designed and tested for rated ambient temperatures, simplifies facility design requirements for rejected heat. Also optional remote cooled configuration for non-factory supplied cooling systems.

Warranty and Service - Backed by a comprehensive warranty and worldwide distributor network. NFPA - The generator set accepts full rated load in a single step in accordance with NFPA 110 for Level 1 systems. ISO8528-5 G3 Capable - refer to factory for site and configuration specific transient performance classification
