3000 Amps, ABB, HPL 362 / 31 B2 HPL362/31B2, 362 KV, live tank SF6

BELYEA STOCK# CB-17844

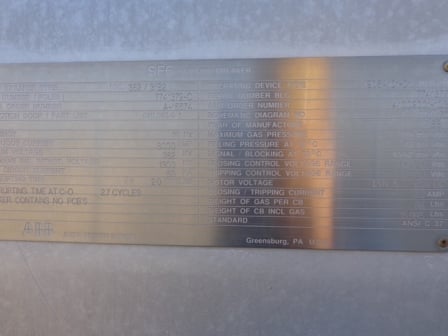

3000 AMP ABB SF6 LIVE TANK CIRCUIT BREAKER
TYPE HPL362/31B2
362000 V
1300KV BIL
3 POLE
50 KA SHORT CIRCUIT
20 CYCLE INTERRUPTING TIME
OPERATING DEVICE 205A101-01 BLG1002
MAX. GAS PRESSURE 116 PSI ABS
FILLING PRESSURE AT 20 DEG. C 73 PSI ABS
SIGNAL/BLOCKING AT 20 DEG. C 65/62 PSI ABS
125 VDC CLOSE AND TRIP
120 VAC/125 VDC MOTOR VOLTAGE
22 AMP CLOSING/TRIPPING CURRENT
66 LBS. OF GAS
15,995 LBS. INCLUDING GAS
SCH. DWG. 995D701

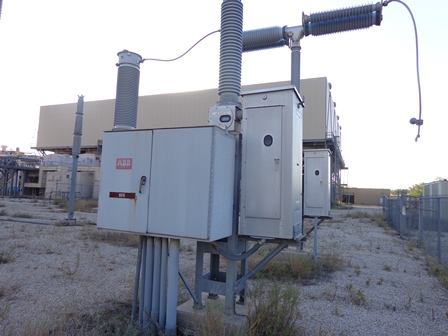

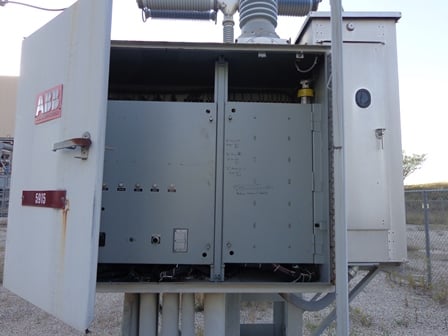

EACH POLE HAS AN OPERATING MECHANISM TIED TO A COMMON CONTROL BOX. EACH POLE
IS 20'H X 14'7-3/4"L X 4'1"W OVER CAPACITOR
