Description

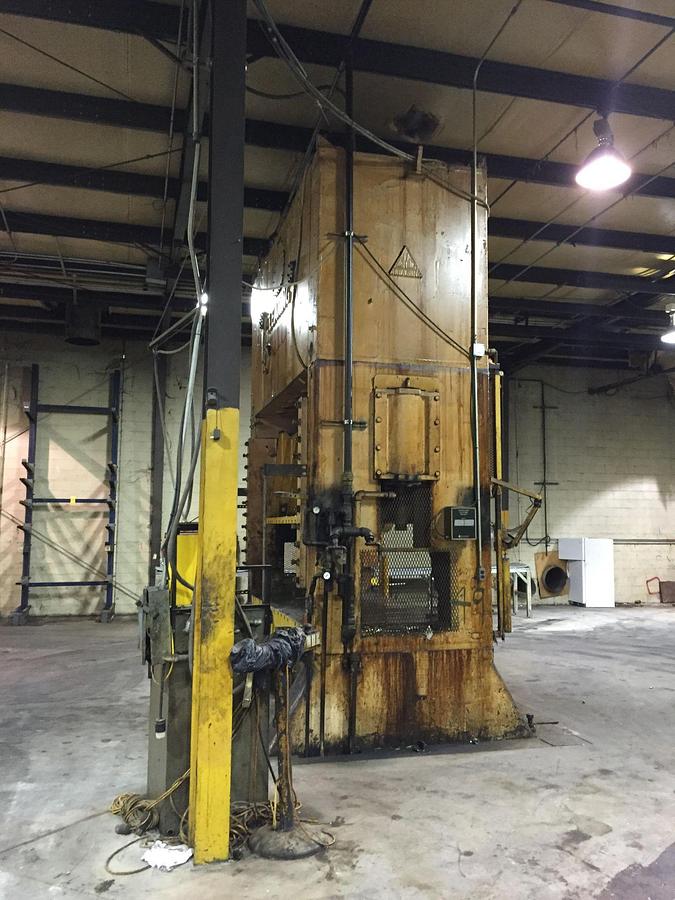

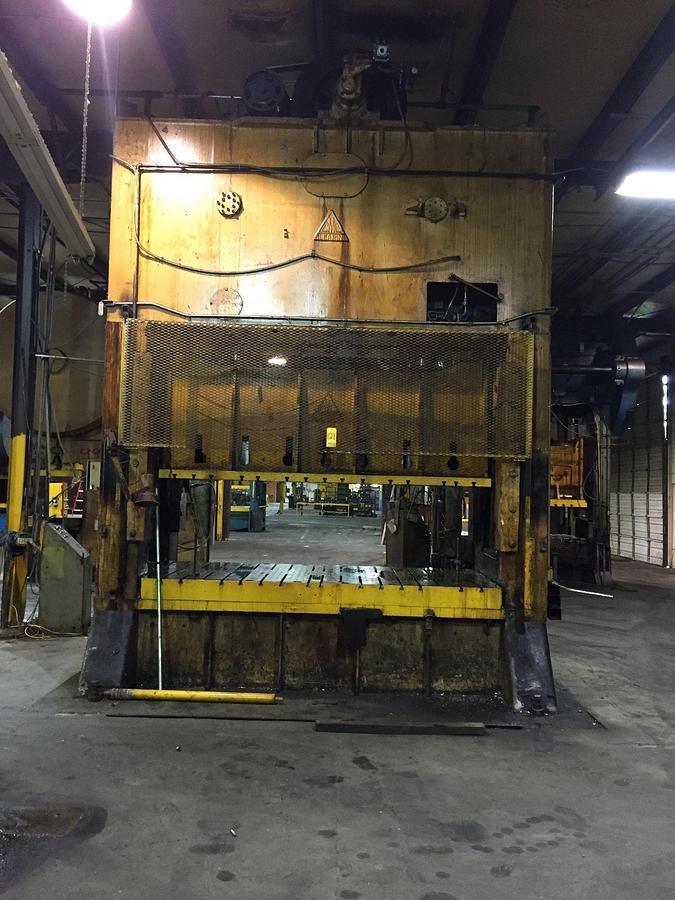

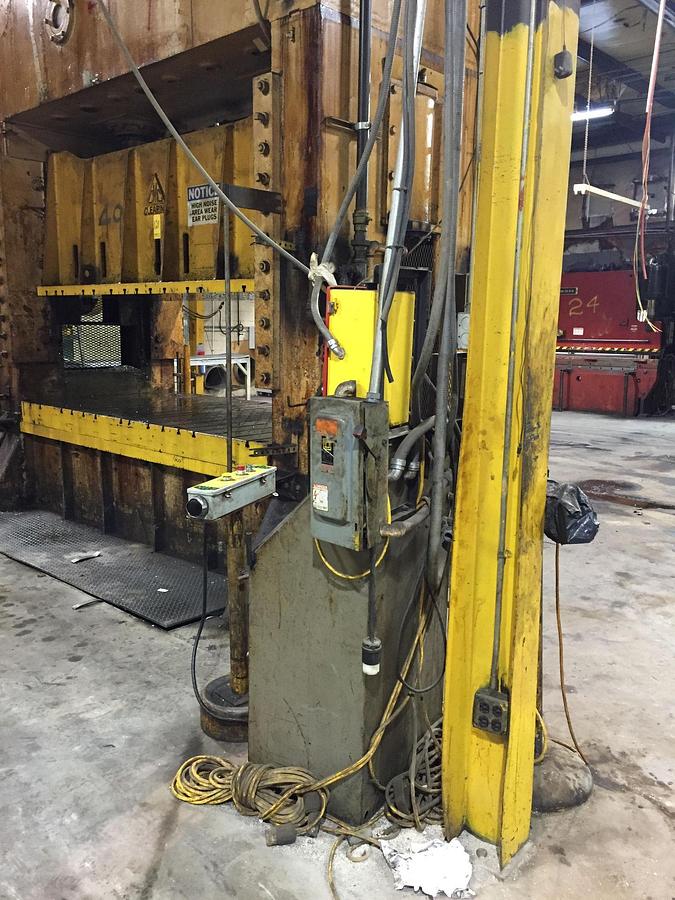

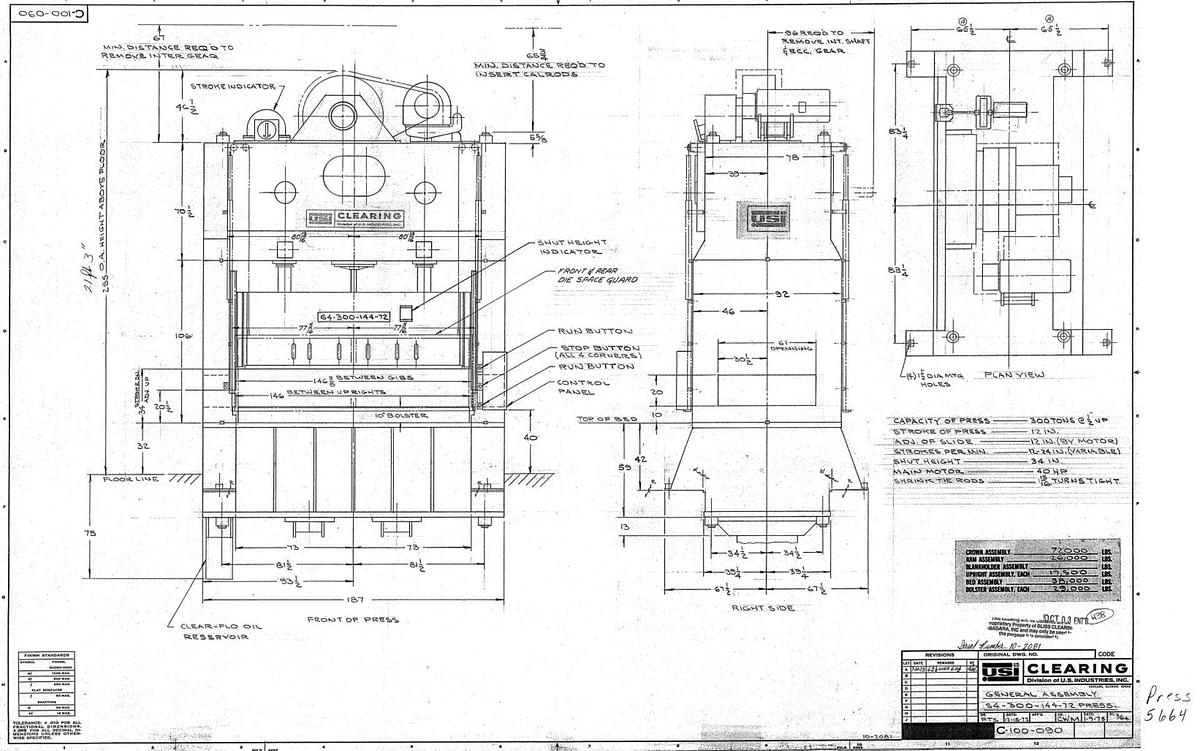

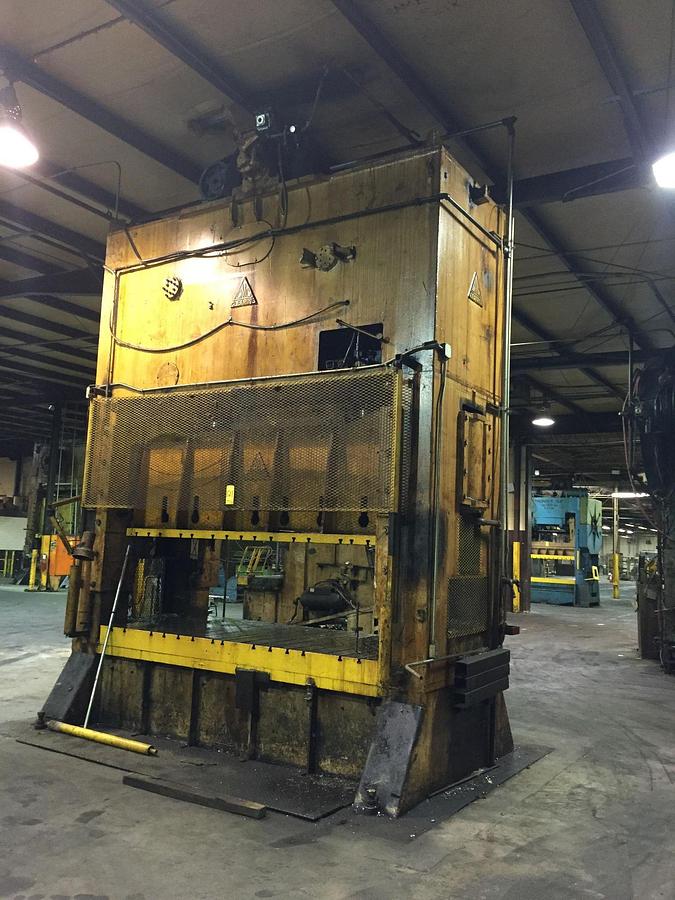

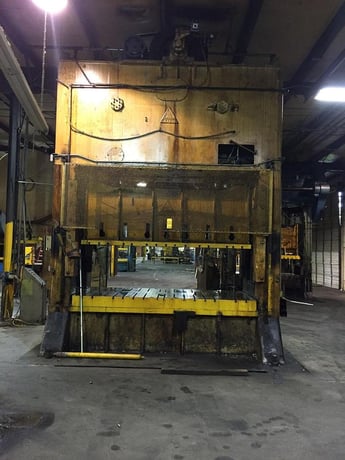

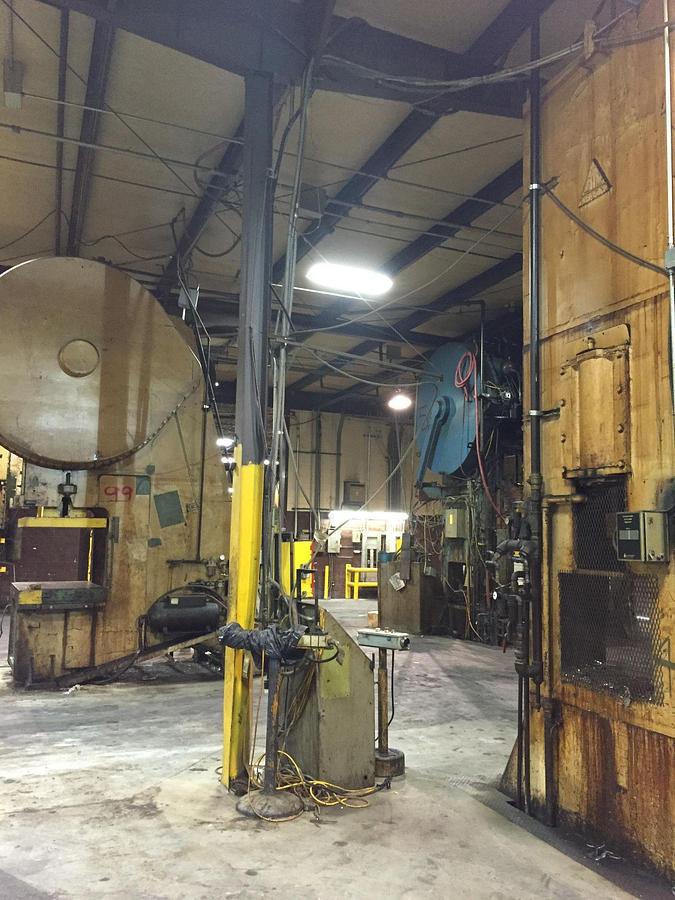

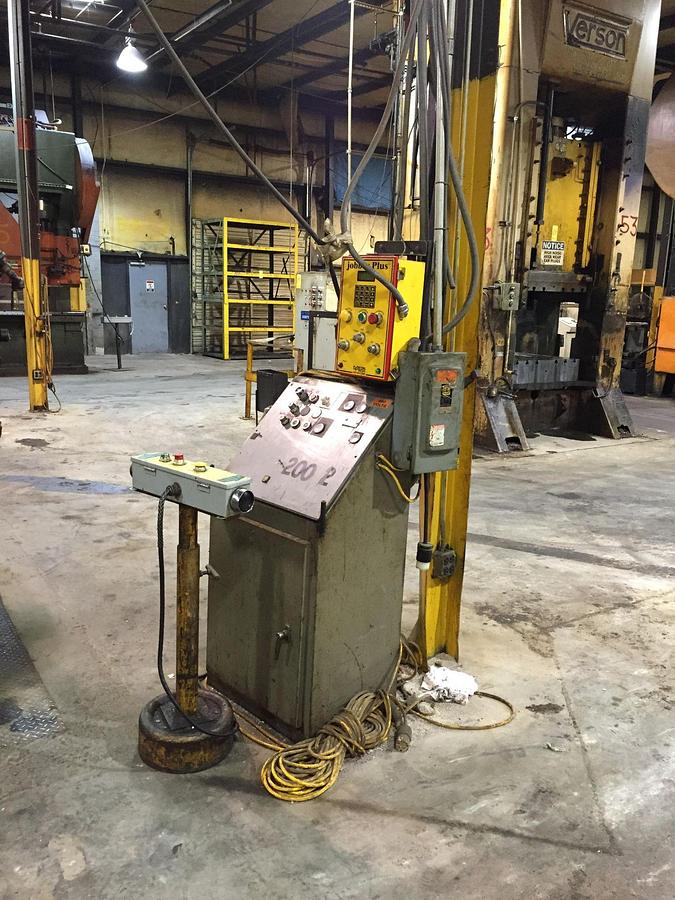

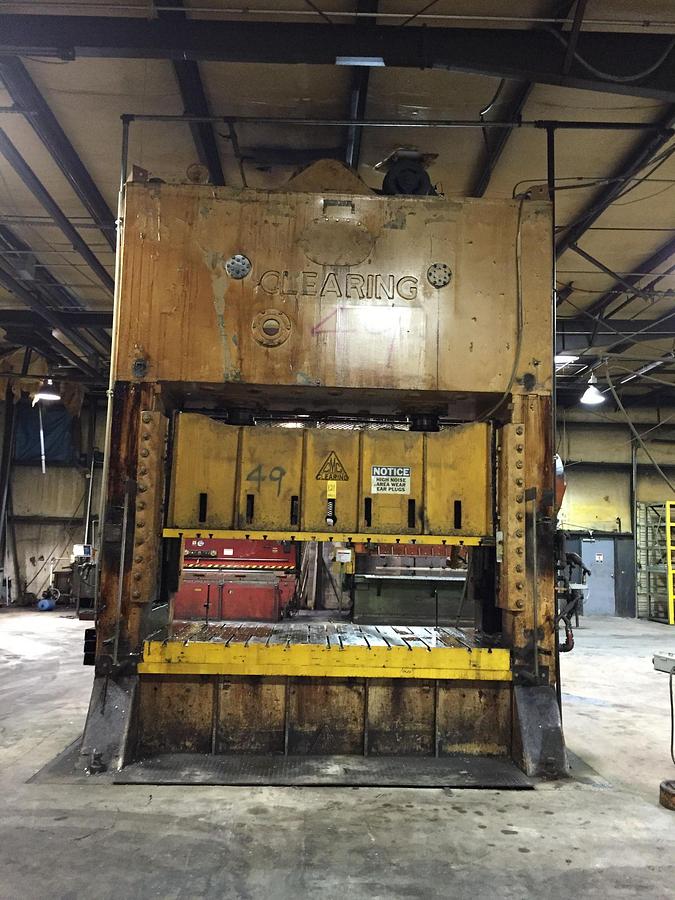

The 1972 Usi Clearing S4-300-144-72 is a four-point eccentric geared straight-side double-crank (SSDC) press with a 300-ton capacity. This machinery features a 12-inch stroke and a motorized slide adjustment of 12 inches. It provides a shut height of 34 inches and operates with a variable speed range of 12 to 24 strokes per minute. Powered by a 40 HP main motor, the press is constructed with windows in the side columns to facilitate material handling or automation integration. The system is equipped with an air clutch, an air brake, and an air counter balance for precise operational control and safety.
This used Usi Clearing S4-300-144-72 (1972) is a press available from R.A.B. Industries. It is the nan controller.1-USED USI CLEARING S4-300-144-72 PRESS 4 POINT ECCENTRIC GEARED PRESSAPPROX. DATE OF MFG. 1972STK#105417===================================== WHILE OBTAINED FROM SOURCES DEEMEDRELIABLE ARE SUBJECT TO ...more
