300 Ton, Toromont CIMCO #C6-W08AHE, Chiller, skid mountb, R-717, 2010

Overview

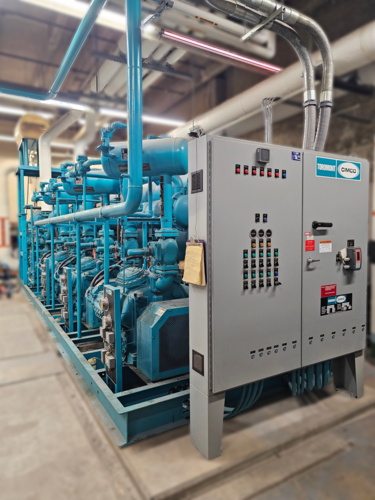

This Toromont CIMCO industrial refrigeration system is a complete skid-mounted chiller package built in 2010. Manufactured in Canada by CIMCO, a division of Toromont Industries Ltd., this system features multiple C6-W08AHE compressors with 300-ton refrigeration capacity, utilizing R-717 (ammonia) refrigerant. The package includes heat exchangers, Armstrong shell and tube units, integrated controls, and a comprehensive piping system, all mounted on a heavy-duty steel frame with turquoise finish.
Design and Performance
Model Components:
- Compressor Units: C6-W08AHE (Serial Numbers visible: 10301, 10302, 10303)
- Additional Compressor: C6-W08A (Serial 10303)
- Auxiliary Unit: MAP 300 (Serial 8014191)
- Heat Exchanger: Armstrong Model WD-183-212-2 (Serial 645592)
- Year Built: 2010
- Manufacturer: CIMCO - Division of Toromont Industries Ltd., Toronto, Ontario, Canada
Control Features:
- Electrical control panel with CIMCO branding
- Individual compressor control stations
- Pressure gauges and indicators
- Safety switches
- Control buttons and switches
- Toromont CIMCO control interfaces
Construction:
- Heavy-duty steel skid-mounted frame
- Turquoise painted finish
- Multiple pressure vessel components
- Piping throughout system
- Industrial valves and fittings
- Safety relief valves
System Components:
- Multiple C6-W08AHE compressor units
- MAP 300 auxiliary unit
- Armstrong WD-183-212-2 heat exchanger
- Pressure vessels
- Refrigerant piping network
- Control electrical panel
- Pressure monitoring gauges
- Interconnecting piping manifolds
- Steel mounting skid
Safety Features:
- Pressure relief valves
- Pressure monitoring gauges
- Safety control systems
Key Specifications
- Condition: Used - 2010 Build
- Brand: CIMCO (Toromont Industries)
- Primary Model: C6-W08AHE Compressor System
- Auxiliary Model: MAP 300
- Heat Exchanger: Armstrong WD-183-212-2
- Year Built: 2010
- Equipment Type: Industrial Ammonia Refrigeration System
- Refrigeration Capacity: 300 Tons (1055 kW)
- Refrigerant Type: R-717 (Ammonia)
- Refrigerant Charge: 800 lbs (364 kg)
- Prime Movers: 3 x 150 HP (3 x 112 kW)
Compressor Specifications (C6-W08AHE Units):
- Minimum Test Pressures:
- Hydraulic (P.S.I.G.) H.P.: 450 (High Pressure), 300 (Low Pressure)
- Air (P.S.I.G.) H.P.: 300 (High Pressure), 180 (Low Pressure)
- Serial numbers visible: 10301, 10302, 10303

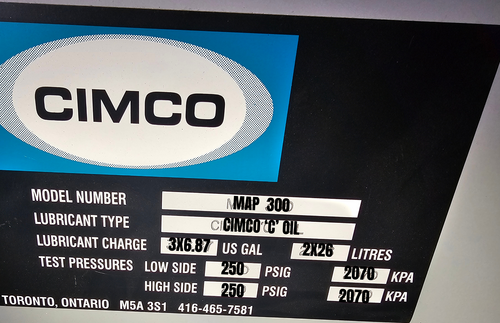

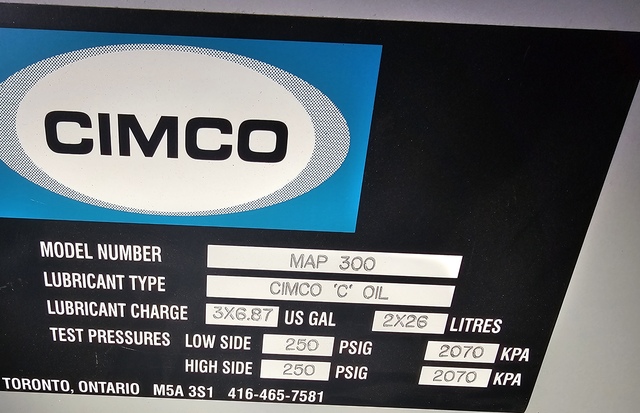

MAP 300 Unit Specifications:
- Model Number: MAP 300
- Serial: 8014191
- FLC: 564 A
- Line Voltage: 460V, 3-Phase, 60 Hertz
- Control Voltage: 120 VAC
- H.P.: 499
- Short Circuit Rating: 5 KA
- Enclosure Type: 12
- Drawing Number: A1416237EL11-E24
- Lubricant Type: CIMCO C OIL
- Lubricant Charge: 3 x 6.67 US GAL (2126 Litres)
- Test Pressures Low Side: 250 PSIG (2070 KPA)
- Test Pressures High Side: 250 PSIG (2070 KPA)

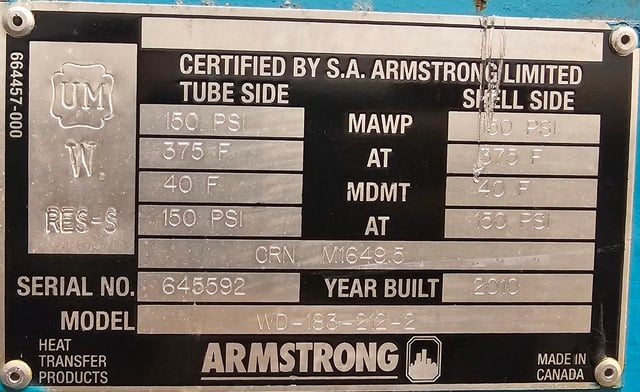

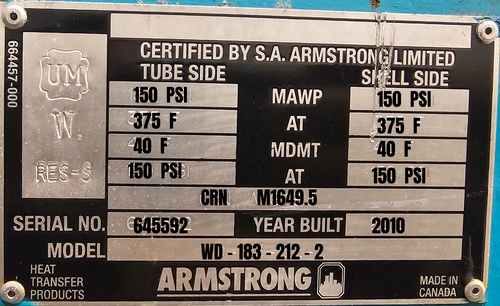

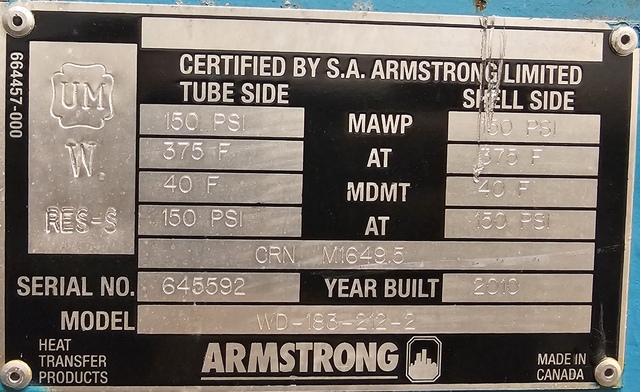

Armstrong Heat Exchanger Specifications:
- Manufacturer: S.A. Armstrong Limited
- Model: WD-183-212-2
- Serial No.: 645592
- Year Built: 2010
- CRN: M1649.5
- Tube Side: 150 PSI at 375°F, MDMT 40°F at 150 PSI
- Shell Side: MAWP 150 PSI at 375°F, MDMT 40°F at 150 PSI
- ASME U-stamp certified
- Made in Canada

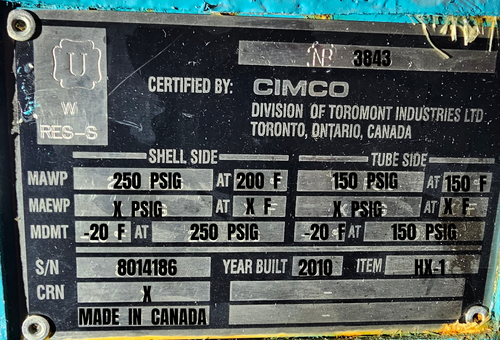

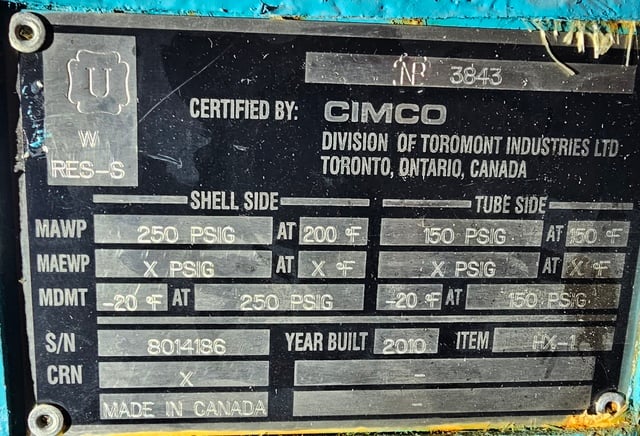

CIMCO Pressure Vessel Data:
- National Board No.: 3843
- MAWP Shell Side: 250 PSIG at 200°F
- MAWP Tube Side: 150 PSIG at 150°F
- MDMT: -20°F at 250 PSIG (Shell), -20°F at 150 PSIG (Tube)
- Serial No.: 8014186
- Year Built: 2010
- Item: HX-1
- Made in Canada
- Certified by: CIMCO Division of Toromont Industries Ltd., Toronto, Ontario, Canada

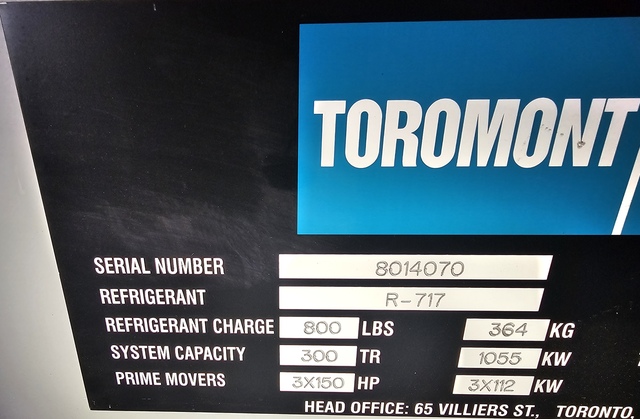

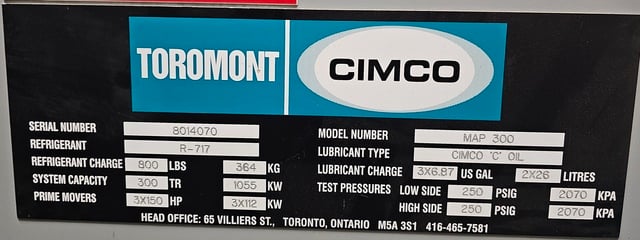

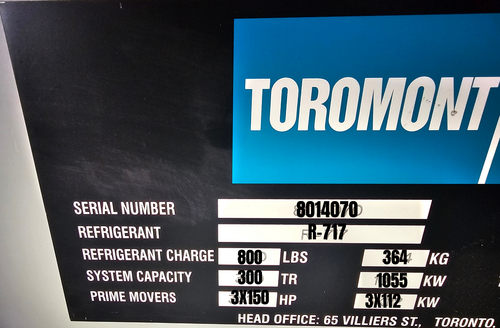

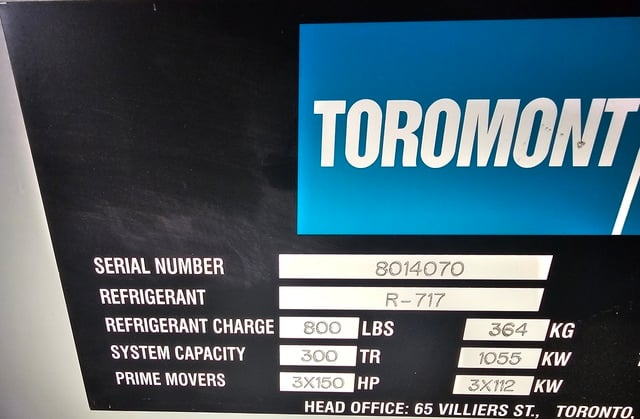

Chiller System Data (Toromont):
- Serial Number: 8014070
- Refrigerant: R-717
- Refrigerant Charge: 800 LBS (364 KG)
- System Capacity: 300 TR (1055 KW)
- Prime Movers: 3 x 150 HP (3 x 112 KW)
Electrical Specifications:
- System Voltage: 460V, 3-Phase, 60Hz
- Control Voltage: 120 VAC
- FLC (MAP 300): 564 A
- Short Circuit Rating: 5 KA
Physical Specifications:
- Skid-mounted industrial configuration
- Turquoise painted steel framework
- Multiple compressor arrangement
- Integrated piping manifolds
- Control panel mounted on frame
- Heavy-duty steel base construction
Ideal Applications
- Large-Scale Food Processing
- Cold Storage Warehouses
- Ice Rink Facilities
- Industrial Process Cooling
- Chemical Processing Plants
- Brewery Operations
- Pharmaceutical Manufacturing
- Large Commercial Buildings
- Data Center Cooling
- Manufacturing Process Cooling
- District Cooling Systems
- Food Distribution Centers
Benefits
- 2010 Canadian manufacture
- 300-ton refrigeration capacity
- Ammonia (R-717) refrigeration system
- Multiple compressor configuration
- Complete skid-mounted package
- Armstrong heat exchanger included
- ASME certified
- Heavy-duty industrial construction
- Integrated control systems
- Ready for installation
- Proven Toromont CIMCO design
- Canadian-built quality
Additional Information
- Condition: Used - 2010 Manufacture
- Manufacturer: CIMCO - Division of Toromont Industries Ltd.
- Location: Toronto, Ontario, Canada
- Model Numbers: C6-W08AHE, MAP 300, WD-183-212-2
- Serial Numbers: 10301, 10302, 10303, 8014191, 8014186, 645592, 8014070
- National Board Number: 3843
- Pressure Rating: 150-250 PSI depending on component
- Refrigerant: R-717 (Ammonia)
- Refrigerant Charge: 800 lbs (364 kg)
- Capacity: 300 Tons (1055 kW)
- Total Horsepower: 499 HP (MAP 300 unit)
- Prime Movers: 3 x 150 HP (3 x 112 kW)
- Installation Type: Skid-mounted industrial package
- Finish: Turquoise painted steel
- Control System: Integrated 460V 3-phase with 120V controls
- Certification: ASME U-stamp, CRN M1649.5
- Made In: Canada
Location: Ohio
