Description

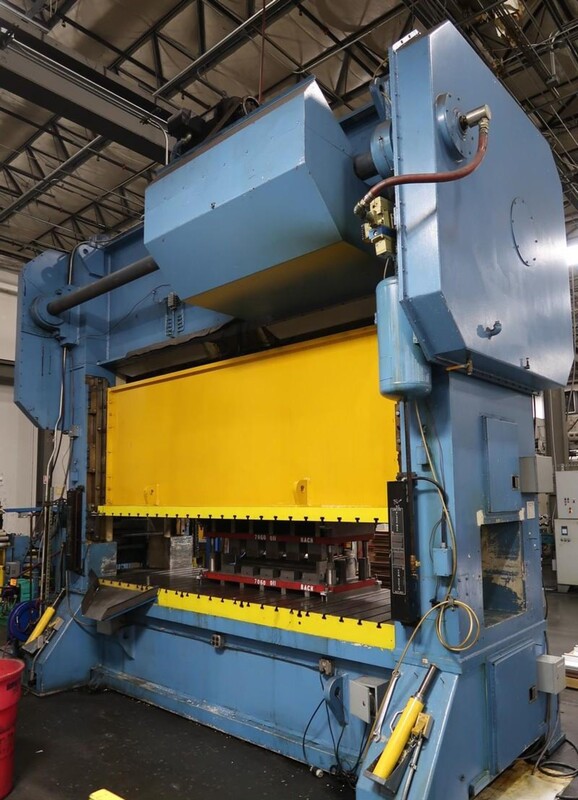

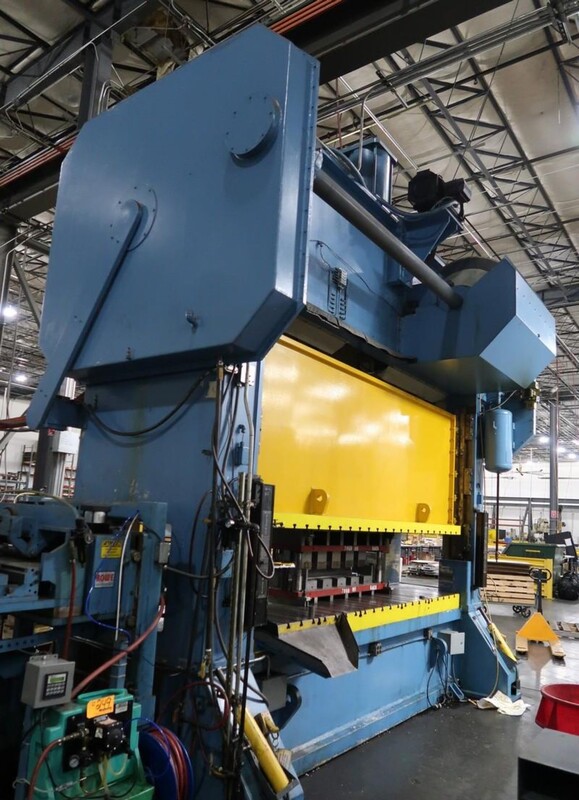

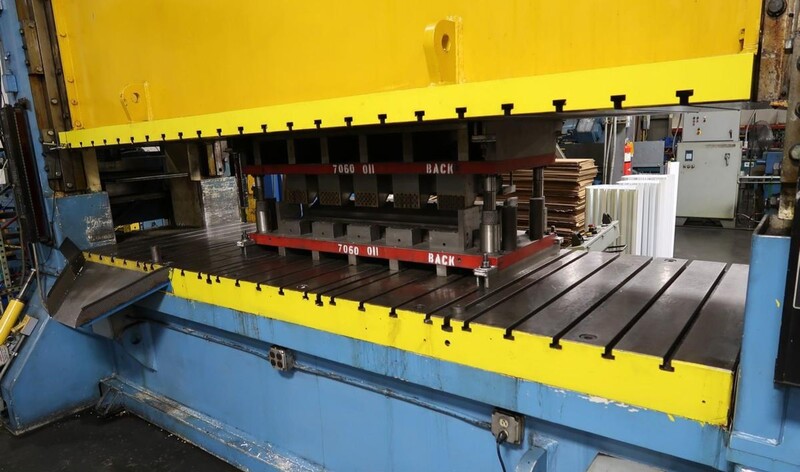

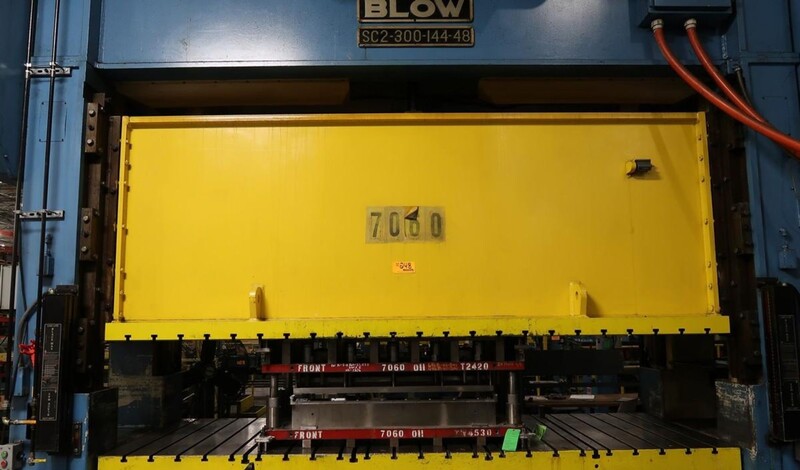

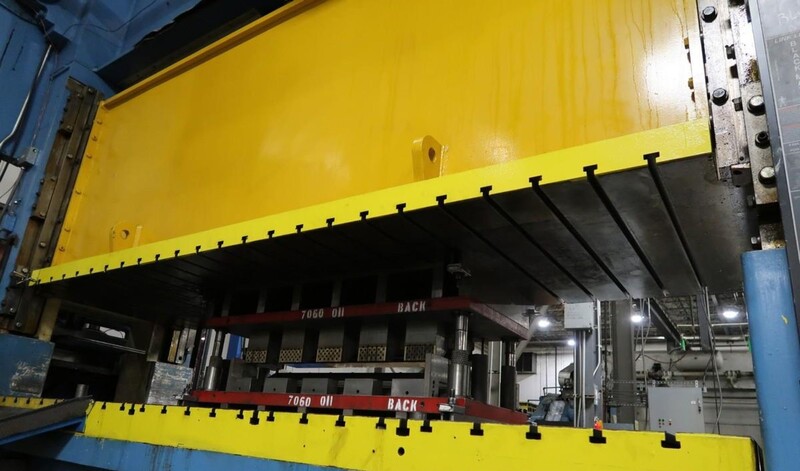

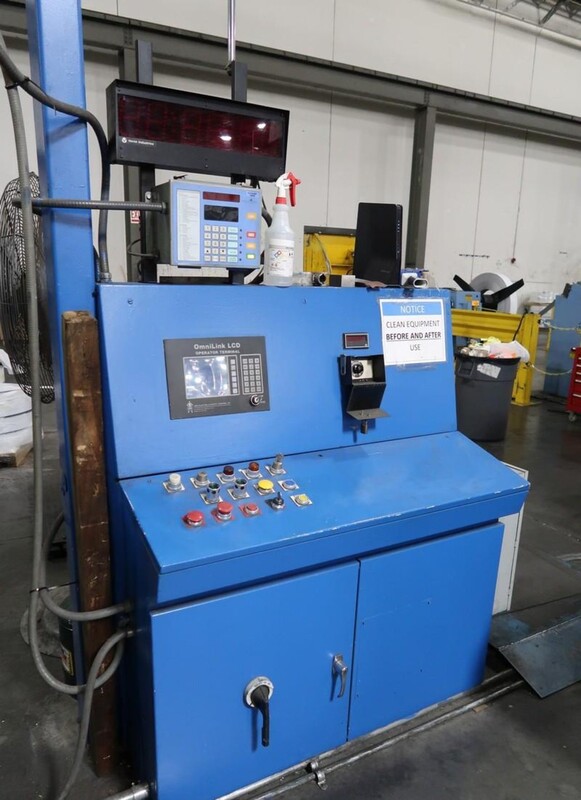

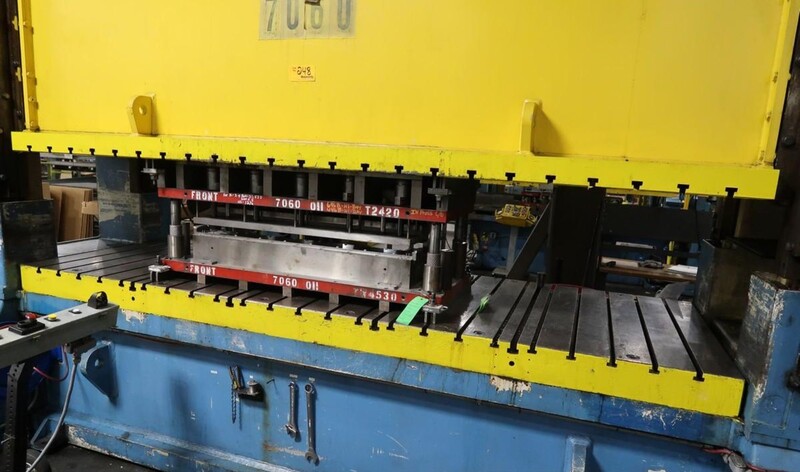

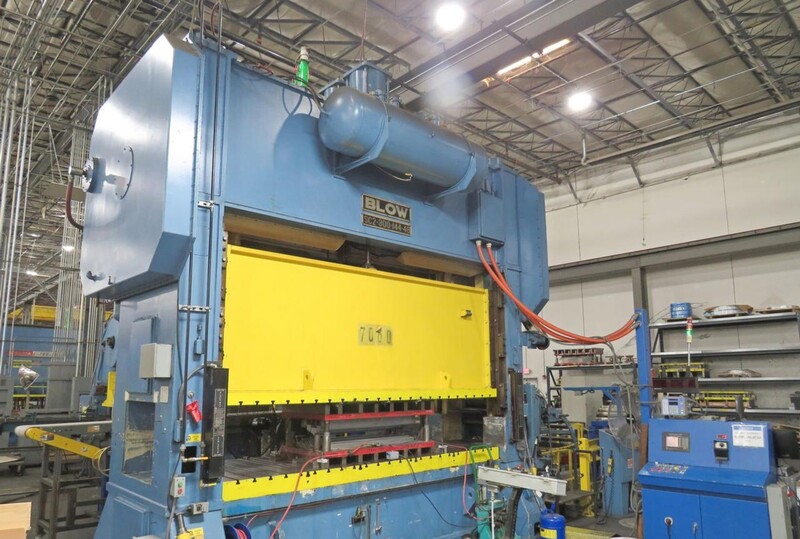

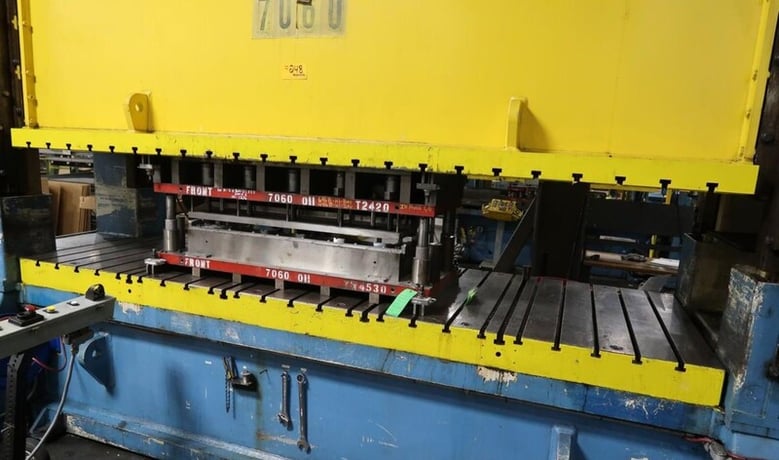

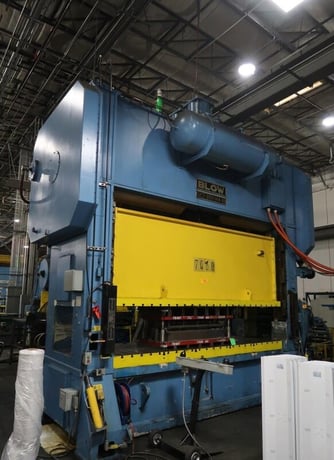

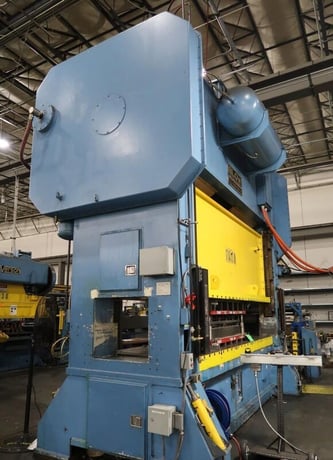

300 TON BLOW SC2-300-144-48 HEAVY-DUTY STRAIGHT-SIDE TWO POINT VARIABLE SPEED PRESS - 144 x 48 Bed & Ram - 6 Stroke - Floor Standing Design 300 TON BLOW HEAVY-DUTY STRAIGHT-SIDE TWO POINT VARIABLE SPEED PRESS New 1995, Serial No SDG-300-348-95, Model SC2-300-144-48 EQUIPPED WITH: OmniLink LCD Operator Control Terminal Air Clutch & Brake - Air Counterbalance Variable Speed Drive - Tie Rod Construction Power Ram Adjustment T-Slotted Slide & Bolster Operators Control Stand Floor Standing Design CATALOG SPECIFICATIONS: Tonnage Capacity 300 TON Stroke Length 6" Shut Height Over Bolster (SDAU) 26" Slide Adjustment, (Power) 10" Slide Area, L-R x F-B 144" x 48" Bed Area, L-R x F-B 144" x 48" Bolster, L-R x F-B x THK 144" x 48" x 6" Distance Between Uprights 145" Strokes Per Minute, Variable 25 to 50 SPM Main Motor Horsepower/RPM 50 HP/1800 RPM Slide Motor Horsepower/RPM 7.5 HP/1800 RPM Dimensions W x D 203-1/2" x 112-1/2" Height 217-3/4" Weight Approximately 140000 LBS F.O.B. OUR WAREHOUSE
