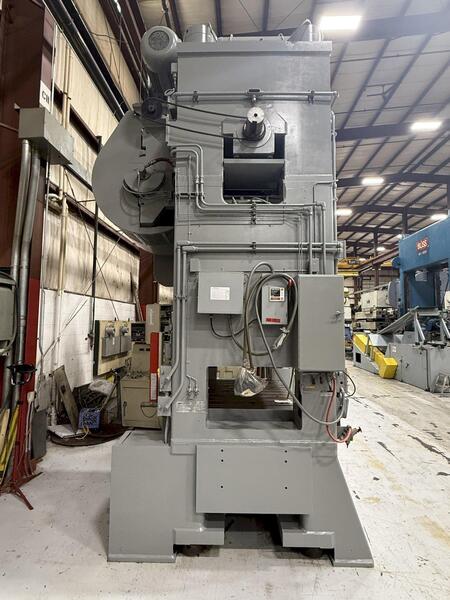

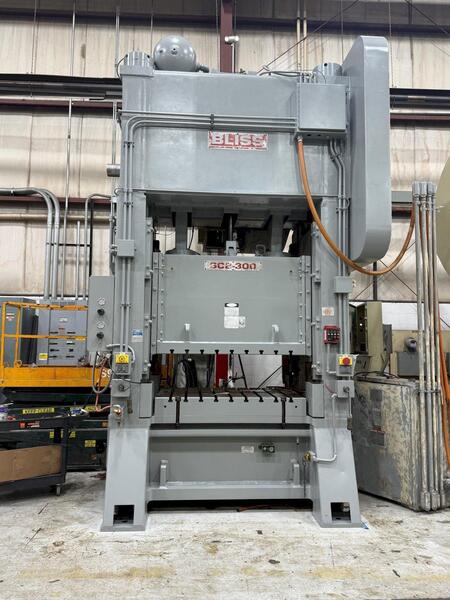

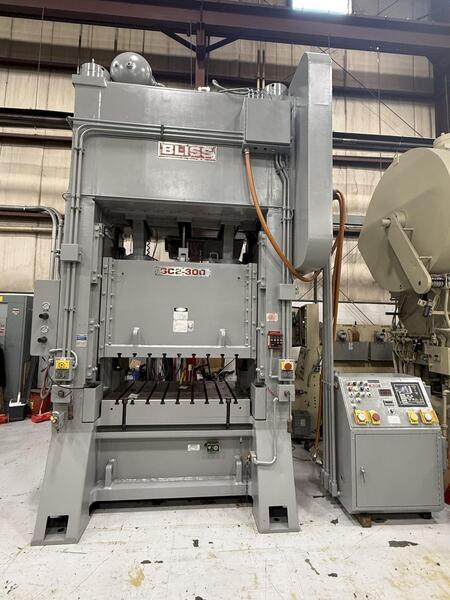

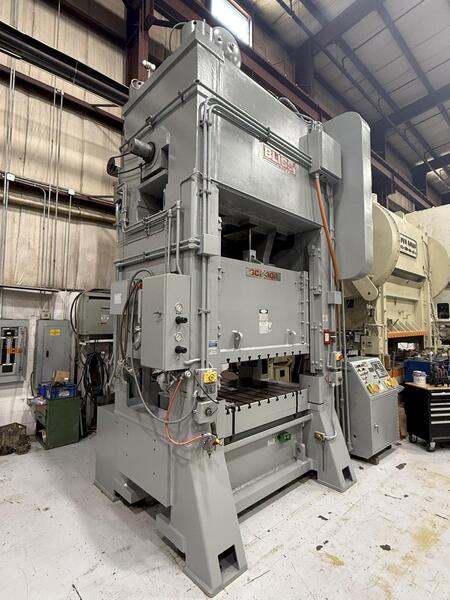

300 Ton, Bliss #SC2-300-60-48, straight side double crank press, 10" stroke, 27" Shut Height, 60" x40", 50 SPM, 1988

300

10 inches

27 inches

10 inches

60" x 42"

60" x 42"

25-50 SPM

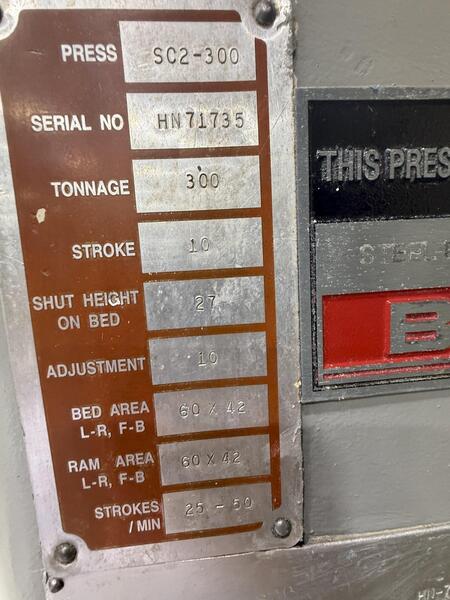

Standard Specifications

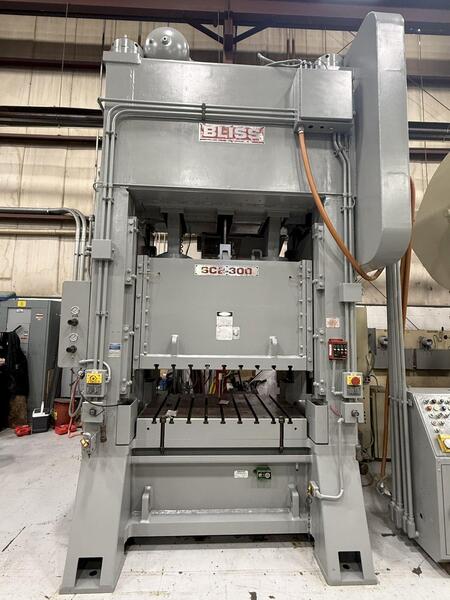

Used Bliss Press Model# SC2-300-60-42
Straight Side Mechanical Stamping Press
Mechanical, Air and Lubrication Recondition in Process
300 ton Capacity
10" Stroke
27" Shut Height
10" Motorized Adjustment
60" LR x 42" FB Bed Area
60" LR x 42" FB Slide Area
25-50 SPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
7" Bolster Plate
T-Slotted Ram and Bolster
31" Wide Windows

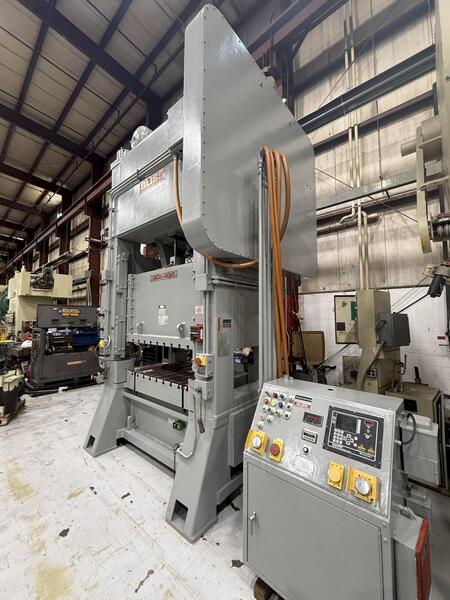

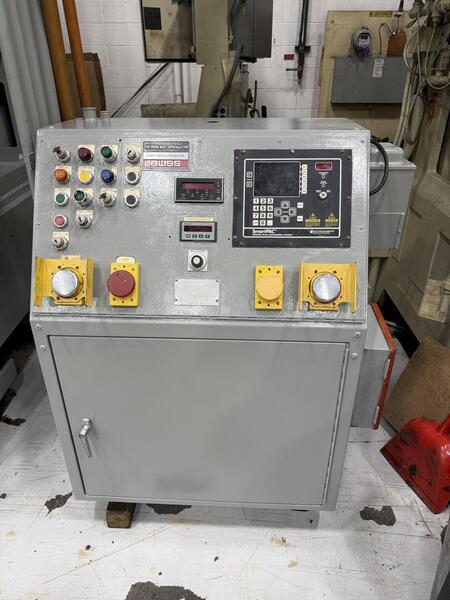

Free Standing Console Control
Wintriss Smart Pak Press Controls
Wintriss Die Pro
Shadow V Light Curtains
Hydraulic Tie Rod Nuts
Vibro-Dynamic Floor Pads

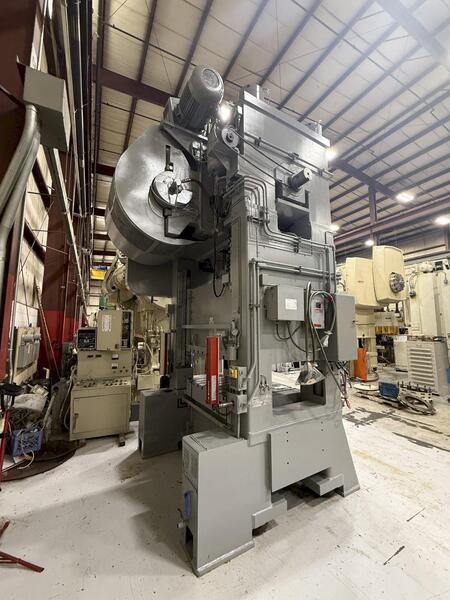

50 HP Eddy Current Drive
Floor Standing

Max. Overall Height 208" Tall
Approx. Overall Weight 72,000 lbs

This used 300-ton Bliss SC2-300-60-42 straight side mechanical stamping press is undergoing a comprehensive mechanical, air, and lubrication reconditioning. It features a 10" stroke, 27" shut height (with 10" motorized adjustment), and a 60"x42" bed. Operating at 25-50 SPM, it includes Wintriss Smart Pak and Die Pro controls, Shadow V light curtains, air clutch/brake, and hydraulic tie-rod nuts. A 50HP Eddy Current Drive and Vibro-Dynamic floor pads ensure stability. This press is available for inspection in the S&G Press Livonia Michigan Warehouse! Currently in process of mechanical, air and lube system recondition.
