Description
Condition: Factory Rebuilt

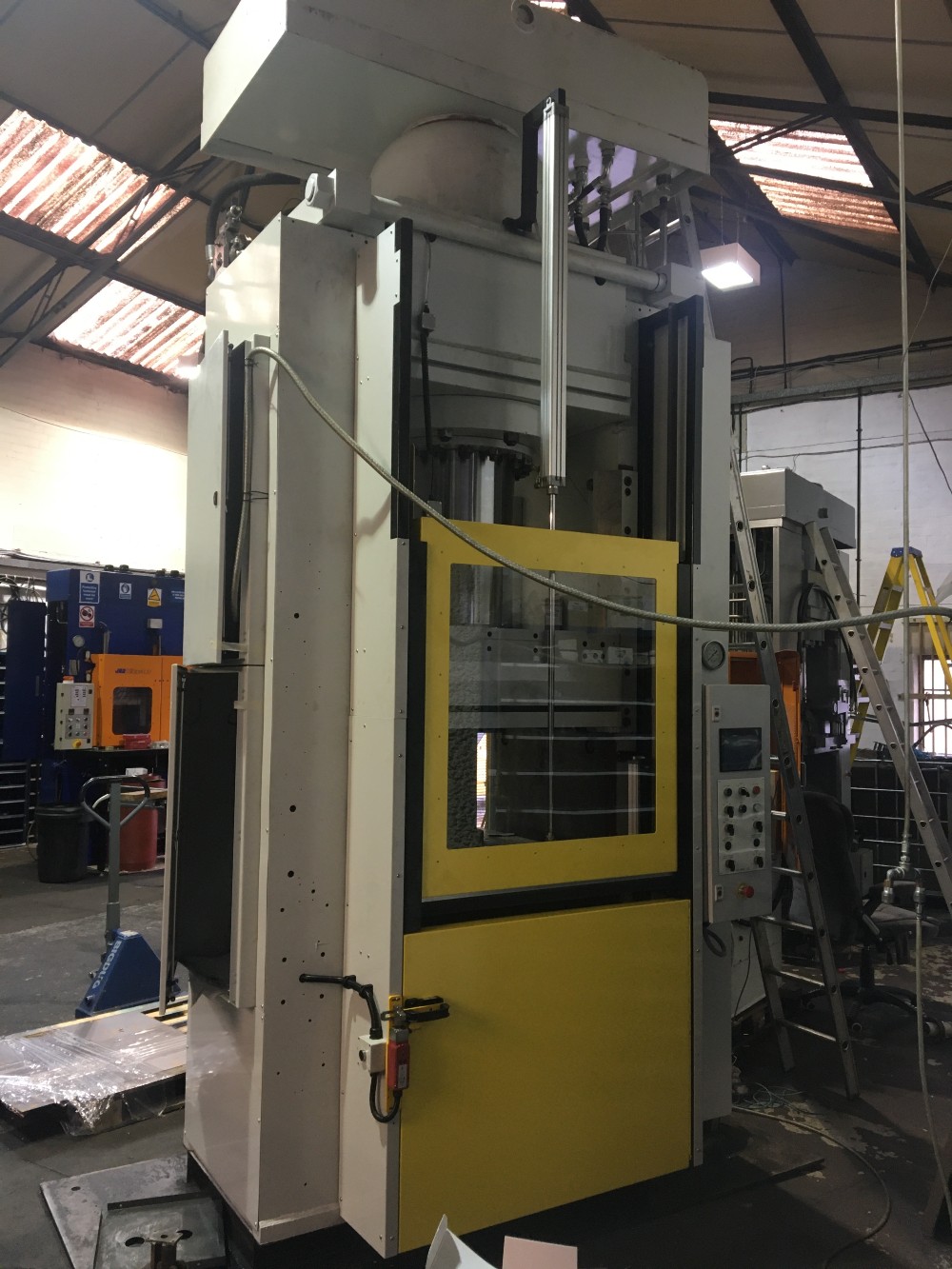

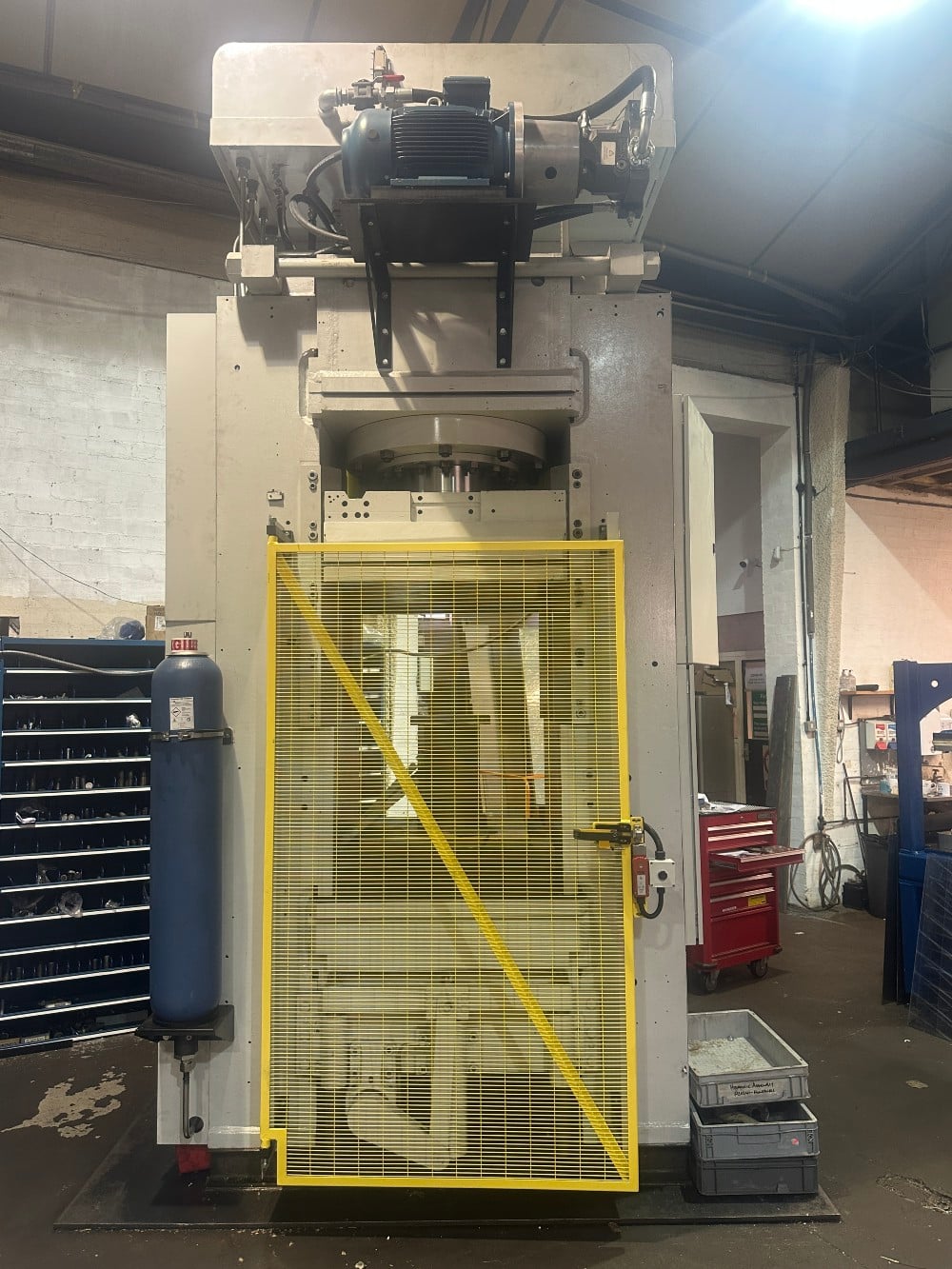

Model: 3000kN BIPEL Press
Application: Compression Moulding
Mode of Operation: Manual and Semi-Auto
Frame structure: Steel plate frame
Cylinder type : Double acting
Push back cylinder(s):
Pressing forcekN: 3000
Pull back force at circuit pressure kN: 300
Operating heightmm: 820
Stroke mm: 610
Daylight between
Tablesmm: 1205
Table size
L -R mm : 785
F-B mm: 890
Opening speedmm/sec: 200
Pressing speedmm/sec: 0-2
Guards (front): Pneumatic raising guard
Guards (rear) : fixed guard with safety Interlocked access door.
PLC control system: Omron
Hydraulic Oil : ISO – 32
Motor kW: 15
Voltage: 440V 3Phase N + E
Weight approx. kg: 16000
Dimensions
L-R Approx.mm: 1750
F-B Approx.mm: 1400
T-B Approx. mm: 4295
Imperial:
Imperial:
| PARTS | IMPERIAL |
|---|---|
| Bed Size, Left to Right | 30.47" |
| Bed Size, Front to Back | 35" |
| Daylight Between Tables | 47.48" |
| Daylight Between Heated Platens | 33.11" |
| Heated Platen Sizes | 30" x 30" |
| Max Working Platen Temperature | 220°C |
| Main Ram Stroke | 24.02" |
| Main Ram Pressing Force | 300 T |
| Main Ram Pull Back | 12 T |
| Ejection Force, Bottom | 6 T |
| Ejector Stroke, Bottom | 10" |
| Closing Speed, Up To | 5.91"/second |
| Opening Speed, Up To | 4.72"/second |
