For Sale by JRD Bipel
Surplus Record Dealer Since 2026
Location: Aldridge, UK United Kingdom
Contact Ahmad Mehdi
Phone Number: +44...> Show Phone Number +44 1922 451245
Let the seller know you found their listing on Surplus Record!
Description

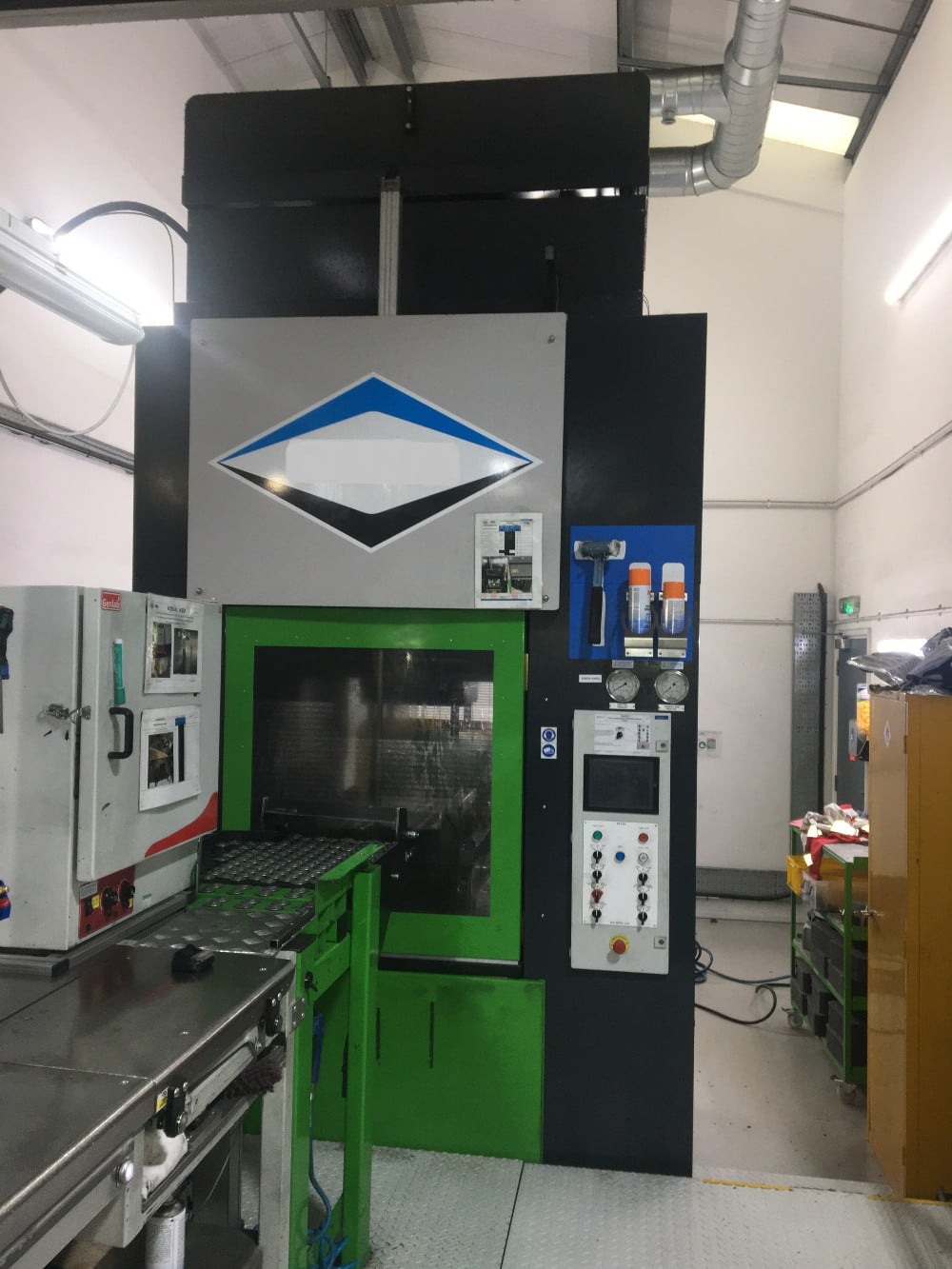

In Stock for fast delivery BIPEL 300 ton compression press
Here is the full Specifications of the products:
| Technical data |
|---|
| Double Acting Cylinder |
| Pressing Force 3000 kN |
| Pull Back Force: 120kN |
| Operating Height: 930mm |
| Stroke: 610mm |
| Daylight Between Tables: 1206mm |
| Daylight Between Heating Platens: 841mm |
| Table Size: 774mm x 889mm |
| Heating Platen Size: 762mm x 762mm |
| Max. Working Temperature: 220°C |
| Power per Heating Platen 13.5kW |
| Motor 15kW |
| Top Ejector force: 35kN |
| Top Ejector Stroke: 101mm |
| Bottom Ejector Force: 60kN |
| Bottom Ejector Stroke: 254mm |
| Transfer Cylinder Force: 55kN |
| Transfer Cylinder Stroke: 229mm |
| Closing Speed 200mm/s |
| Opening Speed 150mm/s |
| Front air Operated Guard |
| Rear Interlocked Hinged Guards |
| Weight Approx. 16 Ton |
| Dimension Approx. 4128mm x 2000mm x 1470mm |
If you would like to know more about this 300 ton compression press, get in contact to learn more.
Imperial:
| Technical Data | Imperial Measurement |
|---|---|
| Cylinder Type | Double Acting Cylinder |
| Pressing Force | 337 Tons |
| Pull Back Force | 13.49 Tons |
| Operating Height | 36.61" |
| Stroke | 24.02" |
| Daylight Between Tables | 47.48" |
| Daylight Between Heating Platens | 33.11" |
| Table Size | 30.47" x 35" |
| Heating Platen Size | 30" x 30" |
| Maximum Working Temperature | 428°F |
| Heating Platen Power | 18.1 HP |
| Motor Power | 20.1 HP |
| Top Ejector Force | 3.93 Tons |
| Top Ejector Stroke | 3.98" |
| Bottom Ejector Force | 6.74 Tons |
| Bottom Ejector Stroke | 10" |
| Transfer Cylinder Force | 6.18 Tons |
| Transfer Cylinder Stroke | 9.02" |
| Closing Speed | 7.87" per second |
| Opening Speed | 5.91" per second |
| Front Guard | Air Operated |
| Rear Guards | Interlocked Hinged Guards |
| Approximate Weight | 17.64 US Tons |
| Approximate Dimensions | 162.52" x 78.74" x 57.87" |
Get Your Price from JRD Bipel!
