300 KVA 12470GY/7200 x 22860GY/13200 Primary, 208Y/120 Secondary, Giga Energy, Dual Voltage Padmount Transformer, 3PH, 2024, (20 available)

FOB: Green Industrial, 281 Commerce St, Belgium, WI 53004

*300 KVA Pad Mount Three-Phase Transformer HV:12470GY/7200 X 22860GY/13200 LV 208Y/120

CONDITION: NEW SURPLUS

Manufacturer: Giga Energy
YEAR: 2024
Serial#:Varies by Transformer
TYPE: Three-Phase Pad Mount Transformer
KVA: 300

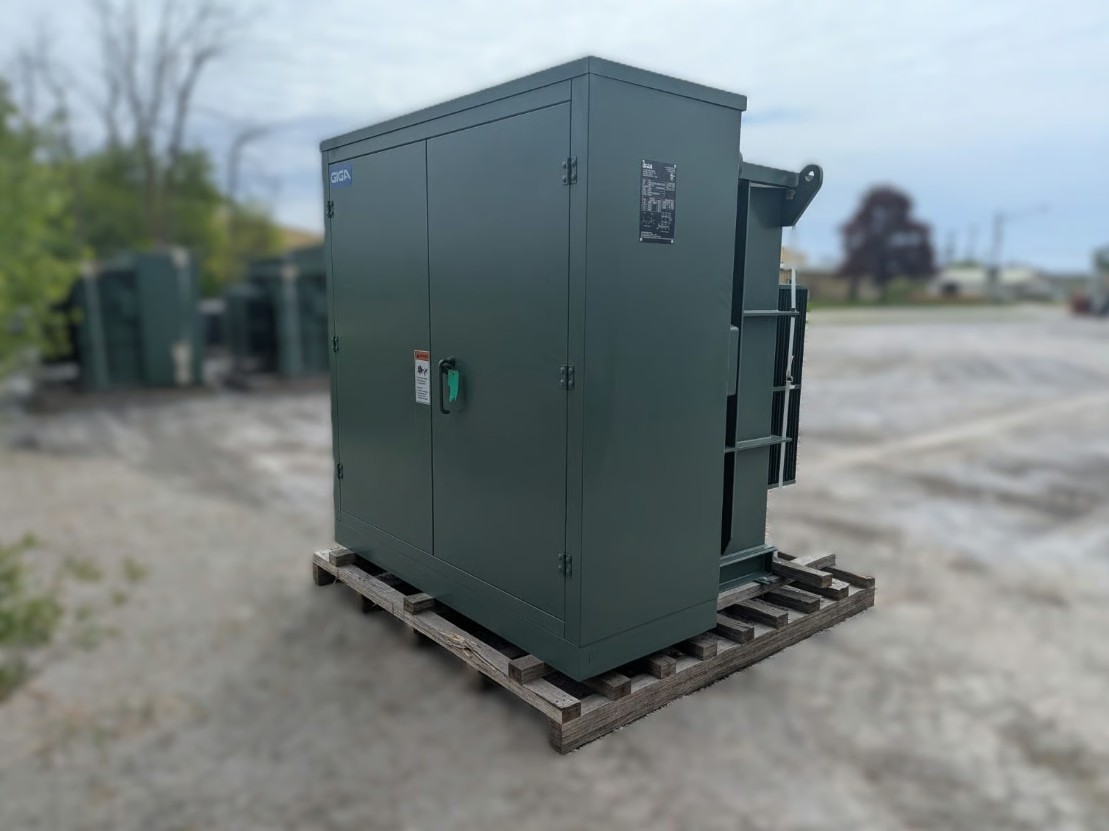

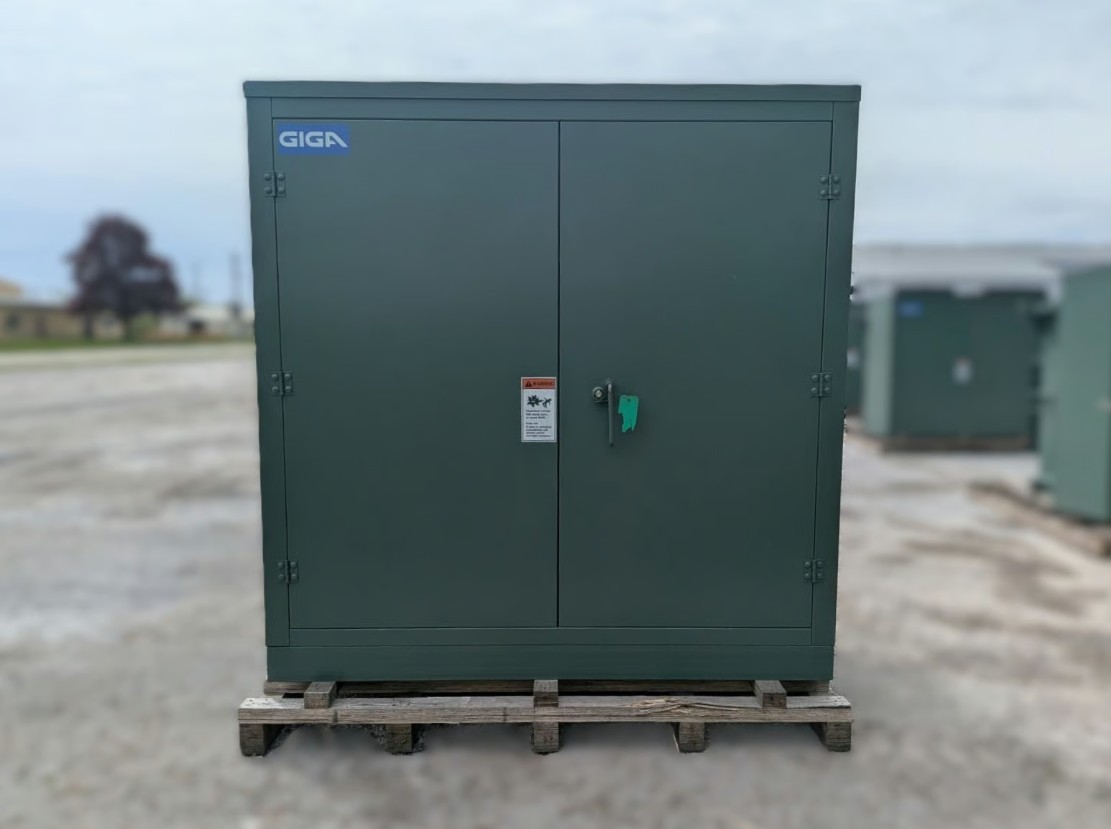

Enclosure: Pad Mount Outdoor Rated
Phase: 3
Hertz: 60
Primary Voltage: 12470GY/7200 X 22860GY/13200
Secondary Voltage: 208Y/120
Impedance: 6.04%
Degree Temp Rise: 65 Degree C Rise
Winding Material: Copper

Actual Transformer Dimensions:
Width: 75.5"
Length/Depth: 71.5"
Height: 76"
WEIGHT: 7165 lbs.

Shipping Dimensions & Weight:
Width: 78.5"
Length: 75"
Height: 83.5"
WEIGHT: 7465 lbs.

300KVA, 3PH, 12470GY/7200 X 22860GY/13200 - 120/208V

-RATED CAPACITY: 3 PHASE

-HIGH VOLTAGE: 12470GY/7200 X 22860GY/13200

-LOW VOLTAGE: 208Y/120

-BIL: HV 125KV; LV 30KV

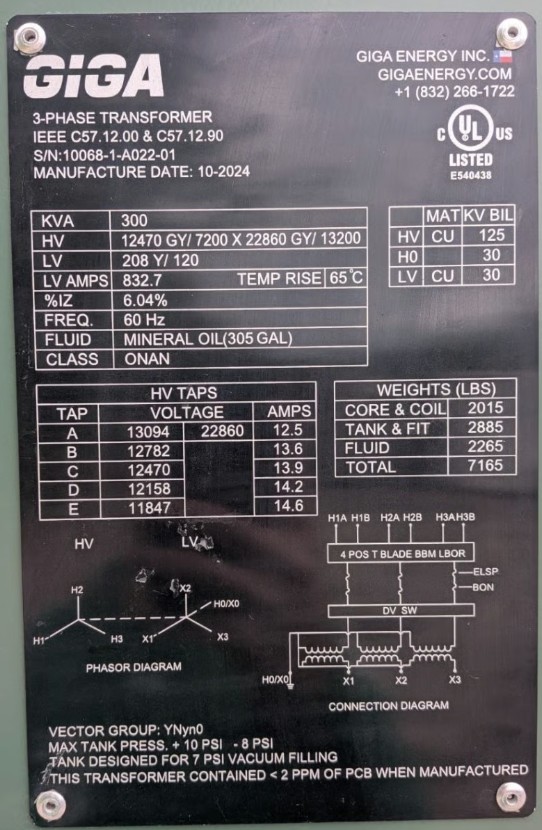

-HV TAPS: 2 ABOVE, 2 BELOW @ 2.5% EACH

TAP VOLTAGE AMPS

A 13094 22860 12.5

B 12782 13.6

C 12470 13.9

D 12158 14.2

E 11847 14.6

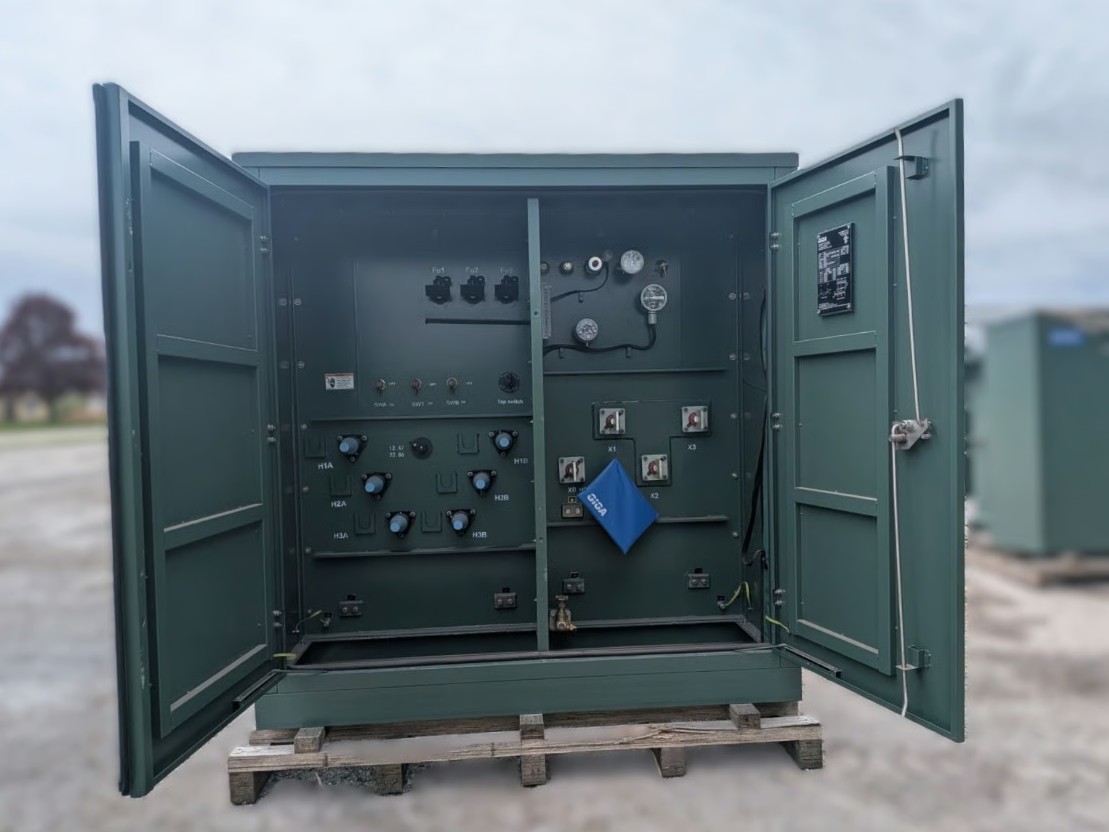

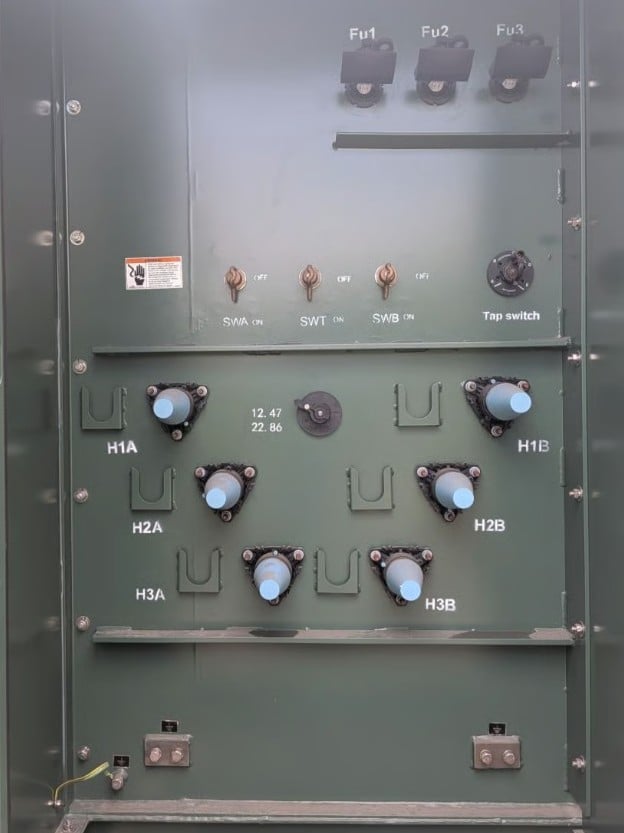

-HV BUSHINGS: (6) 200 A 25 KV LOADBREAK

- DEAD FRONT LOOP FEED

-LV BUSHINGS: (4) 4-HOLE WITH SUPPORTS

-FLUID: MINERAL OIL

-COOLING CLASS: ONAN

-FREQUENCY: 60 HZ

-TEMPERATURE RISE: 65C

-WINDING MATERIAL: COPPER

-TANK MATERIAL: MILD STEEL

-FUSING: BAYONET W/ CLFS

-SWITCH: (3) 2

-POS. LBOR-LIQUID LEVEL GAUGE

-PRESSURE VACUUM GAUGE

-DIAL TYPE THERMOMETER

-DRAIN AND SAMPLE VALVE

-cUL LISTED

-IEEE C57.12.00 & C57.12.90

-DUAL-VOLTAGE SWITCH

-LIFTING LUGS POSITIONED FOR AND CAPABLE OF LIFTING ENTIRE PAD MOUNT UNIT

-PROVISIONS FOR GROUNDING ON THE TRANSFORMER TANK IN BOTH THE PRIMARY AND SECONDARY COMPARTMENTS SHALL BE COPPER.

-OIL FILL PLUG

-TOP FILTER PRESS CONNECTION

-COMBINATION ONE-INCH OIL DRAIN VALVE, LOWER FILTER PRESS CONNECTION, SAMPLING DEVICE LOCATED IN THE PRIMARY COMPARTMENT

-OIL LEVEL PLUG

GIBUYS #: GV0005
