Description
Product Specifications

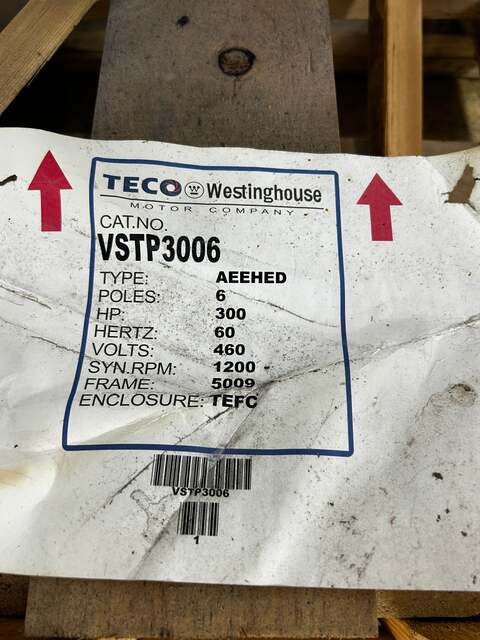

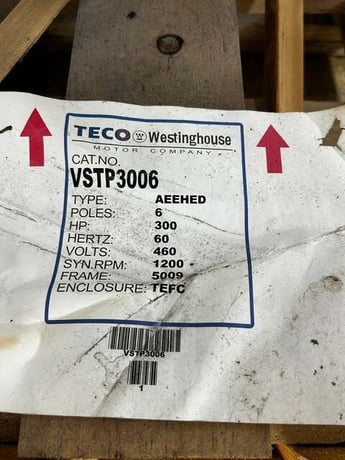

- Manufacturer: TECO-Westinghouse
- MPN / Model: VSTP3006
- Product Type: Vertical Hollow Shaft AC Motor
- Type: AEEHED
- Horsepower: 300 HP
- Voltage: 460 V
- Frequency: 60 Hz
- Poles: 6
- Synchronous RPM: 1200 RPM
- Frame Size: 5009
- Enclosure Rating: TEFC

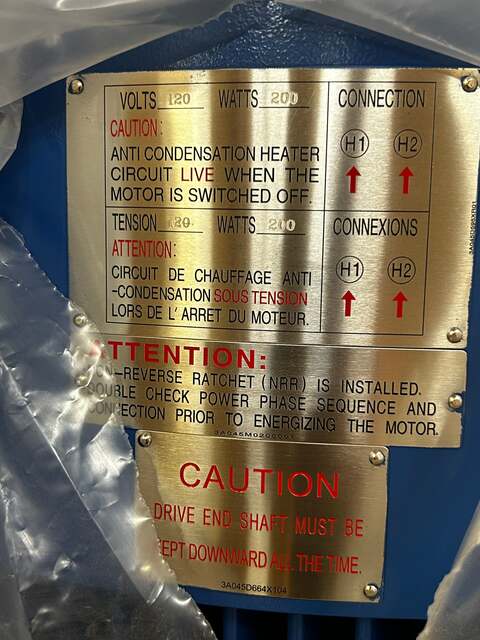

- Anti-Condensation Heater: 120V, 200W
- Non-Reverse Ratchet (NRR): Installed

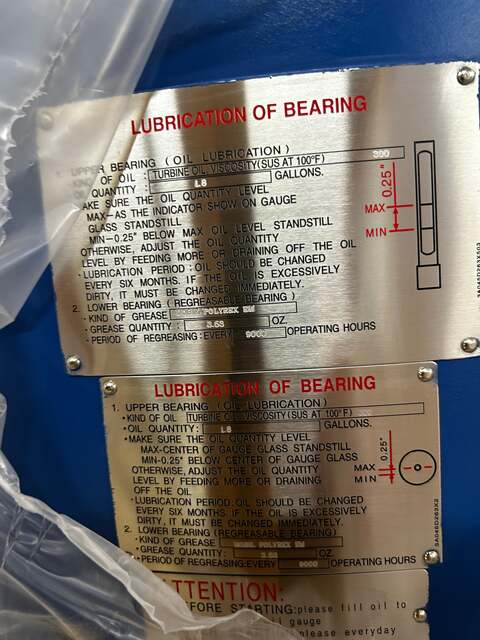

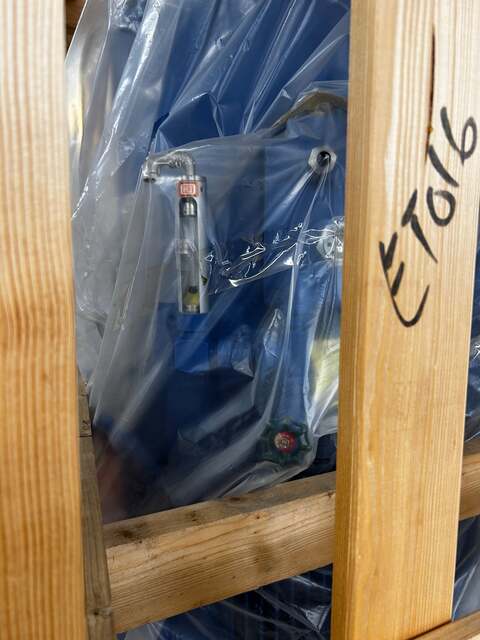

- Upper Bearing Lubrication: Oil (Turbine Oil, Viscosity SUS at 100F: 300), 1.8 Gallons
- Lower Bearing Lubrication: Regreasable, Mobil Polyrex EM, 3.65 Oz, Every 9000 Operating Hours
- Condition: New Surplus
Product Description

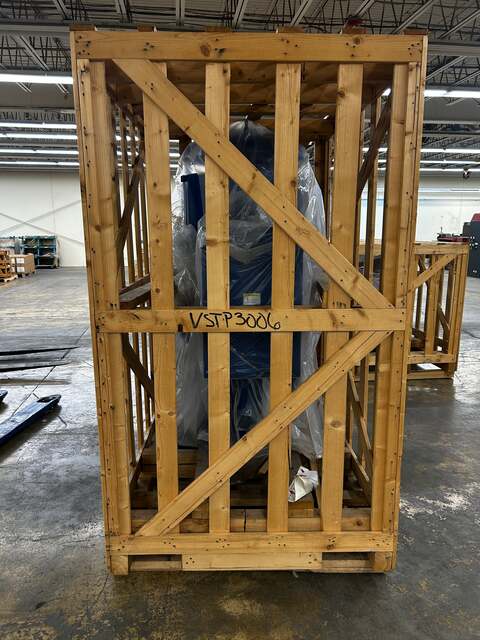

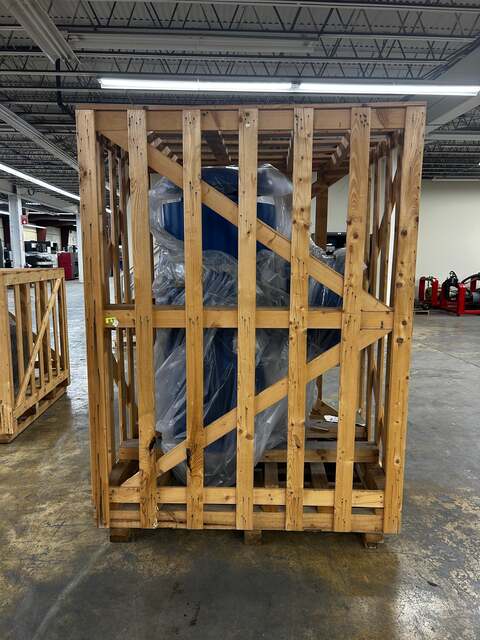

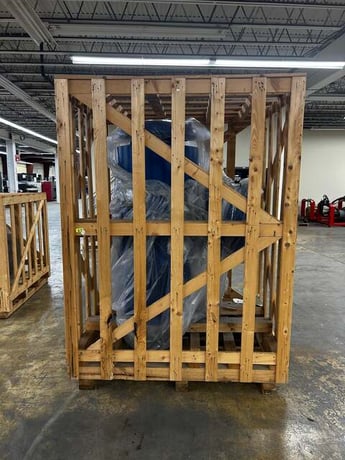

The TECO-Westinghouse VSTP3006 is a 300 HP vertical hollow shaft AC motor rated at 460V, 60 Hz with a synchronous speed of 1200 RPM (6-pole). It carries the AEEHED type designation and is built in a frame 5009 TEFC (Totally Enclosed Fan Cooled) enclosure. The unit includes an installed non-reverse ratchet (NRR) and a 120V / 200W anti-condensation heater circuit, which remains live when the motor is switched off. Upper bearing lubrication uses turbine oil (viscosity SUS at 100F: 300) at 1.8 gallons; the lower bearing is regreasable with Mobil Polyrex EM grease at 3.65 oz every 9000 operating hours. The motor is listed as New Surplus, is original-crate packaged on a pallet, and carries catalog number VSTP3006. Buyers should note the nameplate caution requiring that the drive end shaft be kept downward at all times and that power phase sequence be verified prior to energizing due to the NRR installation.
