Manufacturer: Cherry Burrell
Gallons: 300.00
Pounds per Square Inch: 100
Jacketed: Yes
Stock # 8881-04
1 / 4
Click to zoom in
1 / 4
For Sale by Perry Videx LLC
Surplus Record Dealer Since 2021
Location: Hainesport, NJ
Contact Kathy Kelly
Phone Number: 609...> Show Phone Number 609-267-1600
Let the seller know you found their listing on Surplus Record!
Description

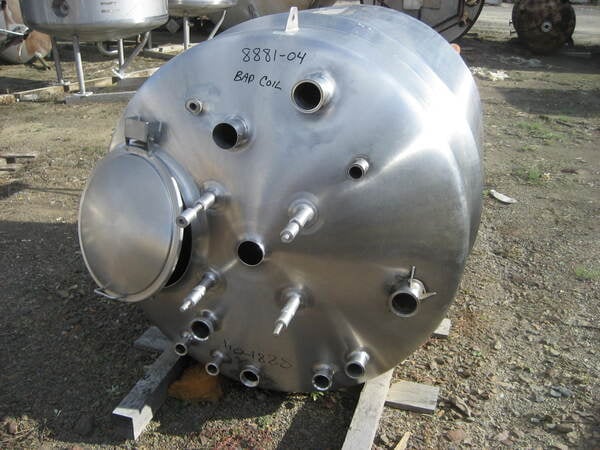

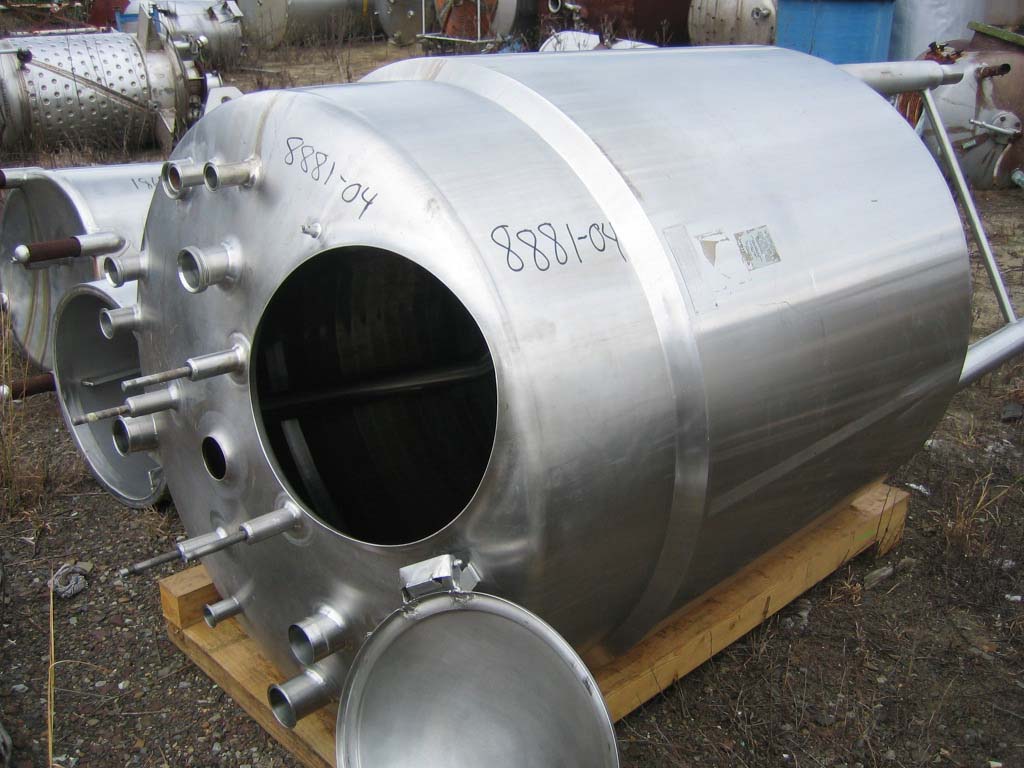

Used Approximately 300 Gallon Stainless Steel Jacketed Tank
Manufacturer: Cherry Burrell
Capacity: 300 gallons
Serial: E-380-89
Year: 1989
Jacket pressure: 100 psi @ 350F
Dimensions: 48" dia. x 4' straight side
Material of construction: 304 stainless steel
Dish top, dish bottom

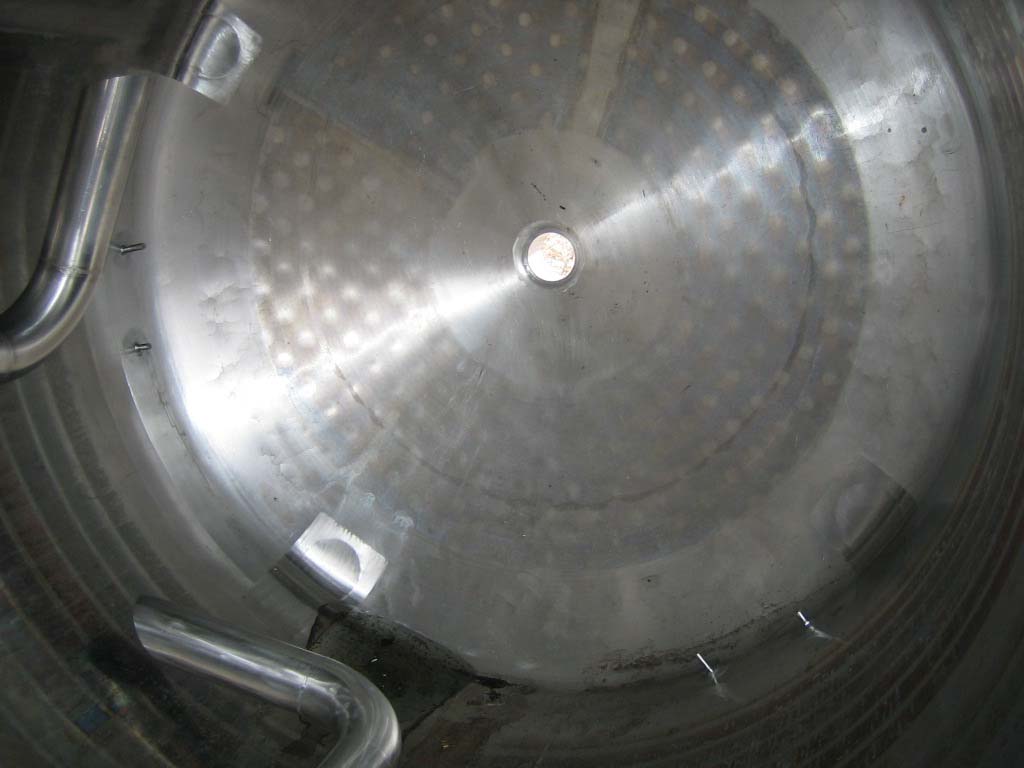

Additional information: 5 square foot dimple surface on bottom head, 1 zone. Basic header design with 1-1/4" NPT male connections for steam or water. 18" manhole, 3" vent, 3" bottom outlet, (9) inlet ports on dome, mixer mount connection, baffles, sanitary.
1989 CHERRY-BURRELL 300 GALLON
SPECIFICATIONS:
Capacity.............. 300 gal
Diameter.............. 4'
Height................ 4'
Type of stainless..... 304
Type Of Heads......... Dished
Vertical/Horizontal... Vertical
Legs/Lugs/Skirt....... 4 legs
Dimensions............ 48" dia. x 4' straight side
Manufacturer: Cherry Burrell
Capacity: 300 gallons
Serial: E-380-89
Year: 1989
Jacket pressure: 100 psi @ 350F
Dimensions: 48" dia. x 4' straight side
Material of construction: 304 stainless steel
Dish top, dish bottom
Additional information: 5 square foot dimple surface on bottom head, 1 zone. Basic header design with 1-1/4" NPT male connections for steam or water. 18" manhole, 3" vent, 3" bottom outlet, (9) inlet ports on dome, mixer mount connection, baffles, sanitary.
1989 CHERRY-BURRELL 300 GALLON
SPECIFICATIONS:
Capacity.............. 300 gal
Diameter.............. 4'
Height................ 4'
Type of stainless..... 304
Type Of Heads......... Dished
Vertical/Horizontal... Vertical
Legs/Lugs/Skirt....... 4 legs
Dimensions............ 48" dia. x 4' straight side
