For Sale by Machinery Values Inc
Surplus Record Dealer Since 2011
Location: Harrison, NJ
Contact Rick Lazarus
Phone Number: 973...> Show Phone Number 973-497-7600
Let the seller know you found their listing on Surplus Record!
Description

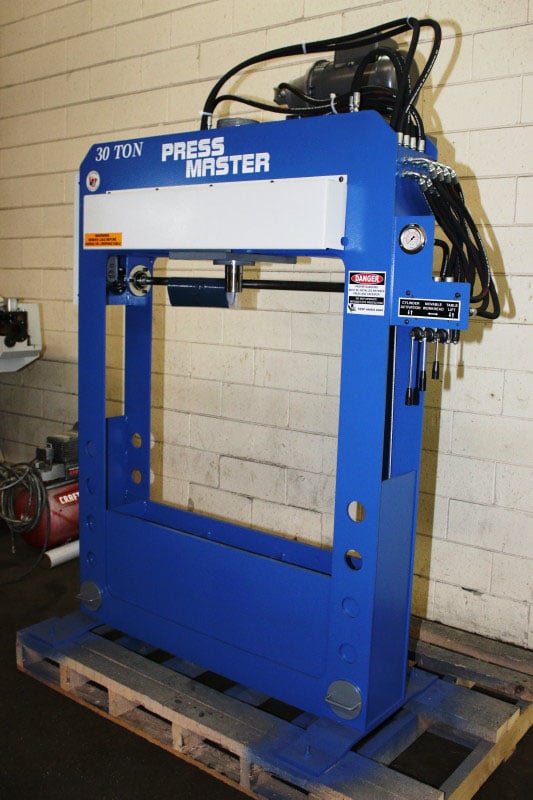

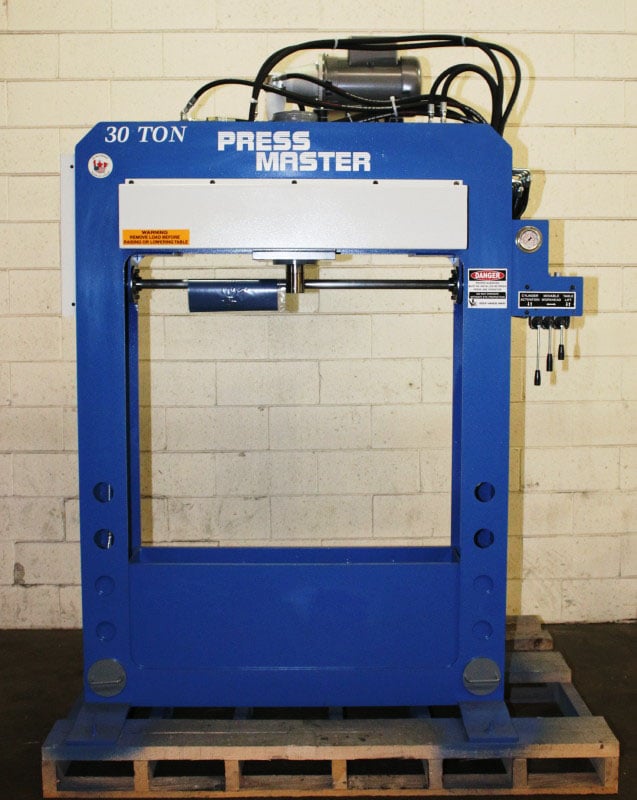

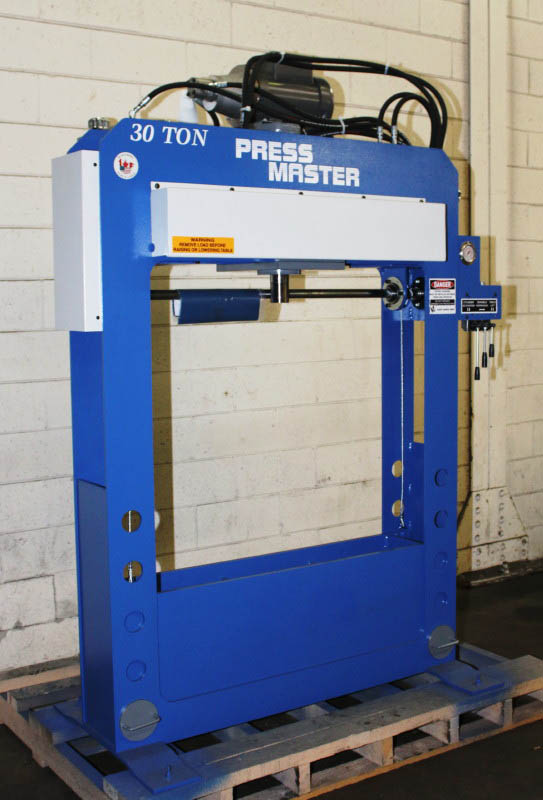

30 TON PRESSMASTER HYDRAULIC H-FRAME PRESS
MODEL HFP-30MWH… NEW - IN STOCK FOR IMMEDIATE DELIVERY
RATED CAPACITY ...............................″0 TONS
STROKE ....................................... 16"
BORE ......................................... 5"
ROD .......................................... 2.5"
RAM SPEED: ADVANCE ........................... 29 IPM
RETURN ............................″8 IPM
DISTANCE BETWEEN POSTS (RIGHT TO LEFT)........ 42"
DISTANCE BETWEEN POSTS (FRONT TO BACK)........ 9"
MAXIMUM DISTANCE FROM BED TO RAM .............″4"
OVERALL HEIGHT ............................... 75"
OVERALL WIDTH ................................ 54"
OVERALL DEPTH ................................″0"
WEIGHT ....................................... 1,600#
NOT A CHEAP IMPORT -
MANUFACTURED IN CANADA WITH QUALITY US… CANADIAN COMPONENTS

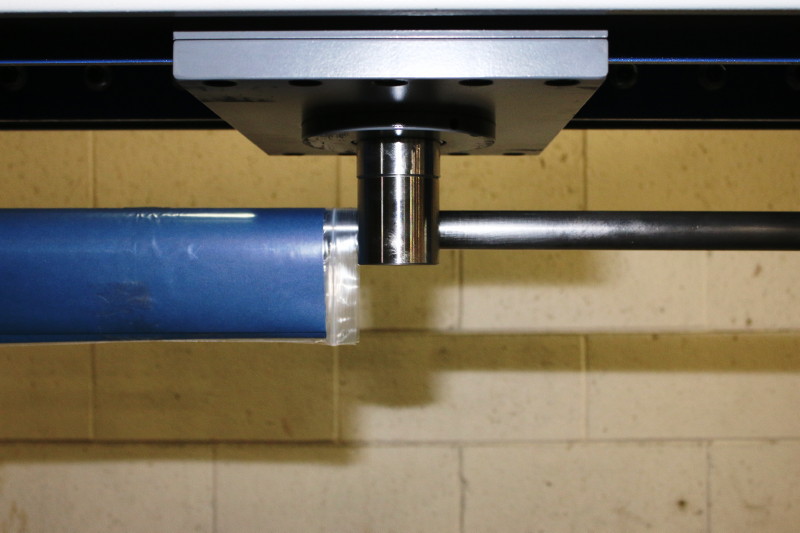

- POWERED MOVEABLE WORKHEAD FOR OFF-CENTER WORK, ALLOWS
OPERATOR TO POSITION RAM FROM LEFT TO RIGHT WITH THE TOUCH OF A LEVER.
- HYDRAULIC POWER LIFT TABLE
- ELECTRIC/HYDRAULIC OPERATION
- HEAVY DUTY STEEL STRUCTURE
- OPEN SIDES TO FACILITATE WORK ON LONG PIECES
- FLAT RAM NOSE TO ALLOW USER TO ADAPT THE PRESS TO A SPECIFIC JOB.
- BALDOR, 5 HP / 230 VOLT / 1 PHASE MOTOR

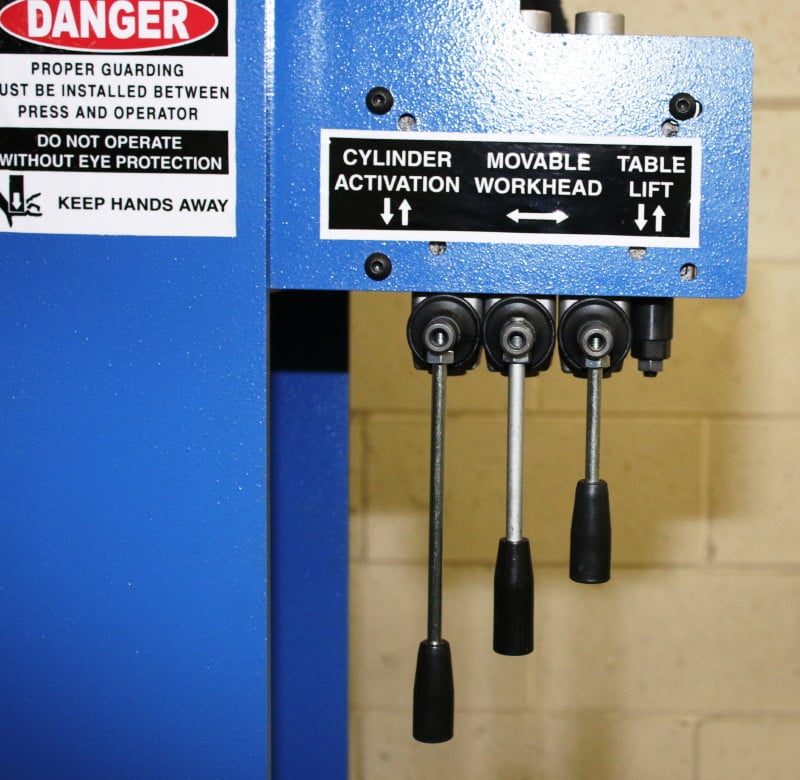

- CYLINDER ACTIVATION IS FINGERTIP CONTROLLED, THE MORE
THE HAND LEVER IS ENGAGED THE MORE THE RAM MOVEMENT IS ACCELERATED, ALLOWING THE OPERATOR TO SET THE PROPER SPEED FOR THE TASK.
- LOW SPEED PUMP FOR QUIET DEPENDABLE OPERATION
- SELF LOCKING TABLE DESIGN ELIMINATES LATERAL MOVEMENT
- 10 GALLON HYDRAULIC OIL RESERVOIR
- LOW PRESSURE HYDRAULIC SYSTEM FOR LOWER OIL
TEMPERATURES RESULTING IN HIGHER EFFICIENCY AND SAFER OPERATION
FULL ONE YEAR WARRANTY ON ALL PARTS
STANDARD VOLTAGES AVAILABLE-PLEASE SPECIFY WHEN ORDERING
AVAILABLE OPTIONS:
- PRESSURE REGULATOR ......................... $… 700
- SET OF V-BLOCKS ............................ $… 700
- STOP / START… EMERGENCY STOP .............. $1,000
- FRONT OR BACK SAFETY GUARD .....(PER SIDE).. $1,000
- SIDE SAFETY GUARD ..............(PER SIDE).. $… 750
- FOOT PEDAL ................................. $4,500
- ADJ. STROKE CONTROL C/W FOOT PEDAL ......... $6,500
- PRESS PLATE ................................ $1,200
- COMPREHENSIVE SAFETY PACKAGE WITH EMERGENCY STOPS AND
LEXAN GUARDING ............................... $9,500
- HANDHELD REMOTE CONTROL .................... $9,500
CAN BE INSPECTED IN OUR HARRISON, NJ WAREHOUSE
MACHINES IN STOCK AND CAN BE SHIPPED OUT TO YOU IMMEDIATELY
Get Your Price from Machinery Values Inc!
