Description
Specifications
Tonnage
30
Stroke
2 inches
Shut Height
12.5 inches
Adjustment
2 inches
Bed Size
30" LR x 19" FB
Ram Area
30" LR x 14" FB
SPM
400

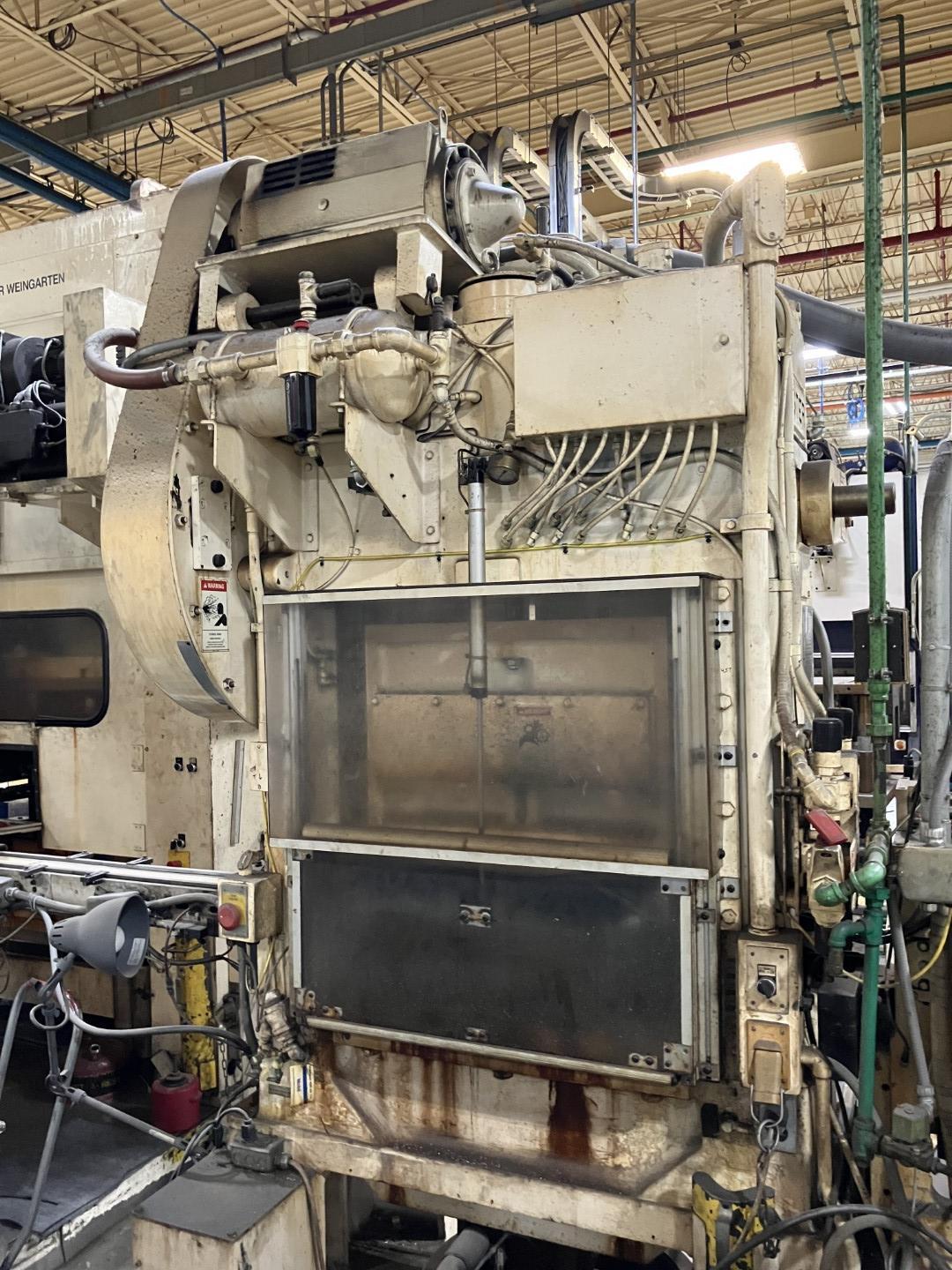

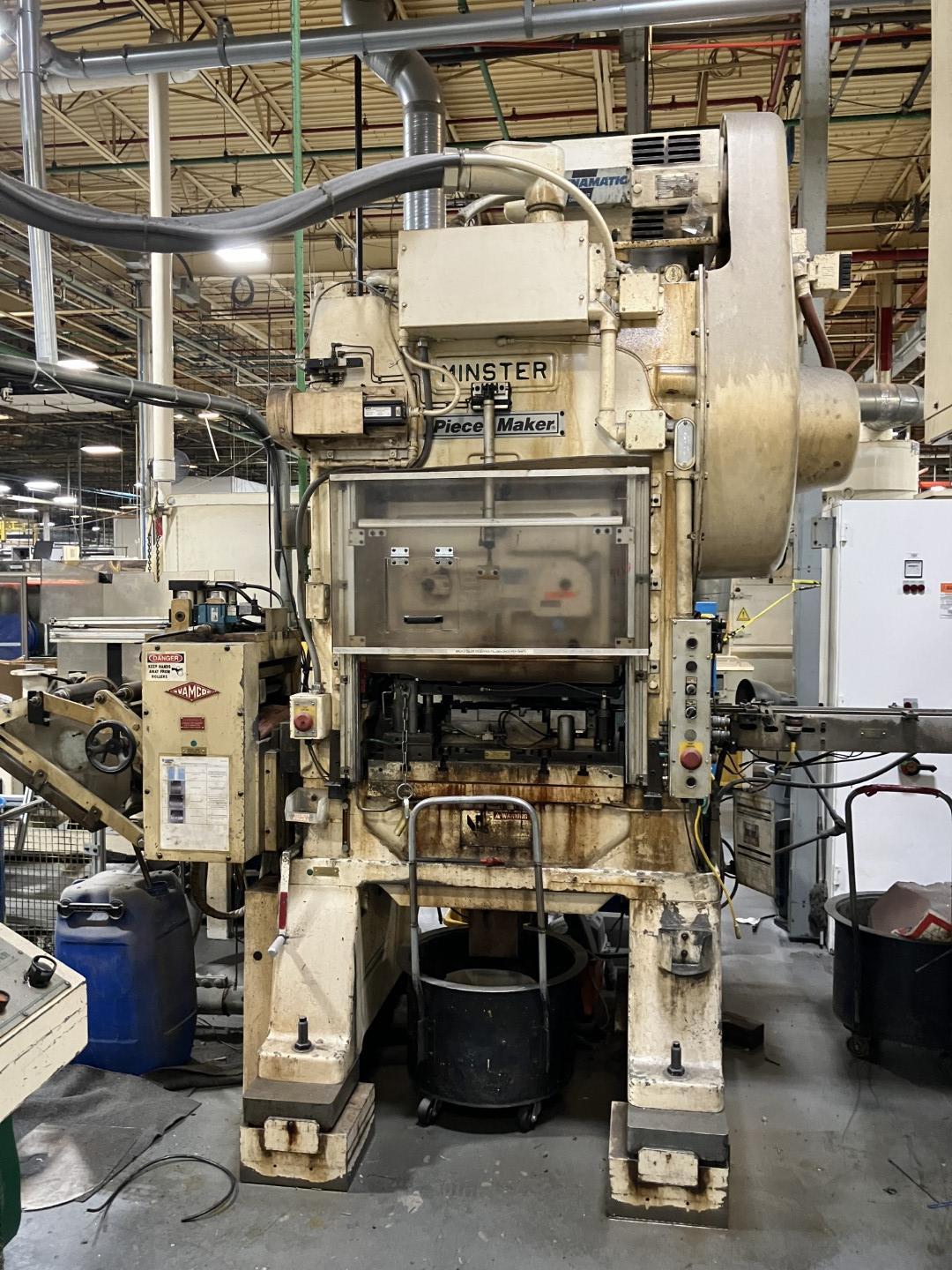

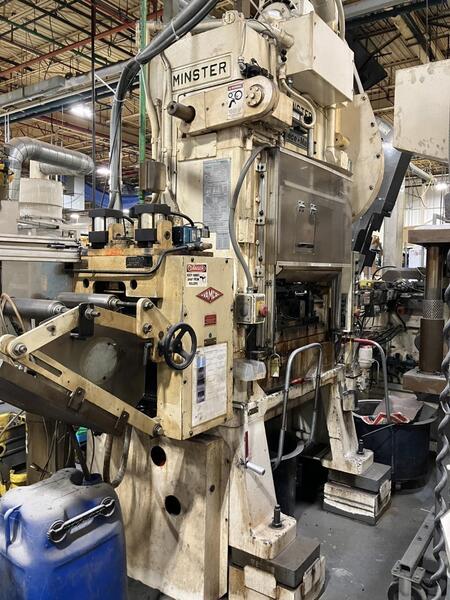

Standard Specifications Used High Speed Mechanical Flywheel Press Minster Model# P2-30-30 Piece-Maker 2" Stroke 12.5" Shut Height (SDAU) 2" Adjustment 30" LR x 19" FB Bed Area 30" LR x 14" FB Slide Area 400 SPM

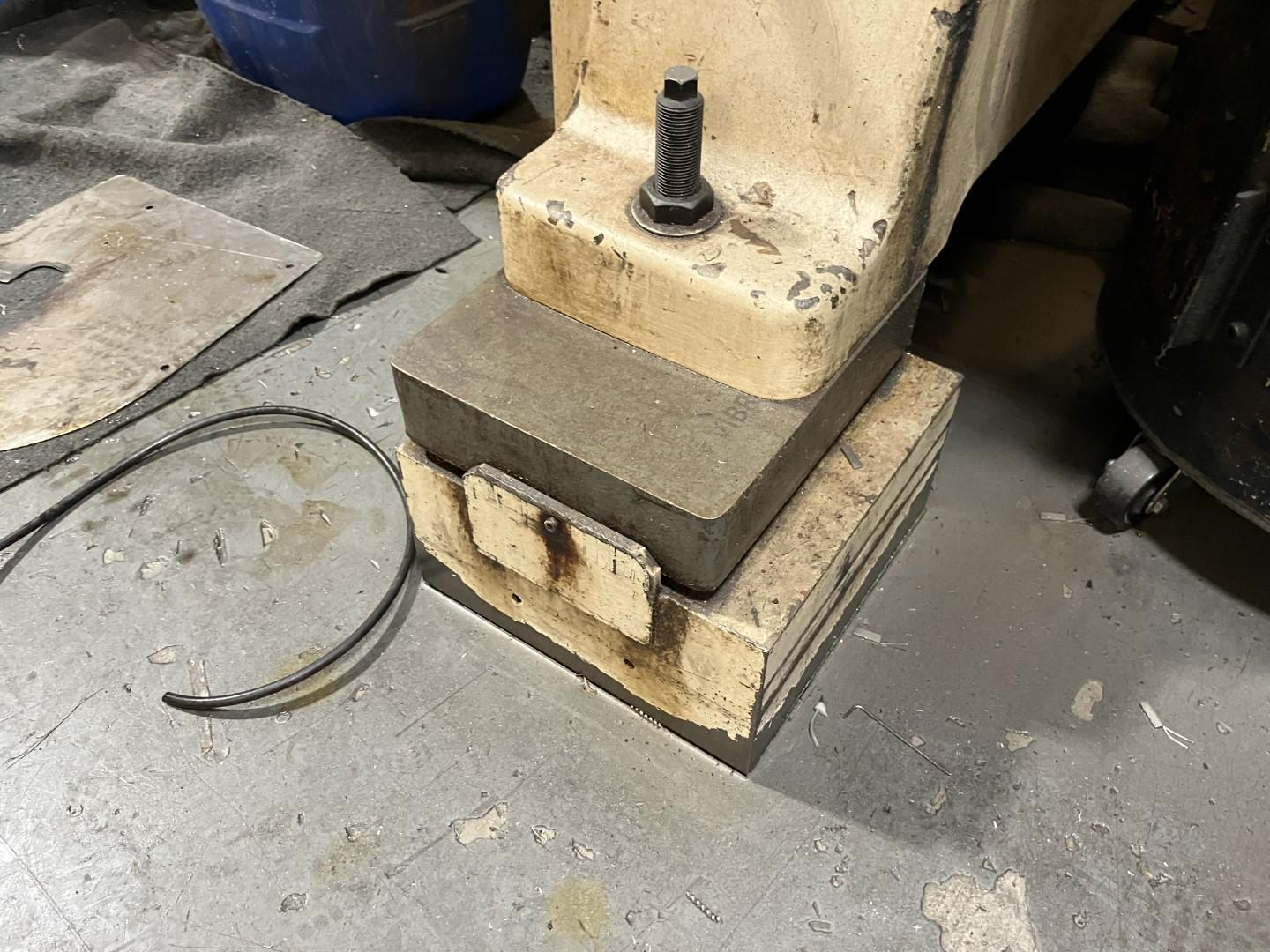

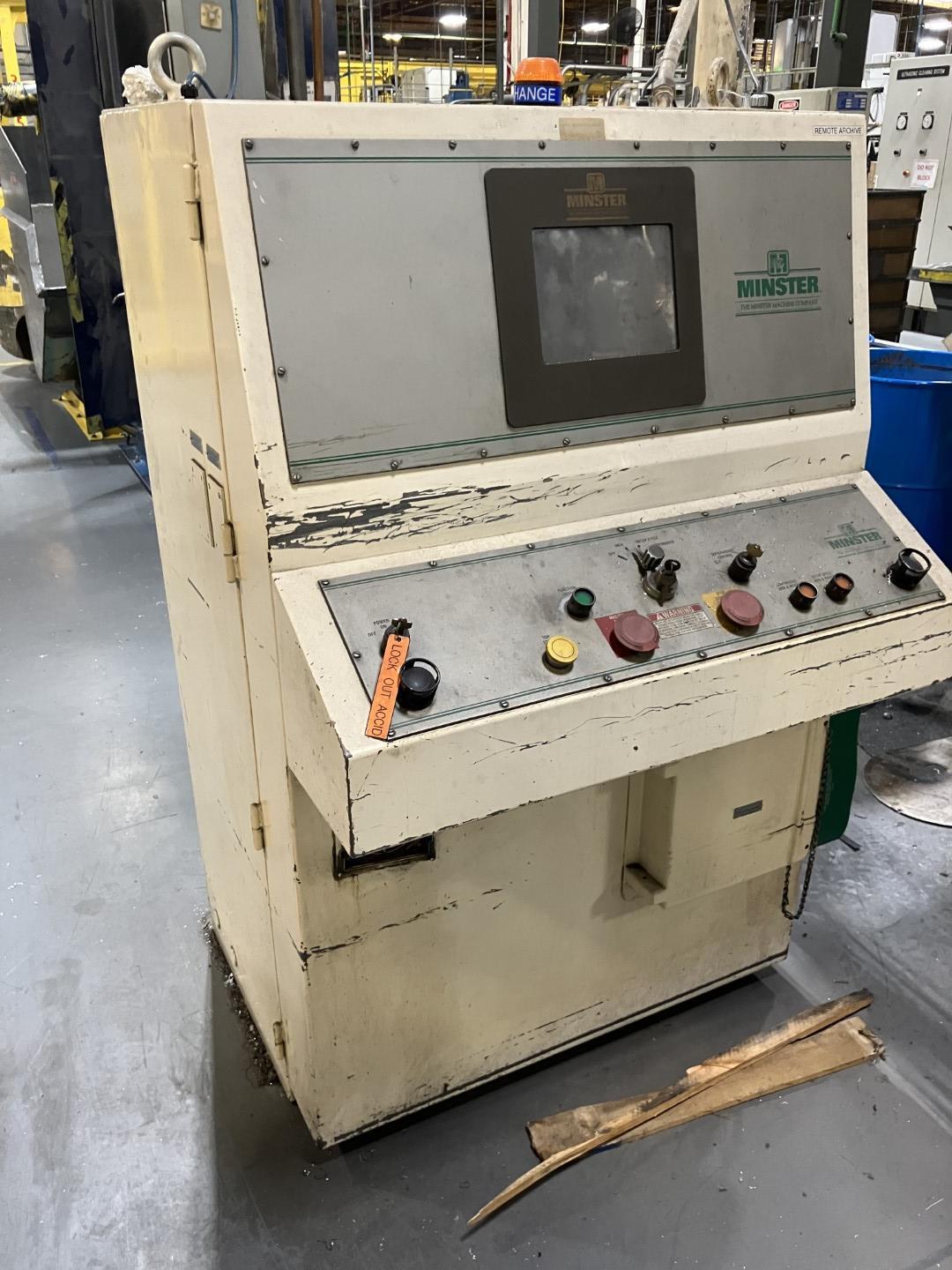

Equipment and Features Air Clutch and Brake Air Counterbalance Minster Monitor Flow Lubrication System Minster Press Controls Non-Slotted Ram 7.5" Wide Windows Free Standing Console Control 16 Programmable Limit Switches Vibro Dynamic Isolation Floor Pads Floor Standing
This used 30-ton Minster Flywheel Piece-Maker Press can be seen under power in the S &G Press Warehouse!
Used High Speed Mechanical Metal Stamping Straight Side Press For Sale

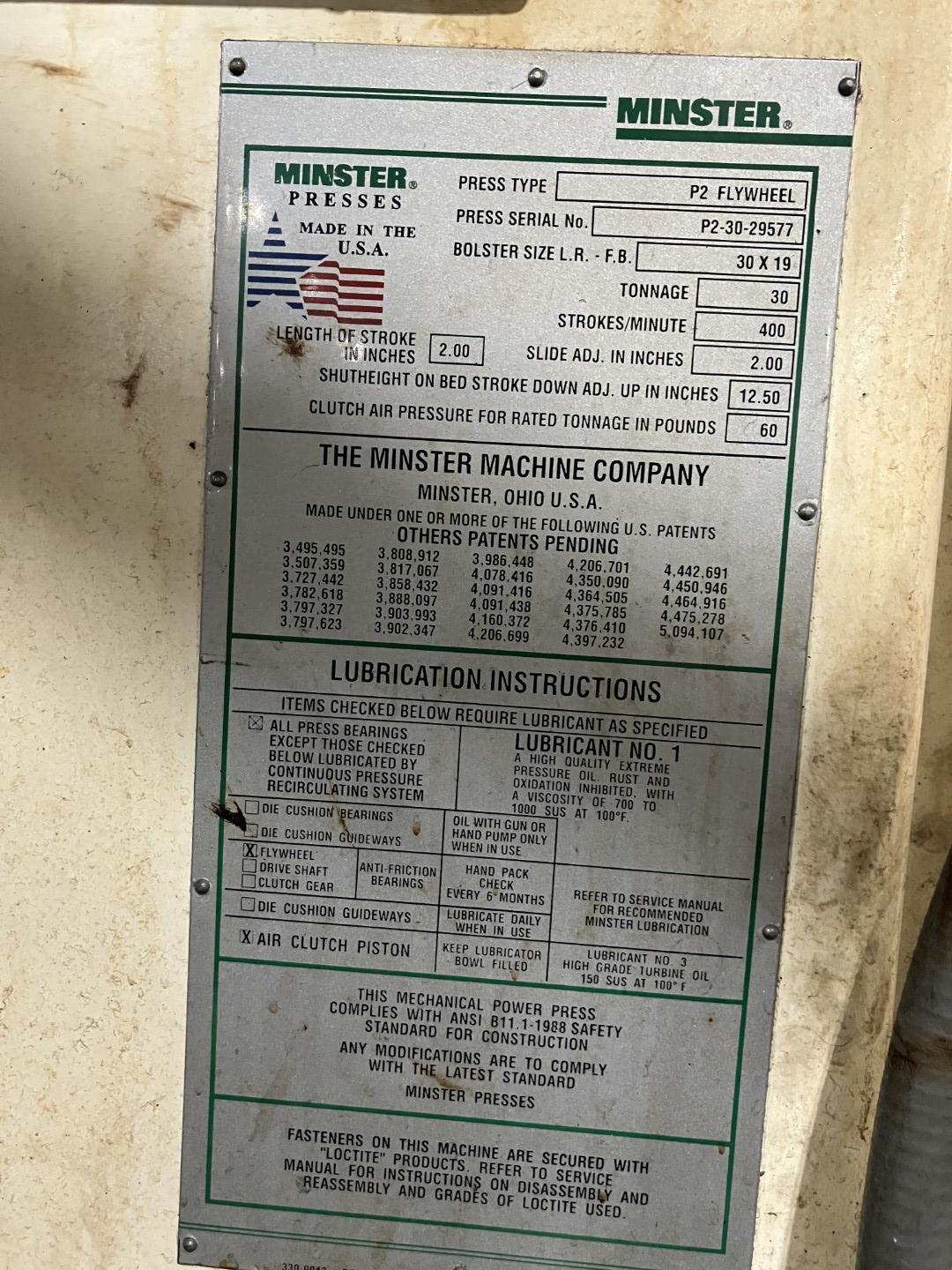

Model Number: P2-30-30, Serial Number: P2-30-29577, Year of Manufacture: 1999, Bed Area: 30” x 19”, Slide Area: 30” x 14”, Stroke: 2”, Shut Height to Bed: 12.5” SDAU over bed, Bolster Thickness: 3”, Strokes per Minute: 400, Adjustment: 2”, Windows: 7.5” wide ...more
Bruderer BSTA 30II HL high-speed production press, s a 30t capacity, bed size 530x640mm. a die protection unit, light curtains, mist lubrication, rolling scrap hopper, and sound enclosure. Used condition., 1983 BRUDERER BSTA 30II HL, Tonnage. 30 t, Bed W. 530 mm, Bed L. 640 mm, Dimensions. 530 mm x 640 mm, Weight. 30 ...more
TONNAGE RATING 30 TON, TYPE OF CLUTCH/BRAKE AIR, STROKE.375" TO 1.57", SLIDE ADJ. 1.57", SHUTHEIGHT ON BOLSTER (SDAU) 2-3/4" SPACER so Shut Height is 2.75" larger, BOLSTER DIMENSIONS 21" X 17", MOTOR 5 HP DC, SPEED OF PRESS (SPM) 0 - 800 SPM(Max SPM based on stroke & feed length), TYPE OF FEED BRUDERER BBVD ...more
