Ton: 30.0
Stroke: 22.0
Daylight: 31.0
Stock # 269
For Sale by Icon Industries, Inc
Surplus Record Dealer Since 1990
Tom,Pete,Bob
616-22...> Show Seller's Phone Number 616-229-2957 Let the seller know you found their listing on Surplus Record!
Description

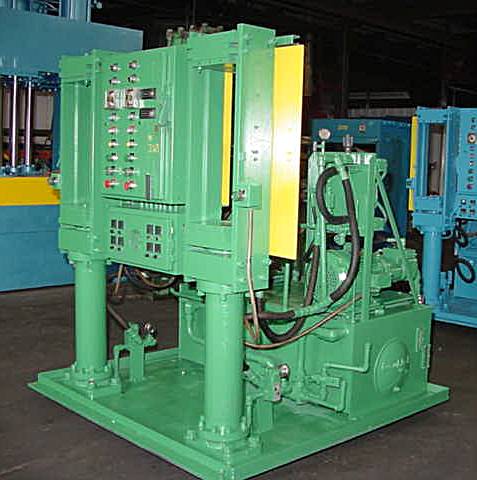

TWO PRESSES ON A COMMON BASE WITH CONTROLS AND HYDRAULIC UNITS. 10" X 10" NOMINAL PLATEN SIZE. DISTANCE BETWEEN SLAB SIDES IS 11" L TO R. DAYLIGHT WITH PLATENS 28", DAYLIGHT WITHOUT 31". TWO ELECTRIC PLATENS 10" X 10" X 1" THICK WITH THREE CARTRIDGE HEATERS EACH. APPROX STROKE 22". DOUBLE ACTING MAIN RAM 5 \u00bd" BORE, 4 \u00bc" ROD, BOTTOM PORT 1 \u00bd" NPT, ROD PORT 1" NPT, RATED AT 2500 PSI. MOVING BOLSTER GUIDED ON BRASS WEAR BARS. APPROX PRESS SPEEDS: CLOSE 180" MIN; PRESSING ADJUSTABLE FROM 1" – 60" MIN; OPEN 250" MIN. POWER UNIT WITH TWO 15 HP 1800 RPM 230/460 VOLT 60 HZ 3 PH MOTORS; TWO HYDURA PRESSURE COMPENSATED PISTON PUMPS MODEL PVQ 20A LSAY CN; 20 GPM. 150 GALLON RESERVOIR. DOUBLE A SOLENOID VALVES; RETURN LINE FILTERS, AND WATER COOLER. COMPLETE CONTROL PANEL INCLUDING PAM BUTTONS, E-STOP, BUMP BUTTONS, OPEN BUTTONS, HYDRAULIC STOP/START BUTTONS, CURE TIMERS, PLATEN HEATER CONTROLLERS, ONE SYSTEM IS MISSING 4 PLATEN HEATER CONTROLLERS. OPERATOR HEIGHT 45". OVERALL DIMENSIONS 80" L TO R X 84" F TO B X 84" TALL, APPROX WEIGHT 12,000 LBS, QTY 2 R2 (ITEM #269)
Get Your Price from Icon Industries, Inc!
