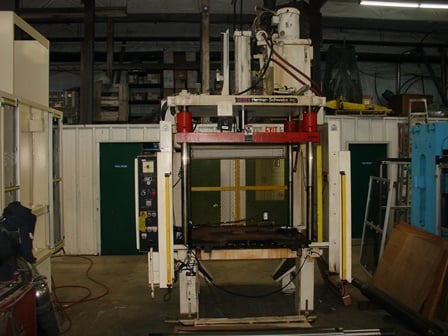

30 Ton, Herman Schwabe #4PHS, 48" x48" bed, 40" daylight, 20" stroke, set up with a pneumatically operated slide-out plate

MODEL 4PHS. SERIAL #30006. NOMINAL BED AREA IS 48" L TO R X 48" F TO B; HOWEVER THE PRESS IS SET UP WITH A PNEUMATICALLY OPERATED SLIDE-OUT PLATE THAT HAS SEVERAL CUT-OUT AREAS (18" X 12" FRONT-CENTER; ETC…). THE ENTIRE OPTIONAL SLIDE-OUT ASSEMBLY CAN BE EASILY REMOVED/UN-BOLTED. THE MAX DAYLIGHT IS APPROX 40" (44" WITH SLIDE-OUT REMOVED). THE CYLINDER IS 6" BORE WITH A 4" DIA ROD AND APPROX 20" MAX STROKE. FULLY GUIDED ON 3" DIA POSTS WITH 12" BUSHINGS. OPERATOR HEIGHT WITH SLIDE-OUT IS APPROX 36.5. TWO PNEUMATIC SAFETY SHOT-PINS AND A SLIDE IN SAFETY BLOCK (ALL HAVE INTERLOCKS; ALL ARE EFFECTIVE IN FULL-OPEN POSITION ONLY). METAL GUARDING ON SIDES; 2 STEEL MESH DOORS ON THE BACK WITH ELECTRICAL INTERLOCKS; 36" VERTICAL & 12" HORIZONTAL LIGHT CURTAINS PROTECTING THE FRONT. TOP-MOUNTED HYDRAULIC SYSTEM: 10 HP (1800 RPM; 208-460V); SUBMERGED PUMP (CASAPPA DOUBLE GEAR-15 GPM & 3.75 GPM); REGEN CIRCUIT; MOTOR END AIR COOLED HEAT EXCHANGER; 40 GALLON RESERVOIR; ETC… ELECTRICAL CONTROL SYSTEM BUILT AROUND AN ALLEN-BRADLEY SLC 500 PLC. OVERALL APPROX DIMENSIONS: 83" X 97" X 141" TALL. APPROX 15,000 POUNDS. SOME DRAWINGS. ITEM #2565.
