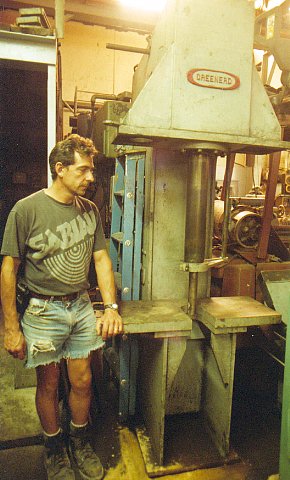

30 Ton, Greenerd, C-Frame hydraulic press, 18" stroke, 35.5" daylight, 9" throat, 20" x14" bed

Note: Unit not working at the moment. SOLD AS IS. This machine will ship to U.S.A. Duty Free.

NOTE: Unit not working at the moment

Specifications:

• Manufacturer: Greenerd (U.S.A.)
• Capacity: Approx. 30 Tons
• Stroke: 18″ +
• Total Daylight: 35½” Bottom of crown to top of bolster
• Bolster: 2″ thick (removable)
• Bolster area: 36″ wide x 15½” F-B
• Bed area: 20″ wide x 14″ F-B
• Slot in bed: 5″ wide x 10″ deep (also in bolster)
• Throat: 9″ (to center of ram)
• Cyl diameter: 9″ (exterior) (8″ piston?)
• Piston rod diameter: 4.5″
• Work height: 34″ above floor (bolster installed)
• Motor: 20 HP, 230/460 Volt, 60 Cycle, 3Ph
• Hydraulics: Vickers
• Valving: Vickers
• Height main frame: 97½”
• Height overall: 109½” (includes top mounted valving)
• Front to back: 66″ (including motor assembly)

INCLUDES:

• Disconnect switch
• 20 HP magnetic motorstarter

COMMENTS:
AS IS. This machine will ship to U.S.A. Duty Free.

Price, FOB your carrier, Montreal,Canada
