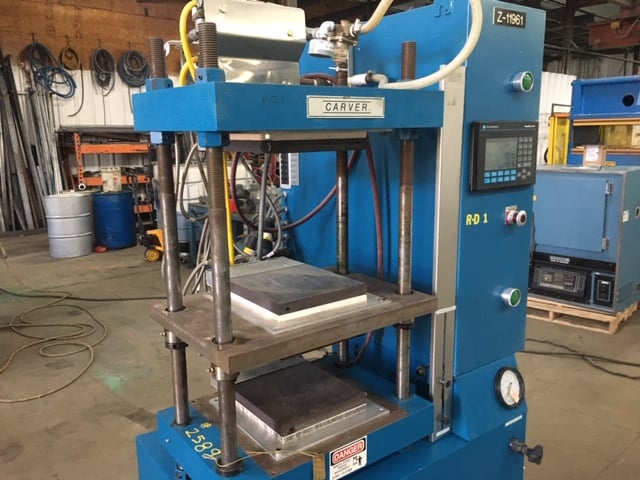

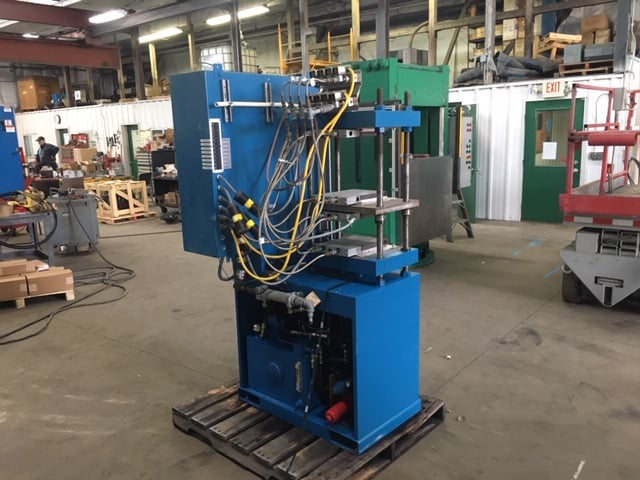

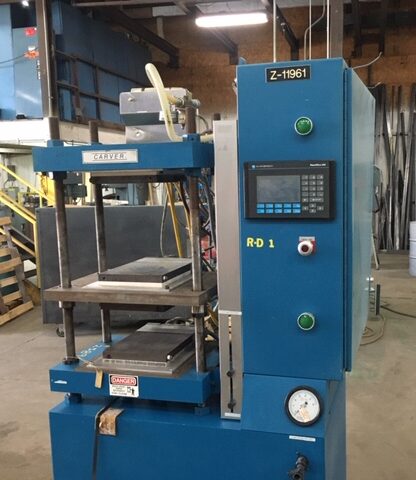

30 Ton, Carver/Wabash, 2 openings (6.5"-10" each), 6" stroke, 9" x9" elec.pltns, 2 HP, PLC, #2589

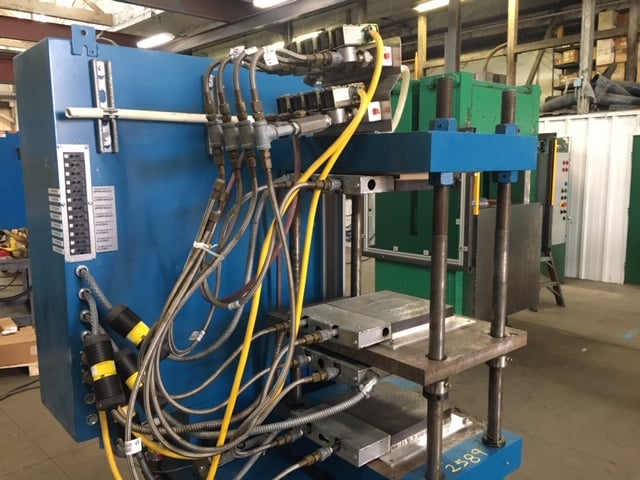

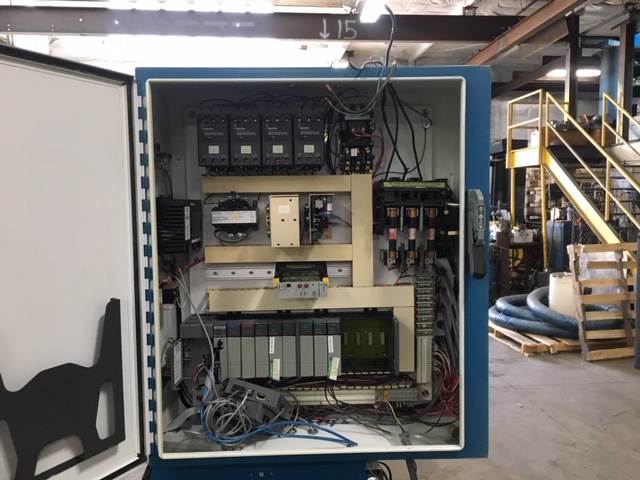

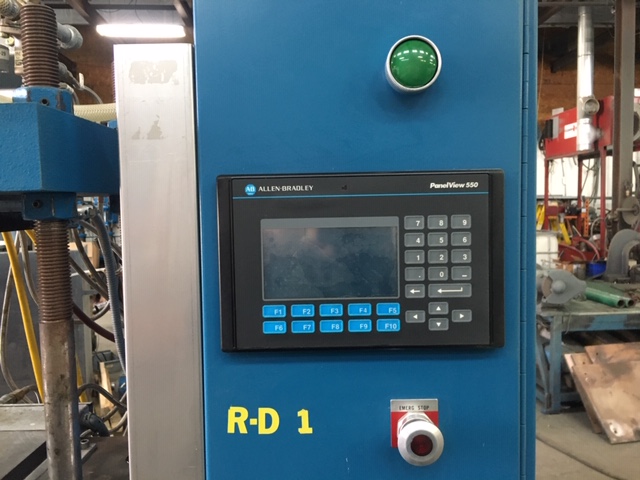

PRESS IS SET UP WITH TWO-OPENINGS (CAN BE CHANGED TO ONE). NOMINAL BED/PLATEN SIZE IS APPROX 16.25" L TO R X 15" F TO B*; HOWEVER IT IS EQUIPPED WITH 4 (2 EACH OPENING) 9" X 9" X 1" ELECTRICALLY HEATED AND WATER COOLED PLATENS. EACH PLATEN HAS INSULATION UNDERNEATH AND 4 CARTRIDGE HEATERS (0.625" X 6.5"; CEMROD CRX665-21; 500W; 240V; 750 F MAX). CYLINDER IS A 5" BORE HANNA WITH 6" MAX STROKE RATED TO 3000 PSI. 1.25" DIA TIE BARS WITH 7" OF THREAD/ADJUSTABILITY. INTERMEDIATE PLATE IS EASILY ADJUSTED. IF TWO EQUAL OPENINGS ARE NEEDED THE MIN WOULD BE TWO 6.5" OPENINGS; THE MAX WOULD BE TWO 10" OPENINGS. WITH ALL PLATENS AND PLATES REMOVED THE MAX DAYLIGHT IS APPROX 28". FULLY GUIDED WITH 3" BUSHINGS ON SLIDE AND PLATE. WORK HEIGHT OF APPROX 39.5". FORK POCKETS. MANIFOLDS FOR WATER AND AIR (TO COOL PLATENS) HYDRAULIC SYSTEM: 2 HP (1800 RPM; 230/460V); SUBMERGED PUMP; 15 GALLON TANK; WATER TYPE HEAT EXCHANGER; HI-PRESSURE FILTER; PROPORTIONAL OR MANUAL PRESSURE CONTROL; TONNAGE GAGE; ETC… CONTROL SYSTEM: ALLEN BRADLEY SLC 500 (5 INPUT CARDS; 3 OUTPUT CARDS); PANELVIEW 550; REXROTH PROPORTIONAL CARD; 4 WATLOW DIN-A-MITE SOLID STATE CONTROLLERS; PALM BUTTONS; E-STOP; 12 THERMOCOUPLE PORTS; ETC… APPROX 44" X 36" X 76" TALL. APPROX 2000 POUNDS. ITEM #2589.
