For Sale by Blumberg Machinery Co
Surplus Record Dealer Since 1971
Location: Bannockburn, IL
Contact Jerry/ Ryan
Phone Number: 847...> Show Phone Number 847-580-6800
Let the seller know you found their listing on Surplus Record!
Description

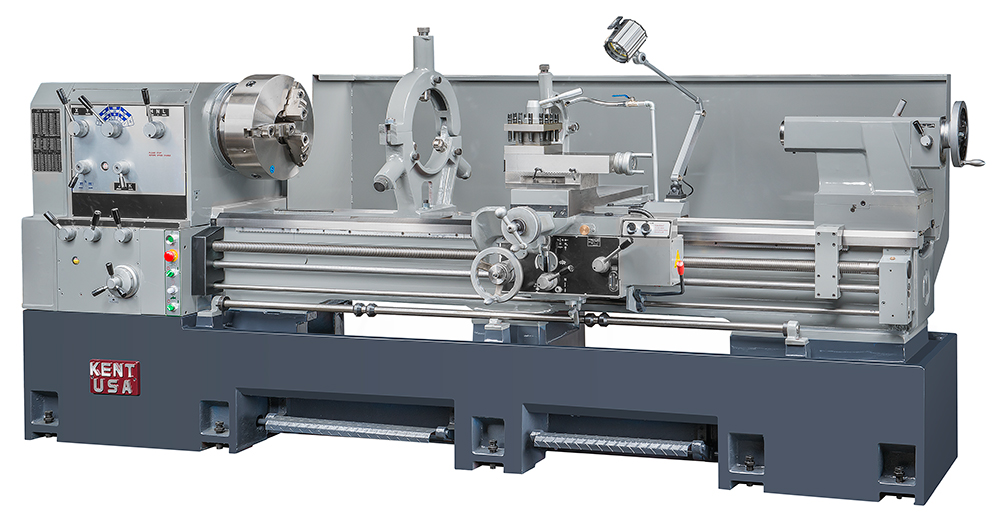

30" x 80" KENT USA HW-30 SERIES MANUAL PRECISION LATHE - NEW
PRODUCT HIGHLIGHTS
STANDARD ACCESSORIES
PRODUCT HIGHLIGHTS
- 15 HP spindle motor, 12-speeds
- 4.5 (115 mm) spindle through hole
- Solid one piece full length casting base and bedways for maximum rigidity
- Spindle jog button control
- One-shot lubrication for apron, multi-position adjustable feed position stops
- Dual inch/metric calibrated tailstock
- Dual inch/metric dials
STANDARD ACCESSORIES
- 3-jaw chuck (15)
- Steady rest
- Follow rest
- Thread chasing dial
- 4-position tool post
- 4-position carriage stop
- Coolant system with full-length splash guard
OPTIONAL ACCESSORIES
- Digital Readout System
- Aloris DA #5-SET (Tool post and 6 holders)
- Royal spindle type live center
- BTC 3-jaw chuck with back plate (Zero-set, 15 D1-11)
- Adaptor plate and rear 12 3 jaw chuck for back of spindle
- Face plate (20 D1-11)
- Taper turning attachment
- Micrometer carriage stop
- Swing Over Bed
- Swing Over Cross Slide
- Swing Over Gap
- Width of Bed
- Distance Between Centers
- Cross Slide Travel
- Top Slide Travel
- Spindle Speeds
- Spindle Speed Range
- Through Hole Diameter
- Spindle Nose
- Spindle Bore Taper
- Thread Standard (Whit-worth)
- Thread Metric Pitch
- Longitudinal Feed
- Cross Feed
- Lead Screw Diameter
- Threading Pitch
- Quill Travel
- Quill Diameter
- Quill Bore Taper
- Main Motor
- Coolant Pump Motor
- Machine Dimension
- Packing Dimension
- Machine weight
- Packing weight
HW-30 Series
- 30"
- 21.3"
- 38.9"
- 15.75"
- 80" (Opt 120" / 160")
- 14.75"
- 8"
- 12
- 10-1000 RPM
- 4.5"
- D1-11
- MT#7
- 44 (2-56) TPI
- 39 (0.2-14) mm
- 0.002" - 0.032" IPM
- .001 - .0094"
- NA
- NA
- 6.5"
- 3.3"
- MT#5
- 15 HP
- 1/8 HP
- NA
- 137" / 186" / 219" x 41" x 52"
- 7010 / 8663 / 11,330 Lbs
- 7340 / 8994 / 11,772 Lbs
Get Your Price from Blumberg Machinery Co!
